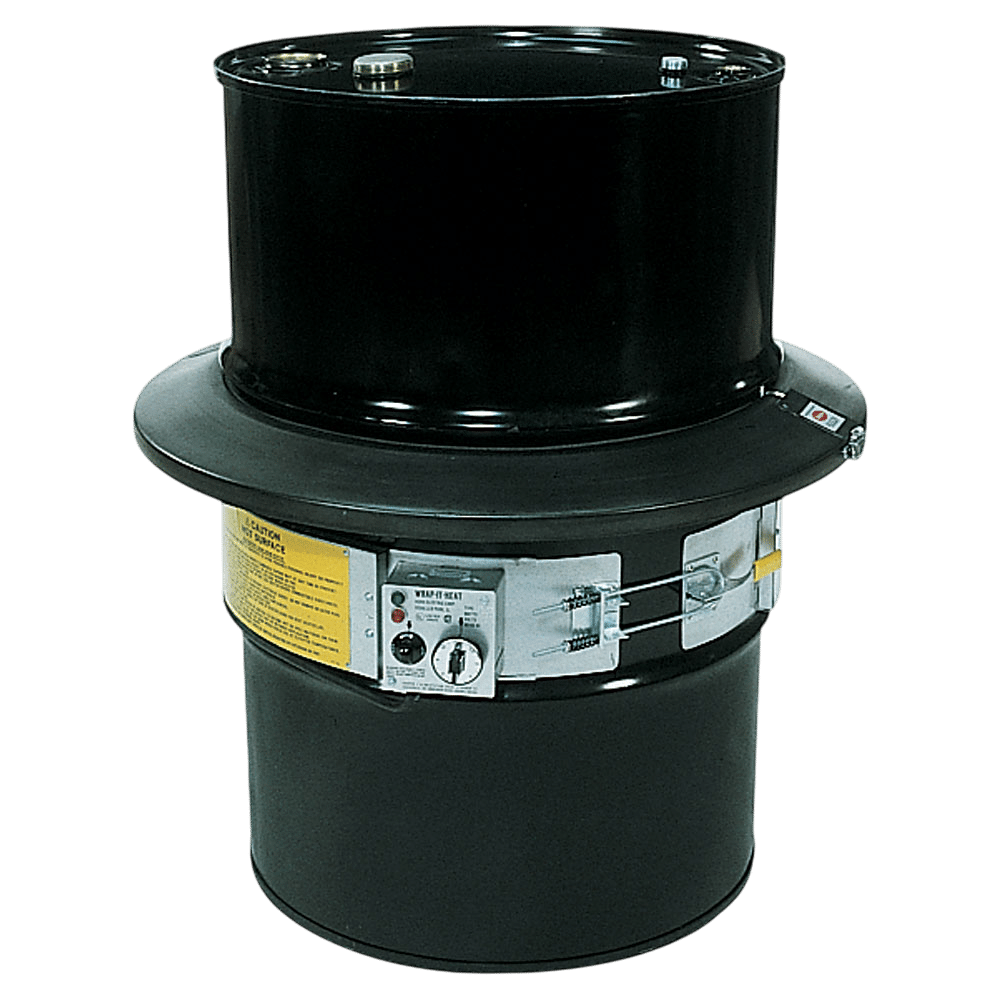

Metal Jacketed Drum Heaters

The durable design of Tempco’s Metal Jacketed Drum Heaters comes in a variety of diamters and ratings at 5 inches wide. An Optional Drip Guard available for 55 gallon drums prevents contamination from drum materials.

Thermostat Control Models sense temperature in an area remote from the heating element and will automatically cycle heater to maintain set temperature. Three-heat switch allows three wattage ratings per thermostat setting and voltage rating.

Infinite/Variable Control Models cycle the current ON and OFF. The ratio of ON time will increase as the control is advanced. Three-heat switch allows the operator to control the heater output within a given 3 settings of high, medium, or low.

Resources

Catalog PDF

Preconfigured & Stock Parts

Please wait while we gather your results.

Design Features:

Rapid heat-up of drum
Easy installation and removal
Durable metal design
Infinite switch or thermostat
3-heat control
Indicator lamps: green for power, red for heater
6 ft. power cord
Stock to 2 week lead time!
UL listed and CSA certified

The 1920 Watt/120V model is equipped with a special high amperage plug. If required the matching receptacle is: Part Number EHD-103-108 (Hubbell® #5361, 20A, 125V)
The 3000 Watt/240V is equipped with a standard 15A/240V straight blade type plug.

Typical Industries & Applications
