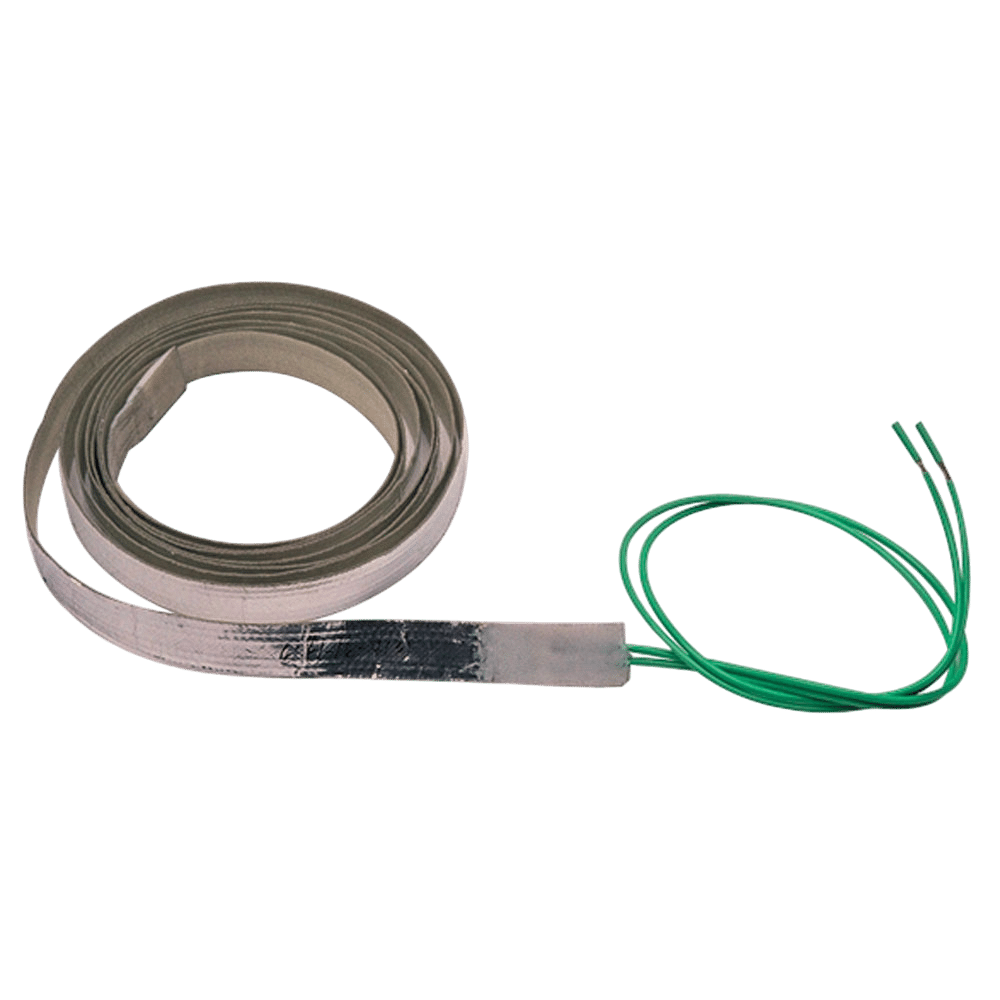

Silicone Heating Tape

Operating Temperature Range: −100°C to 250°C, −148°F to 482°F

Outgassing…TML/VCM: 1.047%/.322%

Adhesion to Etched Aluminum (oz/inch width): 28 @ +125°C, 450 @−100°C

Overall Thickness Applied: .025" (.63 mm)

Dielectric Strength: 600 Vdc

Acrylic Heating Tape

Operating Temperature Range: −40°C to 150°C, −40°F to 302°F

Outgassing…TML/VCM: 1.0%/.10%

Adhesion to Etched Aluminum (oz/inch width): 15 @ +125°C, 50 @−100°C

Overall Thickness Applied: .028" (.71 mm)

Dielectric Strength: 600 Vdc

4 conductor Tape

1/2" (12.7 mm) wide; has the highest watt density and the most variety of resistances.
It can have leads at one end in the case of a series connection or a series/parallel connection, or leads at either end in a parallel connection.

The tightest wrap this tape can achieve is on a 1/4" (6.3 mm) O.D. surface.
A smaller tube should be wrapped with 1/4" (6.3 mm) or 1/6" (4.2 mm) tape.

2 conductor Tape

1 conductor Tape

1/6" (4.2 mm) wide; can wrap down to .060" (1.52 mm) O.D.
A lead will be present at both ends.

Type 1: Parallel

Type 2: Series

Type 3: Paralellel-Series

Solderless Crimps

Transfer Tape
