3-1/2" Square Flanged, 3 Elements

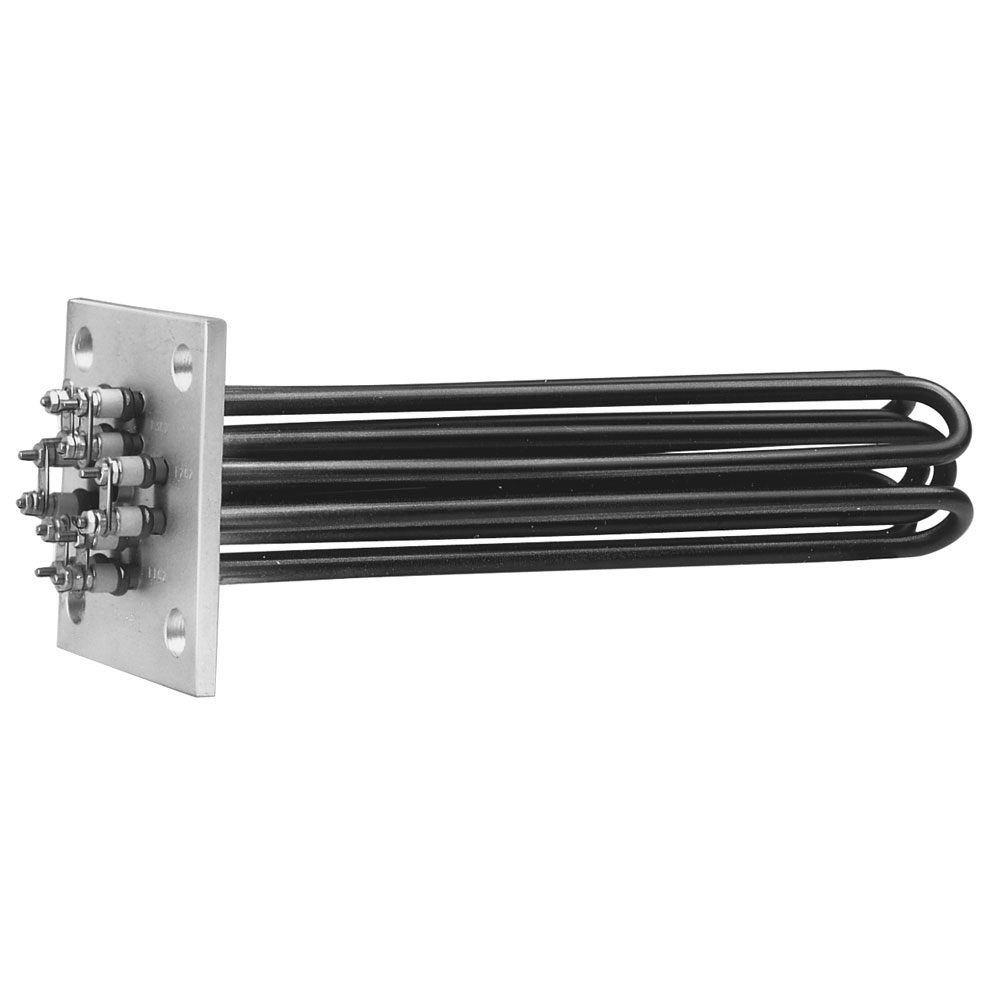

6" Square Flanged, 6 Elements with 2 circuits

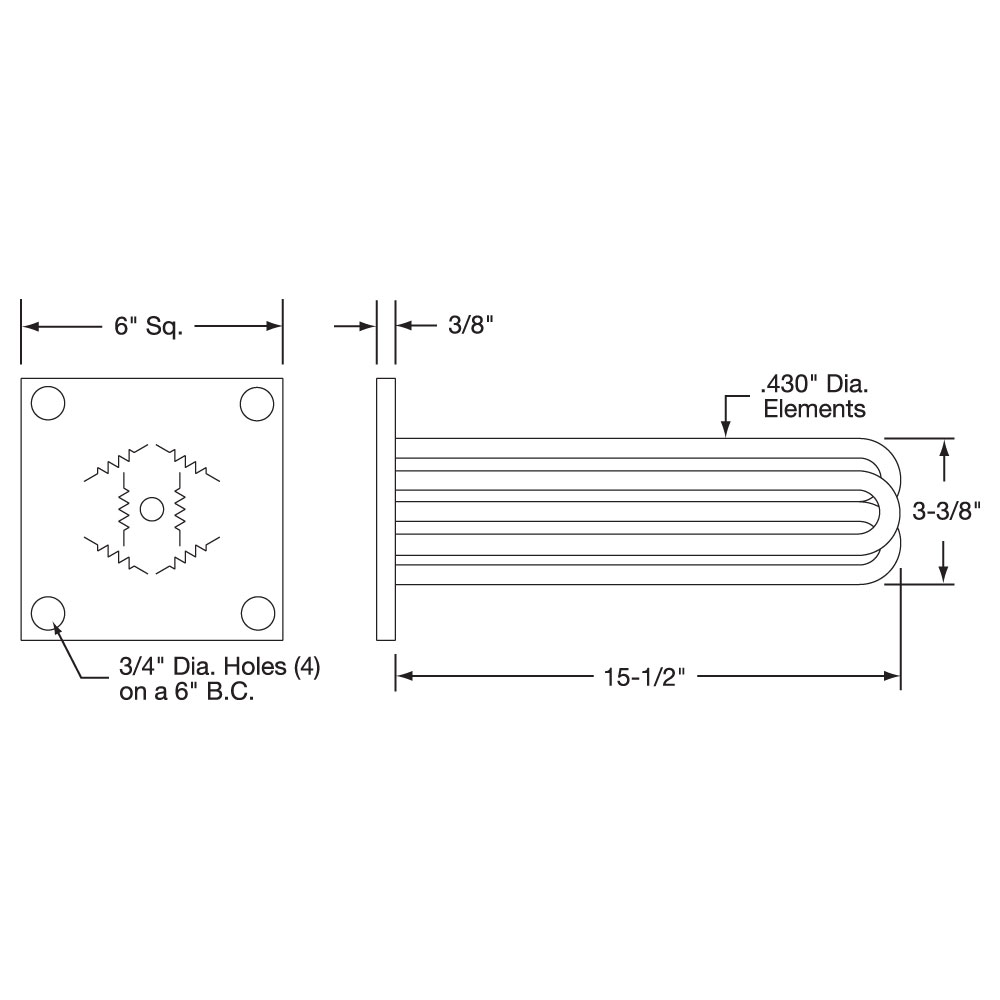

6" Square Flanged, 6 Elements

2-1/2" Square Flanged, 1 Element

7-1/2" Diameter, 6 Elements

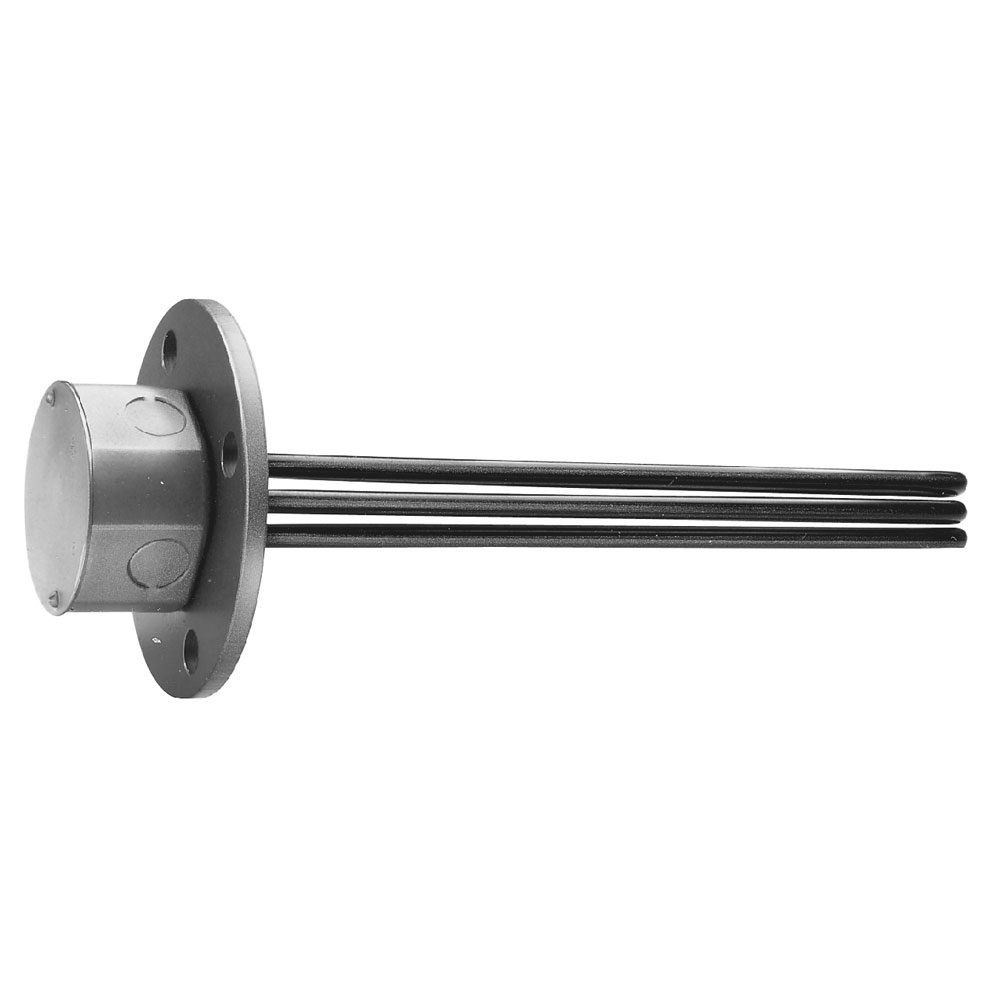

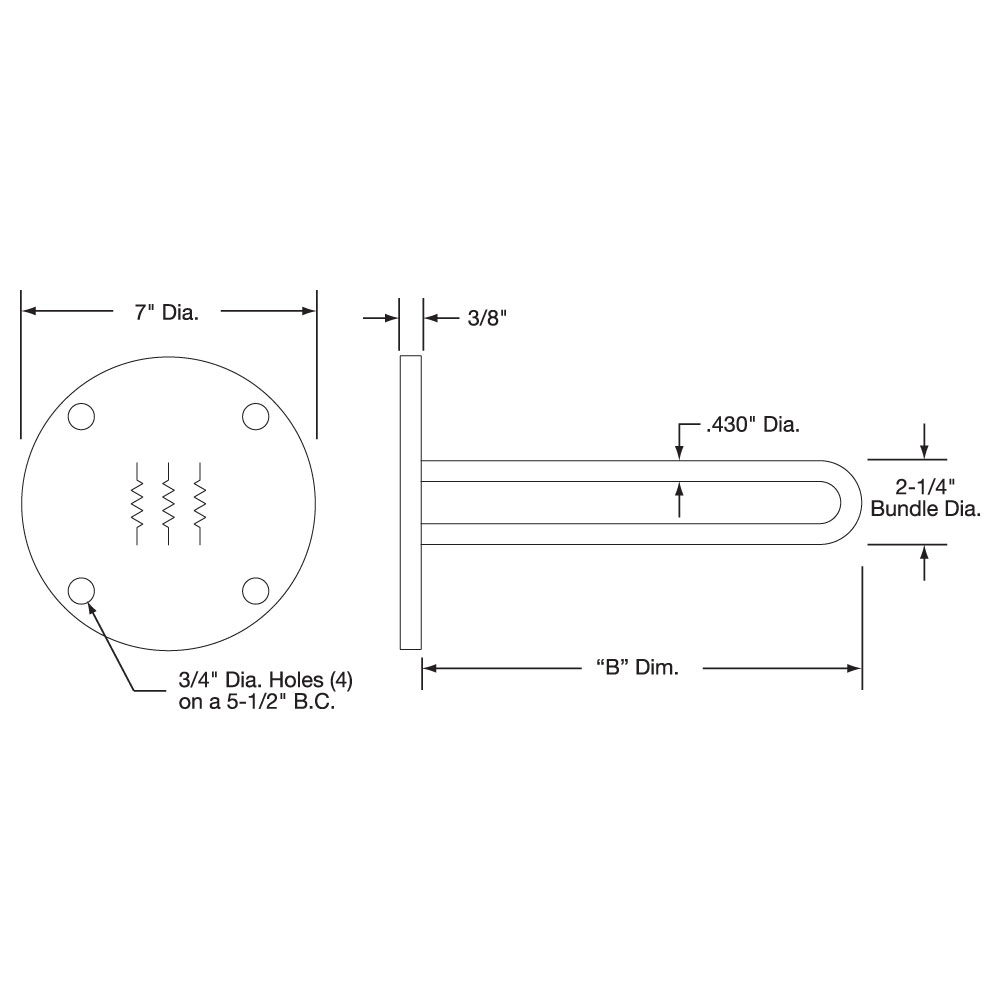

7" Diameter Flange, 3 Elements

6-1/2" Diameter, 6 Element, 1 Circuit

6-1/2" Diameter, 6 Element, 2 Circuits

Request Custom Non-Pressure Rated Flanged Immersion Heater

If your filter selections do not return your desired results from our standard configurations, please continue to select your Specifications.

When you are finished, save your selections in the Wish List (using the button at the right of this page) and follow the steps to submit them to Tempco.

Incoloy 800

Nickel 30-35%, Chromium 19-23%, Iron balance.

The high nickel content of this alloy contributes to its resistance to scaling and corrosion. Used in air heating and immersion
heating of potable water and other liquids.

Copper

Standard Copper Alloy

A low temperature, inexpensive material used mainly for clean water heating.

Maximum Sheath Temperature: 350°F / 177°C

Steel

Low Carbon

Used for high to low viscosity oils, asphalt, tar, wax, molten salt, heat transfer liquid media and other compatible solutions.

Round Mounting Flange

Square/Rectangular Mounting Flange

Screw Terminals only

Request Other Electrical Terminations

If your filter selections do not return your desired results from our standard configurations, please continue to Refine Results for your specifications.

When you are finished, save your selections with the Save Results for Quote button (at the right of this page) and choose Request for Quote for further assistance.

DPST Thermostat

SPST Thermostat

Request Other Thermostat

If your filter selections do not return your desired results from our standard configurations, please continue to select your Specifications.

When you are finished, save your selections in the Wish List (using the button at the right of this page) and follow the steps to submit them to Tempco.

Stuffing Box Assembly

Products Temporarily Unavailable for Individual Purchase

The Stuffing Box Assembly is used to seal the thermostat capillary when the sensing bulb (3/8" max. OD) is immersed directly in a liquid rather than in a thermowell. The Stuffing Box consists of six slotted washers used to compress a graphite packing into a 3/8" NPT male pipe thread fitting. Assembly Instructions Feed sensing bulb through hole in upper and lower fitting. Insert washers and packing into top cavity of lower fitting. Upper fitting then screws into lower fitting, creating the seal.
Part Number: TST-109-101

Thermowells
