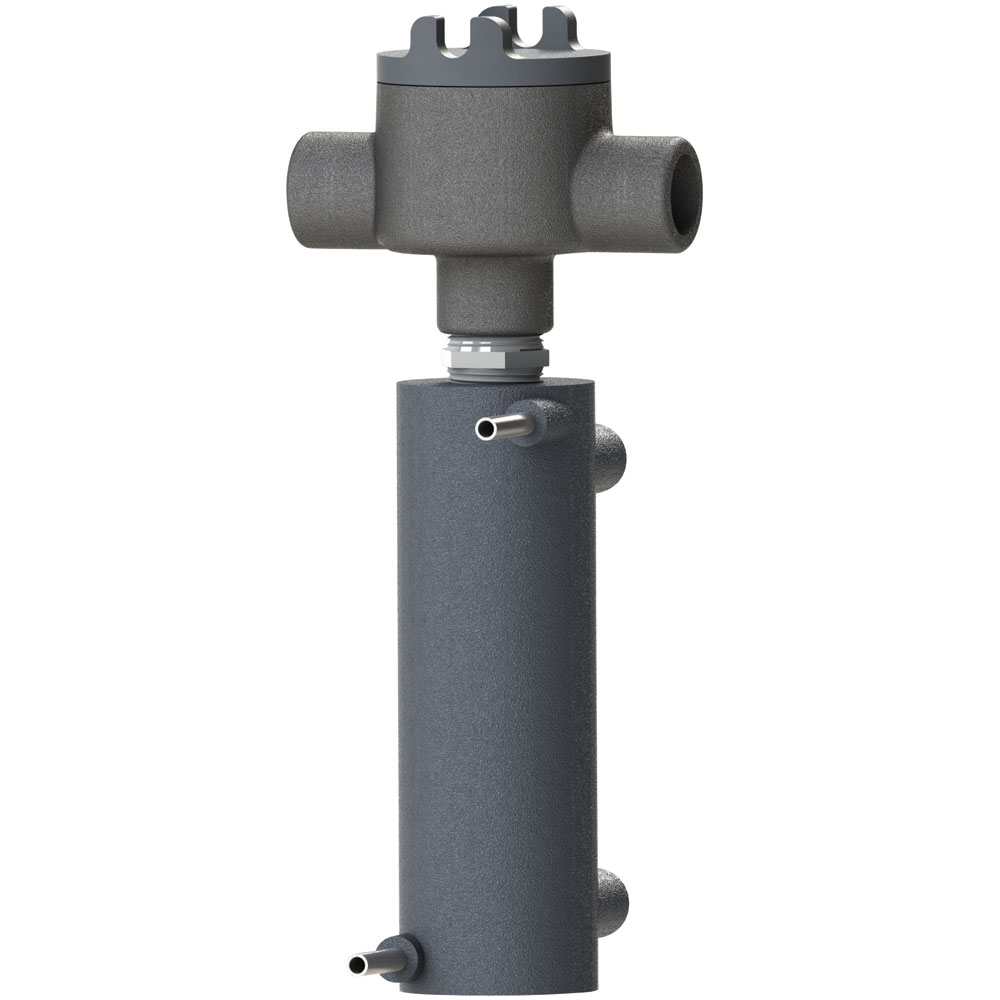

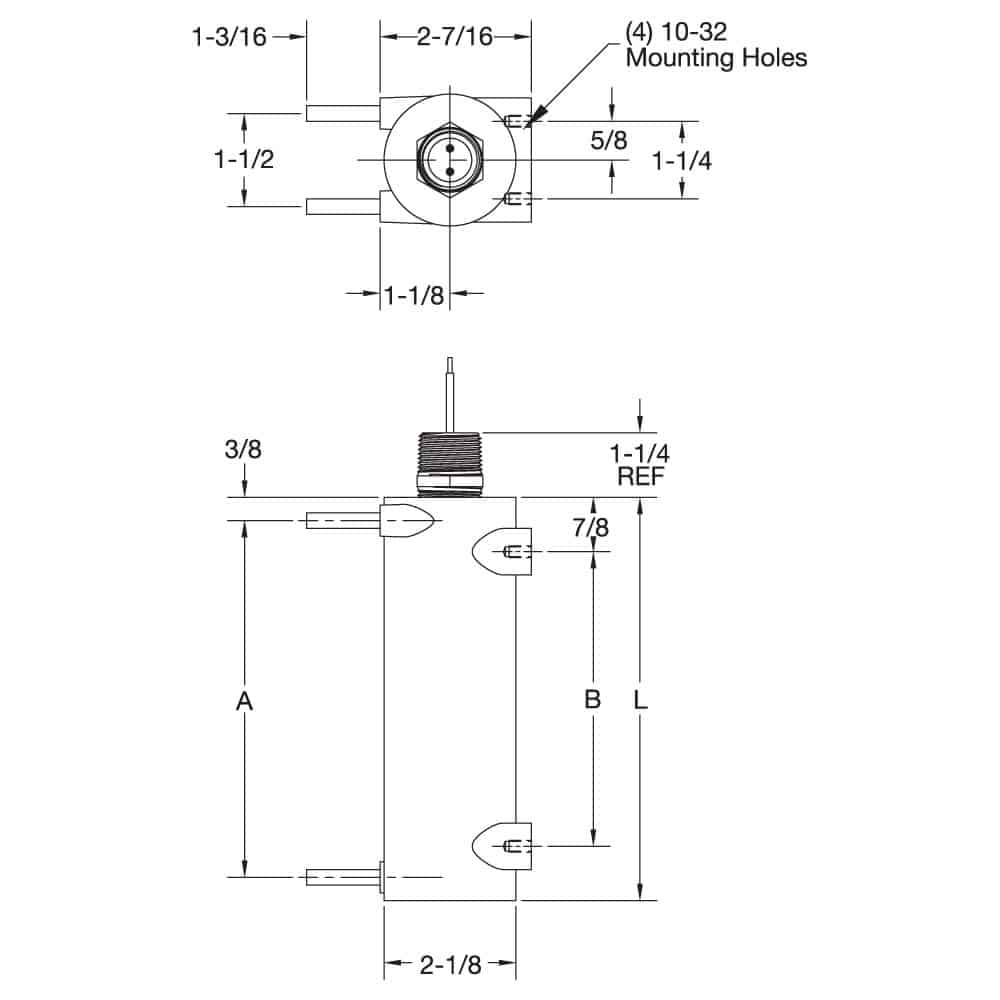

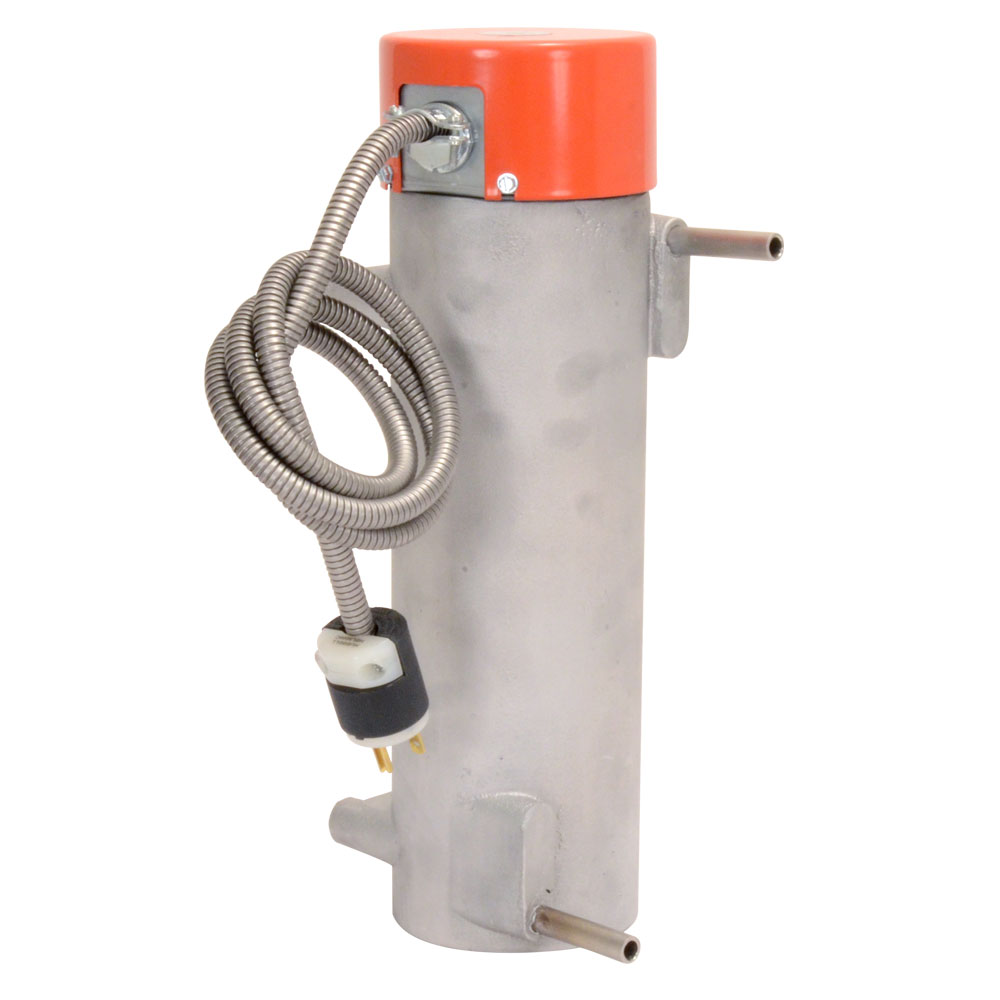

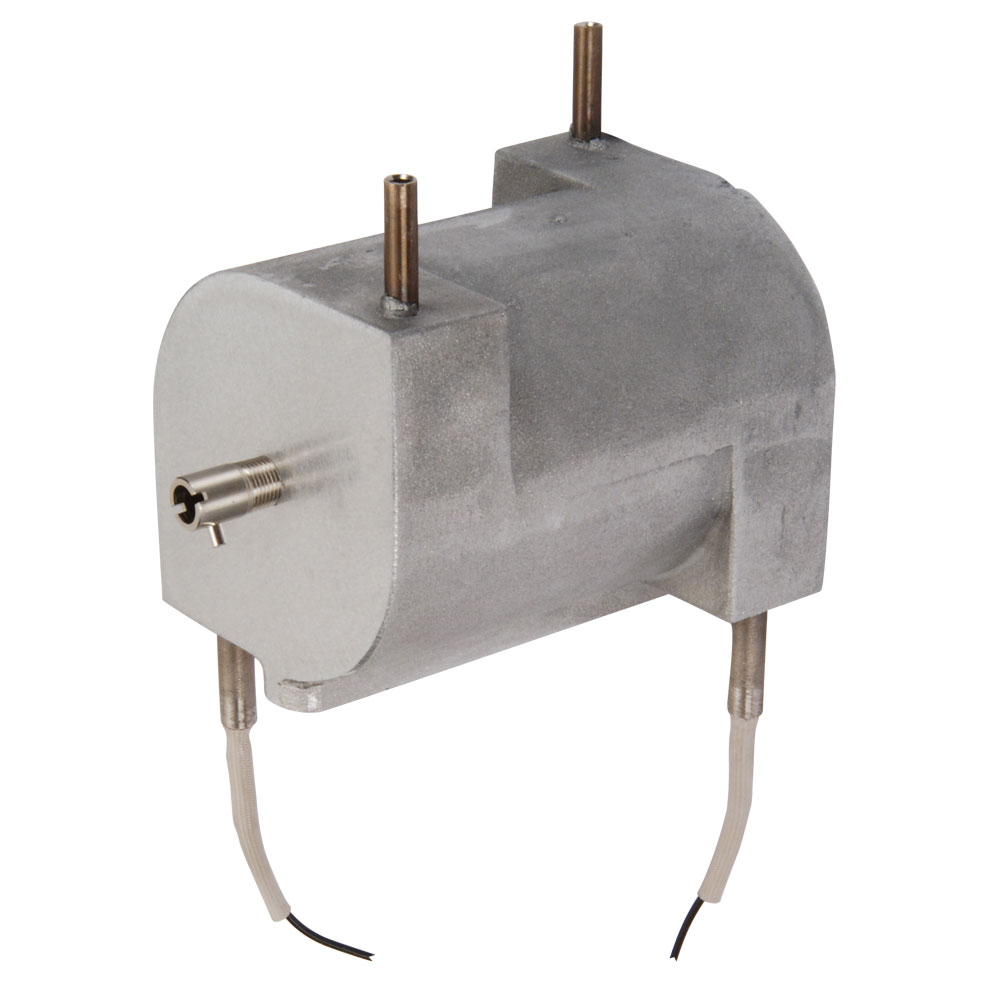

CHX - 100 Series

• Replaceable 5/8" diameter Hi-Density Cartridge Heater
• Cast Aluminum heat exchanger body
• Operating pressure up to 3200 PSI
• Operating temperature up to 650°F (343°C)
• Heater Lengths: 6.5" and 12.5"

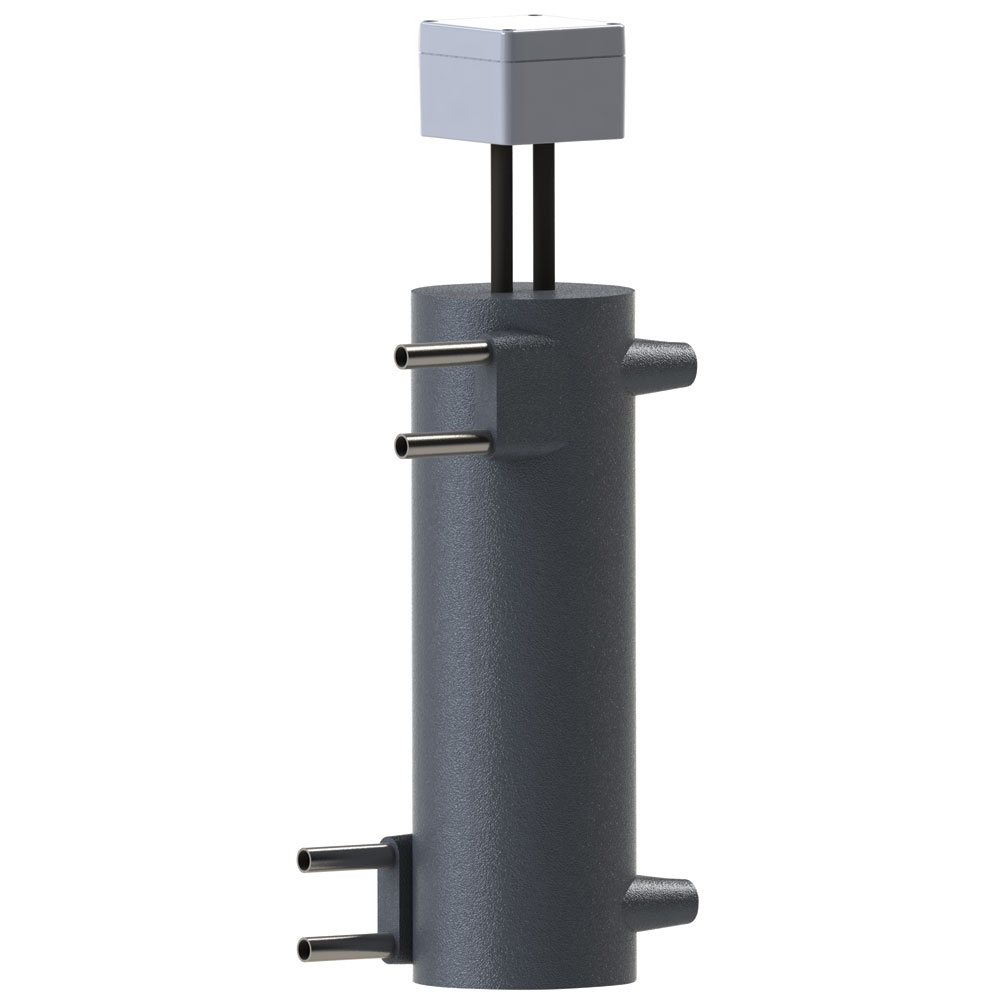

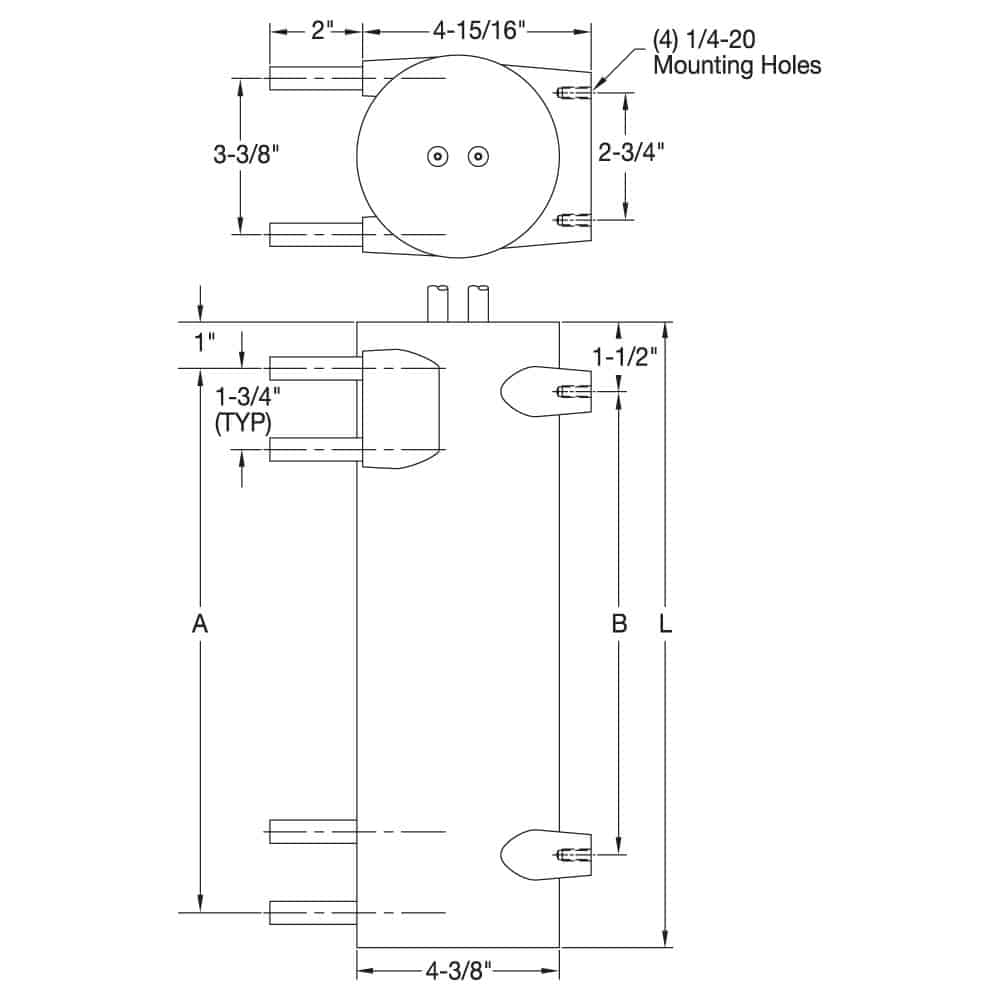

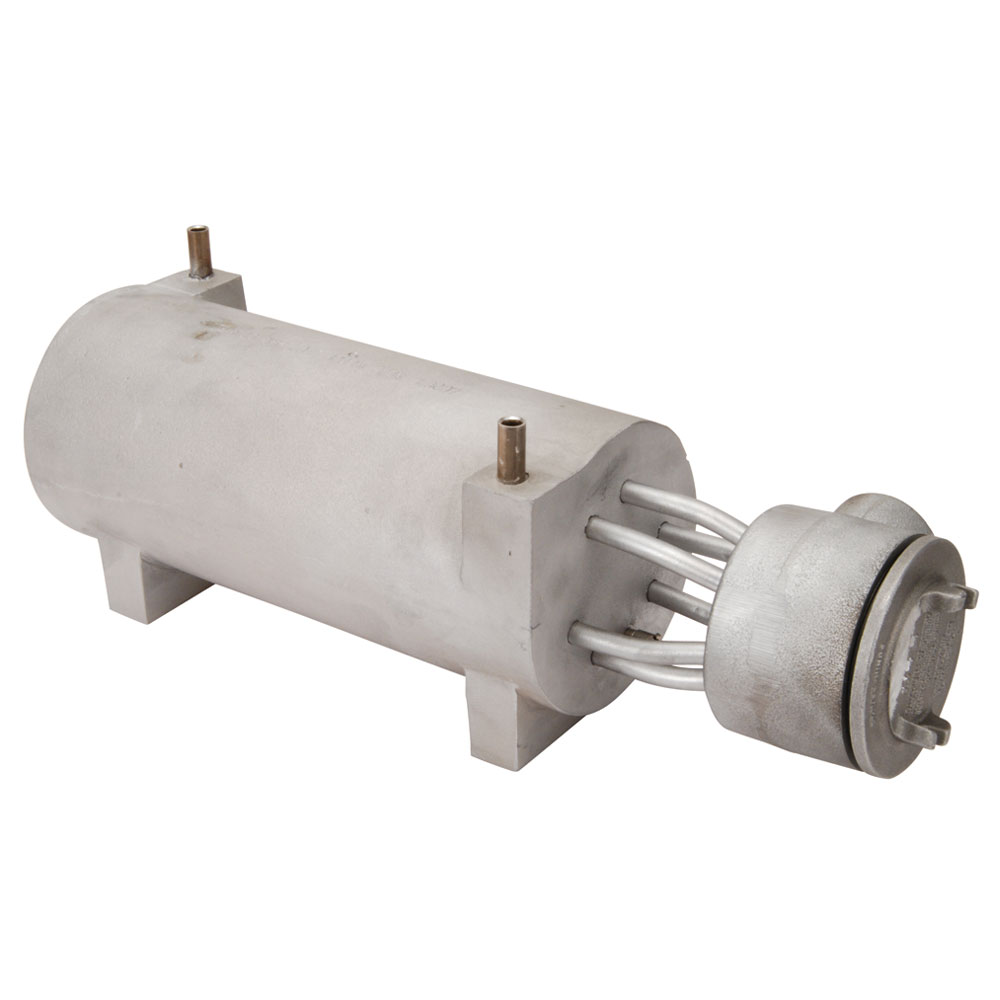

CHX - 200 Series

• Cast-In Tubular Heater
• Cast Aluminum heat exchanger body
• Operating pressure up to 3000 PSI
• Operating temperature up to 650°F (343°C)
• Heater Lengths: 13.5", 19.5", and 23.75"
• Single- or Three-Phase

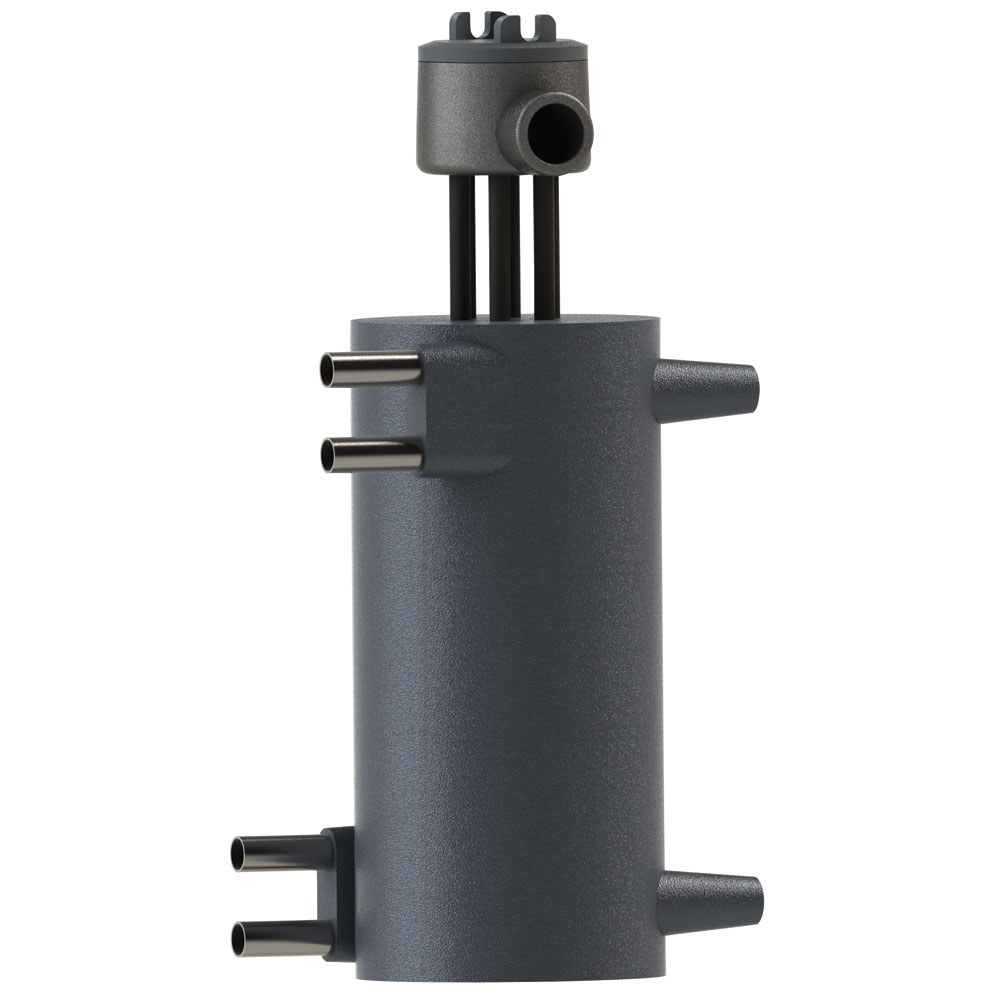

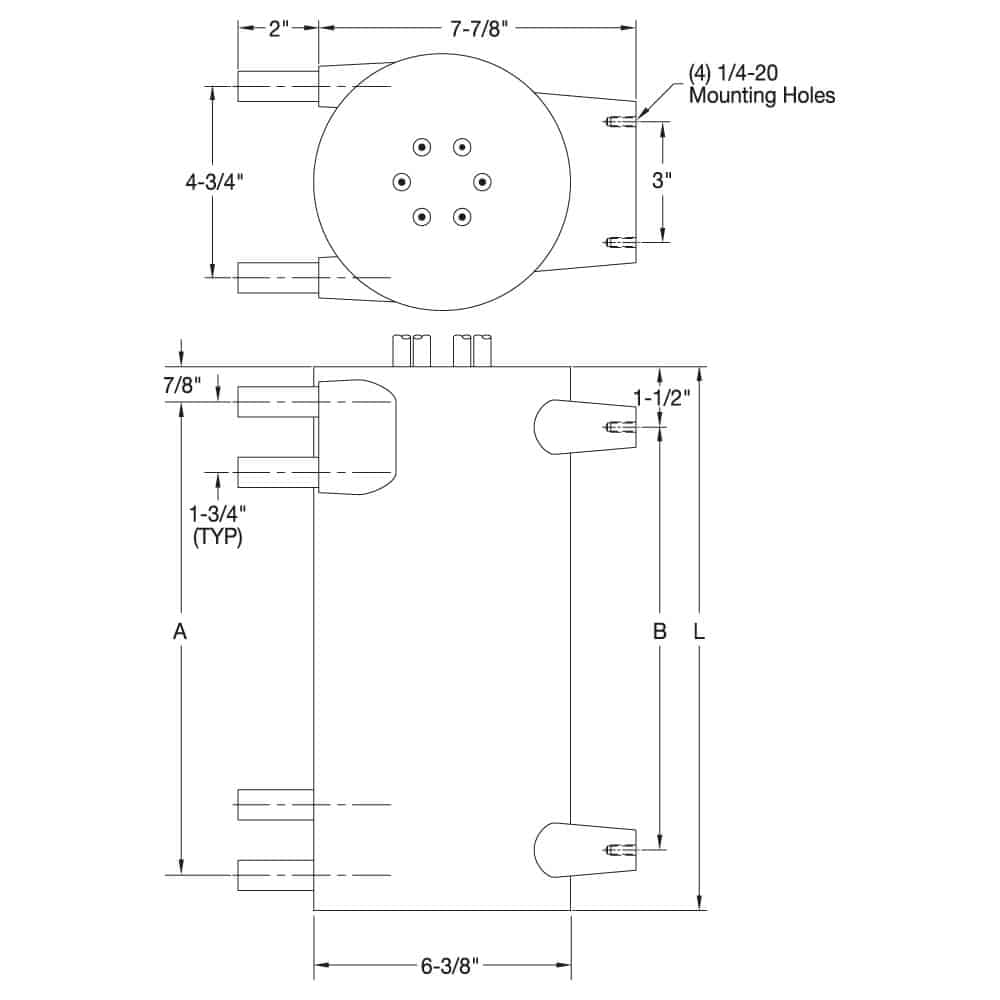

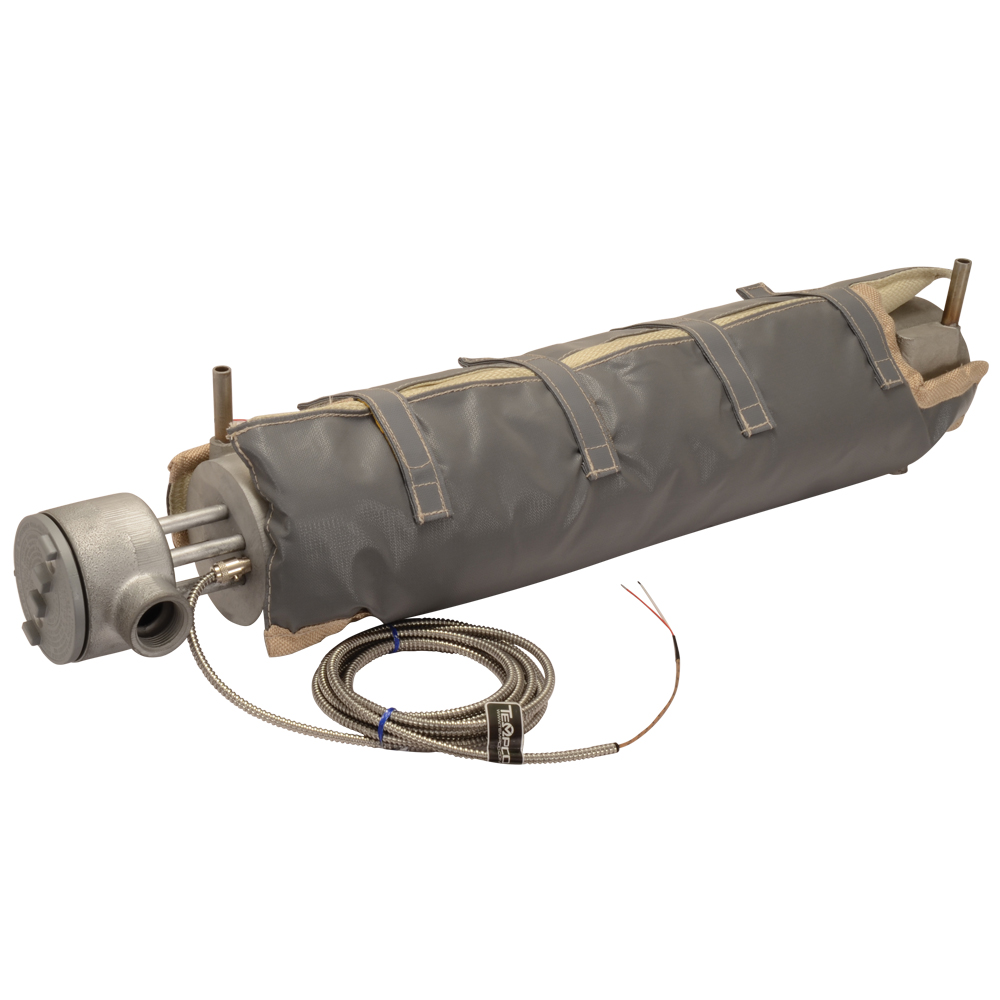

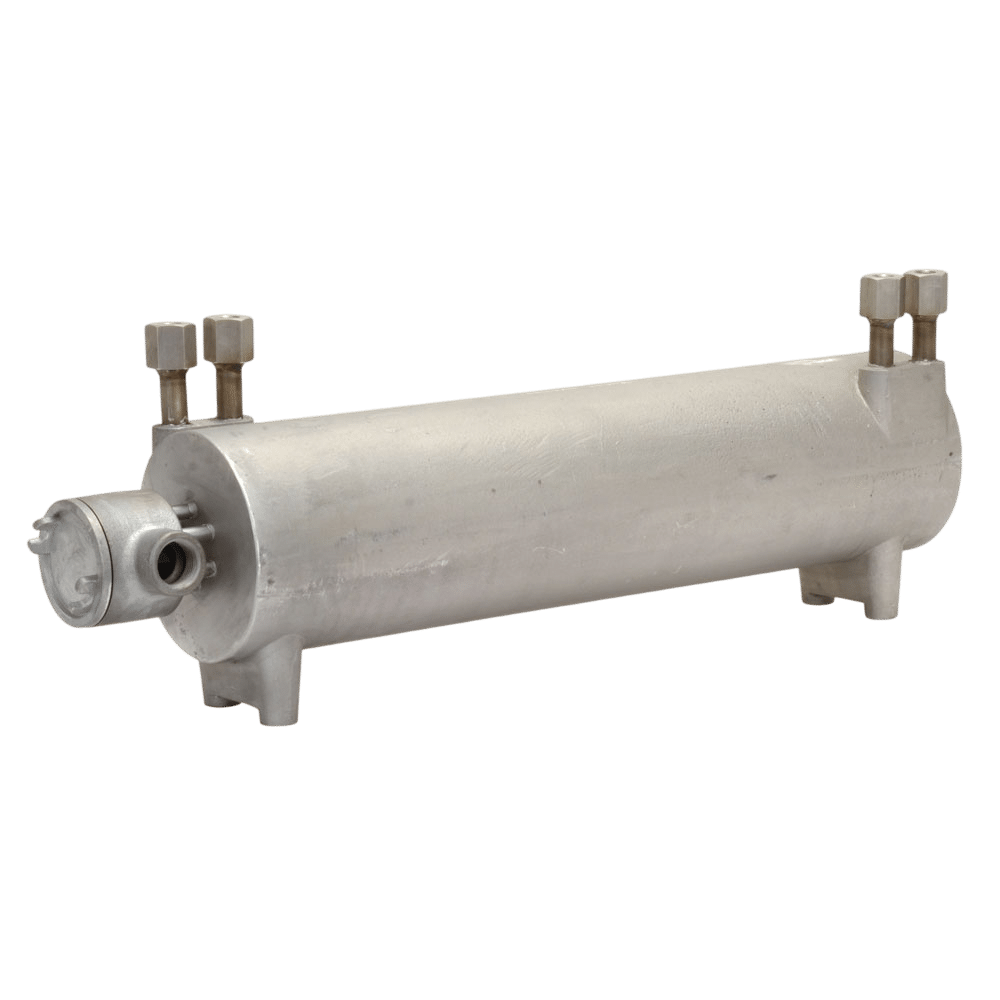

CHX - 300 Series

• Cast-In Tubular Heater
• Cast Aluminum heat exchanger body
• Operating pressure up to 2600 PSI
• Operating temperature up to 650°F (343°C)
• Heater Lengths: 13.5", 19.5", and 25.5"
• Single- or Three-Phase

Type CN: NPT Fitting

A double threaded pipe fitting is attached to the end of a cartridge heater to allow for installation into a threaded hole. Brass fittings are silver brazed and stainless steel fittings are heli-arc welded.

Type T: Mica Insulator

Mica insulator is the same diameter as the heating element.
.260" diameter heater has 6-32 screw terminals.
.315" diameter heater has 8-32 screw terminals.
.430" diameter heater has 10-32 screw terminals.

Type T7: Ceramic Insulator

Ceramic insulator is the same diameter as the heating element.
.260" diameter heater has 6-32 screw terminals.
.315" diameter heater has 8-32 screw terminals.
.430" diameter heater has 10-32 screw terminals

Request Other Electrical Termination

If your filter selections do not return your desired results from our standard configurations, please continue to Refine Results for your specifications.

When you are finished, save your selections with the Save Results for Quote button (at the right of this page) and choose Request for Quote for further assistance.

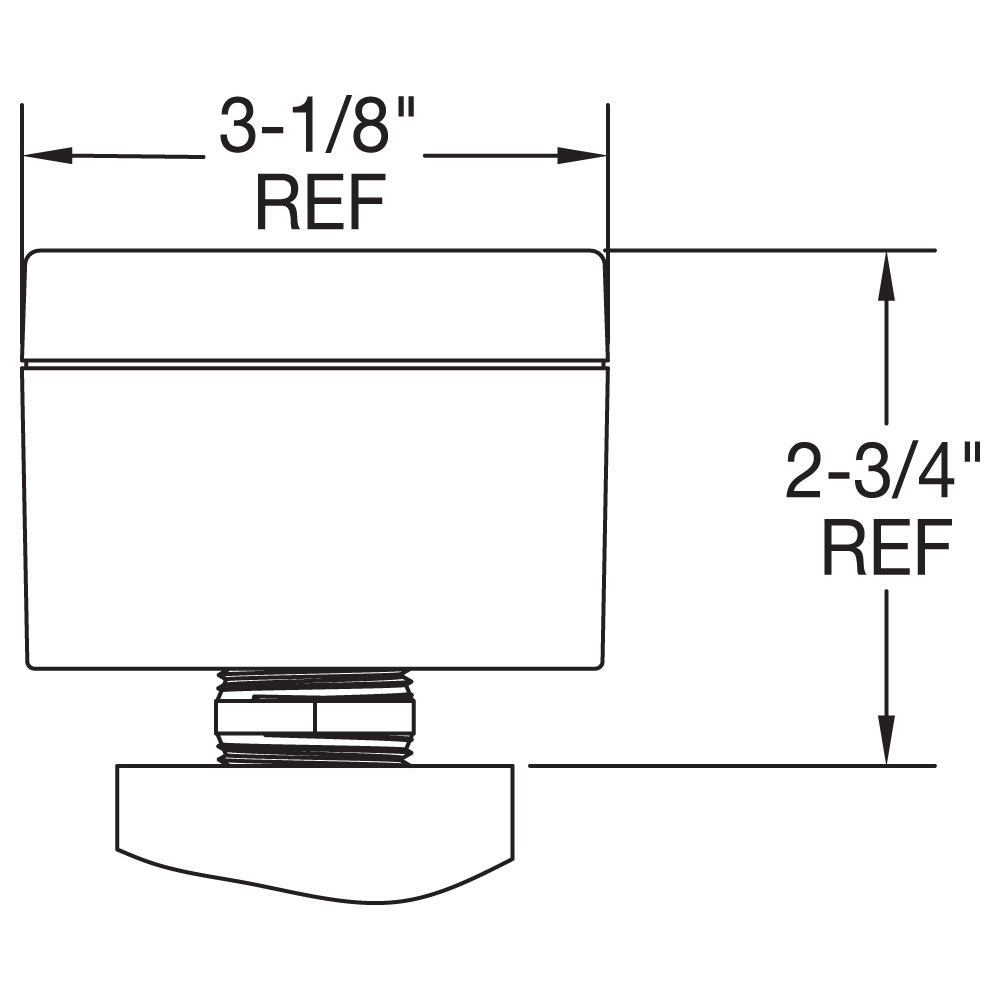

NEMA 4 Box

NEMA 7 Box

Type C2: Standard Terminal Box (on flat pad)

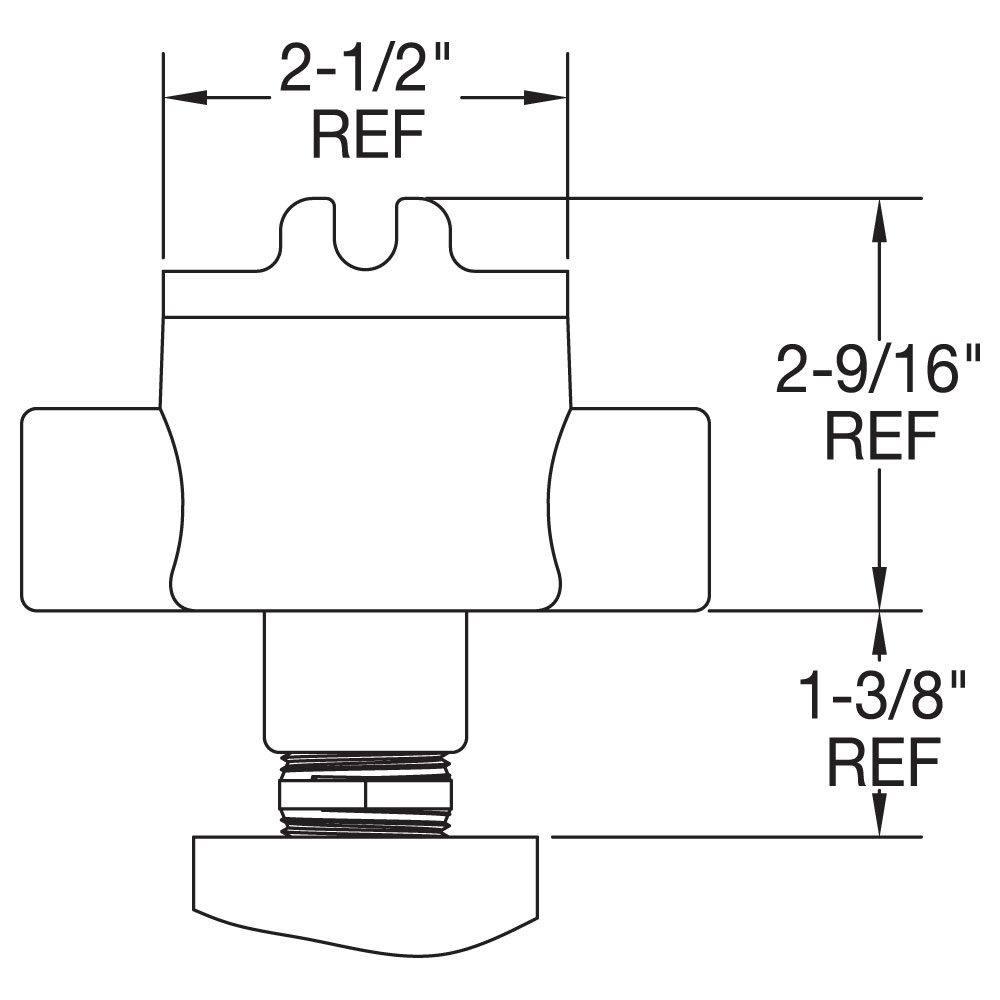

Type EP: Explosion & Moisture Resistant Box

Type MPR: Moisture Resistant Box

None

Request Other Termination Protection

If your filter selections do not return your desired results from our standard configurations, please continue to Refine Results for your specifications.

When you are finished, save your selections with the Save Results for Quote button (at the right of this page) and choose Request for Quote for further assistance.

Type FF: Flared Seal Fittings

Brass flared seal fittings are well adapted for low to medium pressure and resistant to mechanical pullout. Available for 3/8" and 1/2" diameter tubing with SAE 45° flare.

Type HS: Hi-Seal Fittings

Hi-seal brass fittings are highly dependable under the most adverse conditions. For reliable and trouble-free service with ease of installation, we strongly recommend hi-seal fittings.
Available for 3/8" and 1/2" diameter tubing. Male thread is 1/2" NPT for 1/2" tube and 3/8" tube.

Type J

Type K

Style 1: Spring Adjustable Bayonet Thermocouple

Design Features

• Insertion length adjustable from 1" to 10".
• Forms easily to any angle.
• One style can replace several fixed length thermocouples.
• Use with bayonet adapters on page 14-87.

Style 2: Armor Cable Adjustable Bayonet Thermocouple

Design Features

• Insertion length adjustable over length of armor cable.
• Forms easily to any angle.
• One style can replace several fixed length thermocouples.
• Use with bayonet adapters on page 14-87.

Style B: Plain Leads

Style S: Spade Lugs

Style P: Standard Plug

High Limit

General purpose high limit switch with manual reset

Once fixed opint is reached, the high limit switch will remain open until the manual reset button is pushed

SPST

General purpose thermostat recommended for most applications

Capable of controlling loads from 120V/30A up to 480V/20A

DPST

Recommended for directly controlling high wattage loads due to its heavy duty contacts

Capable of controlling loads up to 30 Amps at 277 VAC and 10 Amps at 480 VAC

Request Other Thermostat

If your filter selections do not return your desired results from our standard configurations, please continue to Refine Results for your specifications.
When you are finished, save your selections with the Save Results for Quote button (at the right of this page) and choose Request for Quote for further assistance.
