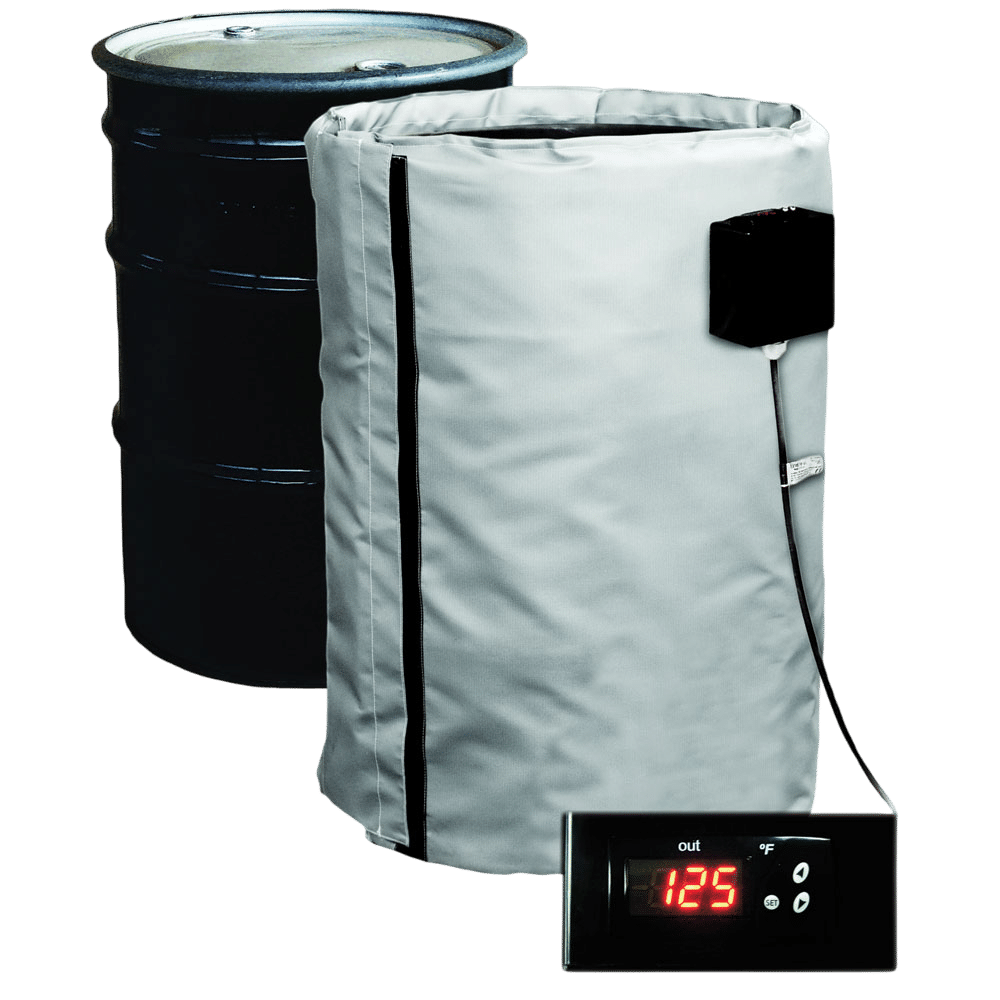

Blanket Drum Heaters

Full Coverage Drum Heaters combine the convenience of quick heat-up time and the precision of a digital controller to provide practical and effecient means of freeze protection, visconsity control and maintenance of materials at elevated temperatures.

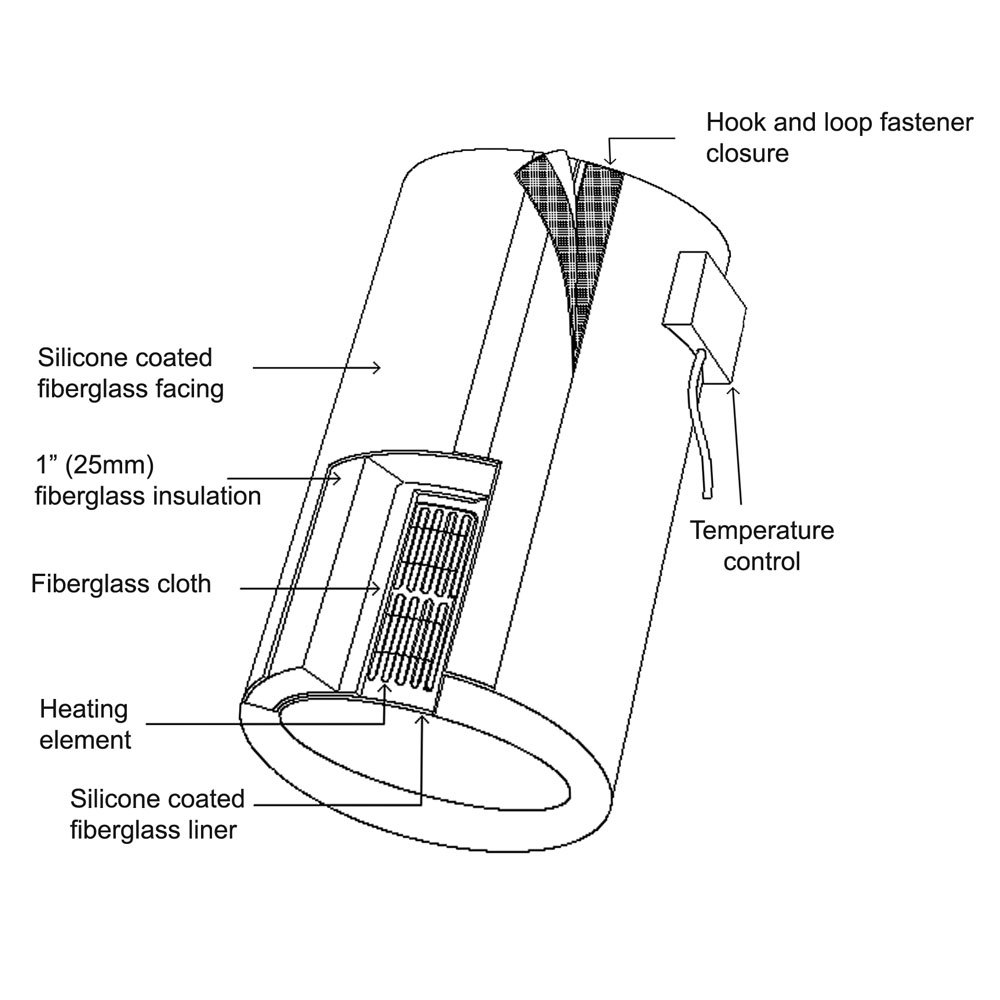

The facing and liner material is Silicone impregnated cloth and is insulated with 1" thick Fiberglass. The upper 33% of the blankets are  unheated and the blankets are secured with hook and loop closure.


Full Coverage Blanket Drum Heaters

Design Features:

  • Digital On-Off Controller Range:
    • For Metal Drums: 50° to 450°F (10° to 232°C)
    • For Poly Drums: 50° to 160°F (10° to 71°C)
  • Construction Details:
    • Heated Area: Lower 67% (2/3)
    • Unheated Area: Upper 33% (1/3)
  • Maximum Exposure - Heating Surface: 500°F (260°C)
  • Closure: Hook and Loop (similar to Velcro®)
  • Grounded Heating Element
  • Dielectric Strength: Over 2000VAC
  • Power Cord:
    • 120V: 6 ft. with standard NEMA 5-15 plug
    • 240V: 6 ft. with standard NEMA 6-15 plug*
      *(240VAC Celcius models have crimped wire ferrule terminated leads)

Configurations:

  • 55 Gallon Single Zone Full Coverage
  • 55 Gallon Dual Zone Full Coverage
    • Dual Zone Drum Blanket Heaters include two independently controlled and wired heater sections for better uniformity, control and higher wattage.

Typical Applications:

  • Freeze Protection
  • Melting of Solids
  • Thermal Mixing
  • Viscosity Control

Designed for indoor use only

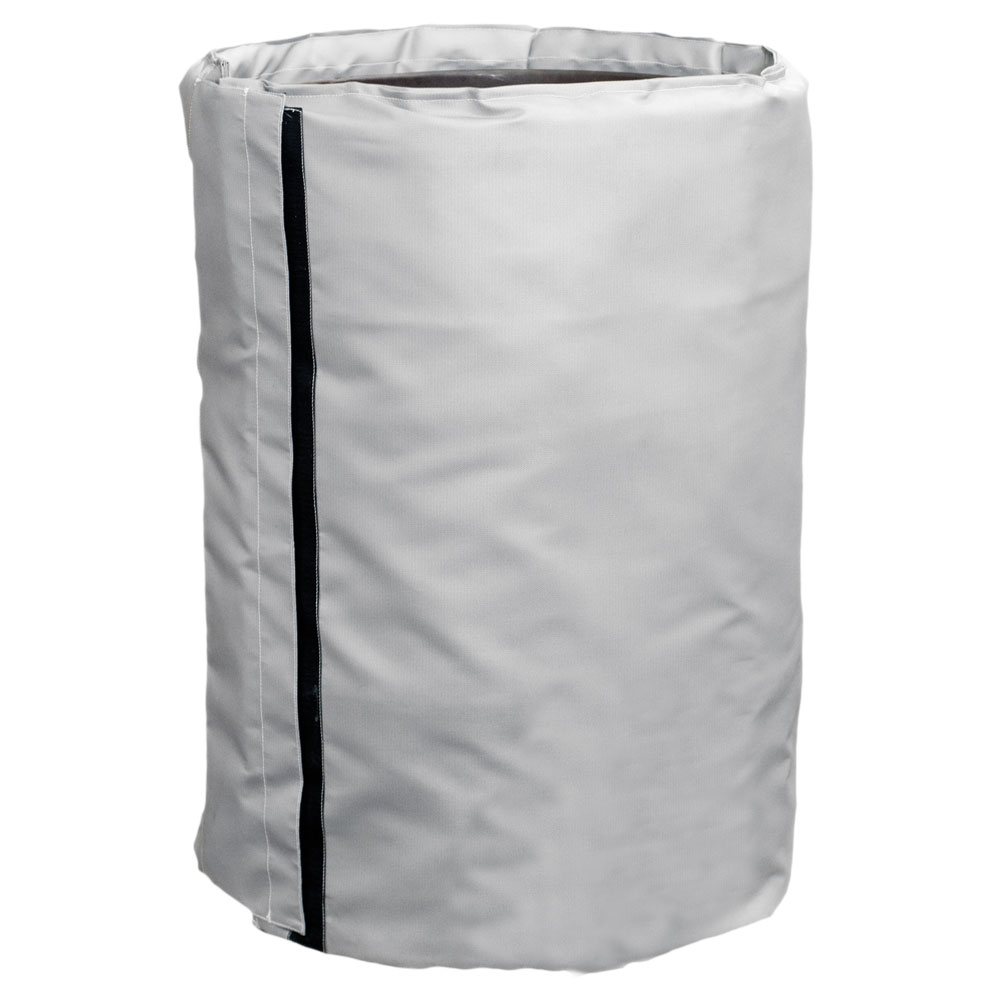

Full Coverage Drum Insulation Blanket & Accessories

  • Unheated Drum Insulation Assembly:
    • 55 gallon, 22.3"/565 mm diameter
  • Insulation Cover for 55 gallon drum
  • Extension Strip:
    • For 55 gal. drums to fit up to 24.2" (615mm) diameter
    • 6" (152 mm) wide
    • Required for 55 gal. drums with removable lids

Design Features:

  • Compatible with any 55 gallon drum heater
  • Reduces heat loss
  • Improves uniformity
  • Similar construction as the Full Coverage Drum Blanket Heater
Designed for indoor use
