Quartz Tubular Elements

The heater consists of a helically wound resistance wire coil enclosed in a pure vitreous silica fused quartz tube with a translucent (semi-opaque) surface. The tubing is terminated at the ends with specially designed ceramic caps securely fastened with high temperature ceramic cement providing support for the field wiring screw terminals used for power connections. The diffusion effect of the opaque quartz tube surface broadens the emitted wavelength range without creating objectionable glare due to emissions in the visible spectrum. Optimum design provides a clear red color on the translucent tube surface when operating at full line voltage. The emitted wavelength band is almost completely absorbed by the process and considered best for most industrial radiant applications.

Resources

In-Stock Parts

Explore Quartz Tubular Elements Specifications

Please wait while we gather your results.

Element Wavelengths

/Tempco/Data-Assets/07-Infrared-Images/WebR007ReScan.jpg

Radiant Quartz Heaters

Max. Volts: 480 Volts
Max. Amperage: 20 Amps
Resistance Tolerance: +10%, −5%
Wattage Tolerance: +5%, −10%
Max Watt Density: 40 Watts/sq. in.

Construction Styles

/Tempco/Data-Assets/07-Infrared-Images/WebR007ReScan_Dim.jpg

Type KRD Vitreous Silica Quartz Tube

To achieve best operating life, these quartz heaters shoudl be operated with surface watt densities in the 35-40 watts per square inch range, not exceeding the maximum power densities specified below.

/Tempco/Data-Assets/07-Infrared-Images/WebR666.jpg

Type KRH Radiant Heaters in Linear Housing

Designed for use in applications that require rapid on/off response and fast heat-up and cooldown rates. These heater assemblies are designed to operate in the medium wavelength range of 4.0-2.4 microns (700 to 1715°F peak emitter temperatures).These Modular Housing assemblies utilize a .50 diameter translucent "milky white" vitreous quartz tube enclosing a high temperature resistance wire coil. The diffusion effect of the translucent quartz tube surface broadens the emitted infrared wavelength range obtained without objectionable glare due to low emissions in the visible spectrum. The units have either single or dual heaters mounted at the focal point of a polished aluminum reflector within the housing. These heater assemblies are available in a wide range of power densities.

/Tempco/Data-Assets/07-Infrared-Images/WebR809.jpg

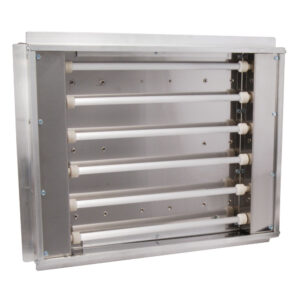

Type ARK Panel Arrays

Custom 4" high Type ARK panels with 1/2" diameter quartz elements are available. Tempco will design and build to your specifications. Consult us with your requirements.

Mounting Styles

/Tempco/Data-Assets/07-Infrared-Images/WebR807.jpg

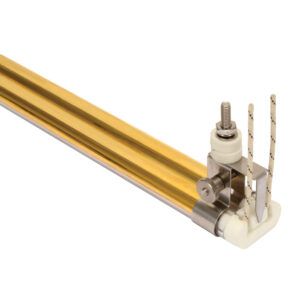

Heater Clamp

Optional 90° Lead Orientation, Shown with Optional End Mounting Clamp

/Tempco/Data-Assets/07-Infrared-Images/WebR814.jpg

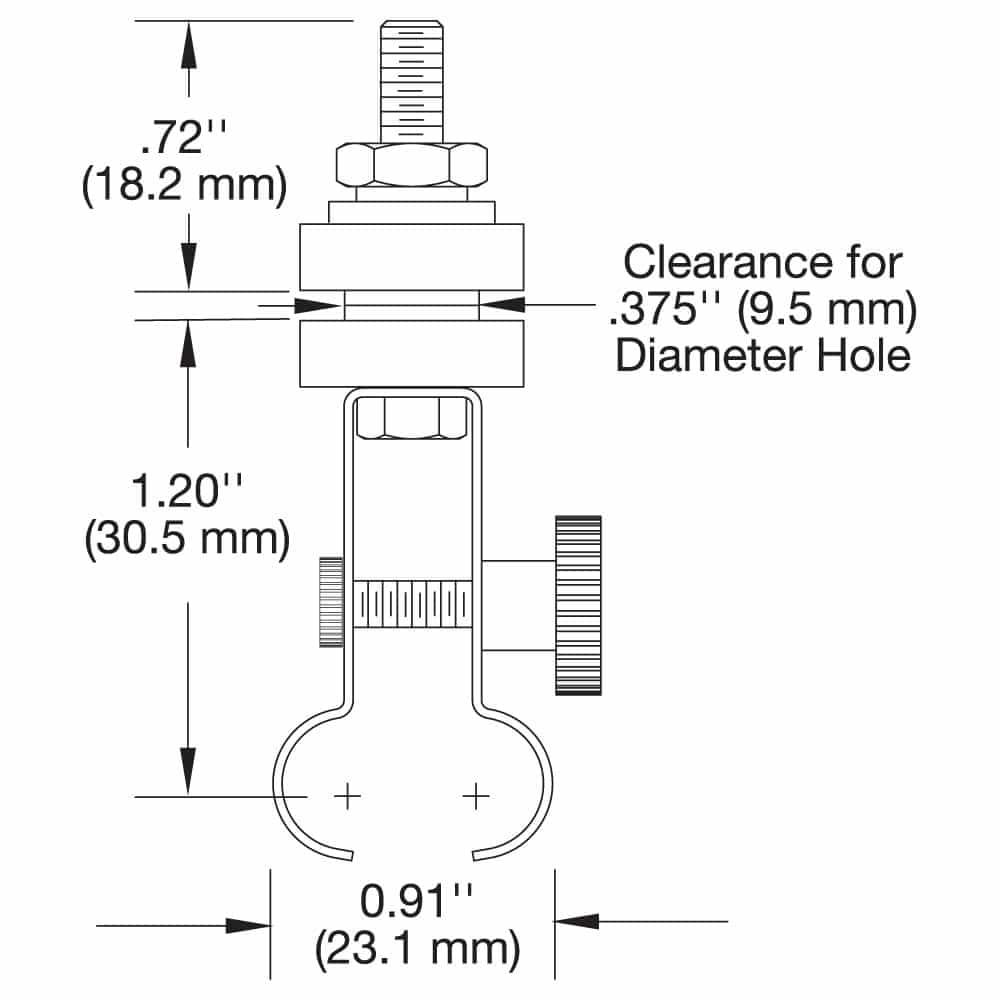

Mounting Clamp

Mounting Clamp for 3/8 Quartz Tube OD

Part Number: CRK00059

Electrical Terminations

/Tempco/Data-Assets/07-Infrared-Images/WebR012.jpg

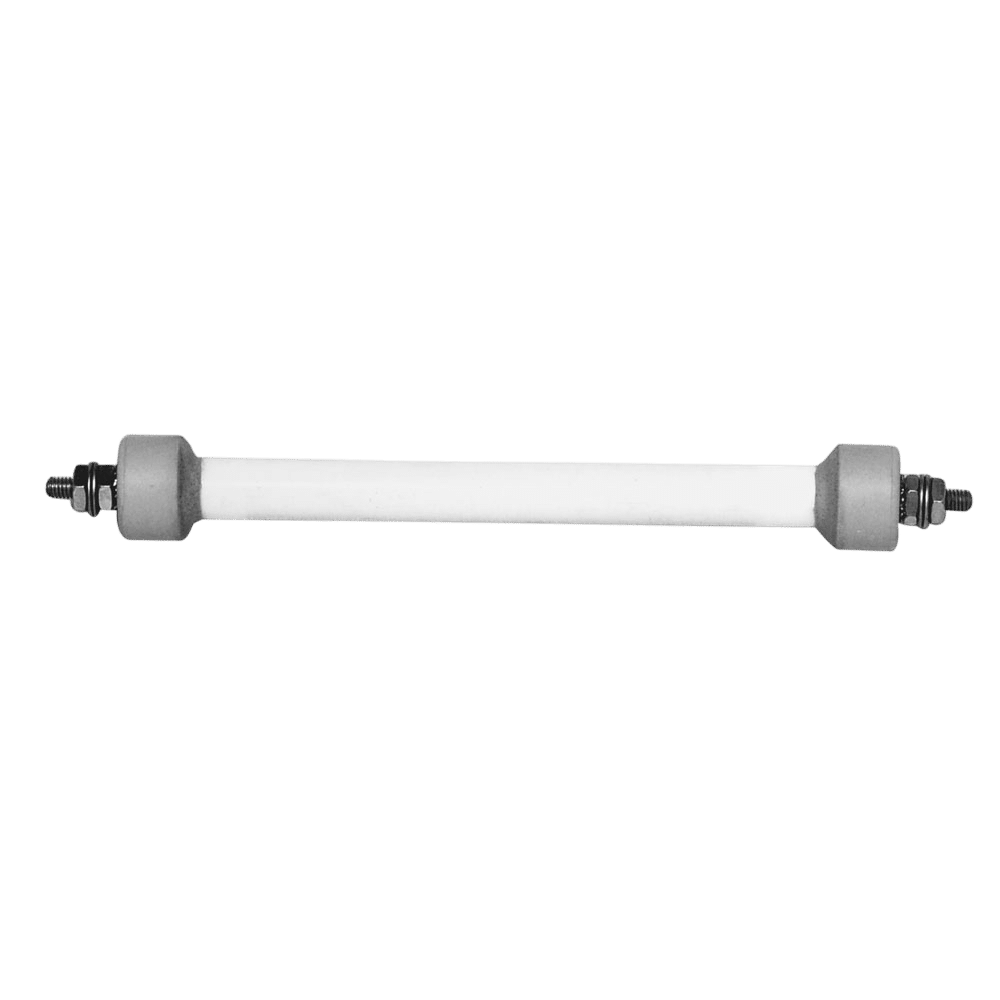

Type T1: Screw Terminal (Standard)

10-32 thread screw terminal standard termination.

/Tempco/Data-Assets/07-Infrared-Images/WebR672b.jpg

Type T2: Panel Mount Bushings

10-32 thread screw terminals with extension bushings for CRA/TRH housing assemblies.

/Tempco/Data-Assets/07-Infrared-Images/WebR010.jpg

Type ST: Tabs with Slotted Holes

1/2" wide × 3/4" long, with a 9/32" × 3/8" slot. Alternate mounting method.

/Tempco/Data-Assets/07-Infrared-Images/WebR011.jpg

Type FT: Quick Disconnect Fuse Type

Fuse-type connector provides ease of installation. Connectors are 3/8" OD × 1/2" long brass.

/Tempco/Data-Assets/07-Infrared-Images/WebR008.jpg

Type L1: Straight-Out Leads

10" flexible lead wire externally spliced standard. If longer leads are required, specify.

/Tempco/Data-Assets/07-Infrared-Images/WebR009.jpg

Type C4: Ceramic Caps with Leads

This termination provides 10-32 screw terminals insulated with ceramic terminal covers. Screws are prewired with 10" flexible lead wire. If longer leads are required, specify (also for T1 or T2).
