  • Single Zone Console
  • Back of TPC single zone

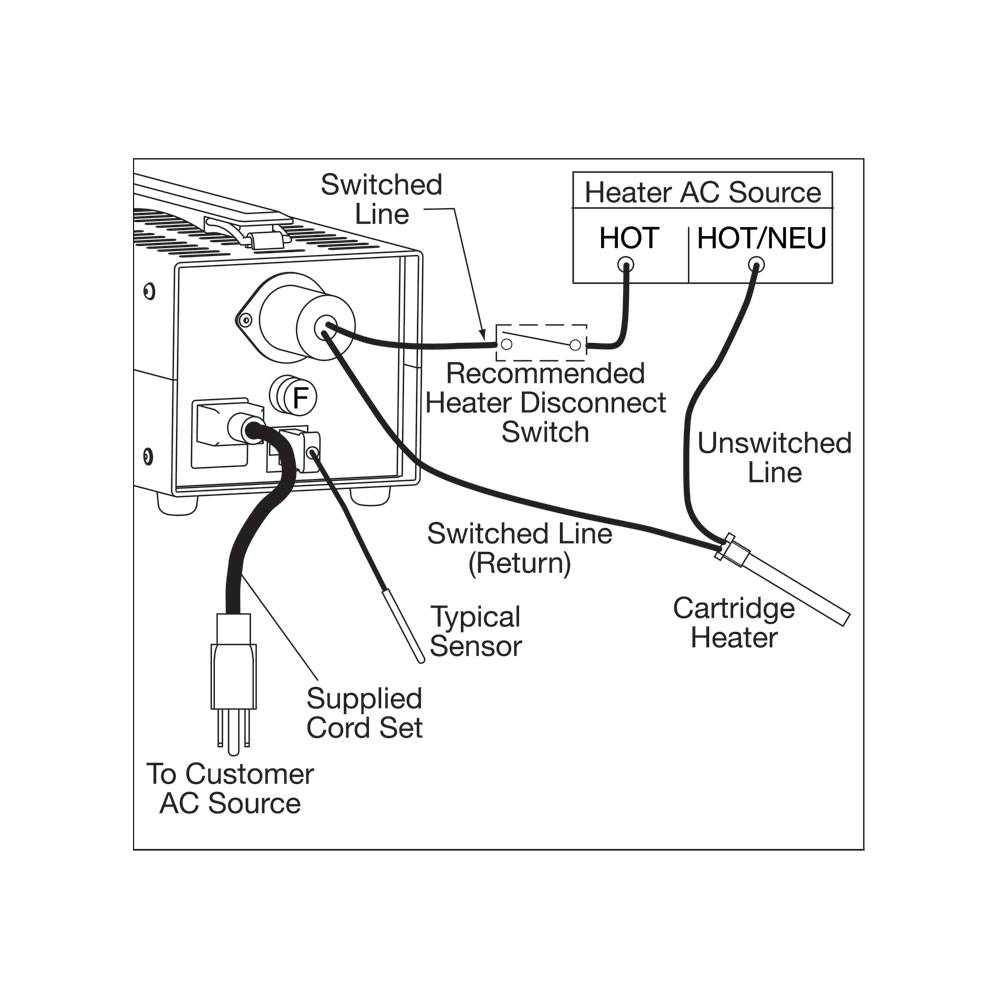

  • Typical Rear View

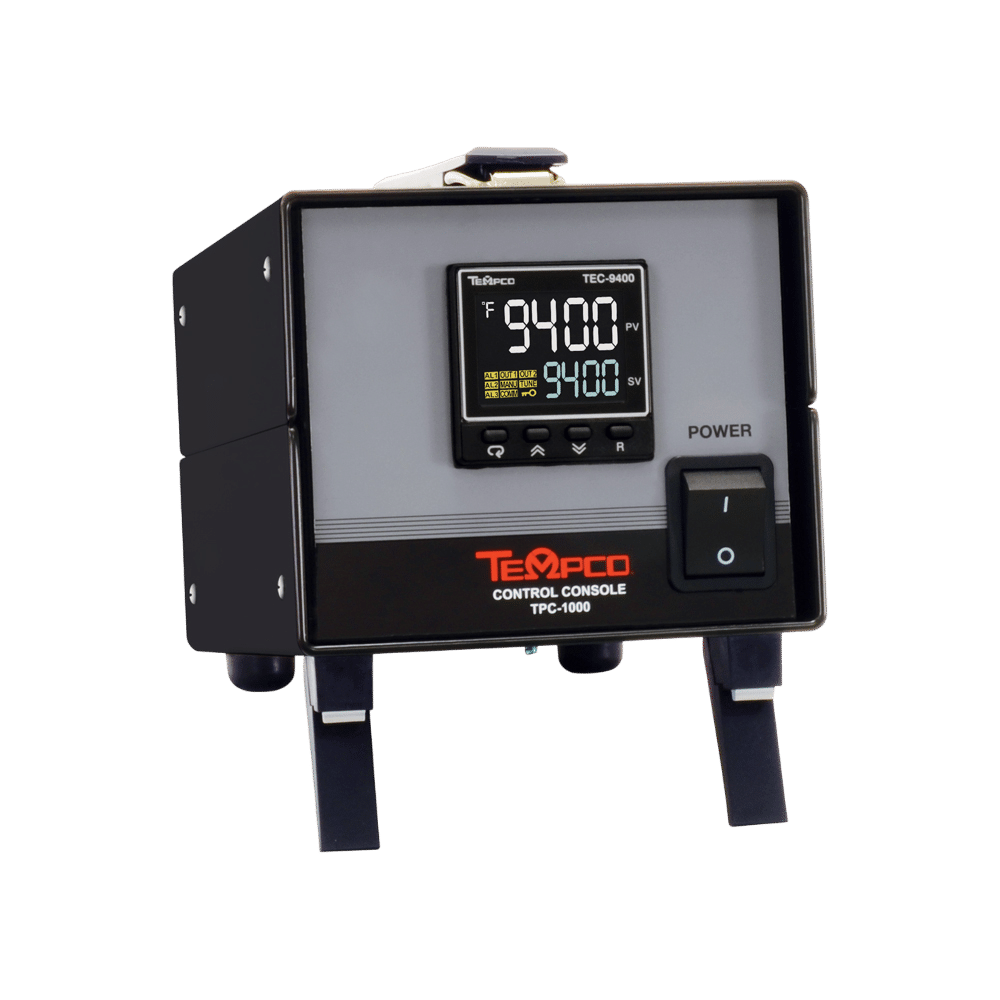

Switched Plug Output (Type 2)

Switched Plug Consoles (Type 2) Design Features

  • Front-mounted rocker panel switch
  • Retractable legs for easy benchtop viewing
  • Carrying handle
  • 60-inch-long power cord with standard U.S. straight-blade plug configuration for 120V or 240V.
    Other country standards available.
  • Miniature jack and plug for temperature sensor input (one per zone)
  • Power output plug (one per zone)
  • Can customize with high limits, alarms, etc.
  • Fast cycling solid state relay

Explore Switched Plug Output (Type 2) Specifications




The heater power is independent of the console controller input power. A Solid State Relay closure is provided per zone for external control switching.
Each zone is fused at 15 Amps. External 120, 208 or 240 VAC must be provided to the heater power circuit.

You must install a switch into the heater circuit to disconnect power to the heater output when the console is not in use. The internal solid-state relay should not be relied on to disconnect heater power.

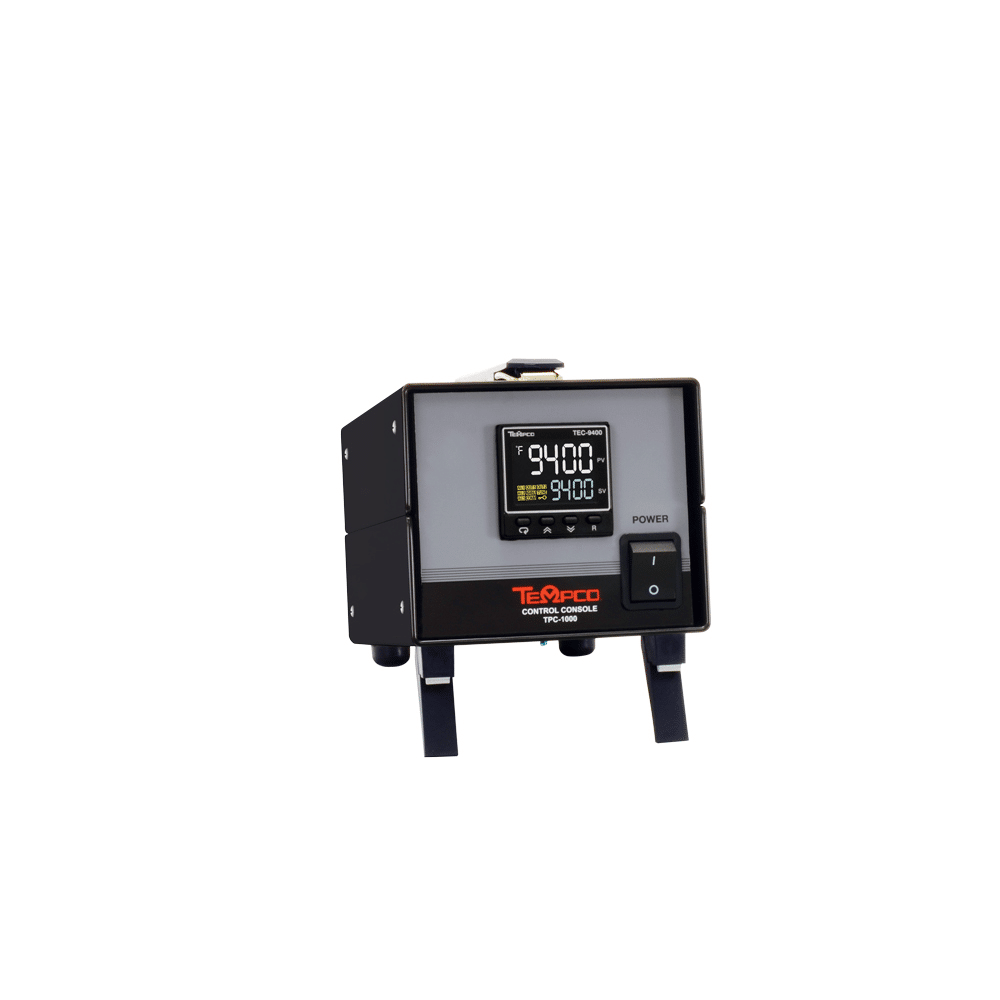

TPC-1000 Control Console

Model TPC-1000

1-Zone

4-7/8" H × 9" D × 5" W

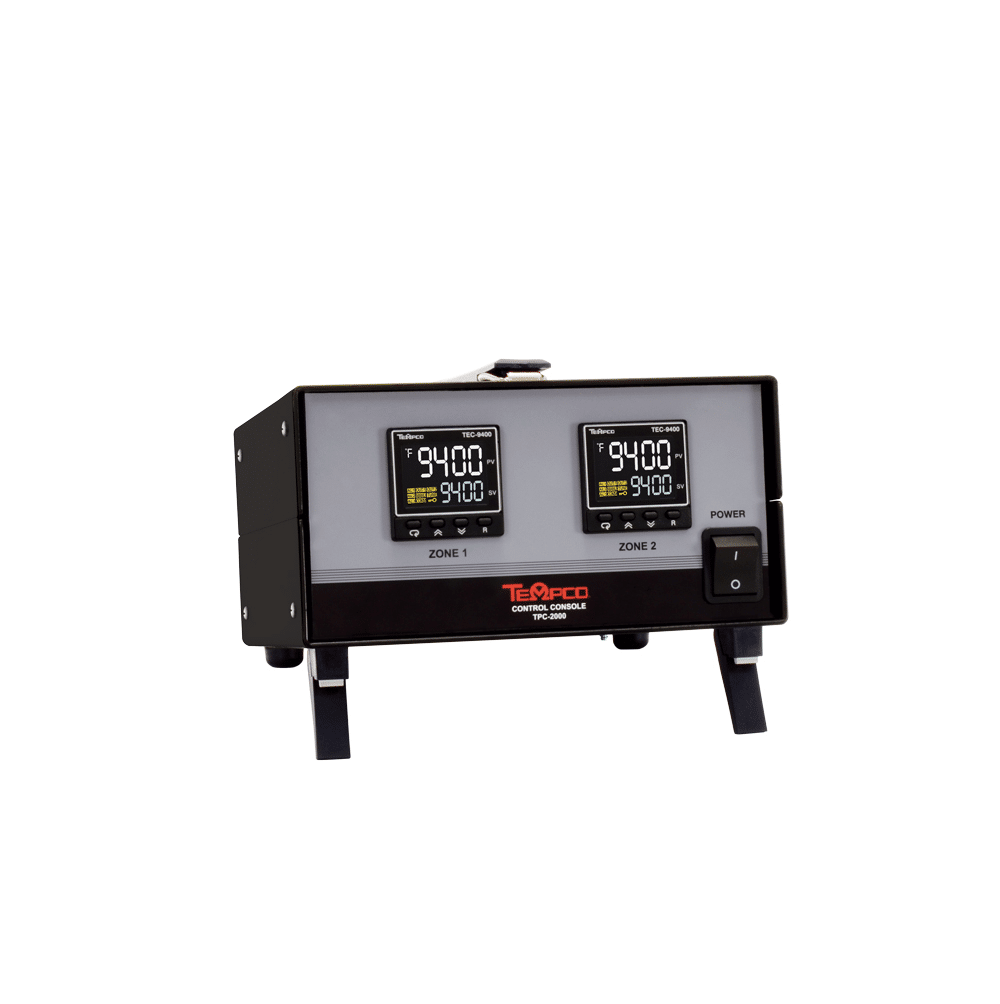

TPC-2000 Control Console

Model TPC-2000

2-Zone

4-7/8" H × 9" D × 11-1/4" W

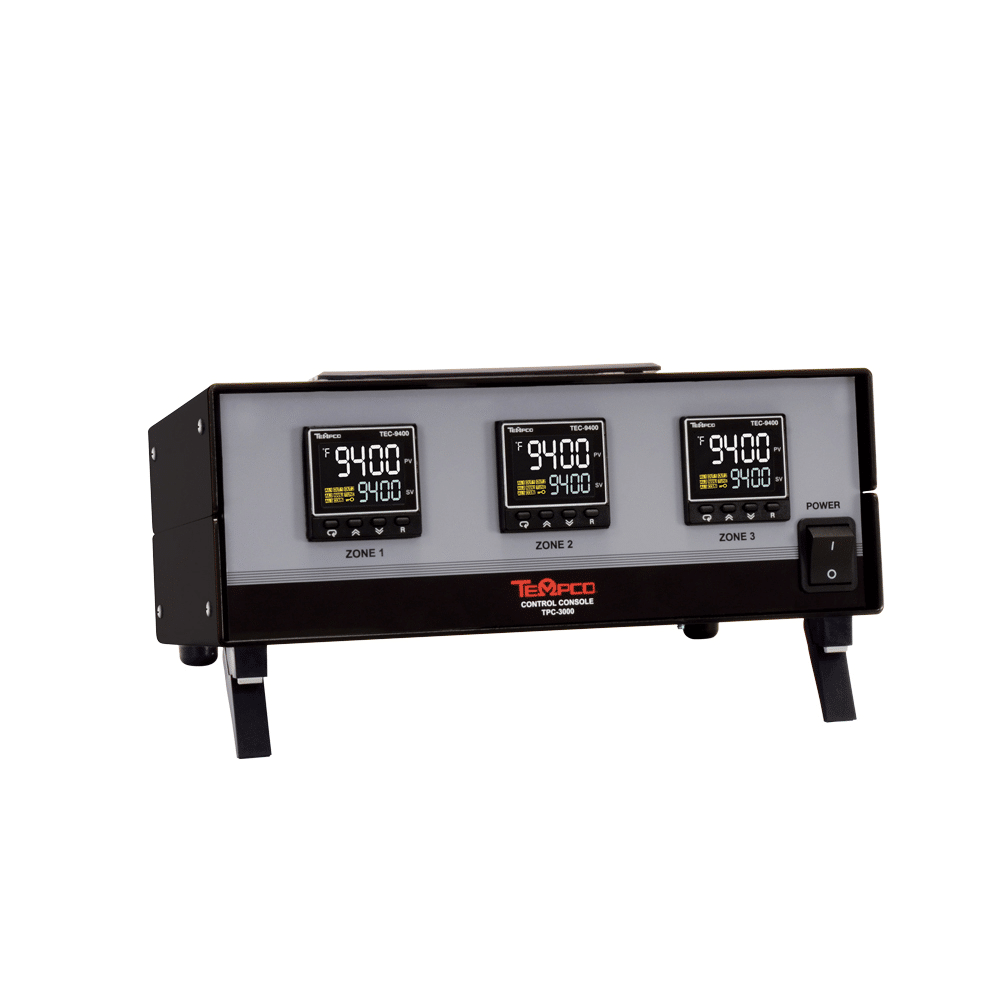

TPC-3000 Control Console

Model TPC-3000

3-Zone

4-7/8" H × 9" D × 8-1/4" W

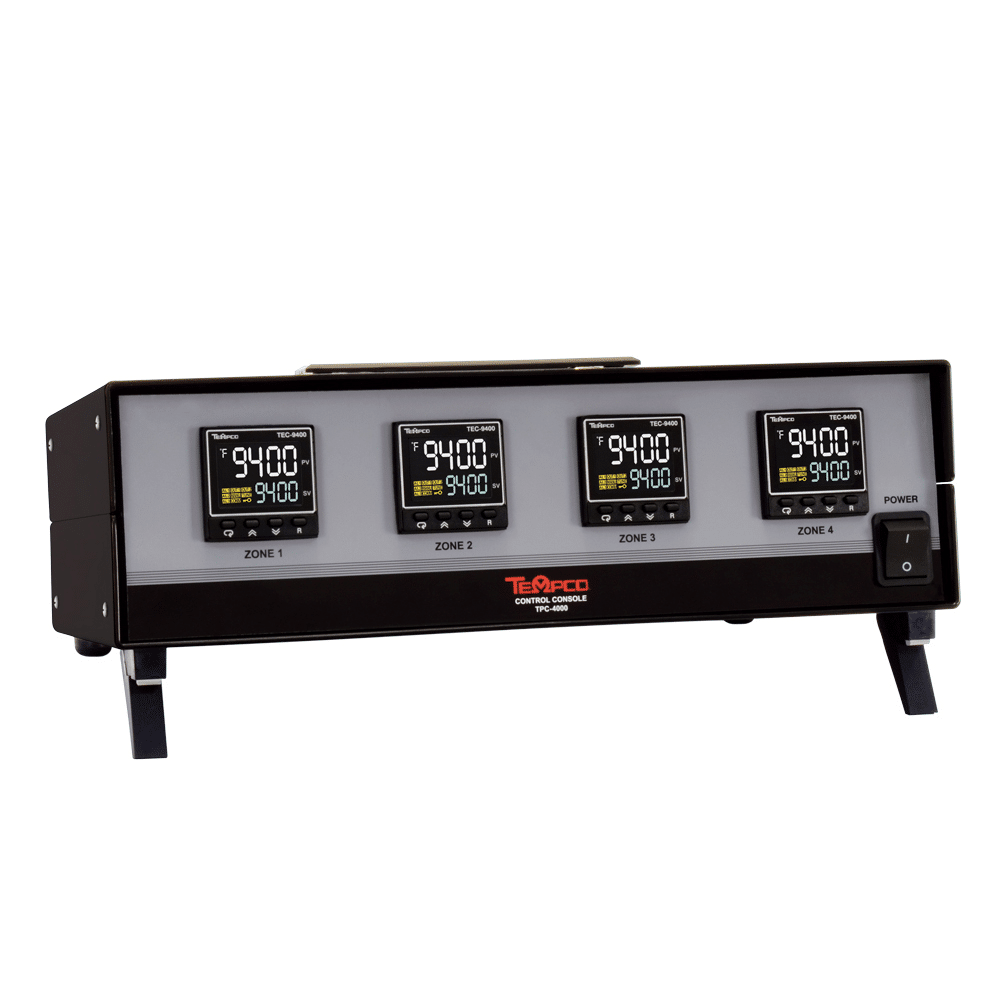

TPC-4000 Control Console

Model TPC-4000

4-Zone

4-7/8" H × 10" D × 14-13/16" W

Additional Specifications

  • Output Power Switching: Solid State Relay with heat sink
  • Optional Sensor Inputs: Consult Tempco
  • Power Input: Rear panel mounted fused power inlet, cord supplied
  • Control Options: FM High Limit Controller, 2nd Output, Alarm, Data Communications or other special requirements; consult Tempco.
