  • PCM-1000 Series 16 Amp

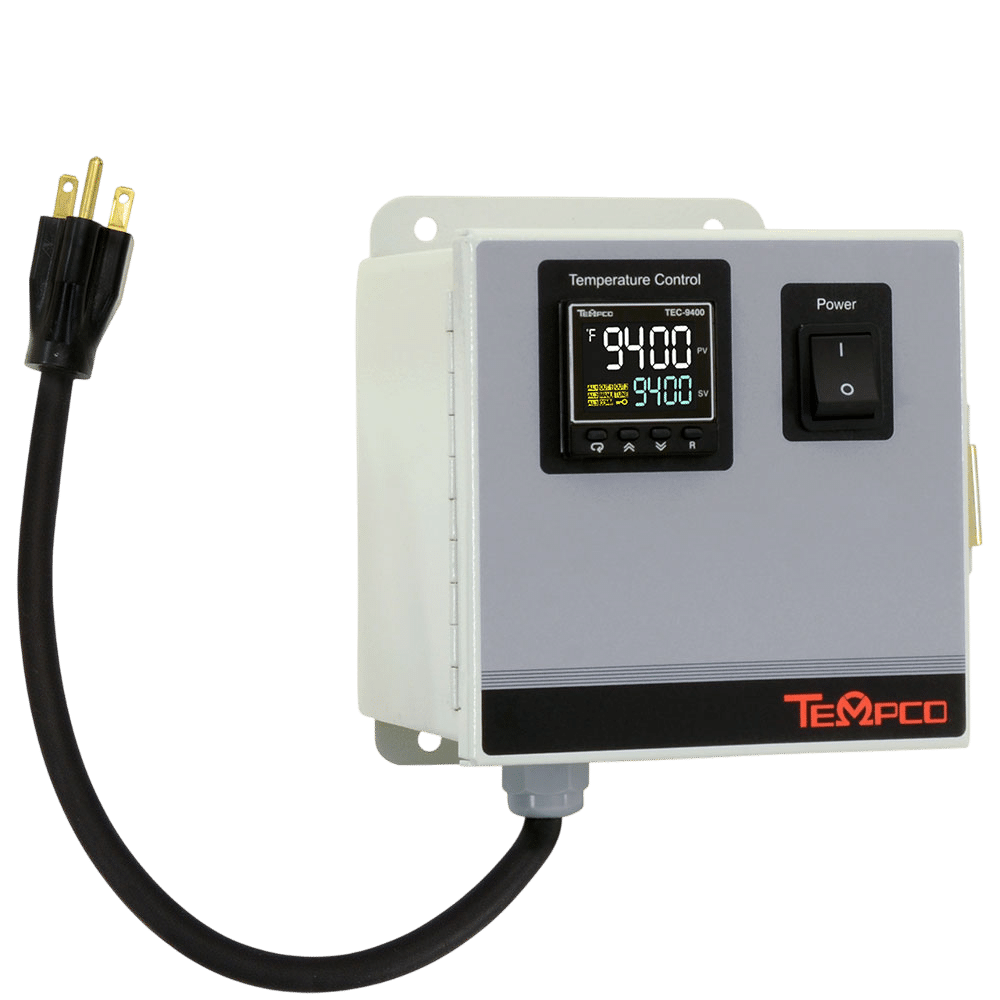

PCM Pre-Wired Control Box, 16 Amp

PCM-1000, 16 Amp Design Features

  • TEC-9400 PID temperature controller with bright LCD Display using NFDA/IEC standard colors
  • Standard size thermocouple jack
  • 20A straight-blade heater receptacle with ground
  • 25A mechanical relay
  • Enclosure Dimensions: 6"H × 6"W × 6"D
  • Wall mounting slots: 4" centers side to side, 6-3/4" centers top to bottom
  • Agency Approval: CUL

Resources

In-Stock Parts

Explore PCM-1000 Series Pre-Wired Control Box Specifications

Please wait while we gather your results.

Part Number PCM10076

  • Voltage: 120 VAC (1 Phase)
  • Maximum Wattage: 1920W
  • Temperature Range: 0-1200°F
  • Sensor: Type J thermocouple jack

Part Number PCM10077

  • Voltage: 240 VAC (1 Phase)
  • Maximum Wattage: 3840W
  • Temperature Range: 0-1200°F
  • Sensor: Type J thermocouple jack

Part Number PCM10078

  • Voltage: 120 VAC (1 Phase)
  • Maximum Wattage: 1920W
  • Temperature Range: 0-2400°F
  • Sensor: Type K thermocouple jack

Part Number PCM10079

  • Voltage: 240 VAC (1 Phase)
  • Maximum Wattage: 3840W
  • Temperature Range: 0-2400°F
  • Sensor: Type K thermocouple jack
