  • PCT-1000 Series

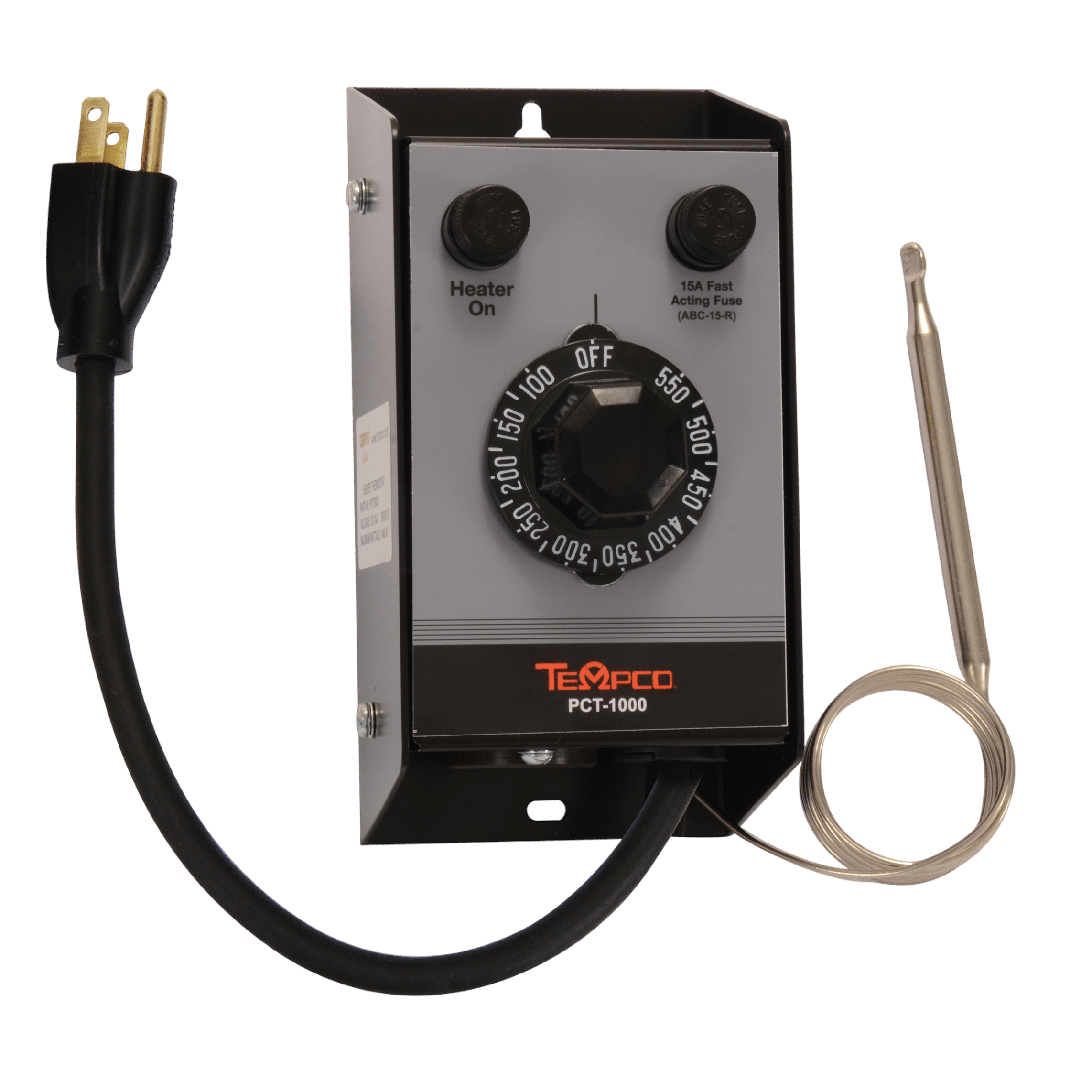

PCT-1000 Series Thermostat Control

PCT-1000 Design Features

  • 15 Amp straight-blade heater receptacle with ground
  • 3/8" × 4" bulb with 48" long capillary
  • Positive Off detent
  • Heater On pilot light
  • Black powder coat metal housing for indoor use
  • Dimensions:
    7"H × 3-1/2"W × 3"D (120V units)
    9-1/2"H × 3-1/2"W × 3"D (240V units)
  • Wall mounting slots:
    6-1/2" centers (120V units)
    9-1/2" centers (240V units)

Explore PCT-1000 Series Thermostat Control Specifications

Part Number PCT10001

  • Voltage: 120 VAC (1 Phase)
  • Maximum Wattage: 1440W
  • Temperature Range: 60-250°F

Part Number PCT10002

  • Voltage: 120 VAC (1 Phase)
  • Maximum Wattage: 1440W
  • Temperature Range: 150-550°F

Part Number PCT10003

  • Voltage: 240 VAC (1 Phase)
  • Maximum Wattage: 2880W
  • Temperature Range: 60-250°F



Part Number PCT10004

  • Voltage: 240 VAC (1 Phase)
  • Maximum Wattage: 2880W
  • Temperature Range: 150-550°F
