  • PCT-2000 Series

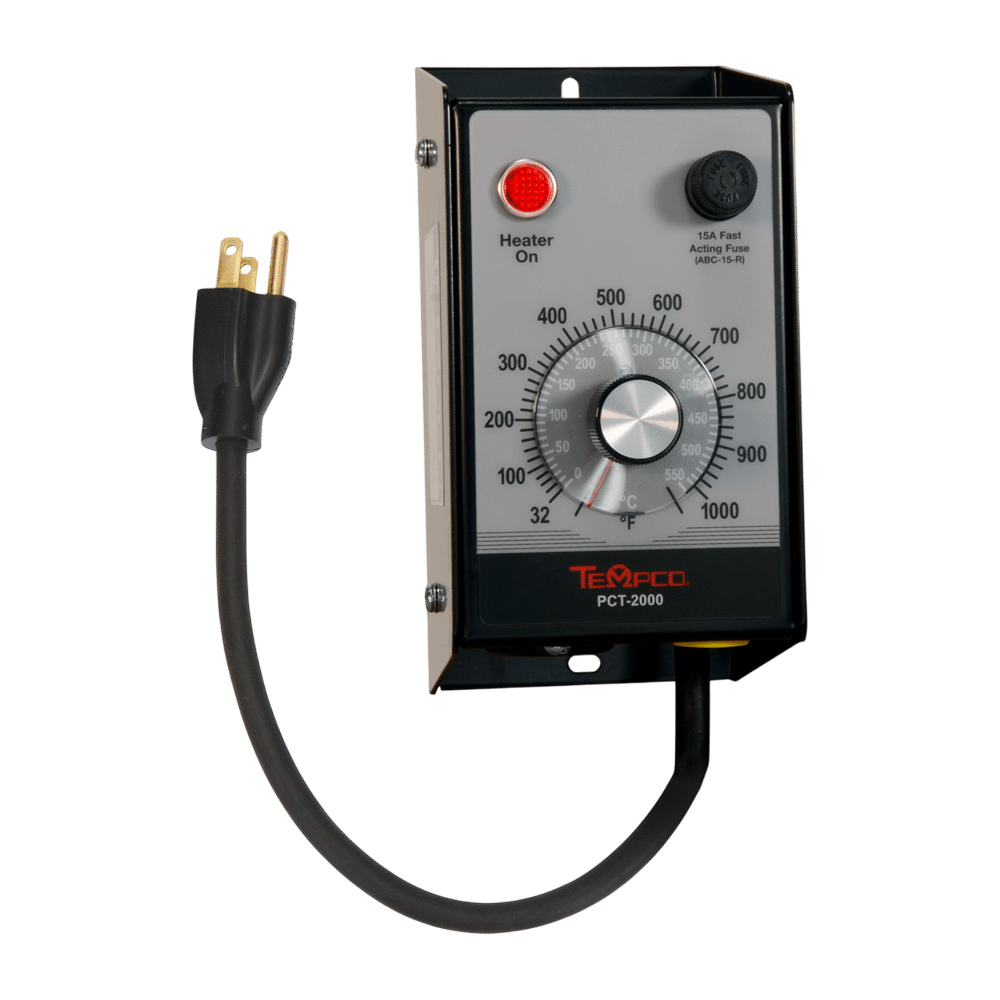

PCT-2000 Series Temperature Control

PCT-2000 Design Features

  • Electronic Temperature Control
  • Temperature Range: 32-1000°F (0-550°C)
  • 15 Amp straight-blade heater receptacle with ground
  • Heater On pilot light
  • Thermocouple mini-jack
  • Black powder coat metal housing for indoor use
  • Dimensions: 7-1/4"H × 3-1/2"W × 3-3/4"D
  • Wall mounting slots: 6-3/4" centers
  • Off switch supplied by customer

Resources

In-Stock Parts

Explore PCT-2000 Series Electronic Temperature Control Specifications

Please wait while we gather your results.

Part Number PCT20001

  • Voltage: 120 VAC (1 Phase)
  • Maximum Wattage: 1440W
  • Sensor: Type J thermocouple jack

Part Number PCT20002

  • Voltage: 120 VAC (1 Phase)
  • Maximum Wattage: 1440W
  • Sensor: Type K thermocouple jack

Part Number PCT20003

  • Voltage: 240 VAC (1 Phase)
  • Maximum Wattage: 2880W
  • Sensor: Type J thermocouple jack

Part Number PCT20004

  • Voltage: 240 VAC (1 Phase)
  • Maximum Wattage: 2880W
  • Sensor: Type K thermocouple jack
