  • PCT-3000 Series

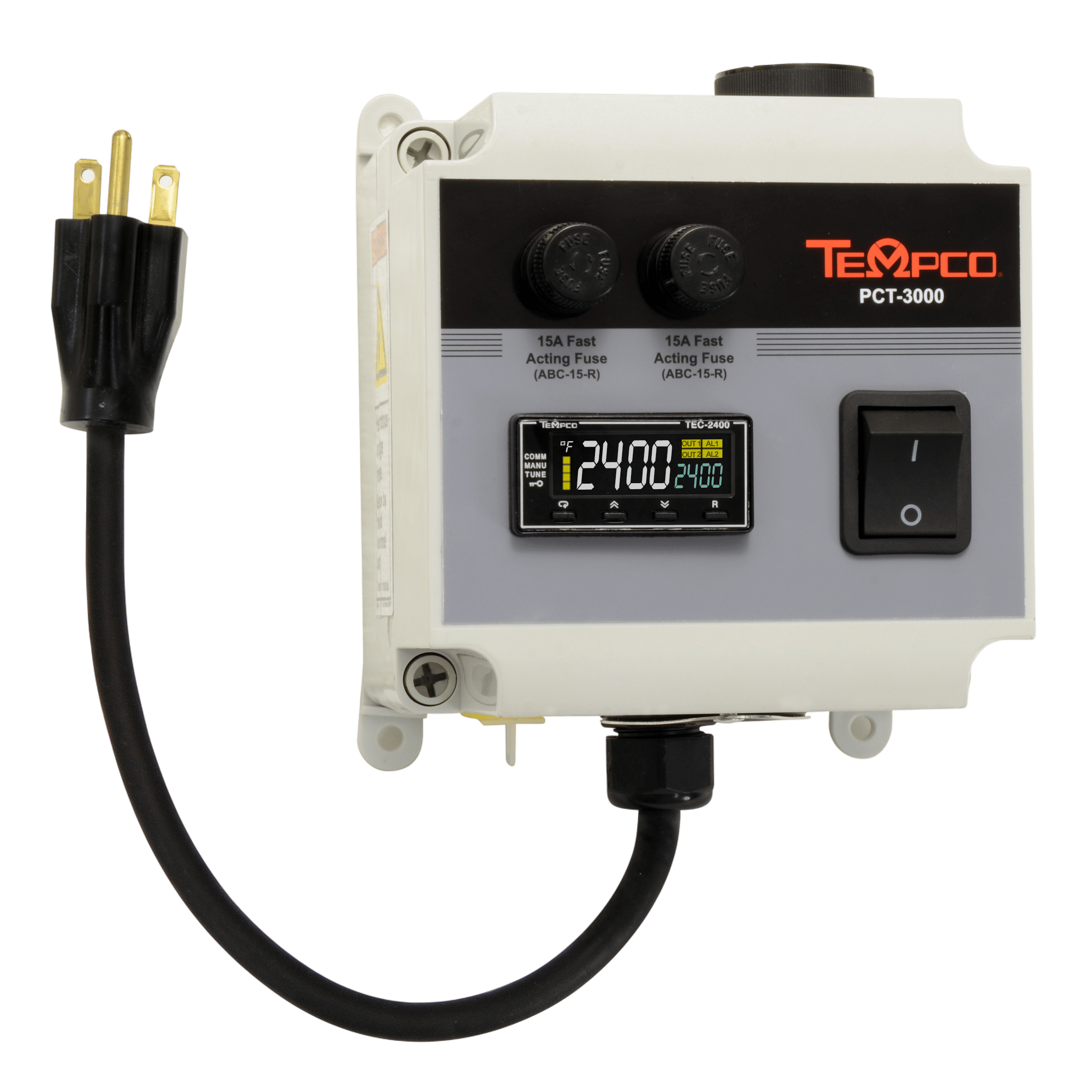

PCT-3000 Series Temperature Control

PCT-3000 Design Features

  • TEC-2400 Programmable PID Temperature Control
  • 15 Amp heater receptacle with ground
  • 1 Amp controller power fuse
  • Heavy duty relay output
  • Thermocouple mini-jack
  • Bright LCD Display using NFPA/IEC standard colors
  • Grey polycarbonate housing for use with wall mounting kit
  • Audible alarm
  • Dimensions: 5" square

Explore PCT-3000 Series Programmable PID Temperature Control Specifications

Part Number PCT30017

  • Voltage: 120 VAC (1 Phase)
  • Maximum Wattage: 1440W
  • Temperature Range: 0-1200°F
  • Sensor: Type J thermocouple jack

Part Number PCT30018

  • Voltage: 240 VAC (1 Phase)
  • Maximum Wattage: 2880W
  • Temperature Range: 0-1200°F
  • Sensor: Type J thermocouple jack

Part Number PCT30019

  • Voltage: 120 VAC (1 Phase)
  • Maximum Wattage: 1440W
  • Temperature Range: 0-2400°F
  • Sensor: Type K thermocouple jack

Part Number PCT30020

  • Voltage: 240 VAC (1 Phase)
  • Maximum Wattage: 2880W
  • Temperature Range: 0-2400°F
  • Sensor: Type K thermocouple jack
