Click image to enlarge

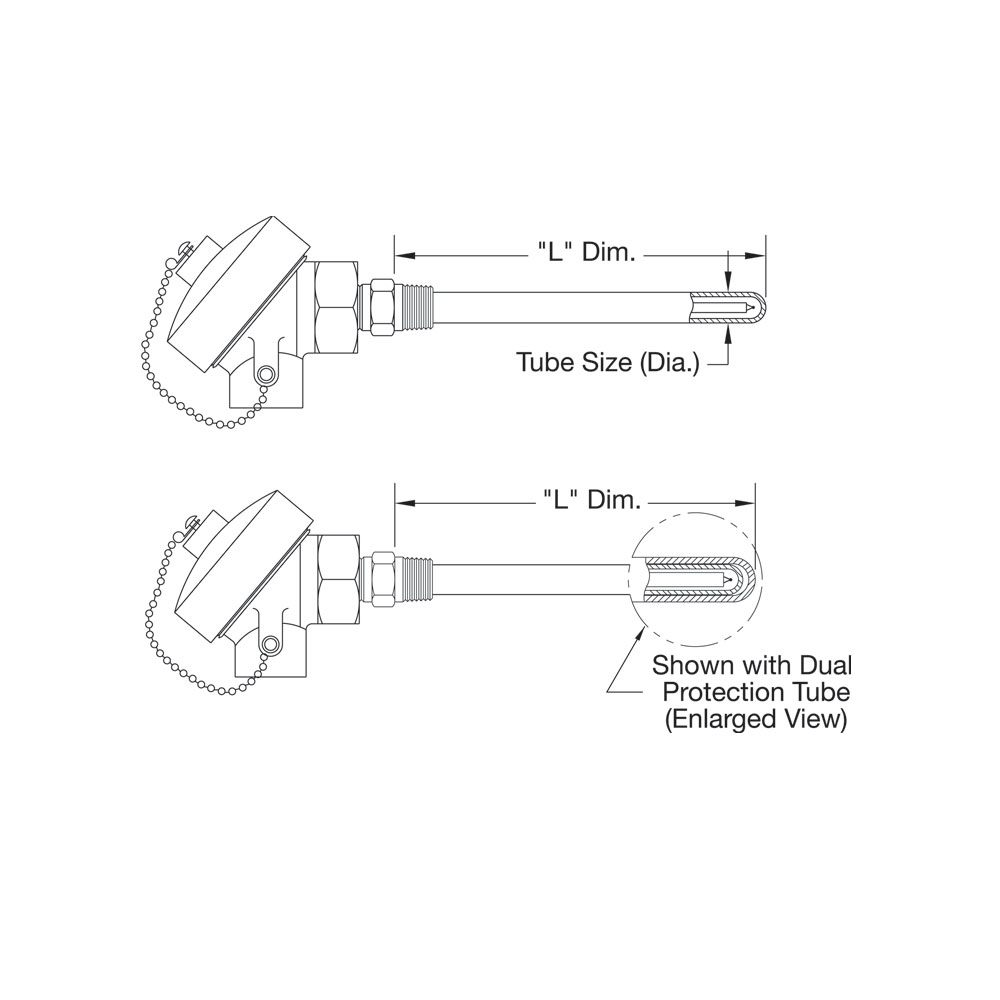

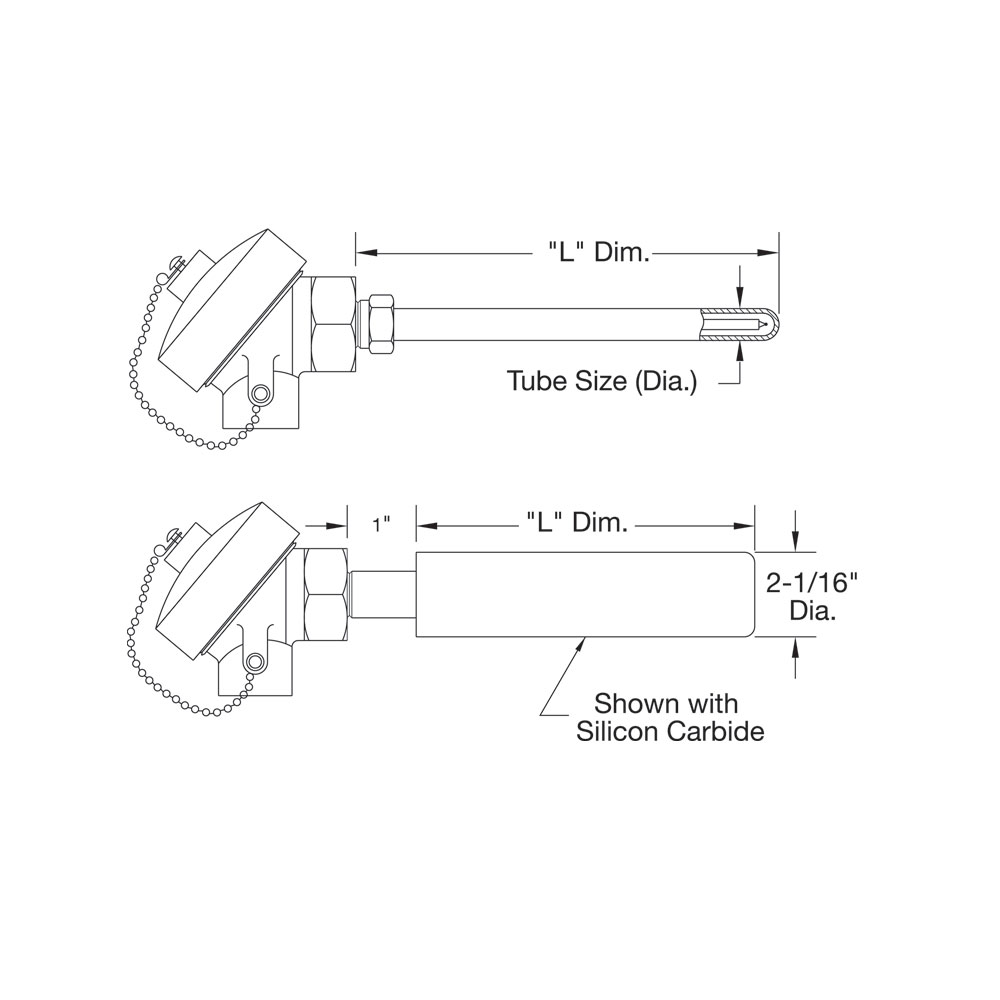

Ceramic and Silicon Carbide Protection Tube Thermocouple Assemblies come in two styles: Style 7 – Without Threaded Process Connection Style 8 – With Threaded Process Connection
Thermocouples are offered with the options listed in the form below. Make your selections and Submit to Tempco for a quote request. Part Numbers are assigned at the time an order is placed.
Style -- Select --7 = Plain8 = w/Pipe Thread Process Connection
Sheath Material --Select--A = AluminaH = Hexoloy SA (sintered silicone carbide)M = MulliteS = Silicon Carbide (carbon bonded)X = Other (Specify)
Tube and Fitting Size --Select--1 = 3/8" OD (1/4" ID) — 1/2" NPT Thread for Style TCS-8 (available in Alumina, Mullite or Hexoloy SA only)2 = 5/8" OD (3/8" ID) — 1/2" NPT Thread for Style TCS-8 (available in Hexoloy SA only)3 = 11/16" OD (7/16" ID) — 3/4" NPT Thread for Style TCS-8 (available in Alumina or Mullite only)4 = 3/4" OD (1/2" ID) — 3/4" NPT Thread for Style TCS-8 (available in Hexoloy SA only)5 = 2-1/16" OD (Style TCS-7) (available in carbon bonded silicone carbide only)X = Other (Specify)
Calibration Code -- Select --ANSI Standard Tolerances: JANSI Standard Tolerances: KANSI Standard Tolerances: SANSI Standard Tolerances: TANSI Standard Tolerances: RANSI Standard Tolerances: B
Wire Gauge --Select--A = 24 ga. (Type S, R and B)B = 20 ga.C = 14 gaD = 8 ga.X = Other (Specify)
"L" Dimension – Whole Inches 12 to 48 In 6-inch increments. For lengths over 48-inch Call TEMPCO.
Threaded Bushing Material --Select--S = Stainless SteelB = Brass Enter 0 for TCS-7
Protection Tube --Select--1 = Single Protection Tube (Std.)2 = Double Protection Tube
Connection Head --Select--A = Standard Size AluminumH = Standard Cast IronS = Stainless Steel Note: All have 1/2" conduit connection (3/4" available).
Special Requirements --Select--0 = NoneX = Specify
