Tempco Custom Heater Manufacturing

Click image to enlarge

  • Style R
  • Web0556-53_Dim
  • Web0556-54_Dim.jpg
  • Web0556-56_Dim.jpg
  • Web0556-55_Dim.jpg

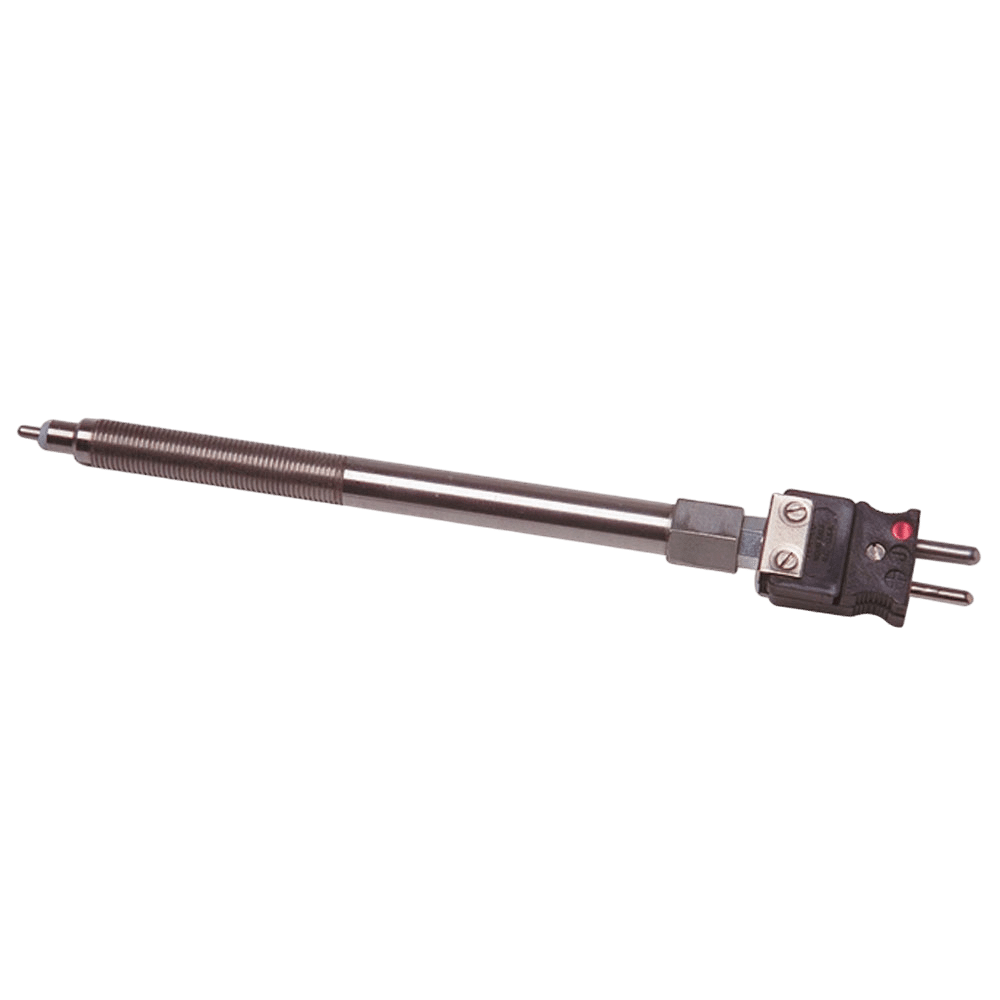

Style TMB Melt Bolt Thermocouples

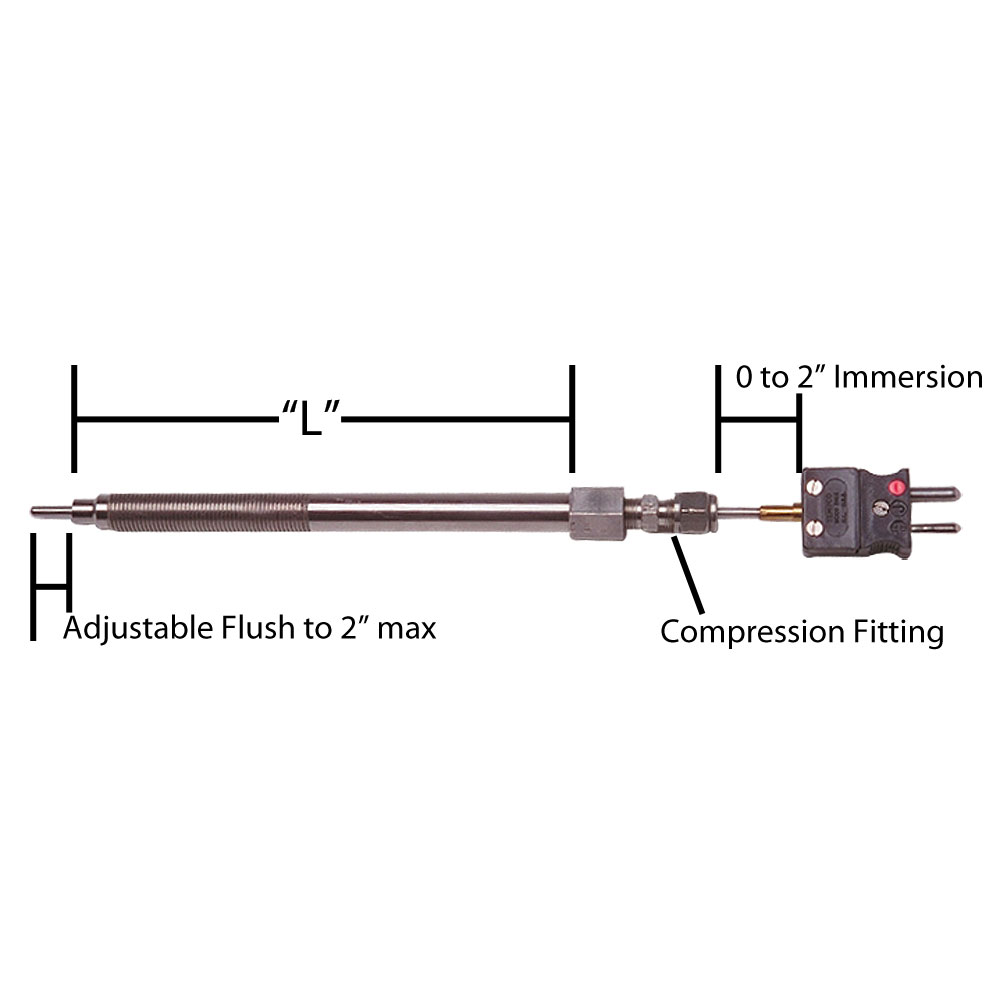

Style A—Adjustable Tip

  • Eliminates excess inventory.
  • Tip can be field adjusted from flush to 2 inches.
  • MgO insulated.
  • Can be installed wherever standard melt thermocouples are in use.
  • Bolt with Teflon® insert at tip has a maximum operating temperature of 500°F (260°C); without insert 1400°F (760°C).

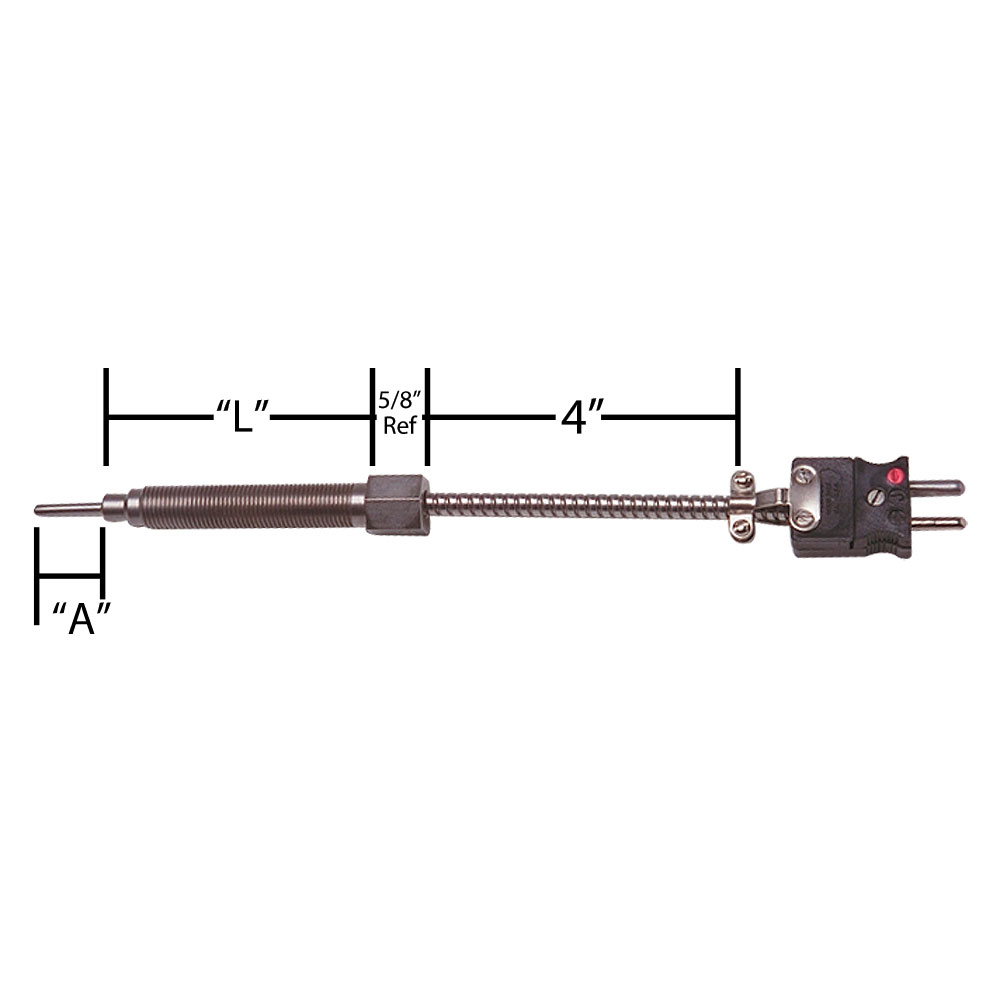

Style F — Fixed Immersion with Flexible Extension

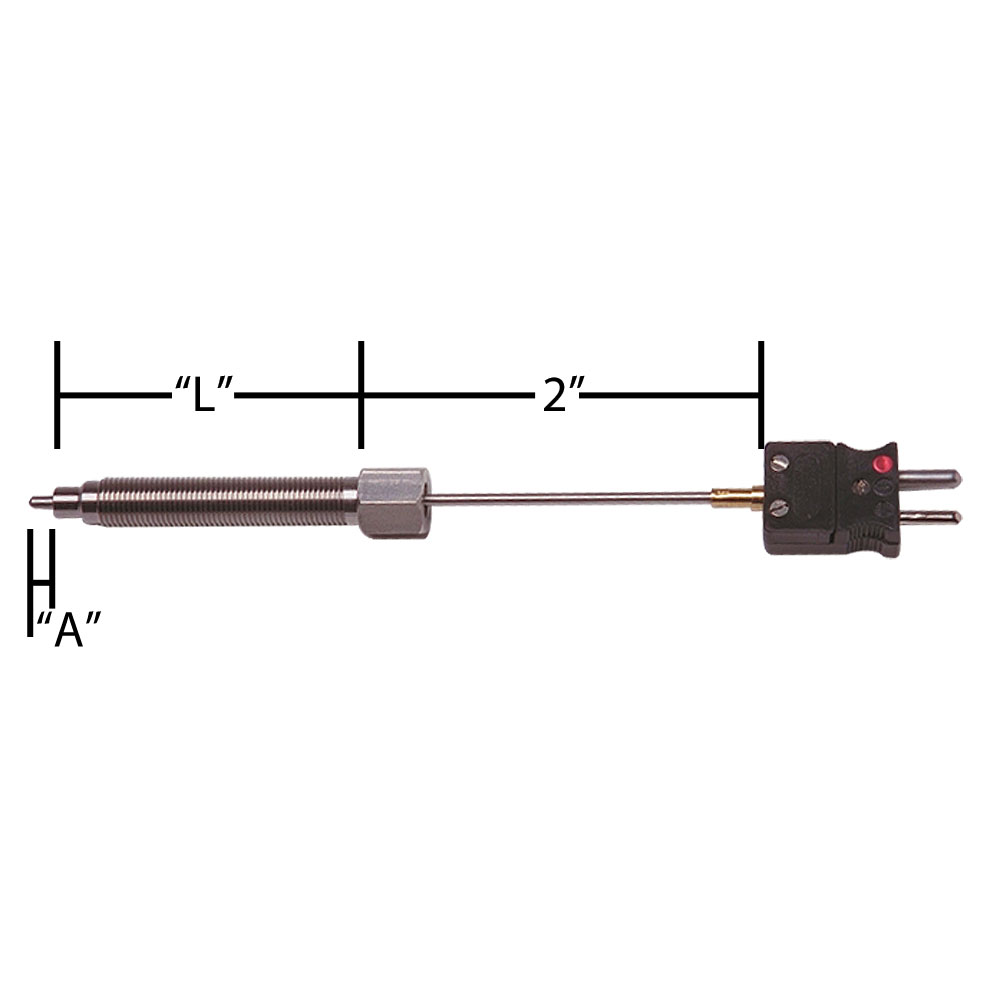

Style E — Fixed Immersion with Rigid Extension

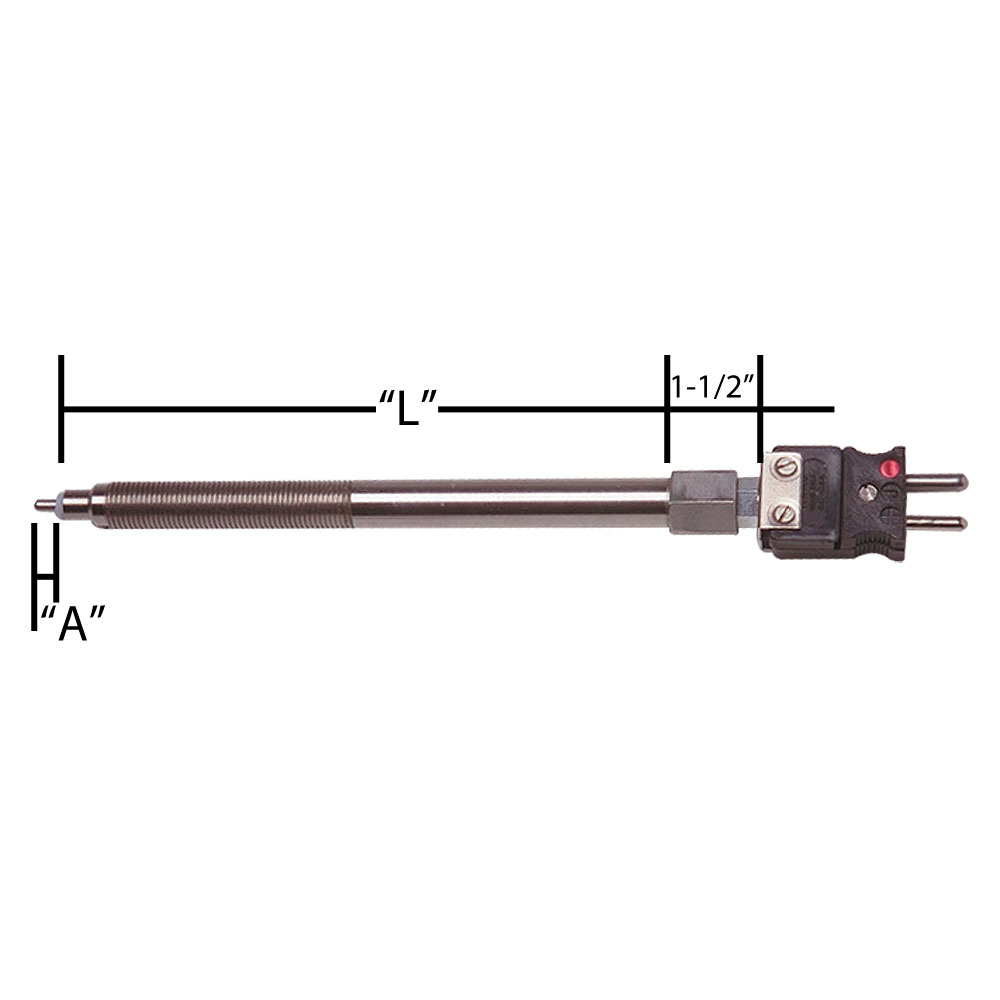

Style R — Fixed Immersion with No Extension

  • Designed to measure the temperature of Plastic Stream of an extruder or injection molding machine
  • 304 Stainless Steel Construction
  • 1/2-20 UNF Thread
  • 900°F (482°C) Operating Temperature

Thermocouples are offered with the options listed in the form below. Make your selections and Submit to Tempco for a quote request. Part Numbers are assigned at the time an order is placed.

Explore Melt Bolt Thermocouples Specifications




Optional Thermocouple Termination Styles

Style B - Plain Ends
Style B

Style C - Spade Lugs with BX Connector
Style C

Style J - Standard Jack
Style J

Style P - Standard Plug
Style P

Style S - Spade Lugs
Style S

Choose TMB Options (Select for Quote)

Style

Tip Diameter

Melt Bolt Length "L" Dimension

Calibration Code

"A" Dimension – Whole Inches 0 to 9
(Enter 0 if less than 1)

"A" Dimension – Fractional Inches

Junction

"B" Dimension – Whole Inches 000 to 999
Enter 000 for Style R

Termination

Special Requirements

Additional Information

Quantity

Questions or Comments

Contact Information (Required)

Customer Type

Location

City

Industry

Are you an existing Tempco Customer?  Yes    No

First Name

Last Name

Company

Email    [email protected]

Phone    xxx-xxx-xxxx

   Ooh, dat's hot! Please email me the latest product information and company updates from Tempco.
We won't share your information with anyone. You can unsubscribe at any time.

This page and any filter selections have been saved.

Review Your Items.


Request for Quote
