Click image to enlarge
These thermocouples for the plastics industry are offered with the options listed in the form below. Make your selections and Submit to Tempco for a quote request. Part Numbers are assigned at the time an order is placed.
Style B - Plain Ends
Style C - Spade Lugs with BX Connector
Style D - Miniature Plug
Style E - Miniature Jack
Style J - Standard Jack
Style P - Standard Plug
Style S - Spade Lugs

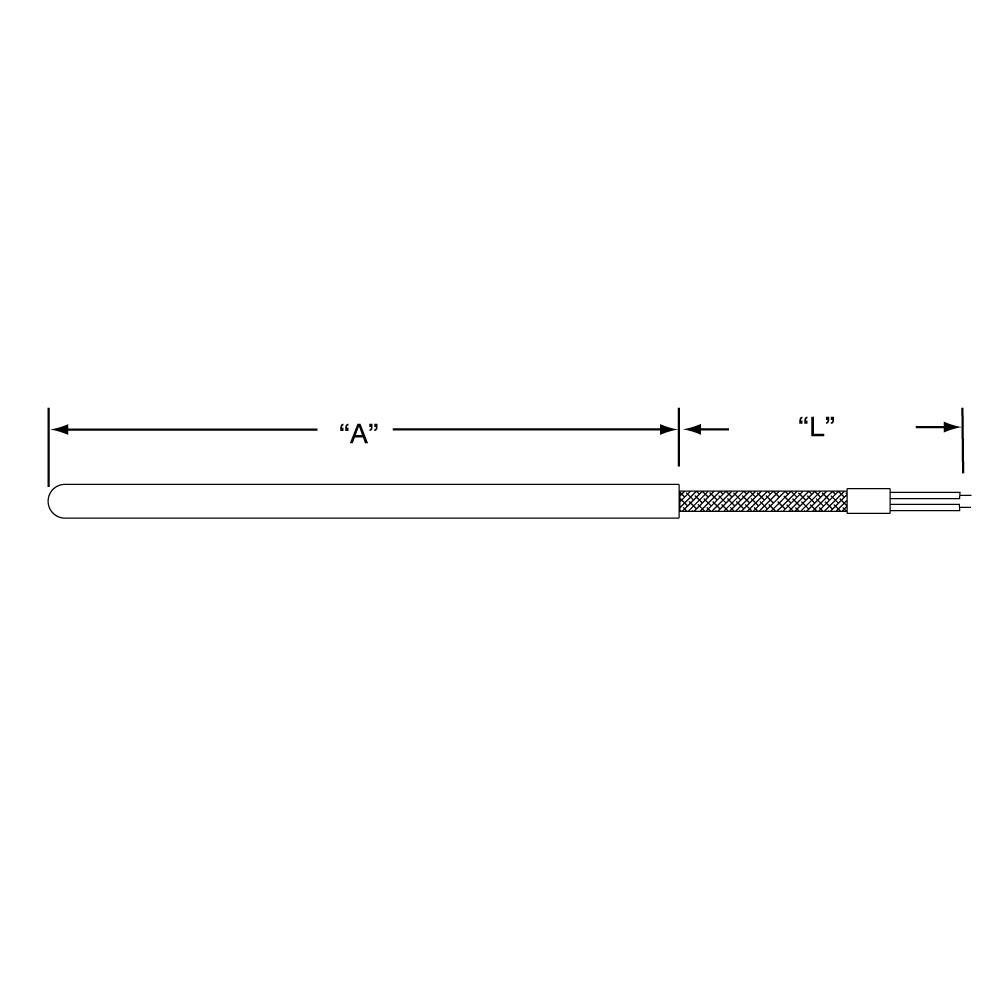

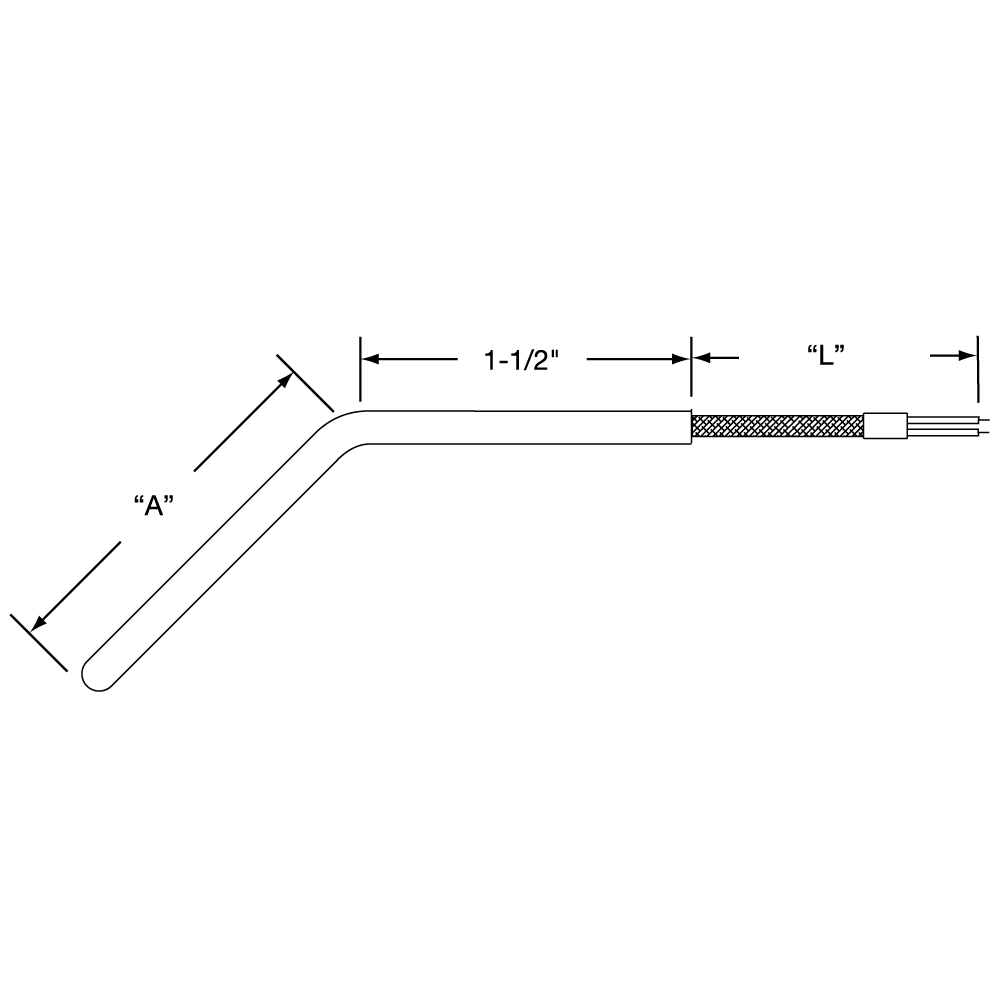

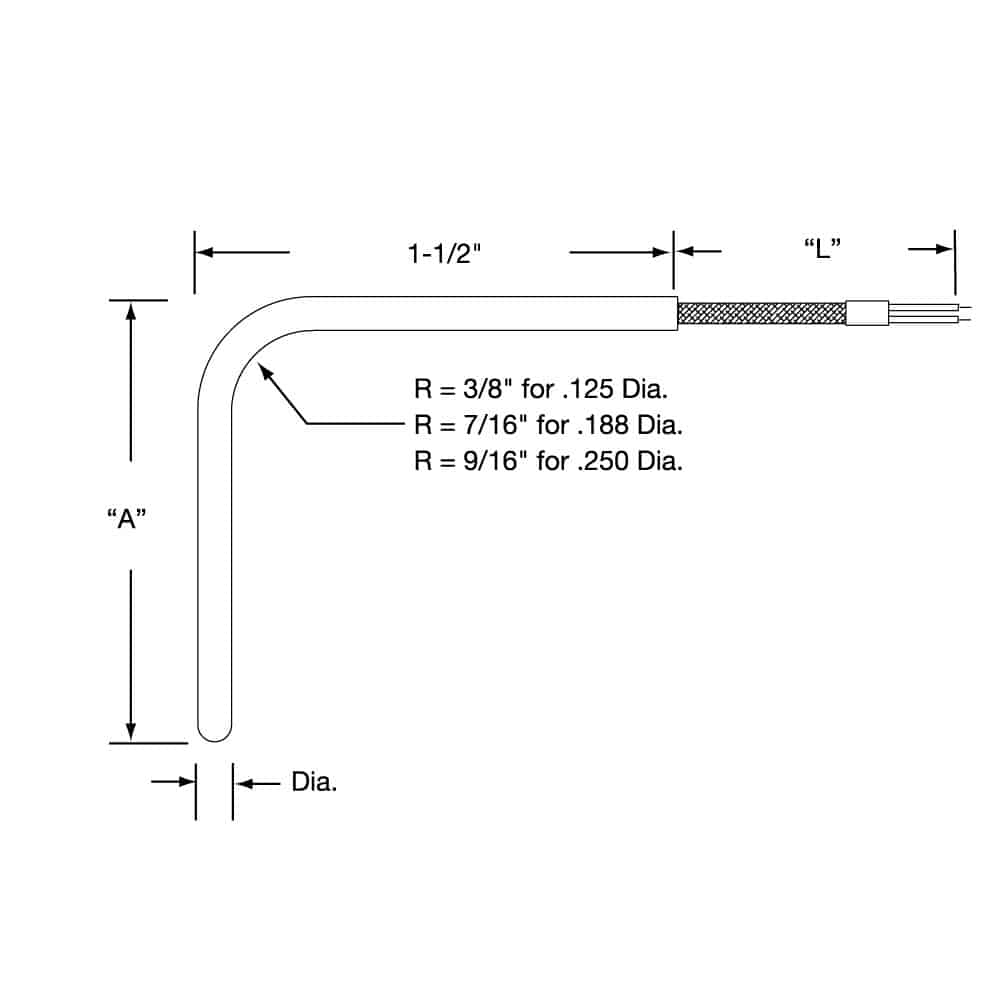

Style -- Select --1 = Straight2 = 45° Bend3 = 90° BendX = Other (Specify)
Calibration Code -- Select --ANSI Standard Tolerances: JANSI Standard Tolerances: KANSI Standard Tolerances: EANSI Standard Tolerances: TANSI Standard Tolerances: N
Sheath Material --Select--B = 304 SSC = 316 SS
Sheath Diameter --Select--F = .125" ±.002G = .188" ±.002H = .250" ±.002X = Other (Specify)
Sheath Length "A" – Whole Inches 00 to 99
Sheath Length "A" – Fractional Inches --Select--0 = 0"1 = 1/8"2 = 1/4"3 = 3/8"4 = 1/2"5 = 5/8"6 = 3/4"7 = 7/8"
Junction --Select--G = Single Element GroundedU = Single Element Ungrounded4 = Dual Element Grounded5 = Dual Element Ungrounded
Lead Wire Length "L" – Whole Inches 000 to 999
Lead Wire Construction --Select--S = Fiberglass 900°F (482°C)B = Fiberglass 900°F (482°C) w/ SS OverbraidA = Fiberglass 900°F (482°C) w/ SS Armor CableT = Teflon® 400°F (204°C)D = Teflon® 400°F (204°C) w/ SS OverbraidF = Teflon® 400°F (204°C) w/ SS Armor Cable
Lead Wire Termination --Select--B = 2-1/2 in. Split LeadsS = 2-1/2 in. Split Leads with Spade LugsC = 2-1/2 in. Split Leads with BX connector and Spade LugsP = Standard Male PlugJ = Standard Female JackK = Std. Plug with Mating JackD = Miniature Male PlugE = Miniature Female JackF = Miniature Plug with Mating JackX = Other (Specify)
Special Requirements --Select--X = Specify0 = None
Quantity
Questions or Comments
