Why Tempco Cartridge Heaters are Ideal for the Food & Beverage Industry

Three Tacos - Food and Beverage Industry

The Cartridge Heater is a reliable electric heating element used across many industries as a localized heat source within industrial processing equipment. One such industry is the Food and Beverage Industry which is in constant need of precise heating elements for all of its activities such as:

  • Preparation
  • Processing
  • Preservation
  • Packaging

Custom-designed or ready from stock, a Tempco cartridge heater can be built with watt densities as high as 300 W/square inch, reaching working temperatures up to 1400°F. Tempco offers a variety of options with our cartridge heater design features:

  • Electrical terminations
  • Termination options
  • Sheath options
  • Temperature sensor options
  • Power variations

Perhaps the most important design features for food and beverage processing are the available sheath materials and options. Besides our standard 321 Stainless Steel and Incoloy® 800 sheath materials, Tempco also offers 316L Stainless Steel, which is considered to be the best food-grade stainless steel. When combined with Passivation, a chemical process that removes surface contamination, and Electro-Polishing, a process that removes surface imperfections and contaminants, these materials offer excellent corrosion protection. Tempco manufactures our own standard and custom fittings for various mounting options and moisture resistant terminations that are also important within the industry.

With almost 50 years of experience in designing and manufacturing heating elements, Tempco produces a large variety of cartridge heaters that can be used in any imaginable food and beverage process application such as:

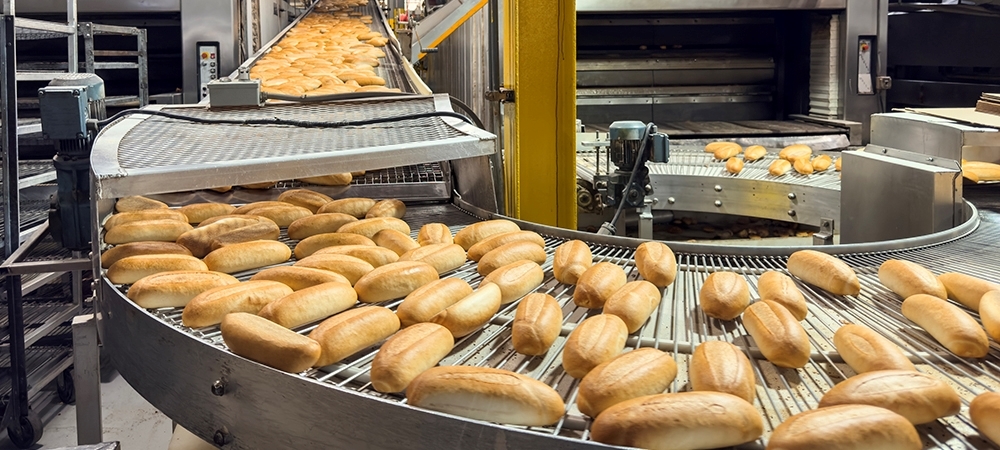

  • Baking Equipment
  • Beverage Carbonation
  • Candy Making Equipment
  • Coffee Makers
  • Dairy Equipment
  • Food Warmers
  • Grills – igniting wood pellets
  • Refrigeration Equipment
  • Sealing Bars for Packaging Machines
  • Smokers
  • Water heating

Custom Cartridge Heaters for Food and Beverage Industry Applications

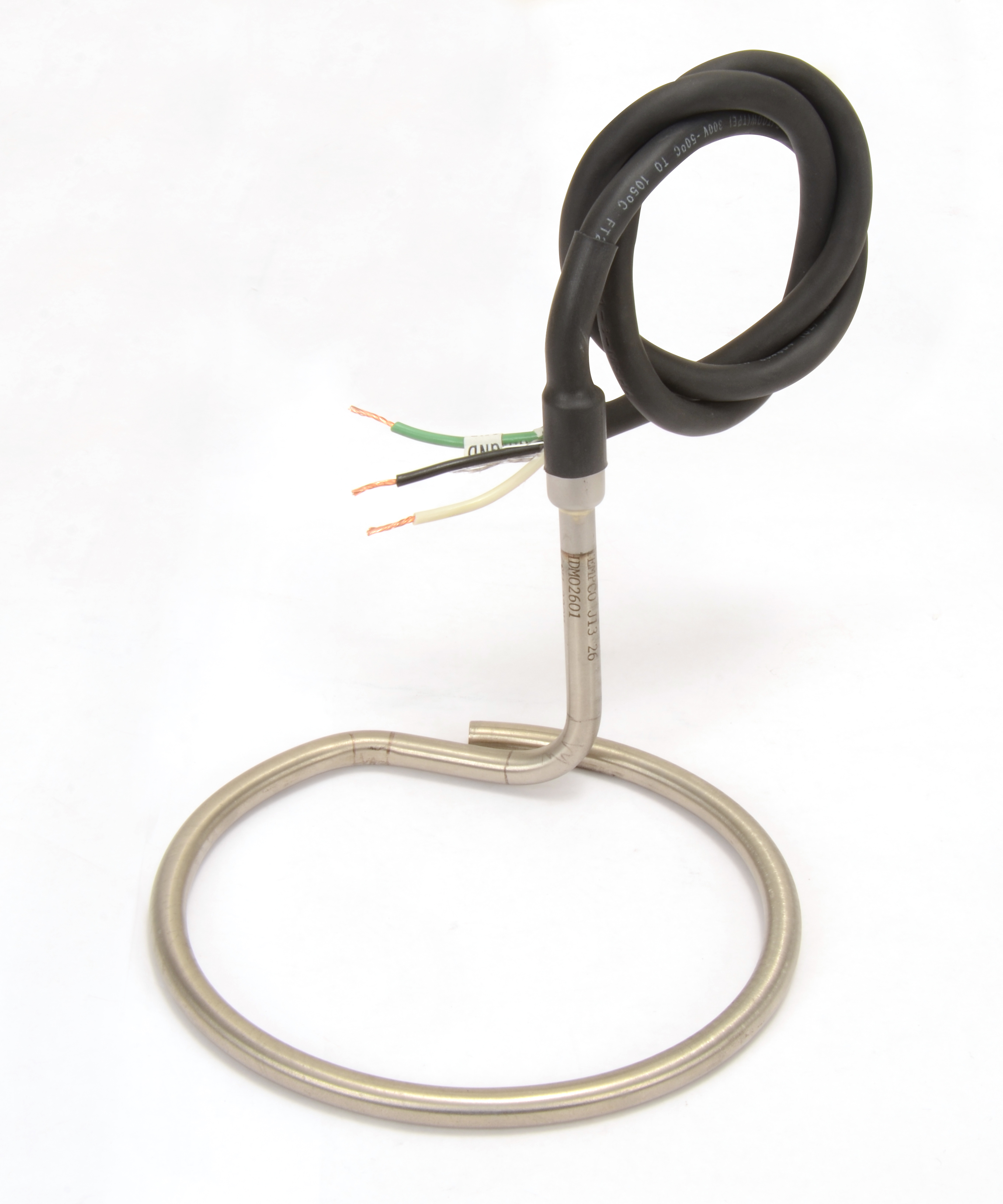

Formed High Density Cartridge Heater for Food Packaging Machinery

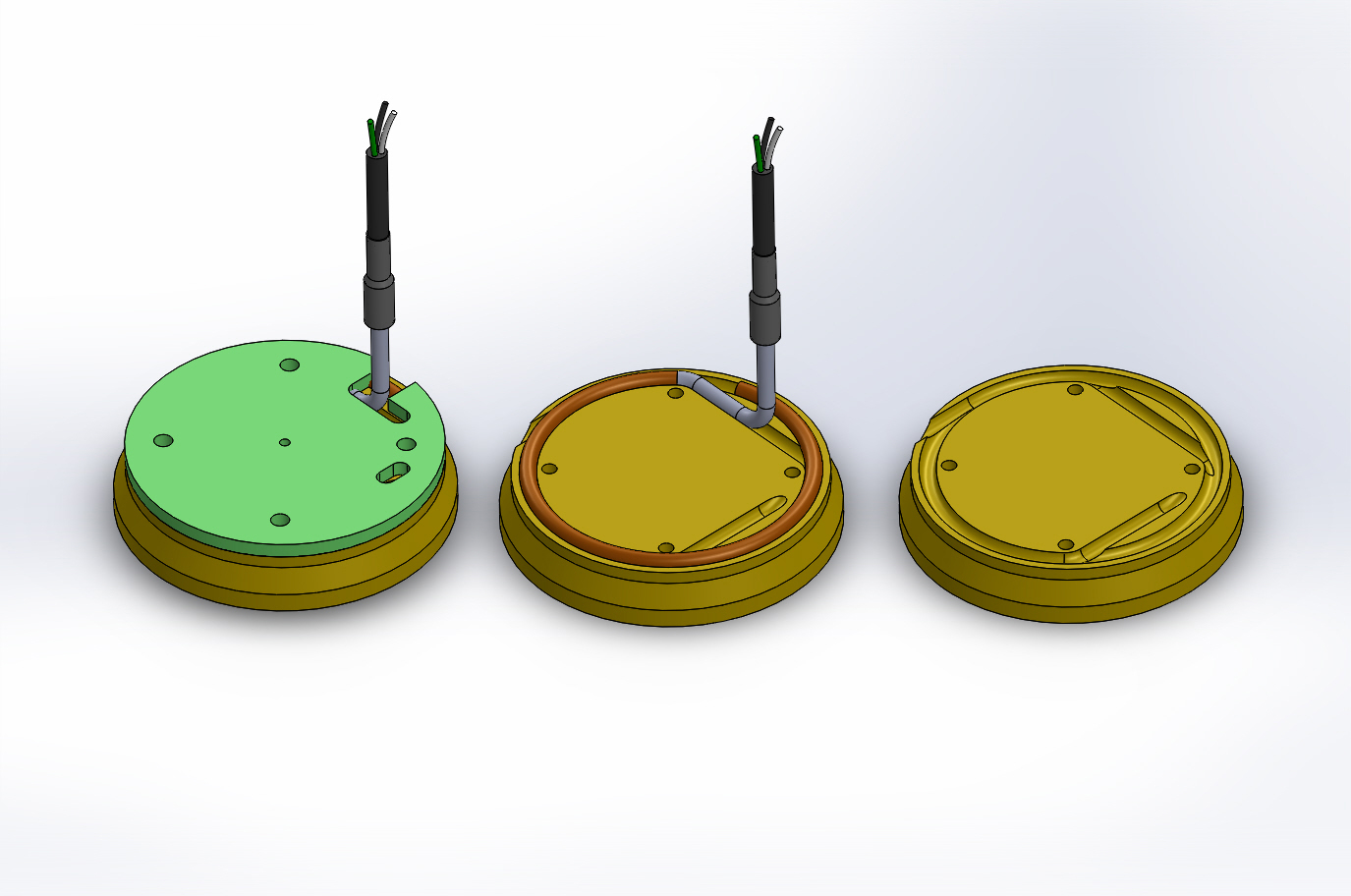

3D model for Formed Tempco Cartridge Heater

Design Features
  • Cartridge heater formed into circular formation
    • When a formed heater is required, a tubular element is usually the first choice. However, when the watt density is too high for a tubular heating element, a Tempco Hi-Density Cartridge Heater is a viable alternative.
  • Moisture resistant seal and flexible SJO cord

Cartridge Heaters used in Flour Tortilla Press

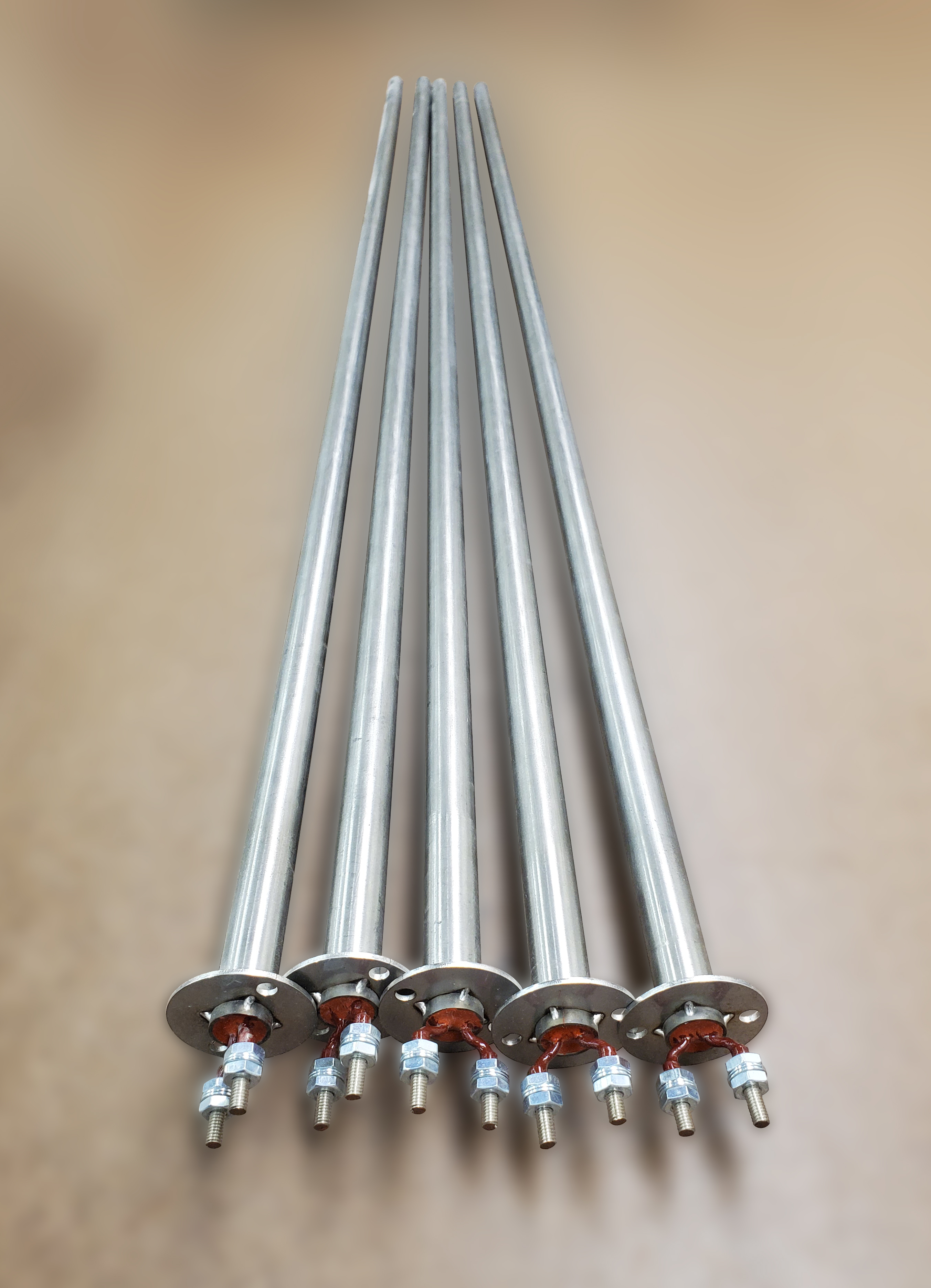

Group of Tempco Cartridge Heaters for Tortilla Press

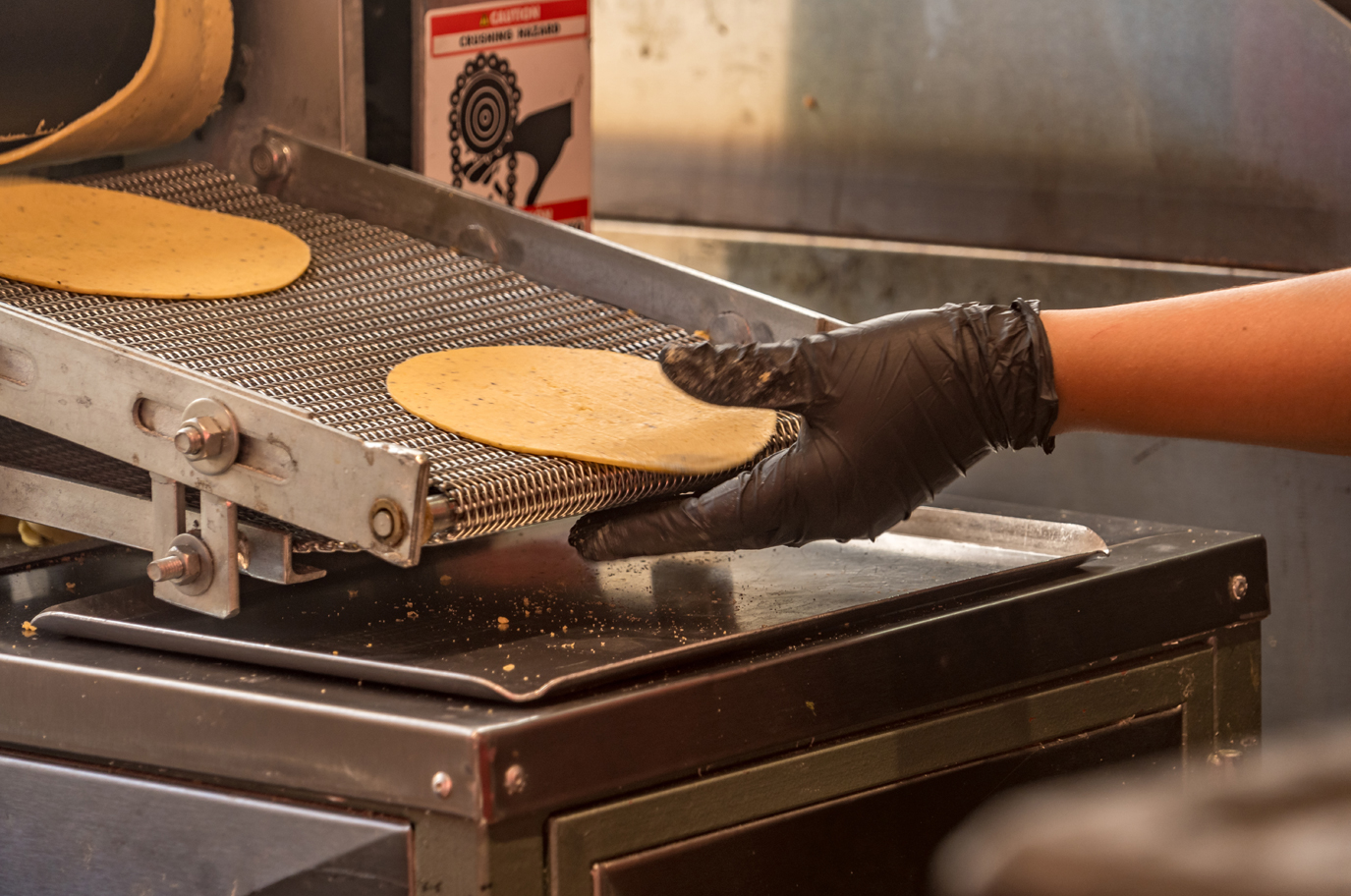

Tortilla Processing Equipment

Design Features:
  • Designed for high voltage use
  • Electrical Termination is screw terminals to enable quick connection of the power cable
  • Moisture resistant seal
  • Mounting flange


Self-controlled Low-Density Cartridge Heater for Film Wrapping Machine

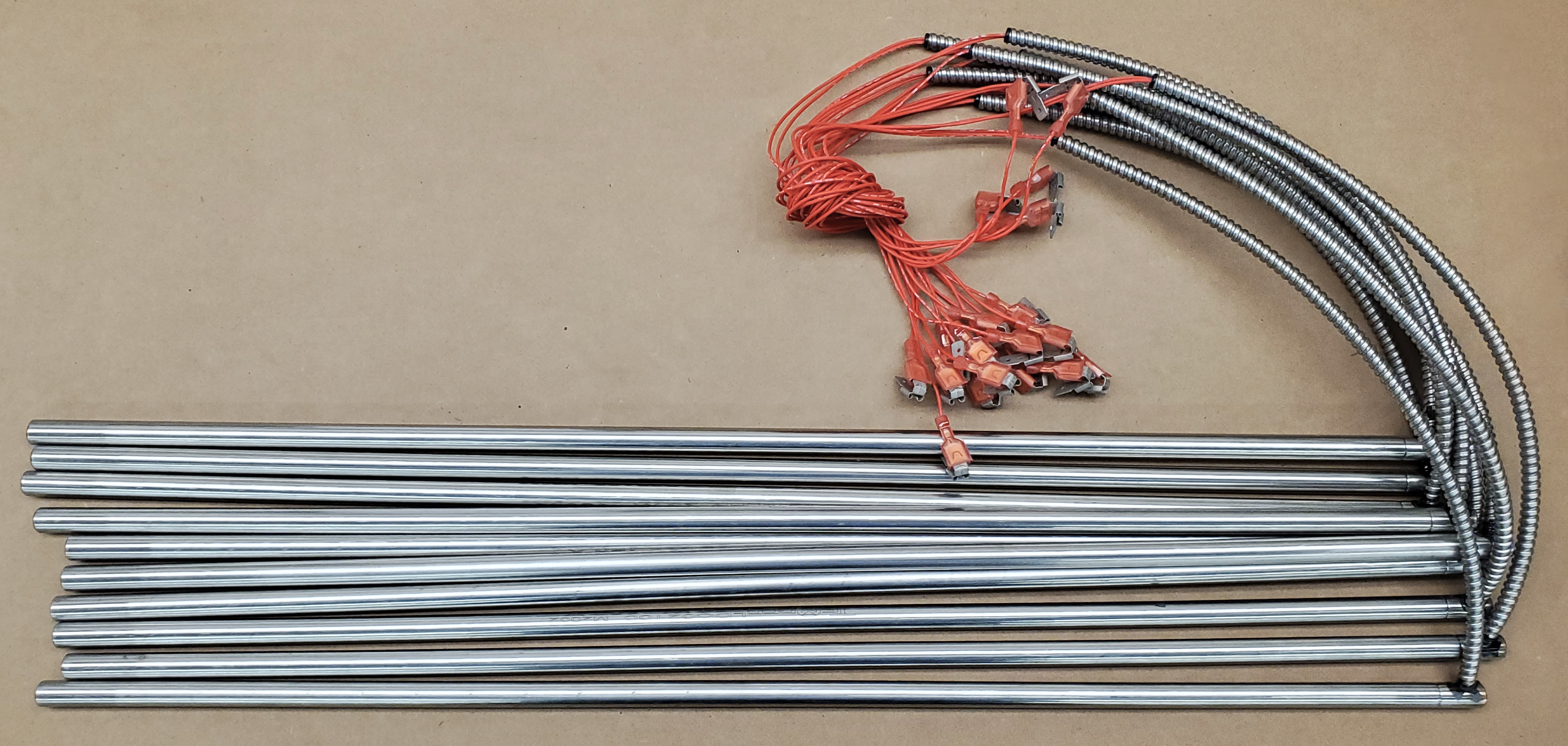

Group of Self-Controlled Tempco Cartridge Heaters

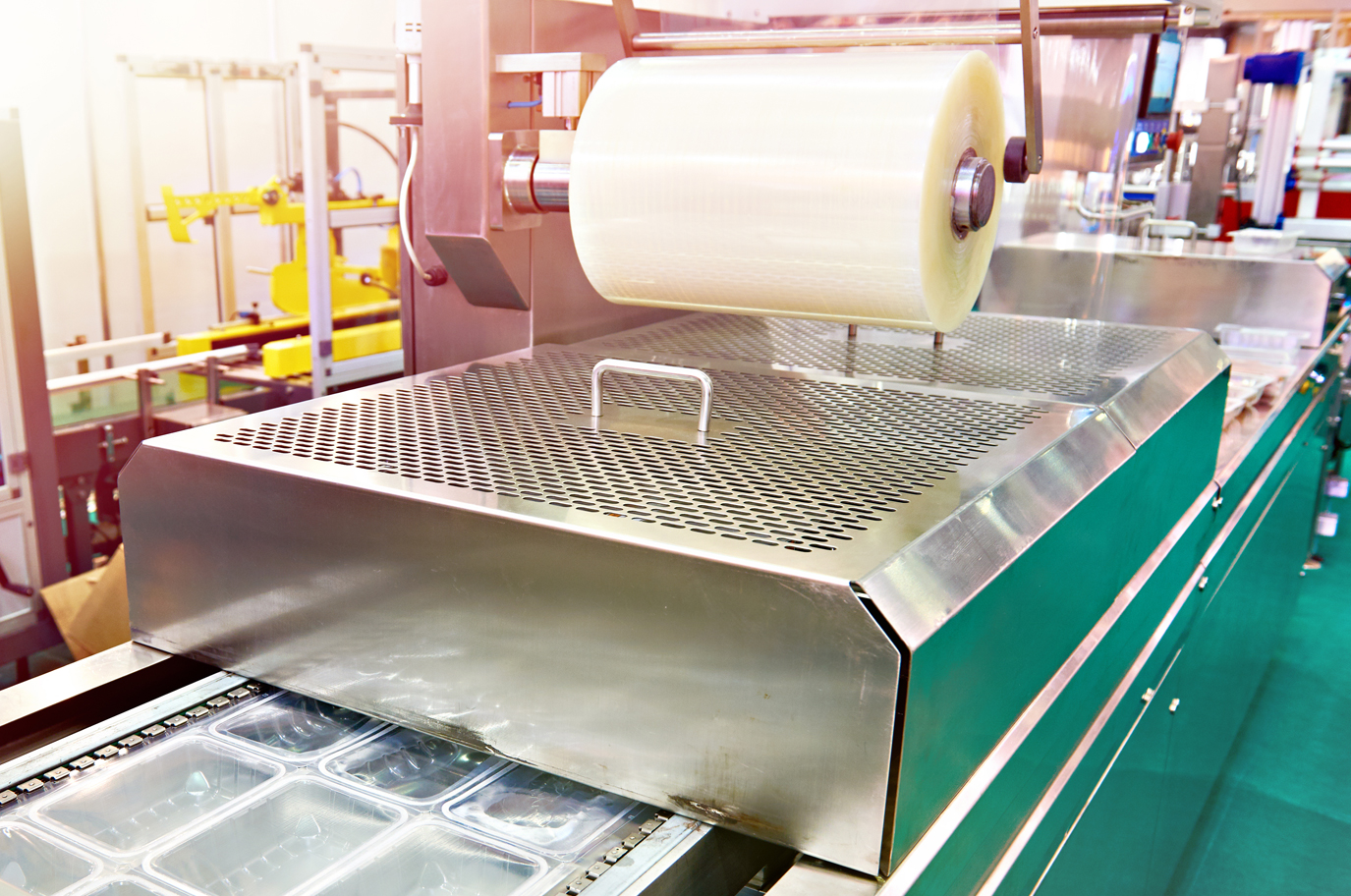

Film Packaging Machine

Design Features:
  • Uniform heat distribution across application
  • Built-in thermostat allows for self-controlled temperature
  • Quick disconnect electrical termination
  • Stainless Steel cable for abrasion protection on electrical termination

High Density Cartridge Heater for Beverage Carbonation

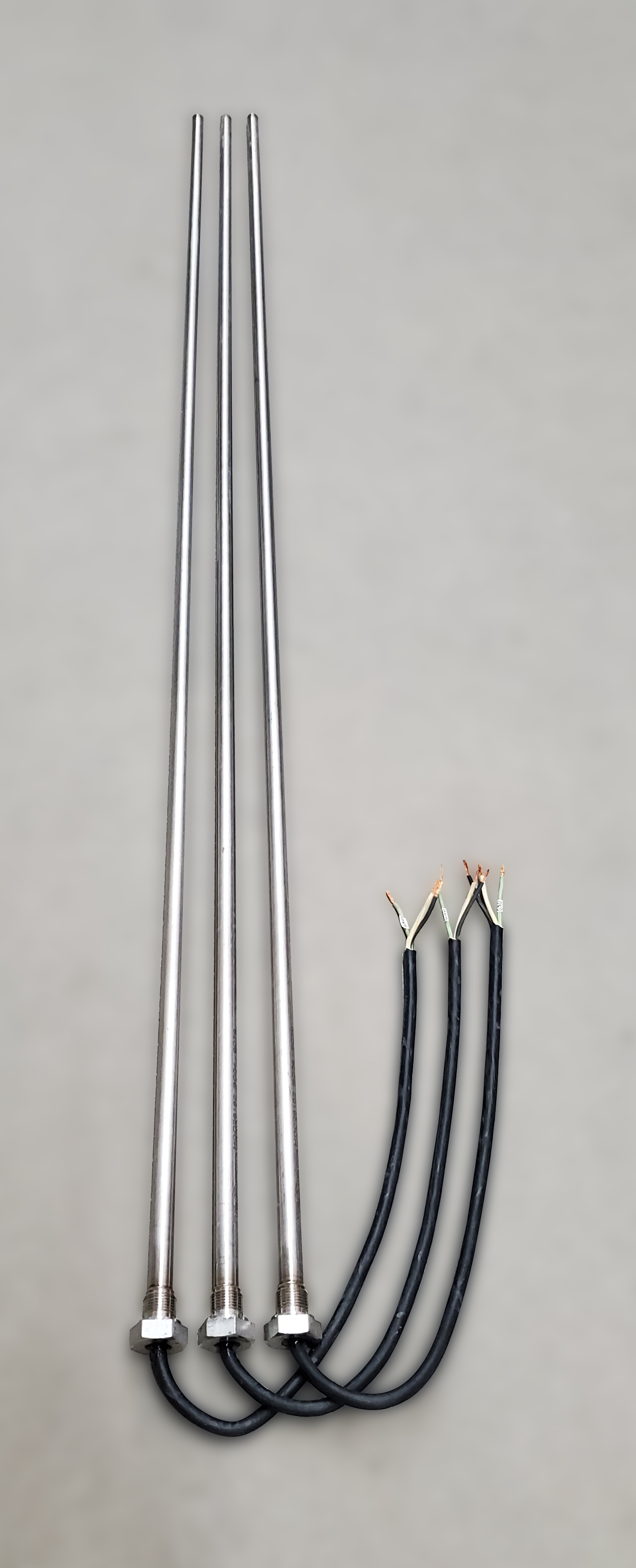

Tempco Cartridge Heaters for Beverage Carbonation Machine

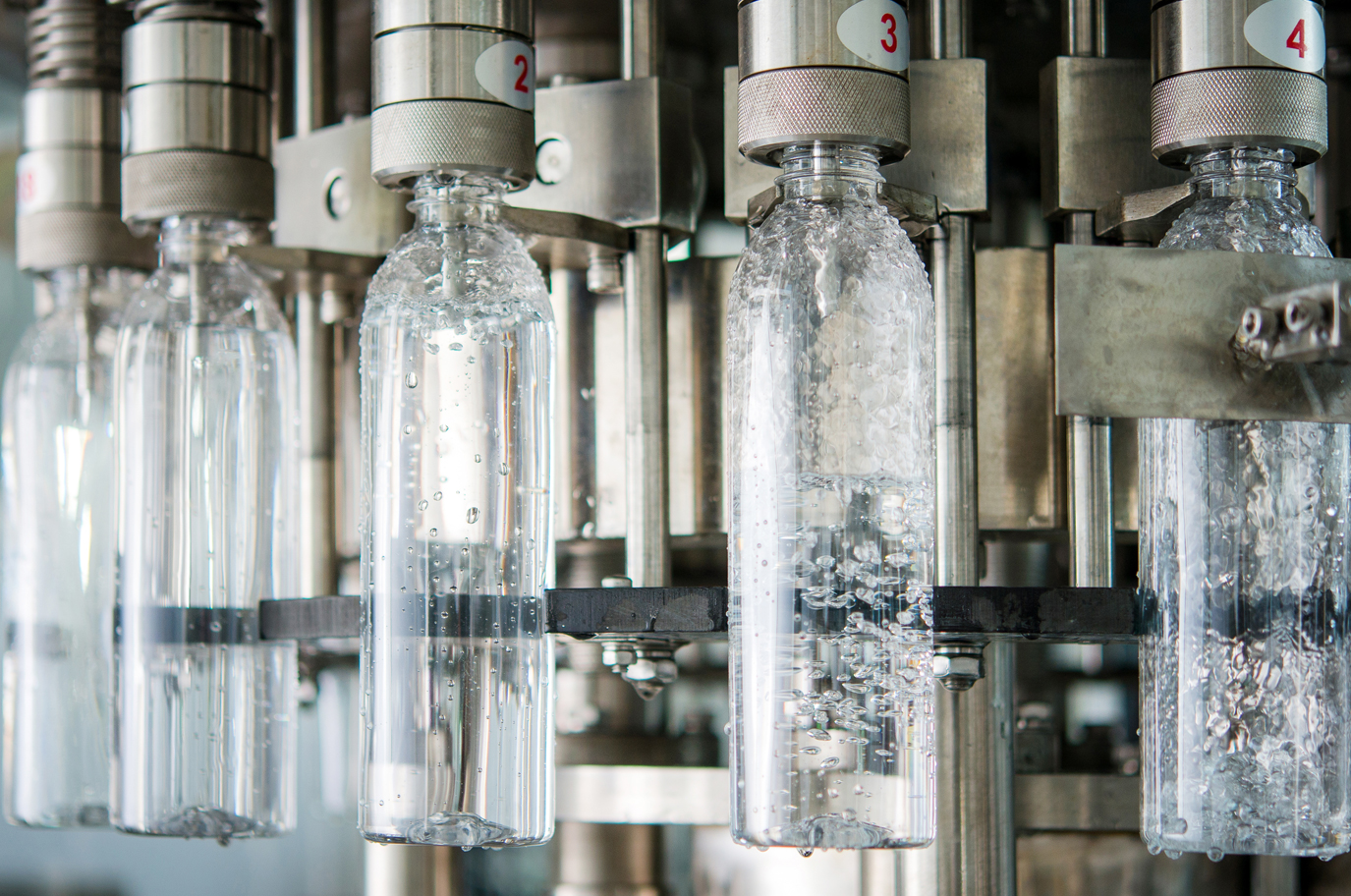

Beverage Carbonating Processing Machine

Design Features:

  • Custom, Tempco-made fitting for the mounting option
  • Built-in thermostat allows for self-controlled temperature
  • Moisture resistant seal
  • SJO cord

With our engineering expertise and unique Manufacturing capabilities, Tempco can address the challenges of original equipment manufacturers (OEM’s) and maintenance (MRO) applications within the food and beverage industry. In addition, we offer services that drastically reduce the normal delivery time. The Pronto service can be used for non-stock and custom manufactured heaters, while the Terminator service offers 1-3 day delivery on custom-terminated cartridge heater substrates. For a complete thermal loop, Tempco also manufactures Temperature Sensors and Temperature Control Products.

Helpful Links
Filip M.

Product Engineering Manager

January 11, 2021
