Resistance Wire & Ribbon Part Numbers

Return to Resistance Wire & Ribbon.

Resistance Wire & Ribbon

Part Number Prefix: RES

Please wait while we gather your results.

Last Updated: 6/13/2025 2:10:41 PM CST

Show in-stock items only

Scroll table to view all

Part Number	In Stock	Gauge	Diameter	Resistance at 68°F/20°C (ohms/ft)	Weight (lb/1000 ft)	Nominal Length (ft/lb)	Nominal Spool Weight	Standard Spool Size Code	Qty	Price Per
Part Number	In Stock	Gauge	Diameter	Resistance at 68°F/20°C (ohms/ft)	Weight (lb/1000 ft)	Nominal Length (ft/lb)	Nominal Spool Weight	Standard Spool Size Code	Qty	Price Per
RES-101-102	YES	17	0.0453	0.32	5.8	172.4	6	D	71.08 LB	37.7 / LB
RES-101-103	YES	19	0.0359	0.509	3.64	274.7	9	D	322.99 LB	47.35 / LB
RES-101-104	YES	20	0.032	0.64	2.9	344.8	10	D	19.65 LB	42.1 / LB
RES-101-105	YES	21	0.0285	0.807	2.3	434.8	8	D	54.72 LB	41.15 / LB
RES-101-106	YES	22	0.0253	1.02	1.81	552.5	9	D	22.21 LB	52.05 / LB
RES-101-107	YES	23	0.0226	1.28	1.44	694.4	5	C	24.15 LB	92.55 / LB
RES-101-108	YES	24	0.0201	1.62	1.14	877.2	10	D	25.96 LB	46.7 / LB
RES-101-109	YES	25	0.0179	2.05	0.906	1104	5	C	17.39 LB	60.1 / LB
RES-101-110	YES	26	0.0159	2.59	0.715	1399	2	F	48 LB	48.1 / LB
RES-101-111	YES	27	0.0142	3.25	0.57	1754	2	F	55.62 LB	55.3 / LB
RES-101-112	YES	28	0.0126	4.13	0.449	2227	3.5	F	86.92 LB	60 / LB
RES-101-113	YES	29	0.0113	5.13	0.361	2770	3.5	F	106.71 LB	67.25 / LB
RES-101-114	YES	30	0.01	6.56	0.283	3534	2.25	F	76.38 LB	74.15 / LB
RES-101-115	YES	31	0.0089	8.28	0.224	4465	2.25	F	55.73 LB	68.75 / LB
RES-101-116	YES	32	0.008	10.2	0.181	5525	2.5	F	60.62 LB	79.55 / LB
RES-101-117	YES	33	0.0071	13	0.143	6993	1.75	F	75.36 LB	79.55 / LB
RES-101-118	YES	34	0.0063	16.5	0.112	8929	2	B	56.53 LB	79.55 / LB
RES-101-119	YES	35	0.0056	20.9	0.0887	11274	1	A	36.96 LB	85.15 / LB
RES-101-120	YES	36	0.005	26.2	0.0707	14144	1	A	26 LB	161.8 / LB
RES-101-121	YES	37	0.0045	32.4	0.0573	17452	1	A	38.16 LB	161.8 / LB
RES-101-122	YES	38	0.004	41	0.0452	22124	1	A	24.2 LB	145.05 / LB
RES-101-123	YES	39	0.0035	53.5	0.0346	28901	1	A	30.966 LB	145.05 / LB
RES-101-124	YES	40	0.0031	68.2	0.0272	36765	1	A	5.228 LB	174.35 / LB
RES-101-125	YES	41	0.0028	83.6	0.0222	45045	0.5	A	2.84 LB	141.95 / LB
RES-101-126	YES	42	0.0025	105	0.0177	56497	0.3	A	5.85 LB	163.9 / LB
RES-101-127	YES	43	0.0022	135	0.0137	72993	0.35	A	21.33 LB	200.1 / LB
RES-101-130	YES	18	0.0403	0.404	4.59	217.9	10	D	17.255 LB	32.3 / LB
RES-101-131	YES	12	0.0808	0.1	18.5	54.1	24	—	53.6 LB	43.9 / LB
RES-101-132	NO	9	0.114	0.0501	37	27	24	—	0 LB	CALL
RES-101-142	NO	8	0.129	0.0397	46.7	21.4	24	—	0 LB	CALL
RES-103-102	NO	16	0.0508	0.259	7.2	138.9	8	D	0 LB	CALL
RES-103-103	YES	17	0.0453	0.325	5.72	174.8	10	D	292.64 LB	37.95 / LB
RES-103-104	YES	18	0.0403	0.411	4.53	220.8	10	D	17.175 LB	24.9 / LB
RES-103-105	YES	19	0.0359	0.518	3.6	277.8	8	D	50.55 LB	24.9 / LB
RES-103-106	YES	20	0.032	0.652	2.86	349.7	10	D	59.145 LB	24.9 / LB
RES-103-107	NO	21	0.0285	0.822	2.27	440.5	10	D	0 LB	CALL
RES-103-108	YES	22	0.0253	1.04	1.79	558.7	9	D	89.09 LB	34.45 / LB
RES-103-109	YES	23	0.0226	1.31	1.42	704.2	6	C	58.9 LB	34.45 / LB
RES-103-110	YES	24	0.0201	1.65	1.13	885	5	C	14.95 LB	36.75 / LB
RES-103-111	YES	25	0.0179	2.08	0.894	1119	5	C	20.17 LB	36.75 / LB
RES-103-112	YES	26	0.0159	2.64	0.705	1418	1.5	B	62.83 LB	36.45 / LB
RES-103-113	YES	27	0.0142	3.31	0.563	1776	5	C	43.48 LB	36.45 / LB
RES-103-114	YES	28	0.0126	4.21	0.443	2257	5	C	66.51 LB	36.45 / LB
RES-103-115	YES	29	0.0113	5.23	0.356	2809	5.25	C	35.98 LB	36.45 / LB
RES-103-116	YES	30	0.01	6.68	0.279	3584	2	B	33.5 LB	36.45 / LB
RES-103-117	YES	31	0.0089	8.43	0.221	4525	3	F	26.22 LB	36.45 / LB
RES-103-118	YES	32	0.008	10.4	0.179	5587	3	F	51.65 LB	75.9 / LB
RES-103-119	YES	33	0.0071	13.2	0.141	7092	2	B	29.1 LB	75.9 / LB
RES-103-120	YES	34	0.0063	16.8	0.111	9009	2	B	2.9 LB	75.9 / LB
RES-103-121	YES	35	0.0056	21.3	0.0875	11429	0.75	A	24.52 LB	75.9 / LB
RES-103-122	YES	36	0.005	26.7	0.0697	14347	1	A	12.881 LB	75.9 / LB
RES-103-123	YES	37	0.0045	33	0.0565	17699	0.75	A	7.927 LB	75.9 / LB
RES-103-124	YES	38	0.004	41.7	0.0446	22422	0.75	A	9.309 LB	75.9 / LB
RES-103-125	YES	39	0.0035	54.5	0.0342	29240	1	A	2.144 LB	75.9 / LB
RES-103-126	YES	40	0.0031	69.5	0.0268	37313	1	A	8.098 LB	119.45 / LB
RES-103-127	YES	41	0.0028	85.2	0.0219	45662	0.25	A	8.469 LB	119.45 / LB
RES-103-128	YES	42	0.0025	107	0.0174	57471	0.5	A	4.15 LB	119.45 / LB
RES-103-129	YES	43	0.0022	138	0.01422	70320	0.5	A	7.486 LB	203.75 / LB
RES-103-130	YES	44	0.002	167	0.0112	89286	4	C	3.344 LB	334.85 / LB
RES-106-101	YES	17	0.045	0.396	5.07	197.2	10	D	44.875 LB	25.1 / LB
RES-106-102	YES	19	0.036	0.63	3.18	314.5	5	C	46.69 LB	24.1 / LB
RES-106-103	YES	29	0.0113	6.36	0.315	3175	4.25	C	30.87 LB	24.1 / LB
RES-106-104	YES	34	0.0063	20.5	0.098	10204	5	C	17.63 LB	24.1 / LB
RES-106-105	YES	33	0.0071	16.1	0.124	8065	4	C	23.276 LB	24.1 / LB
RES-106-106	NO	23	0.0226	1.59	1.26	793.7	35	—	0 LB	CALL
RES-106-107	YES	21	0.0285	1	2.01	497.5	8	D	50.94 LB	24.1 / LB
RES-106-109	YES	25	0.0179	2.53	0.791	1264	5.5	C	26.39 LB	24.1 / LB
RES-106-110	YES	28	0.0126	5.11	0.392	2551	5	C	104.69 LB	24.1 / LB
RES-106-111	YES	31	0.0089	10.3	0.196	5102	1.5	B	25.79 LB	24.1 / LB
RES-106-112	YES	37	0.0045	40.1	0.05	20000	2	B	1.45 LB	24.1 / LB
RES-106-135	YES	26	0.0159	3.21	0.624	1603	6	C	2.45 LB	24.1 / LB
RES-106-136	YES	27	0.0142	4.03	0.498	2008	5	C	50.13 LB	24.1 / LB
RES-106-137	NO	24	0.0201	2.01	1	1000	5	C	0 LB	CALL
RES-106-138	YES	30	0.01	8.12	0.247	4049	1.5	B	20.5 LB	59.55 / LB
RES-106-139	YES	32	0.008	12.7	0.158	6329	1.5	B	21.131 LB	59.55 / LB
RES-106-140	YES	35	0.0056	25.9	0.0774	12920	5	C	43.927 LB	59.55 / LB
RES-106-141	NO	22	0.0253	1.27	1.58	632.9	6	C	0 LB	CALL
RES-106-142	YES	18	0.04	0.5	4.01	249.4	10	D	0.95 LB	59.55 / LB
RES-106-143	YES	20	0.032	0.793	2.53	395.3	1.75	C	8.46 LB	24.9 / LB
RES-107-120*	YES	26	0.0159	3.5235	0	0	0		15.832 LB	73.45 / LB
RES-107-121*	YES	22	0.0253	1.357	0	0	0		30.79 LB	70.55 / LB
RES-107-122*	YES	24	0.0201	2.158	0	0	0		15.26 LB	68.4 / LB
RES-107-125*	YES	28	0.0126	5.12	0	0	0		38.66 LB	79.5 / LB
RES-107-126*	YES	12	0.0808	0.1335	0	0	0		50 LB	68.3 / LB

*Not a stock catalog part number – conditions and charges may apply.

Standard Spool Dimensions

Spool Code	Flange		Barrel		Traverse		Bore ID
Spool Code	in	mm	in	mm	in	mm	in	mm
A	2.5	63	1.75	44	3	76	0.62	16
B	3	76	1.75	44	3	77	0.62	16
C	5	127	3	76	3.5	89	0.62	16
D	6	152	3.5	89	3.5	89	0.62	16
E	3.15	80	2	51	2.5	63	0.62	16
F	3.87	98	2.37	59	3.12	79	0.62	16
G	4.92	125	3.1	79	3.93	100	0.62	16

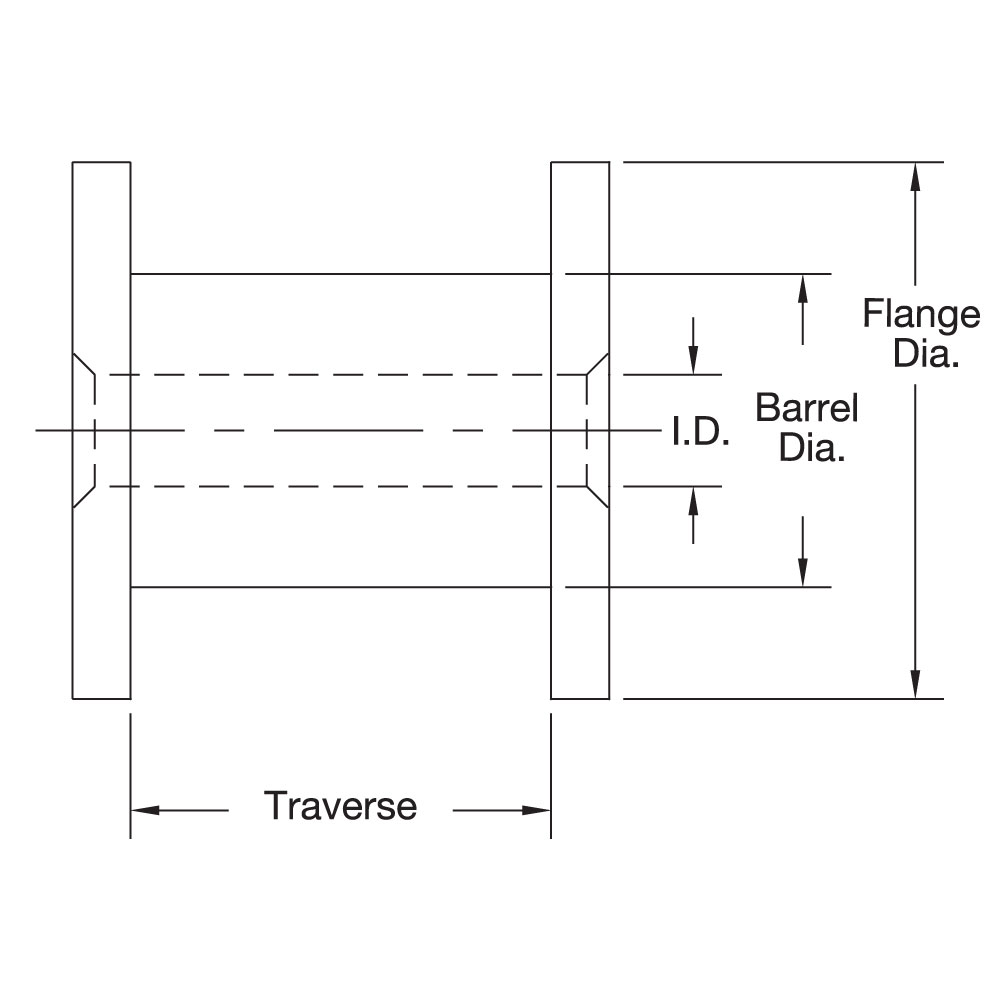

Spool drawing
