Resistance Wire & Ribbon

Click image to enlarge

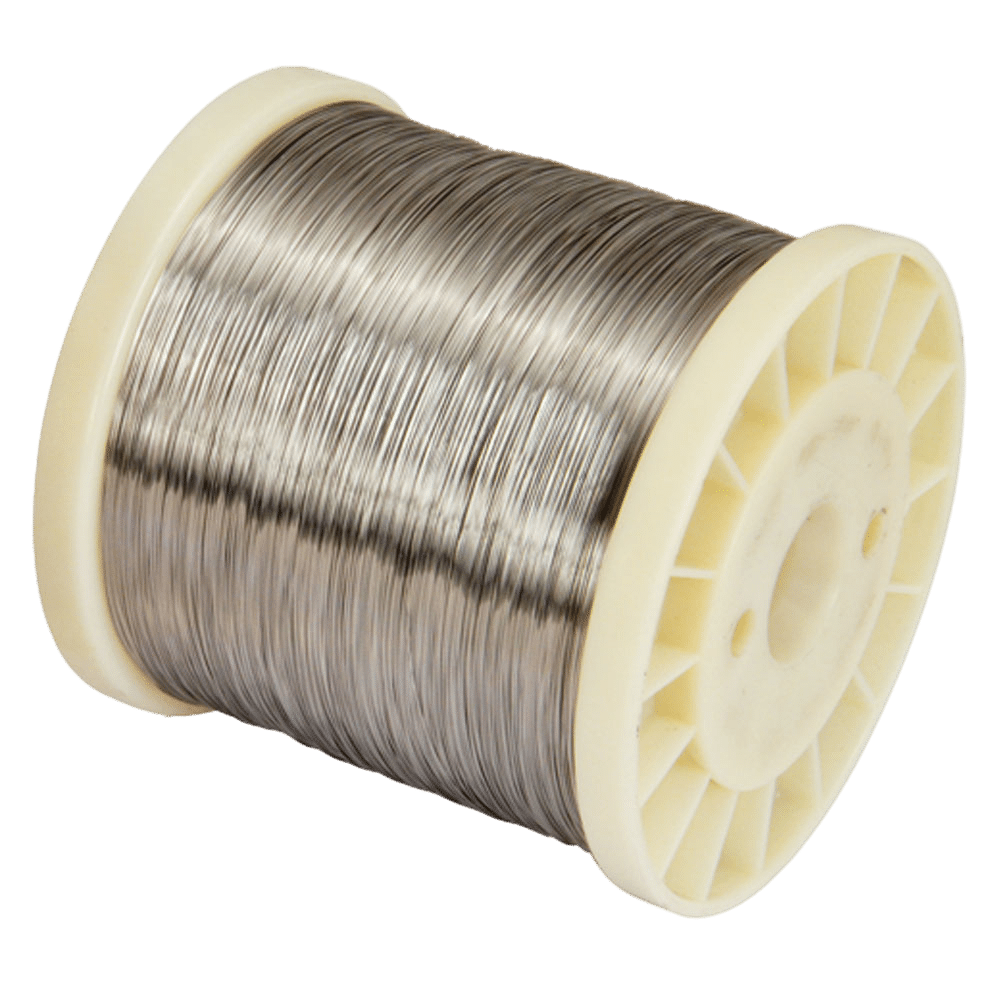

Resistance Wire & Ribbon

PRODUCTS TEMPORARILY UNAVAILABLE FOR PURCHASE

The resistance wire is offered both in round wire and ribbon.

Type A: Wire only 2190°F (1200°C)
Type C: Wire 2100°F (1150°C) Ribbon 2055°F (1125°C)
Type D: Wire only 2370°F (1300°C)

Resources

Catalog Pages

In-Stock Parts

Resistance Wire & Ribbon (RES)

Explore Resistance Wire & Ribbon Specifications

Refine Results

Wire Types

Ribbon

Round Wire

Sort by:

Alphabetical
Sort Date "Newest First"
Sort Date "Oldest First"
Most Popular
Highest Rated
Display Order Ascending
Display Order Descending
Detail Images Group 1 Size Ascending
Detail Images Group 1 Size Descending
Detail Images Group 2 Size Ascending
Detail Images Group 2 Size Descending
Detail Images Group 3 Size Ascending
Detail Images Group 3 Size Descending
Card Title Ascending
Card Title Descending

Please wait while we gather your results.

Wire Types

/Tempco/Data-Assets/15-Accessories-Images/WebResistance_Wire.jpg

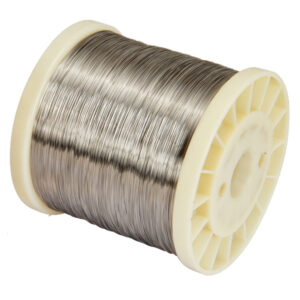

Type A Wire (Kanthal Nikothal 80 or Equivalent)

Products Temporarily Unavailable for Purchase

Composition: 80% Nickel, 20% Chromium
Specific Resistance: 655 Ohms / circ. mil foot @ 68°F / 20°C
Maximum continuous operating temperature: 2190°F / 1200°C (element temperature in air)
Melting Point: 1400°C / 2550°F
Density: (lbs/in3): 0.300
Specific Gravity: 8.41
Resistance Tolerance: 8 ga. through 23 ga. ±3%, 24 ga. through 36 ga. ±5%, 37 ga. through 43 ga. ±8%

Type C Wire (Kanthal Nikrothal 60 or Equivalent)

Products Temporarily Unavailable for Purchase

Composition: 60% Nickel, 16% Chromium, Fe balance
Specific Resistance: 668 Ohms / circ. mil foot @ 68°F / 20°C
Maximum continuous operating temperature: 2100°F / 1150°C (element temperature in air)
Melting Point: 1390°C / 2535°F
Density: (lbs/in3): 0.296
Specific Gravity: 8.25
Resistance Tolerance: 16 ga. through 23 ga. ±3%, 24 ga. through 36 ga. ±5%, 37 ga. through 44 ga. ±8%

/Tempco/Data-Assets/15-Accessories-Images/WebResistance_Ribbon.jpg

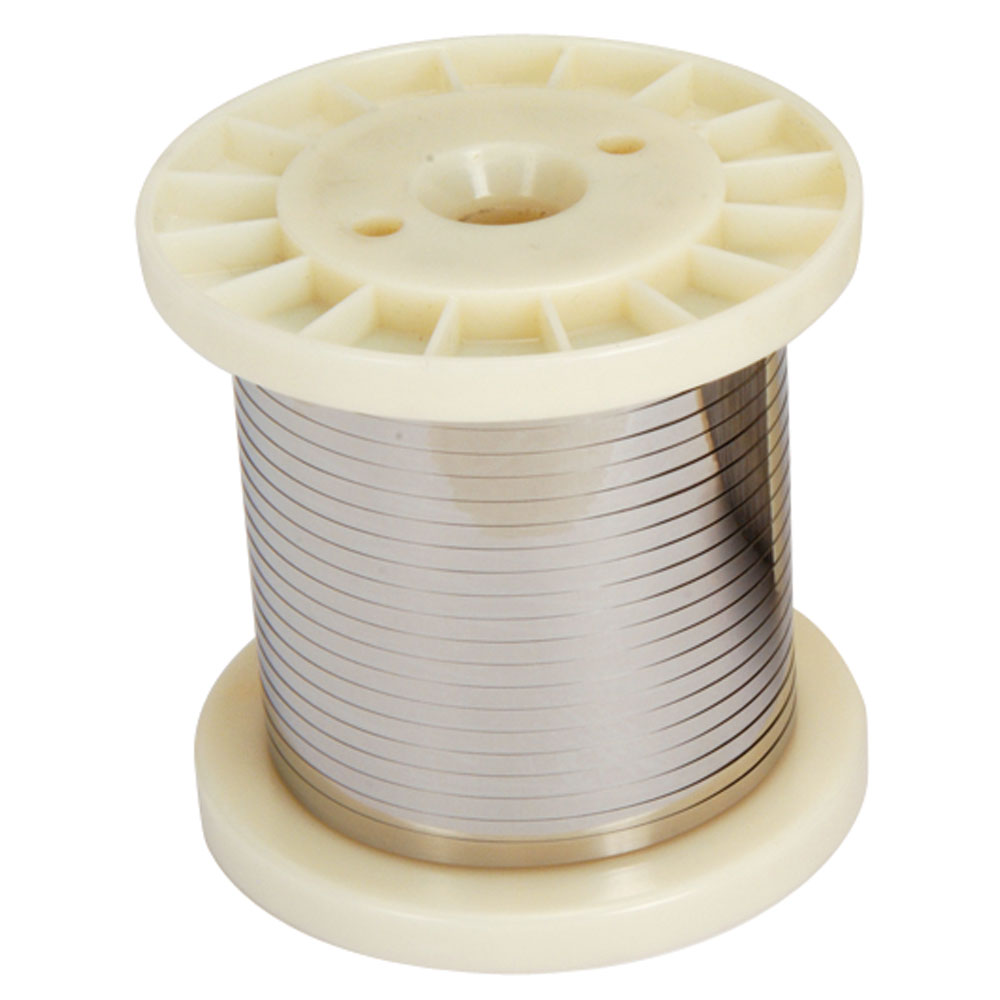

Type C Ribbon (Kanthal Nikrothal 60 or Equivalent)

Products Temporarily Unavailable for Purchase

Composition: 60% Nickel, 16% Chromium, Fe balance
Specific Resistance: 524 Ohms / circ. mil foot @ 68°F / 20°C
Maximum continuous operating temperature: 2100°F / 1150°C (element temperature in air)
Melting Point: 1390°C / 2535°F
Density: (lbs/in3): 0.296
Specific Gravity: 8.25
Resistance Tolerance: ±5%

Type D Wire (Kanthal Wire or Equivalent)

Products Temporarily Unavailable for Purchase

Composition: 22% Chromium, 4.8% Aluminum, Fe balance
Specific Resistance: 812 Ohms / circ. mil foot @ 68°F / 20°C
Maximum continuous operating temperature: 2370°F / 1300°C (element temperature in air)
Melting Point: 1500°C / 2730°F
Density: (lbs/in3): 0.262
Resistance Tolerance: 17 ga. through 23 ga. ±3%, 24 ga. through 36 ga. ±5%, 37 ga. ±8%
