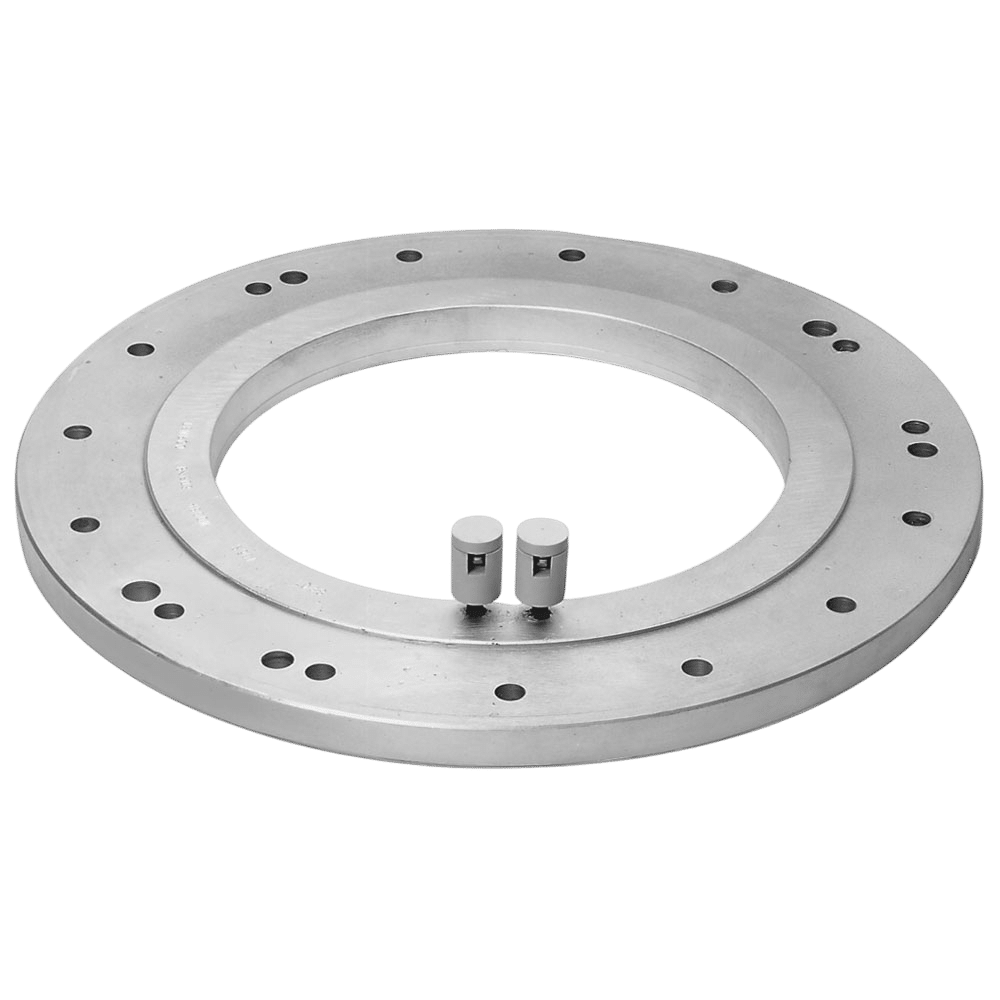

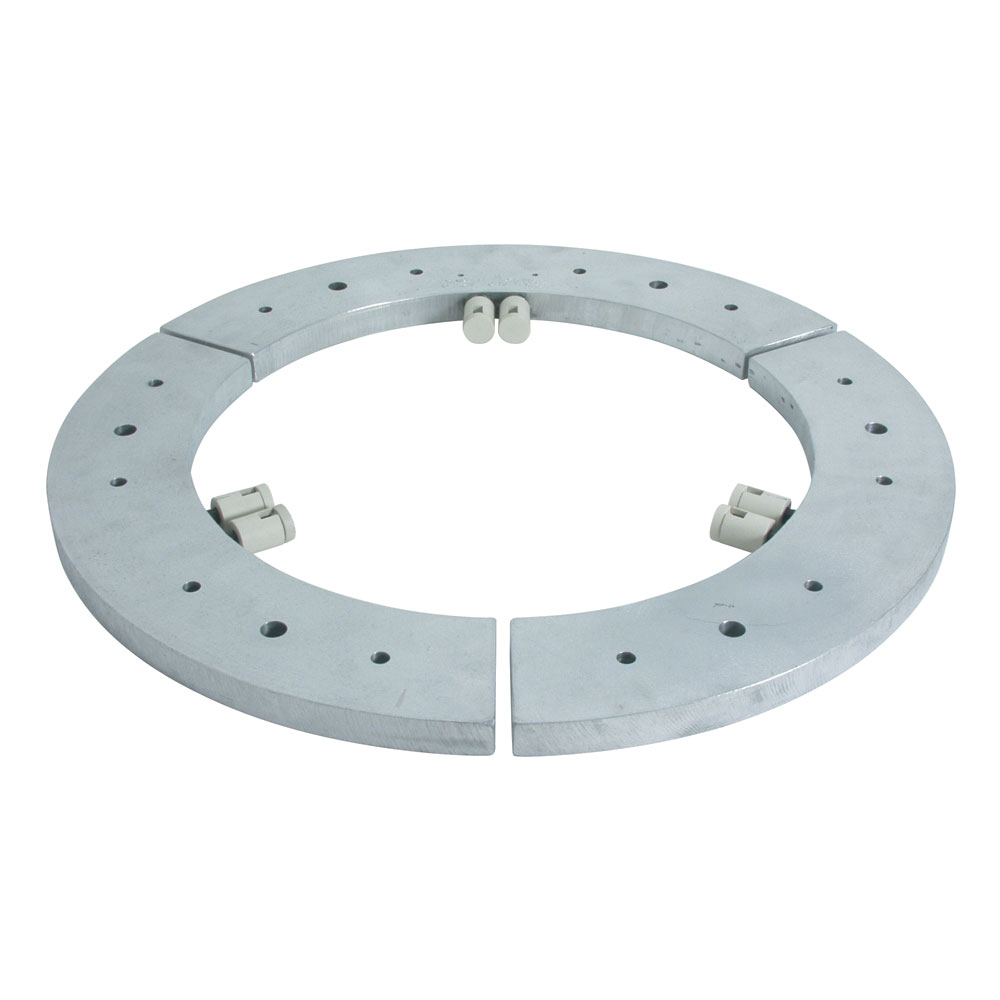

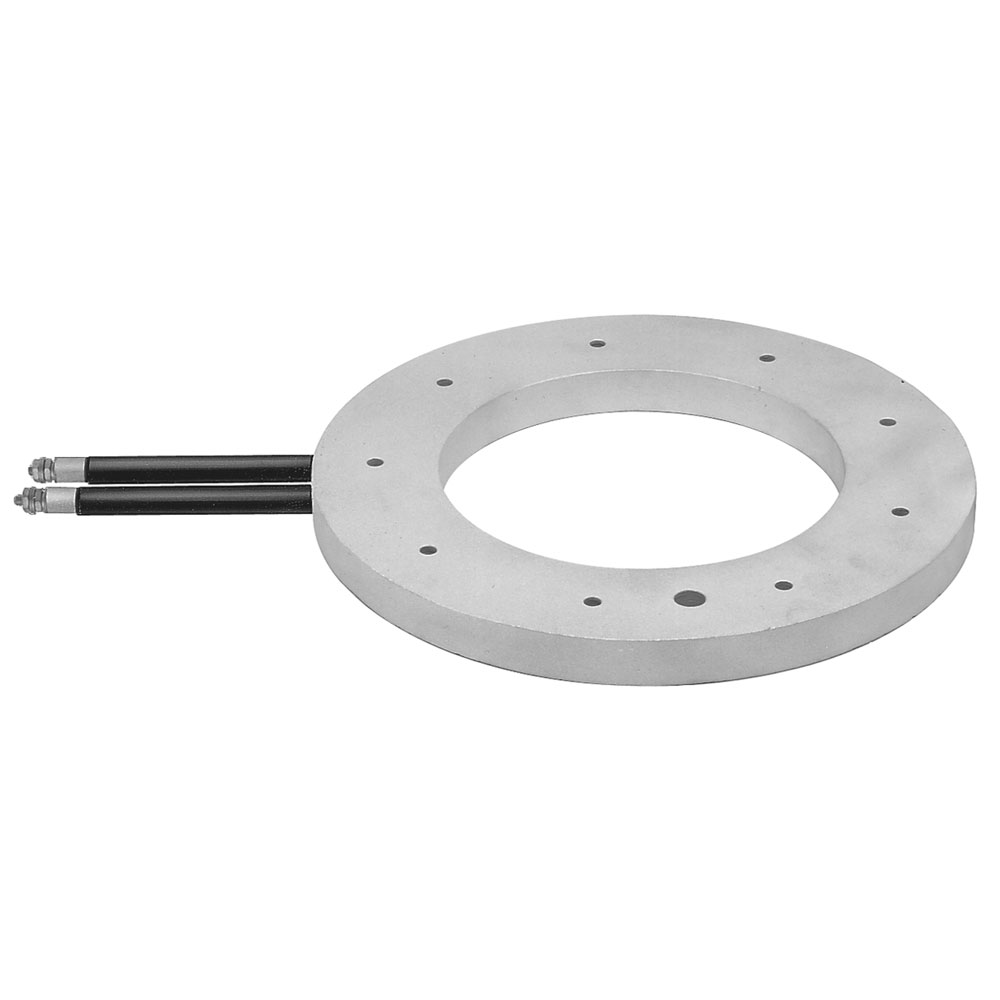

Aluminum

Material: Standard Aluminum 319 (Optional Aluminum 356 in Learn More)

Maximum Surface Temperature: 700°F (371°C)

Density (lb/in³): 0.101

Coefficient of Linear Thermal Expansion (in/in/°F × 10^-6): 12.7 @ 68° – 572°F

Thermal Conductivity (BTU-in/hr-ft²-°F): 754

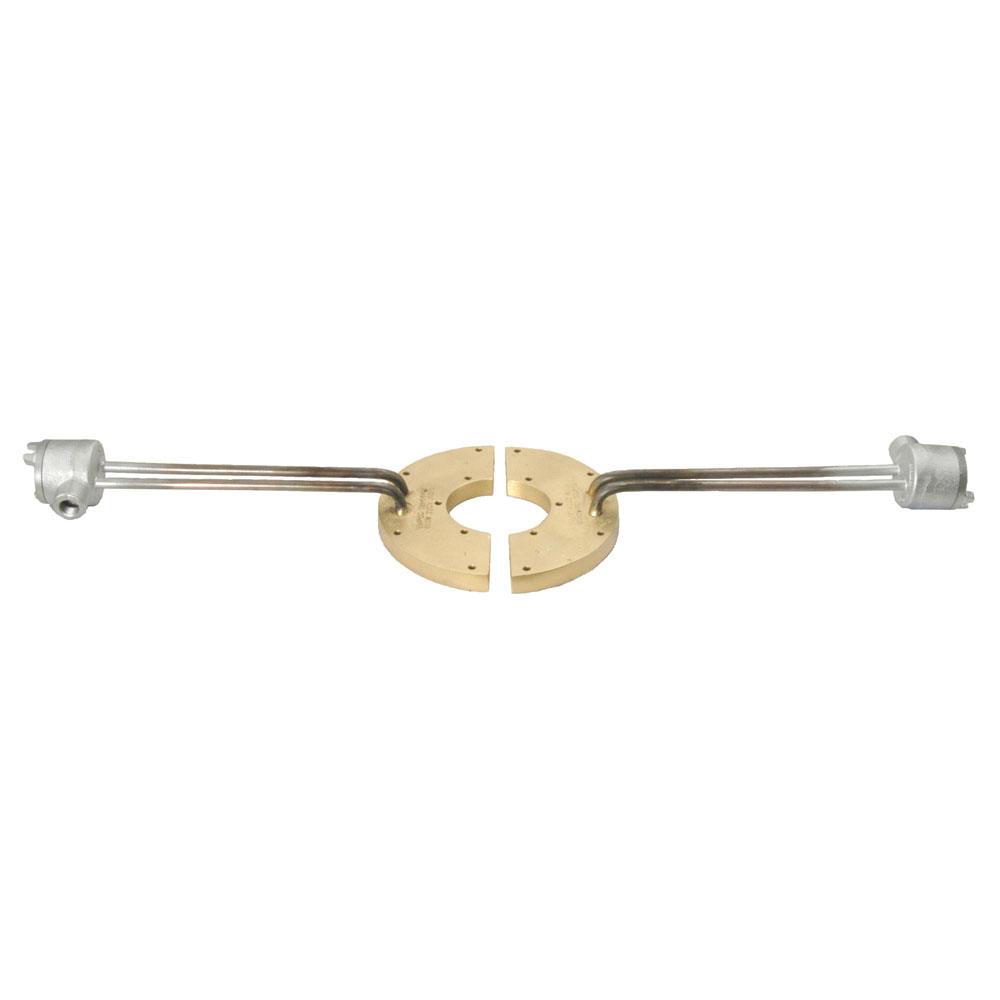

Bronze

Material: Bronze

Maximum Surface Temperature: 1350°F (732°C)

Density (lb/in³): 0.272

Coefficient of Linear Thermal Expansion (in/in/°F × 10^-6): 9 @ 68° – 572°F

Thermal Conductivity (BTU-in/hr-ft²-°F): 437

Type S: Heavy Duty Ceramic Insulators (Standard)

Standard unless otherwise specified.
.315" diameter heater has 8-32 screw terminals.
.430" diameter heater has 10-32 screw terminals.

Type T: Mica Insulator

Mica insulator is the same diameter as the heating element.
.260" diameter heater has 6-32 screw terminals.
.315" diameter heater has 8-32 screw terminals.
.430" diameter heater has 10-32 screw terminals.

Type T7: Ceramic Insulator

Ceramic insulator is the same diameter as the heating element.
.260" diameter heater has 6-32 screw terminals.
.315" diameter heater has 8-32 screw terminals.
.430" diameter heater has 10-32 screw terminals

Type C4: Heavy Duty Ceramic Insulator with Terminal Cover

Heavy duty ceramic insulator with terminal cover.
.315" diameter heater has 10-32 screw terminals.
.430" diameter heater has 10-32 screw terminals.

Type P: Plain Pin

Plain terminal pin. Specify Length "L."
Standard 1/2" (12.7 mm) pin length.

Type R: Mica Washers

Mica washers with 90° blockhead screw terminal with 10-32 screw threads.
Available for .315" and .430" diameter heaters.

Type R2: Mica Washers with Lead Wire Connection

Mica washers with blockhead and through hole for lead wire connection. Eliminates the use of ring terminals.
Available for .315" and .430" diameter heaters.
Accepts 6-14 gauge wire.

Type E: Right-Angle Lug

Right-angle lug welded to pin with mica washer insulators and 10-32 binding head screw.
Available for .260", .315" and .430" diameter heaters.

Type L and L9: Terminal Lug and Pin

Terminal lug spot welded to pin with 10-32 binding head screw.
Available for .260", .315" and .430" diameter heaters.
Type L represents straight; Type L9 represents 90° to pin. Specify lug orientation.

Type SF and SF9: Quick Disconnect Spade Tabs

Quick-disconnect spade tabs spot welded to pin.
Available for .260", .315" and .430" diameter heaters.
Type SF represents straight. Type SF9 represents 90° to pin. Specify tab orientation.

Type F: Flexible Lead

Flexible lead: insulated stranded wire crimped to cold pin. Crimp connection is insulated with fiberglass sleeving.
Available for .260", .315" and .430" diameter heaters.
Wire insulation rated to 250°C, 450°C optional. Specify lead length.

Type R1: Flexible Armor Cable

Flexible Armor Cable provides excellent protection to lead wires against abrasion and contaminants.
Available for .260", .315" and .430" diameter heaters. Specify cable length and lead length. Style may vary from depiction depending on heater diameter and cable diameter used.

Type R1A: Stainless Steel Wire Overbraid

Stainless Steel Wire Overbraid provides flexibility and excellent protection to lead wires against abrasion.
Available for .260", .315" and .430" diameter heaters. Specify stainless steel wire overbraid length and lead length.
Style may vary from depiction depending on heater diameter and braid diameter used.

Type MR: Strain Relief and Lead Wire - Moisture Resistant

Moisture resistant shrink strain relief and lead wire with or without stainless steel overbraid.
Available for .260", .315" and .430" diameter heaters. Specify lead wire and overbraid length.
Maximum operating temperature is 350°F (177°C).

Type TS: Teflon® Sleeving over Lead Wire

Contamination seal shrink-down Teflon® sleeving over the heater and lead wire splice. Provides a good moisture resistant seal. Maximum operating temperature 500°F (260°C).
Available for .260", .315" and .430" and diameter heaters. Specify lead length.

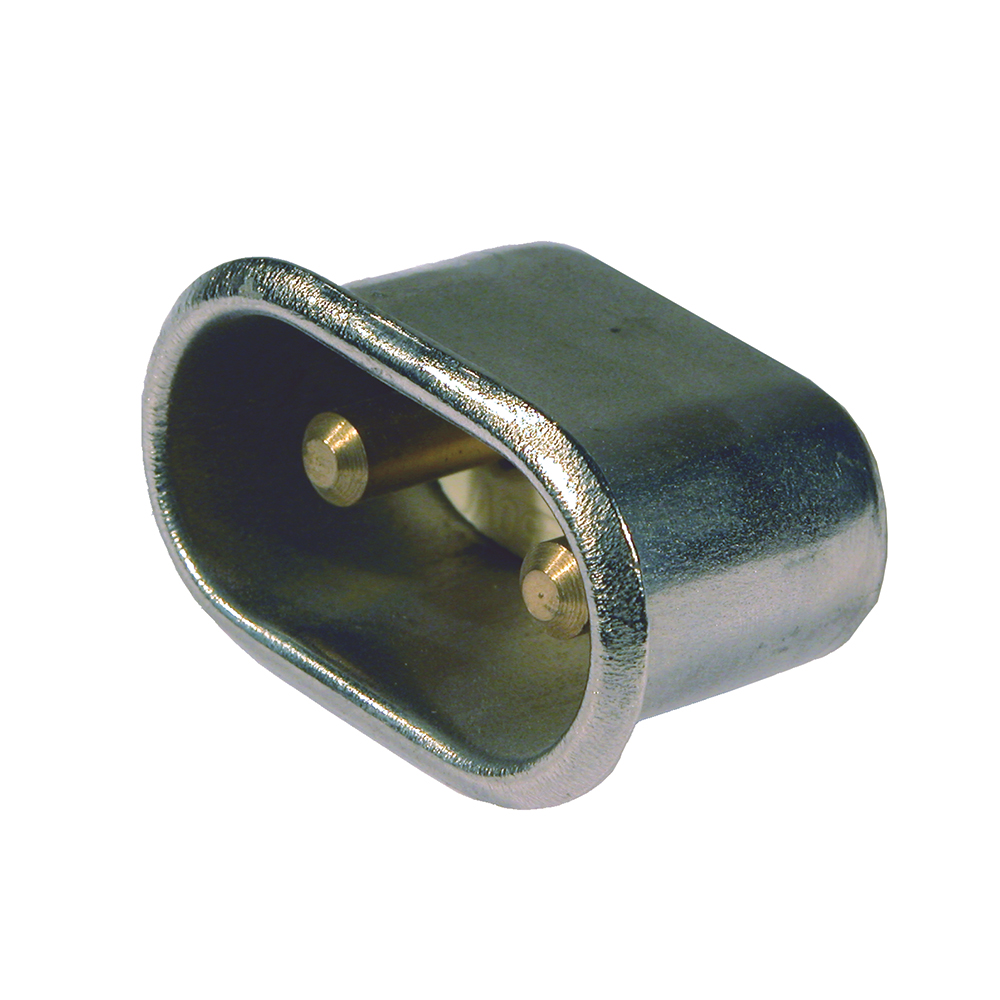

Type P1: Quick Disconnect Plug

Quick-disconnect plug, either mounted directly on casting or on elements ends offset a specified distance from casting.
Rating: 16A-250VAC.

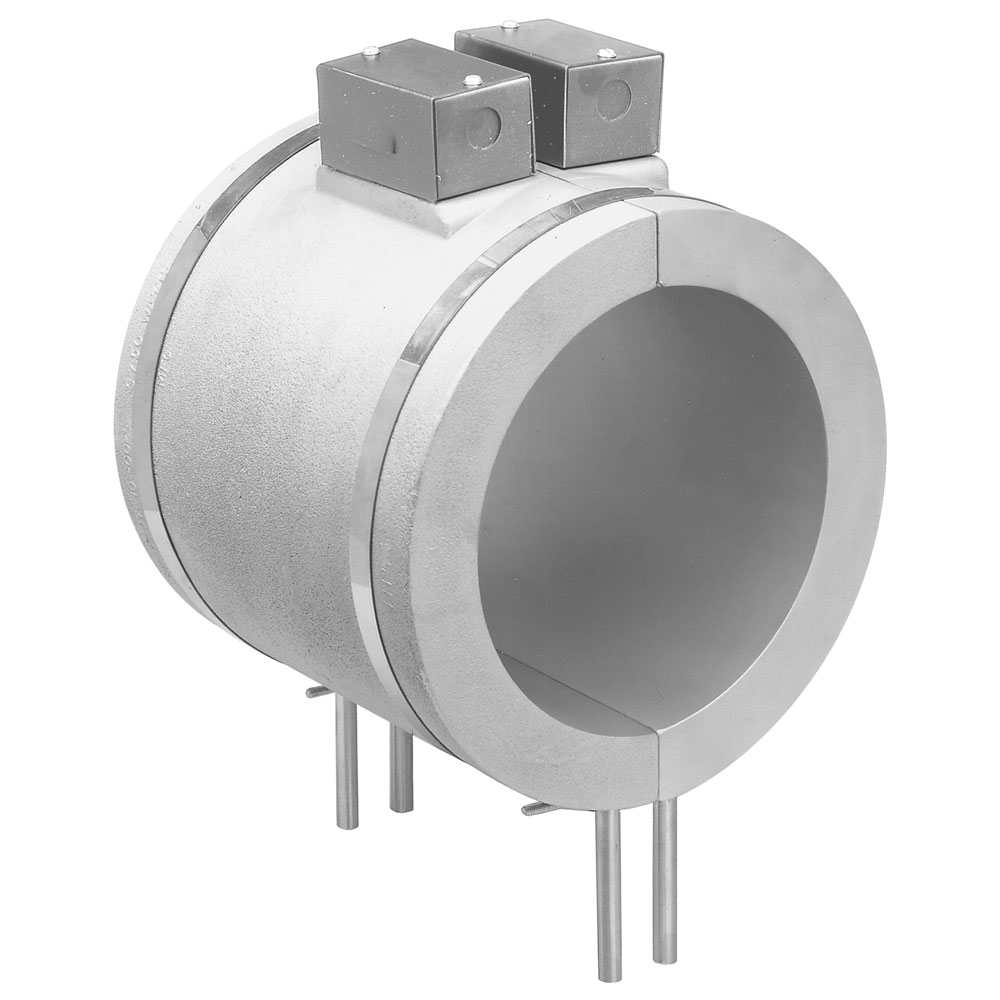

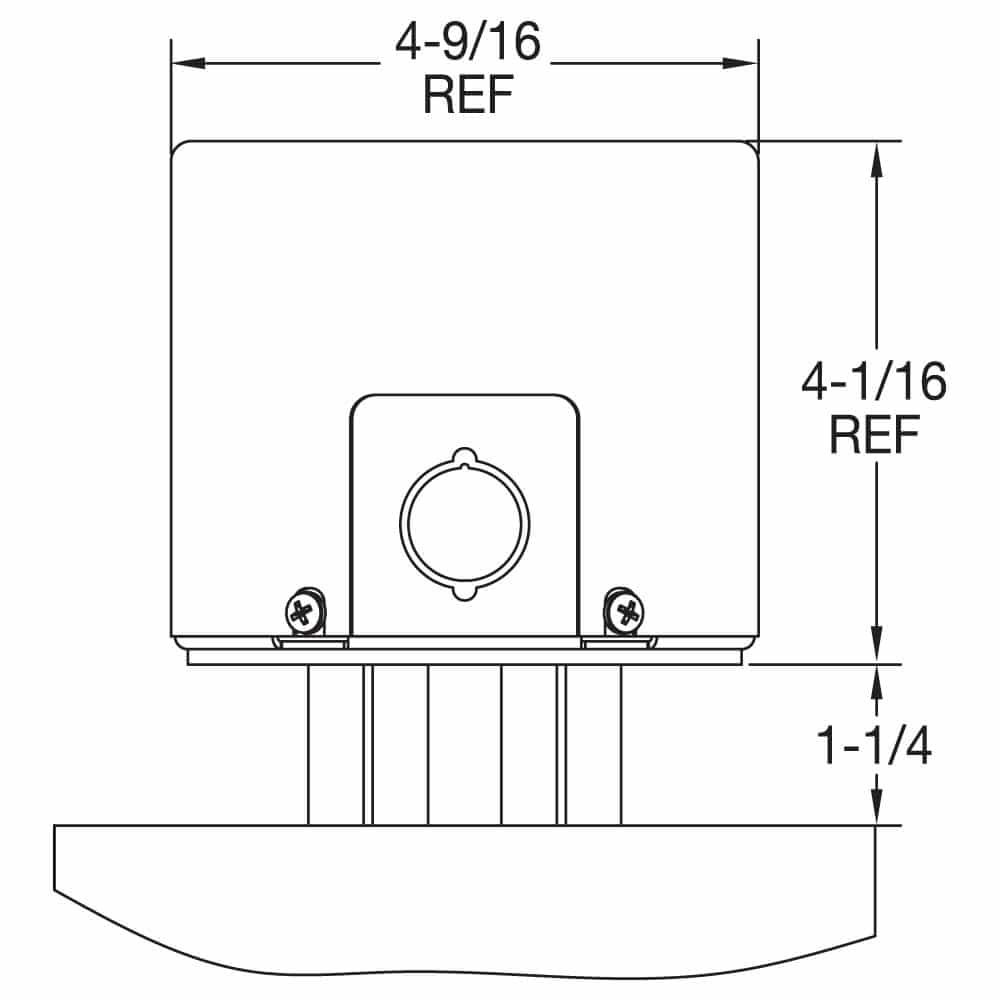

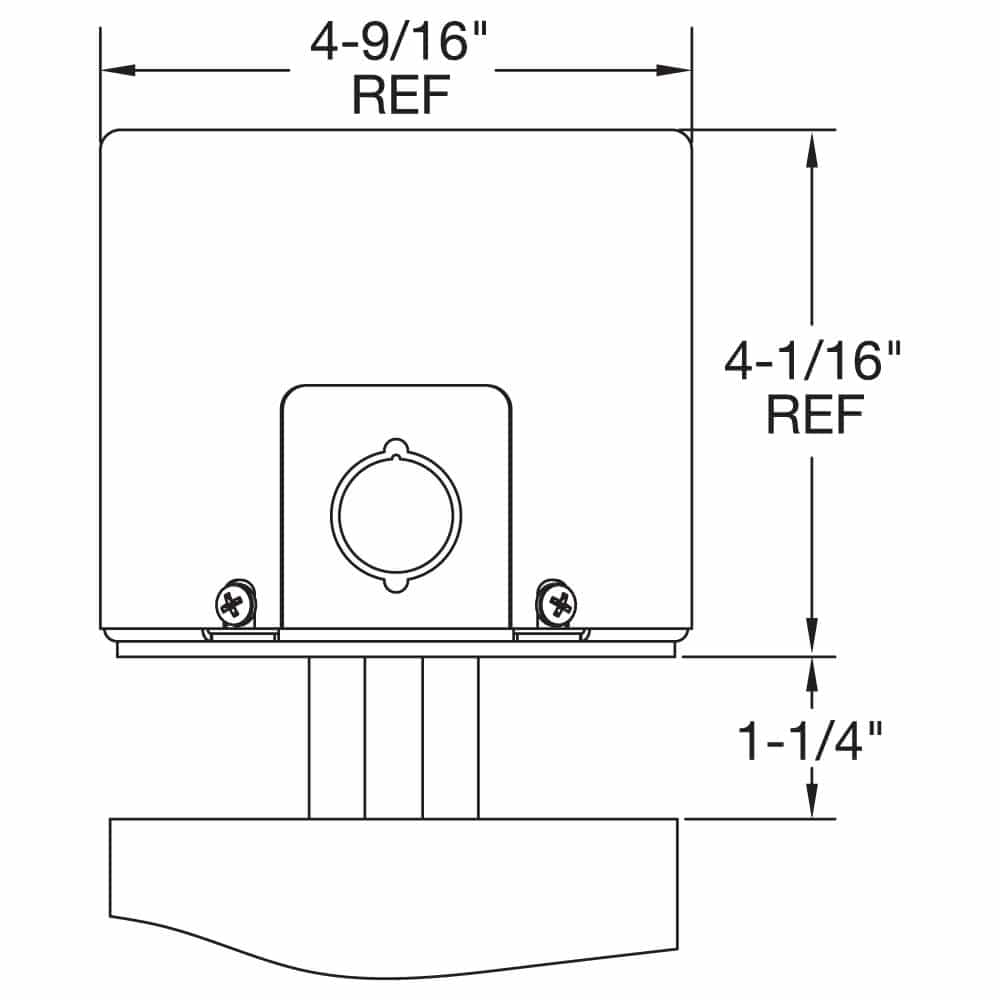

Type C2: Standard Terminal Box (on flat pad)

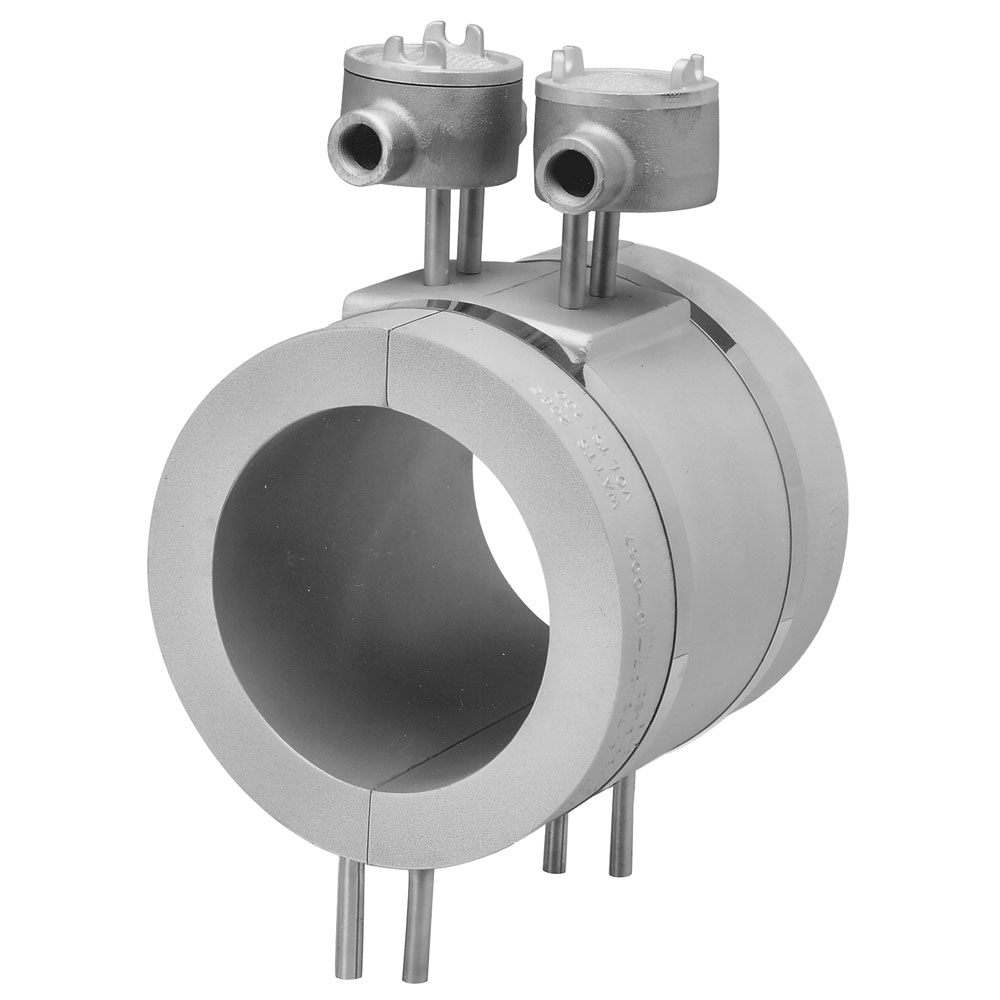

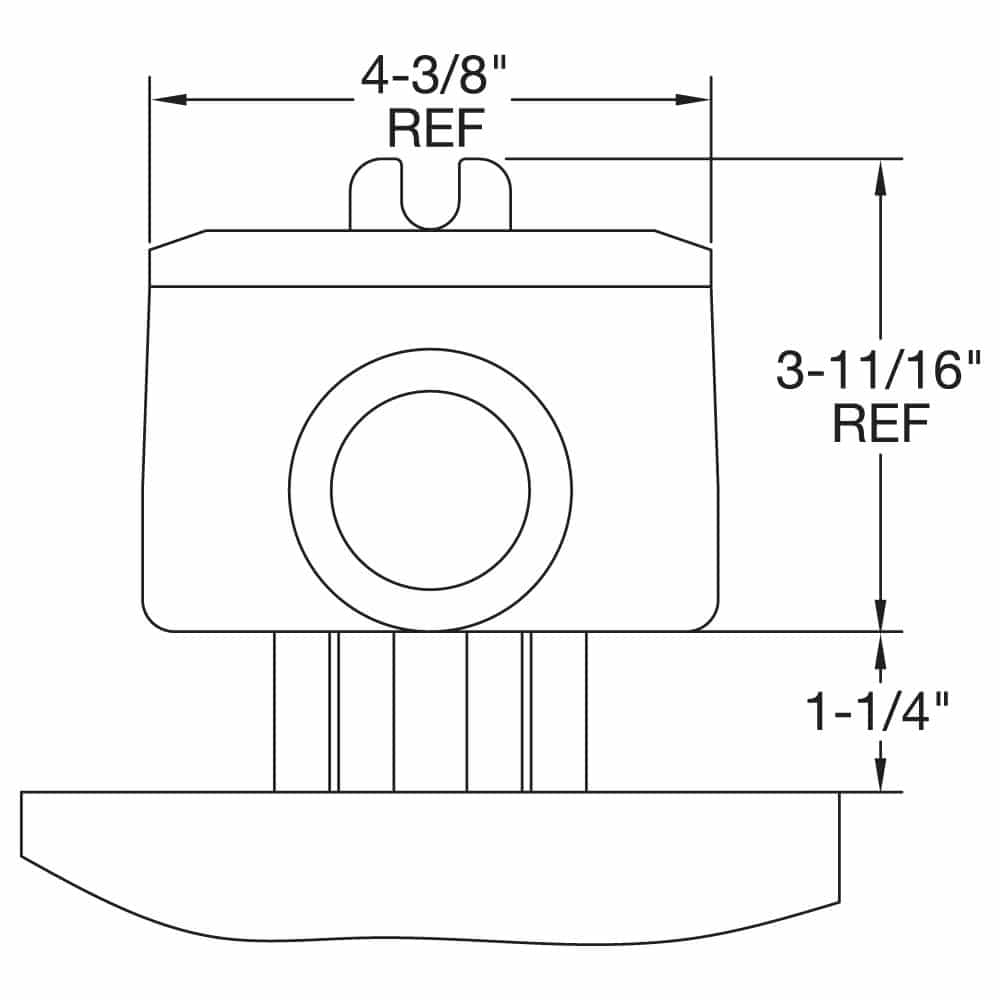

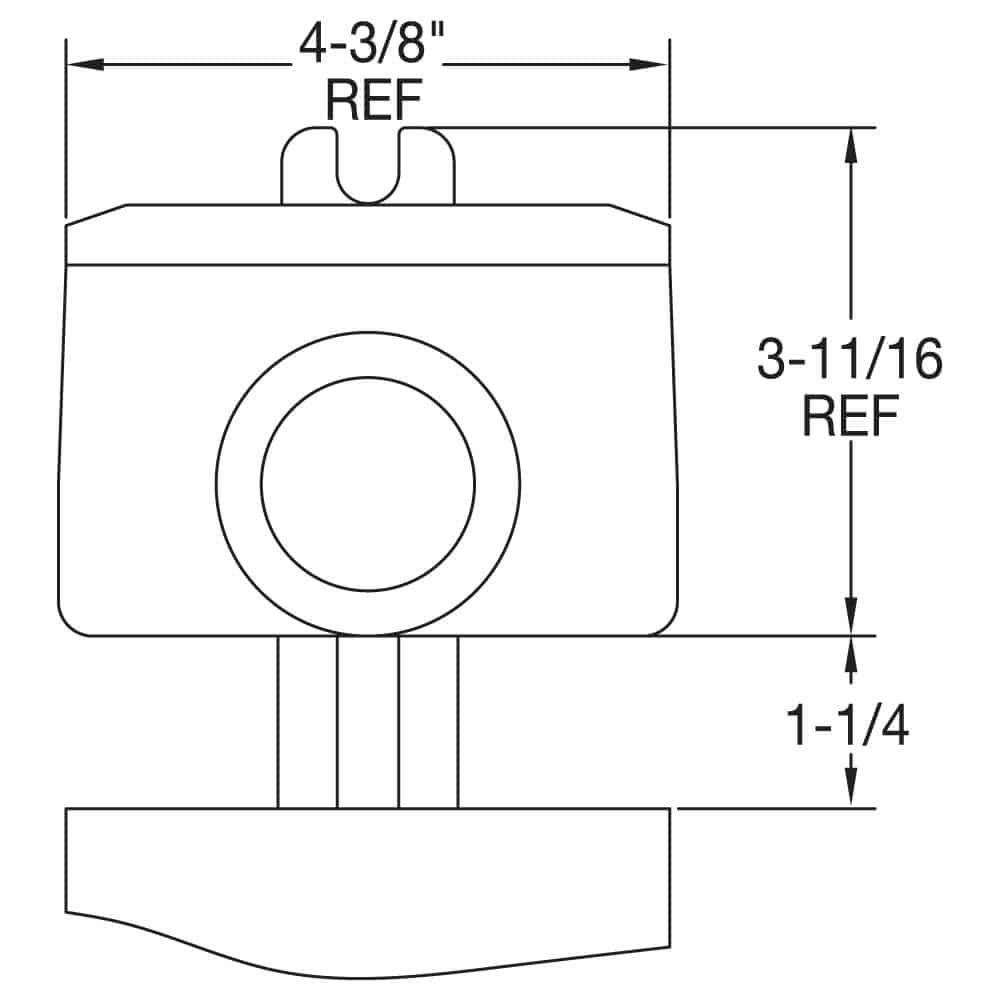

Type EP: Explosion & Moisture Resistant Box

None

125 RMS Standard

Special Features

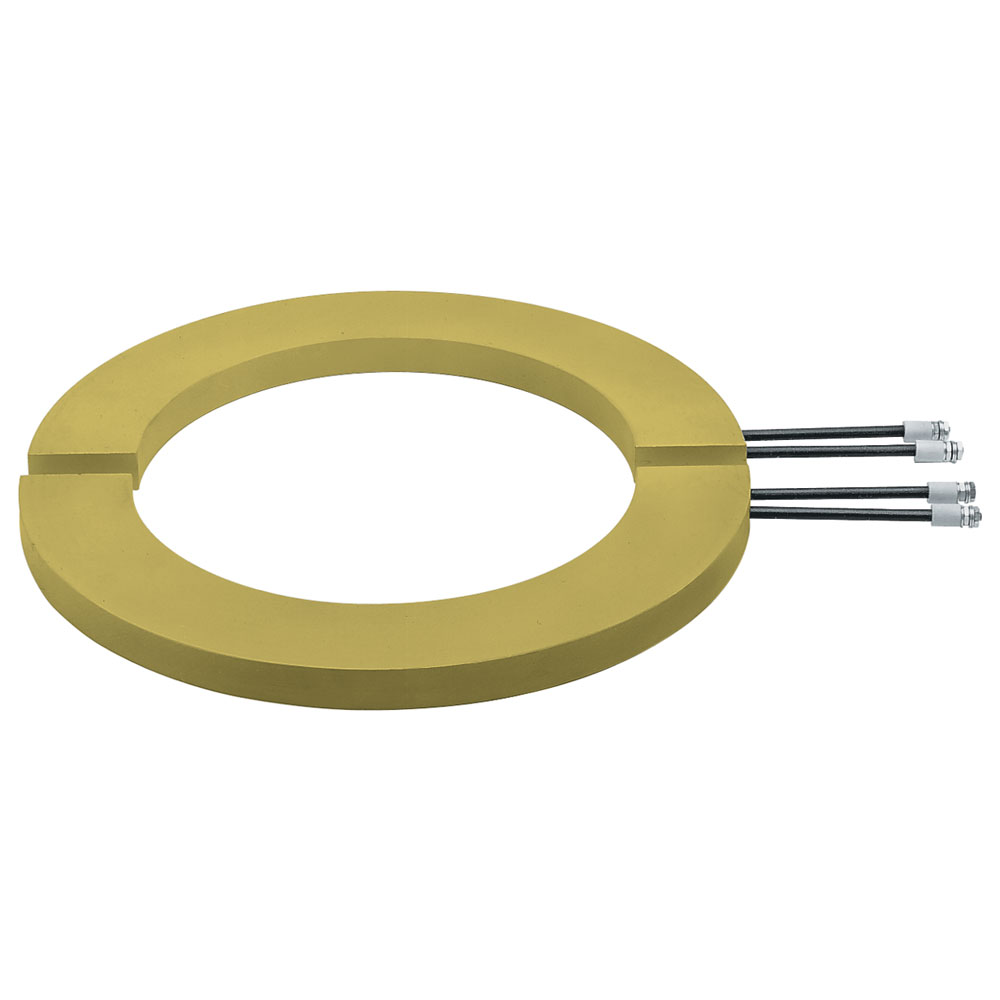

Electroless Nickel-Plated — A plating technique (without using an electric current) used to deposit a coating of nickel on a substrate to prevent corrosion, wear and also as a protective coating.

Teflon Coating — Teflon is non-reactive so it is often used in containers and pipework for reactive and corrosive chemicals.

Hard coat anodizing — Anodizing increases resistance to corrosion and wear.

Magnaplate — Strong wear and corrosion resistance non-stick coating that withstands high temperatures.

Customer Specified Finish
