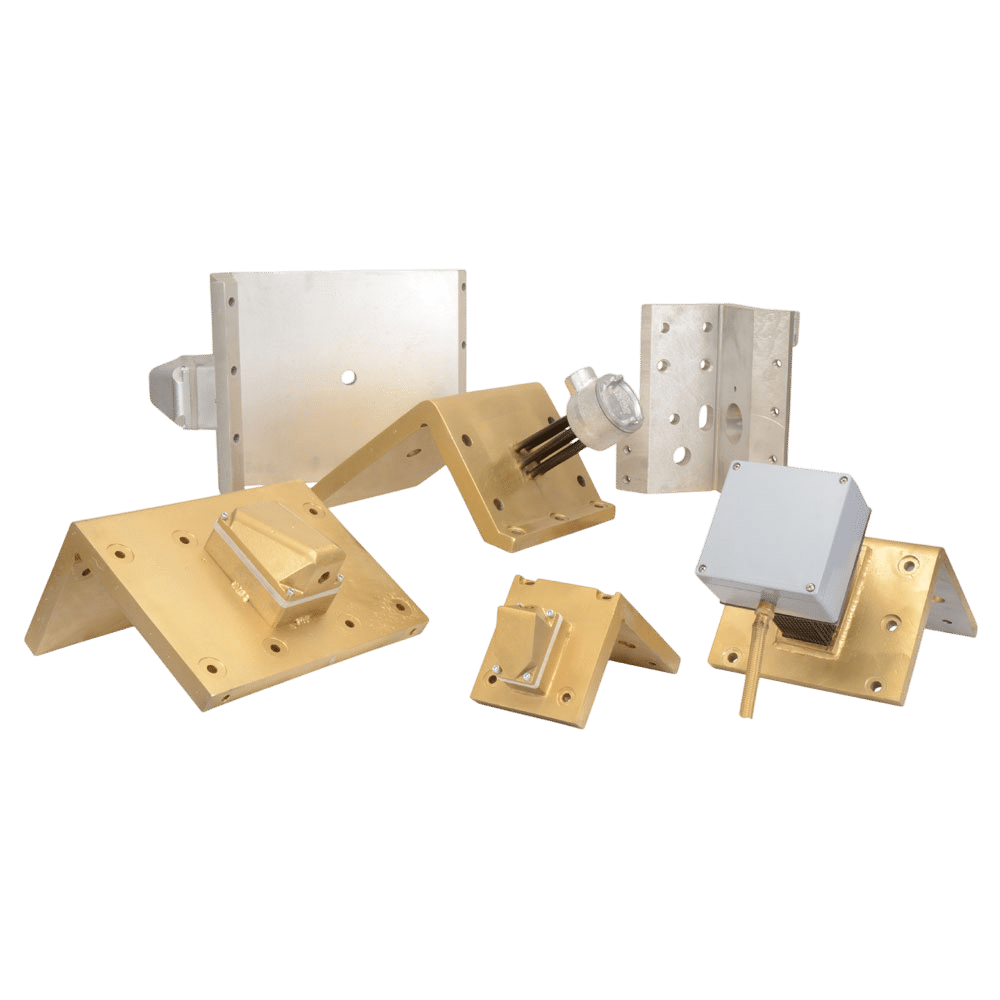

L-Shaped-Cast-In-Heaters

Please wait while we gather your results.

Cast Materials

Aluminum

Material: Standard Aluminum 319 (Optional Aluminum 356 in Learn More)

Maximum Surface Temperature: 700°F (371°C)

Density (lb/in³): 0.101

Coefficient of Linear Thermal Expansion (in/in/°F × 10^-6): 12.7 @ 68° – 572°F

Thermal Conductivity (BTU-in/hr-ft²-°F): 754

Bronze

Material: Bronze

Maximum Surface Temperature: 1350°F (732°C)

Density (lb/in³): 0.272

Coefficient of Linear Thermal Expansion (in/in/°F × 10^-6): 9 @ 68° – 572°F

Thermal Conductivity (BTU-in/hr-ft²-°F): 437

Brass

Material: Yellow Brass

Maximum Surface Temperature: 1200°F (649°C)

Density (lb/in³): 0.304

Coefficient of Linear Thermal Expansion (in/in/°F × 10^-6): 12.2 @68° – 500°F

Thermal Conductivity (BTU-in/hr-ft²-°F): 582

Clamping Options

/Tempco/Data-Assets/03-Cast-In-Images/WebA745.jpg

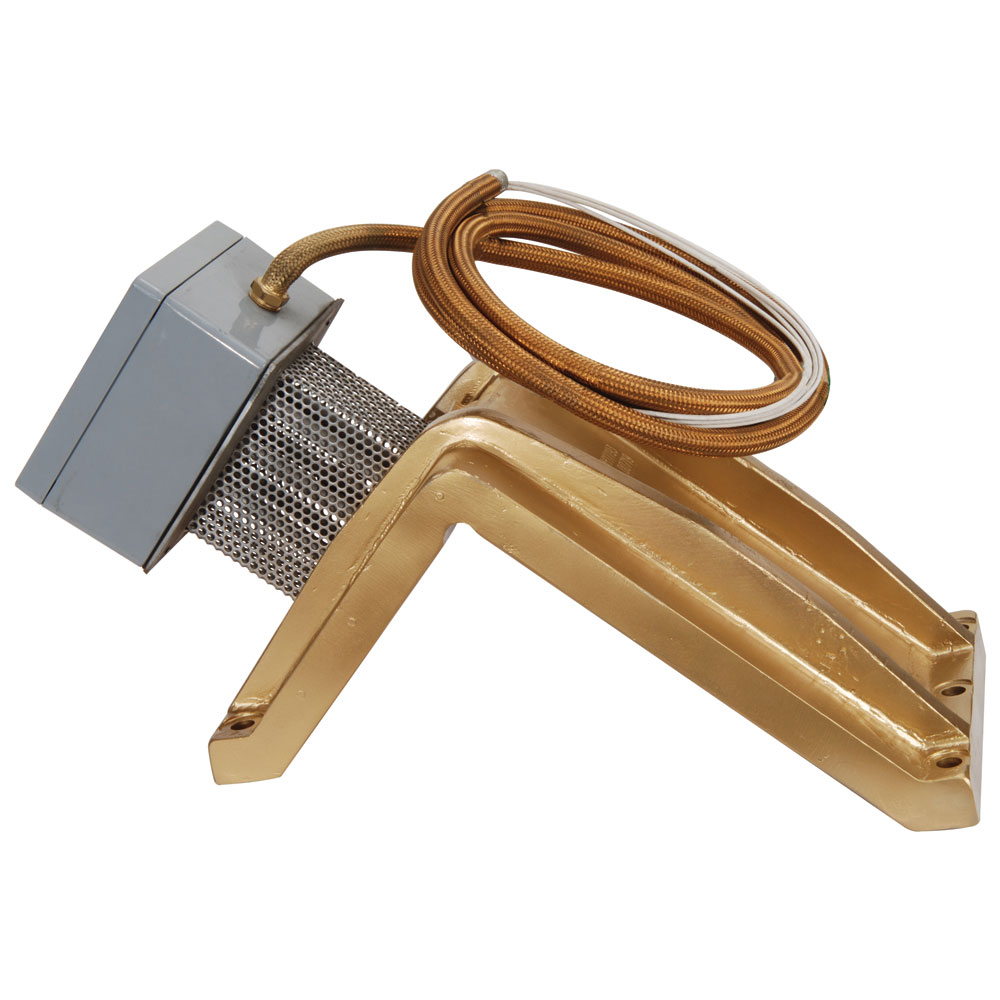

45° Flange Mount

For mounting purposes, the heaters can be designed with 45° flanged ear extensions that are bolted and drawn together, or can be made with through holes machined into the casting body to bolt directly onto the barrel itself. Thermocouple and transducer holes or other special features can be accommodated as well.

/Tempco/Data-Assets/03-Cast-In-Images/WebACB08263e.jpg

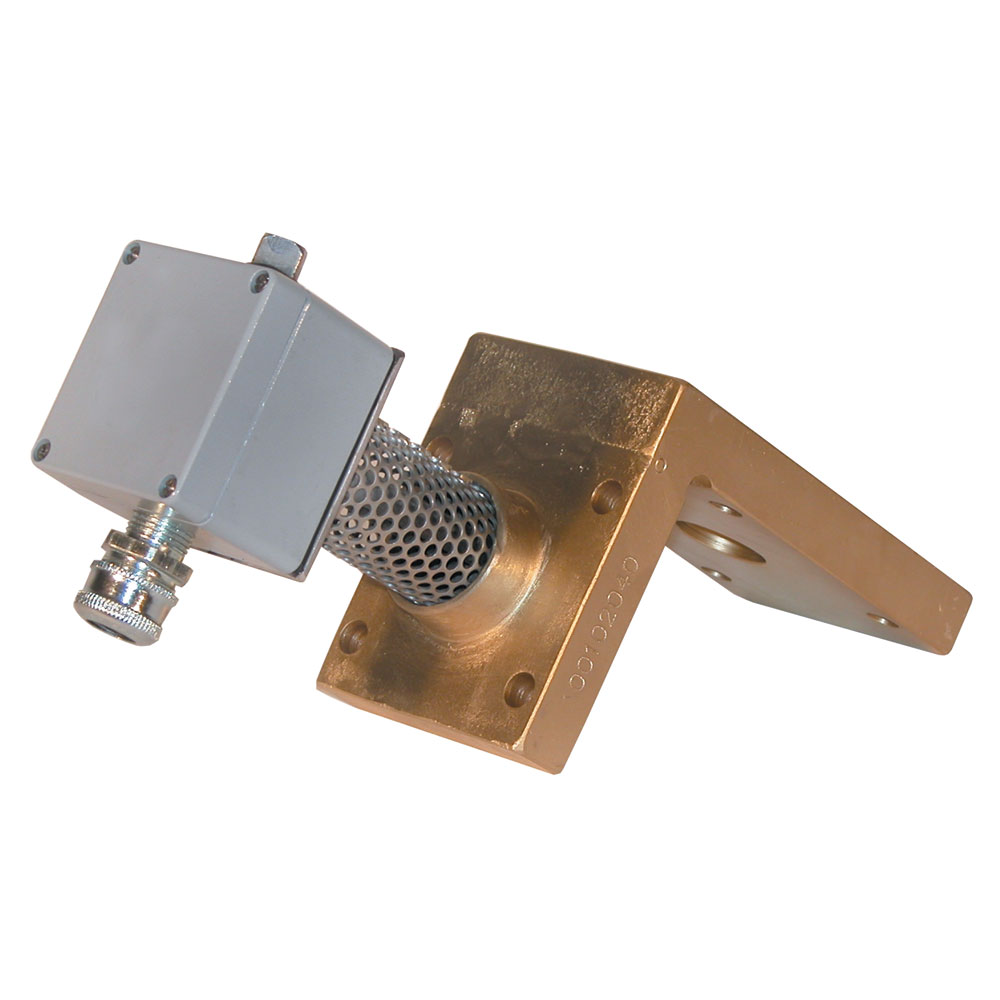

Bolt to Barrel

Through holes in the heater body allow bolt mounting directly to the barrel.

Electrical Terminations

/Tempco/Data-Assets/03-Cast-In-Images/WebCastDwg1AR.jpg

Type S: Heavy Duty Ceramic Insulators (Standard)

Standard unless otherwise specified.
.315" diameter heater has 8-32 screw terminals.
.430" diameter heater has 10-32 screw terminals.

/Tempco/Data-Assets/03-Cast-In-Images/WebCATALTM3.jpg

Type T: Mica Insulator

Mica insulator is the same diameter as the heating element.
.260" diameter heater has 6-32 screw terminals.
.315" diameter heater has 8-32 screw terminals.
.430" diameter heater has 10-32 screw terminals.

/Tempco/Data-Assets/03-Cast-In-Images/WebCATALT.jpg

Type T7: Ceramic Insulator

Ceramic insulator is the same diameter as the heating element.
.260" diameter heater has 6-32 screw terminals.
.315" diameter heater has 8-32 screw terminals.
.430" diameter heater has 10-32 screw terminals

/Tempco/Data-Assets/03-Cast-In-Images/WebCastDwg4AR.jpg

Type C4: Heavy Duty Ceramic Insulator with Terminal Cover

Heavy duty ceramic insulator with terminal cover.
.315" diameter heater has 10-32 screw terminals.
.430" diameter heater has 10-32 screw terminals.

/Tempco/Data-Assets/03-Cast-In-Images/WebCATALP.jpg

Type P: Plain Pin

Plain terminal pin. Specify Length "L."
Standard 1/2" (12.7 mm) pin length.

/Tempco/Data-Assets/03-Cast-In-Images/WebCastDwg7.jpg

Type R: Mica Washers

Mica washers with 90° blockhead screw terminal with 10-32 screw threads.
Available for .315" and .430" diameter heaters.

/Tempco/Data-Assets/03-Cast-In-Images/WebCastDwg8R.jpg

Type R2: Mica Washers with Lead Wire Connection

Mica washers with blockhead and through hole for lead wire connection. Eliminates the use of ring terminals.
Available for .315" and .430" diameter heaters.
Accepts 6-14 gauge wire.

/Tempco/Data-Assets/03-Cast-In-Images/WebCATALE.jpg

Type E: Right-Angle Lug

Right-angle lug welded to pin with mica washer insulators and 10-32 binding head screw.
Available for .260", .315" and .430" diameter heaters.

/Tempco/Data-Assets/03-Cast-In-Images/WebCATALLleft.jpg

Type L and L9: Terminal Lug and Pin

Terminal lug spot welded to pin with 10-32 binding head screw.
Available for .260", .315" and .430" diameter heaters.
Type L represents straight; Type L9 represents 90° to pin. Specify lug orientation.

/Tempco/Data-Assets/03-Cast-In-Images/WebCATALSF.jpg

Type SF and SF9: Quick Disconnect Spade Tabs

Quick-disconnect spade tabs spot welded to pin.
Available for .260", .315" and .430" diameter heaters.
Type SF represents straight. Type SF9 represents 90° to pin. Specify tab orientation.

/Tempco/Data-Assets/03-Cast-In-Images/WebTypeF.jpg

Type F: Flexible Lead

Flexible lead: insulated stranded wire crimped to cold pin. Crimp connection is insulated with fiberglass sleeving.
Available for .260", .315" and .430" diameter heaters.
Wire insulation rated to 250°C, 450°C optional. Specify lead length.

/Tempco/Data-Assets/03-Cast-In-Images/WebTypeR1.jpg

Type R1: Flexible Armor Cable

Flexible Armor Cable provides excellent protection to lead wires against abrasion and contaminants.
Available for .260", .315" and .430" diameter heaters. Specify cable length and lead length. Style may vary from depiction depending on heater diameter and cable diameter used.

/Tempco/Data-Assets/03-Cast-In-Images/WebTypeR1A.jpg

Type R1A: Stainless Steel Wire Overbraid

Stainless Steel Wire Overbraid provides flexibility and excellent protection to lead wires against abrasion.
Available for .260", .315" and .430" diameter heaters. Specify stainless steel wire overbraid length and lead length.
Style may vary from depiction depending on heater diameter and braid diameter used.

/Tempco/Data-Assets/03-Cast-In-Images/WebAO43.jpg

Type MR: Strain Relief and Lead Wire - Moisture Resistant

Moisture resistant shrink strain relief and lead wire with or without stainless steel overbraid.
Available for .260", .315" and .430" diameter heaters. Specify lead wire and overbraid length.
Maximum operating temperature is 350°F (177°C).

/Tempco/Data-Assets/03-Cast-In-Images/WebCastDwg13.jpg

Type TS: Teflon® Sleeving over Lead Wire

Contamination seal shrink-down Teflon® sleeving over the heater and lead wire splice. Provides a good moisture resistant seal. Maximum operating temperature 500°F (260°C).
Available for .260", .315" and .430" and diameter heaters. Specify lead length.

/Tempco/Data-Assets/03-Cast-In-Images/WebA784.jpg

Type P1: Quick Disconnect Plug

Quick-disconnect plug, either mounted directly on casting or on elements ends offset a specified distance from casting.
Rating: 16A-250VAC.

Termination Protection

/Tempco/Data-Assets/03-Cast-In-Images/WebA024.jpg

Type C2: Standard Terminal Box (on flat pad)

Type C2 is an individual terminal box for protecting the terminals on each Cast-In Band Heater half and on many other Cast-In Heater designs with one set of heater terminals.
The C2 box design requires a flat pad on half-round castings or a flat surface on other casting designs for mounting. It is made from heavy gauge, rust-resistant sheet metal. The cover is removable for easy access to terminals. The box has two 7/8" diameter knockouts opposite each other for standard 1/2" BX connectors.

/Tempco/Data-Assets/03-Cast-In-Images/WebA022.jpg

Type EP: Explosion & Moisture Resistant Box

Cast iron explosion and moisture resistant boxes should be used in areas where the surrounding air may become contaminated with combustible gases or a high humidity level may exist. Installation requires one box per Cast-In Heater half and they are brazed to the tubular heater. The standard box has one 1/2" NPT hub.

/Tempco/Data-Assets/03-Cast-In-Images/WebA778.jpg

Type MPR: Moisture Resistant Box

This design has a moisture resistant die cast aluminum box with a non-removable polyurethane gasket in the lid. Lid is secured with captive stainless steel screws. Body and lid are painted in basic industrial gray; interior contains copper ground screw. Box is mounted to a plate that is brazed to the element. Available in a wide variety of sizes.

/Tempco/Data-Assets/03-Cast-In-Images/WebA776.jpg

Type MR1: Moisture Resistant Box with Shield

This design incorporates the MPR housing style along with a perforated tube shielding unheated extensions of the tubular heating elements. This feature provides mechanical strength to the element extension and prevents overheating of the terminals, reducing possible premature failure from corrosion and oxidation.

/Tempco/Data-Assets/03-Cast-In-Images/WebHalfCircleWleads.jpg

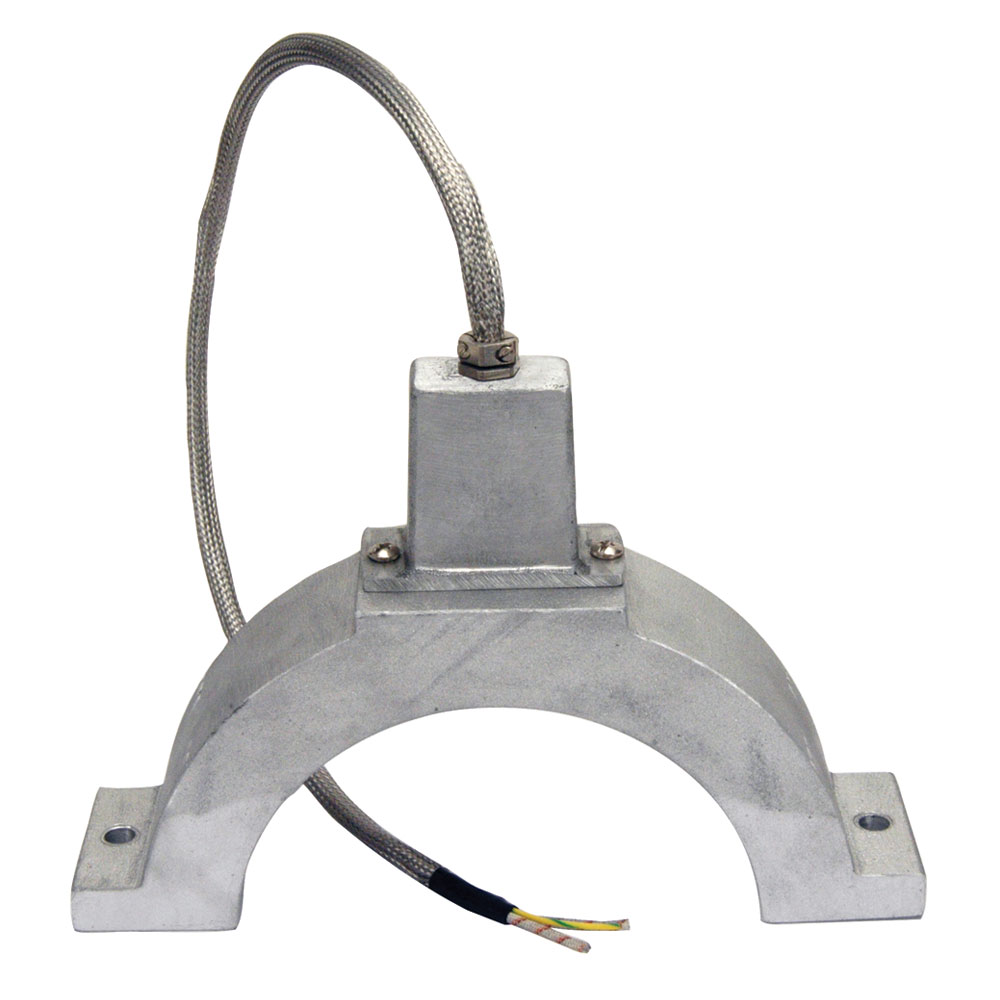

Type CB: Cast Aluminum Box

A Cast Aluminum Box is used to protect and secure lead wire terminations on narrower designs.

None

This Cast-In will not have Terminal Protection.

Cooling/Flow Tube Fittings

/Tempco/Data-Assets/03-Cast-In-Images/WebA026.jpg

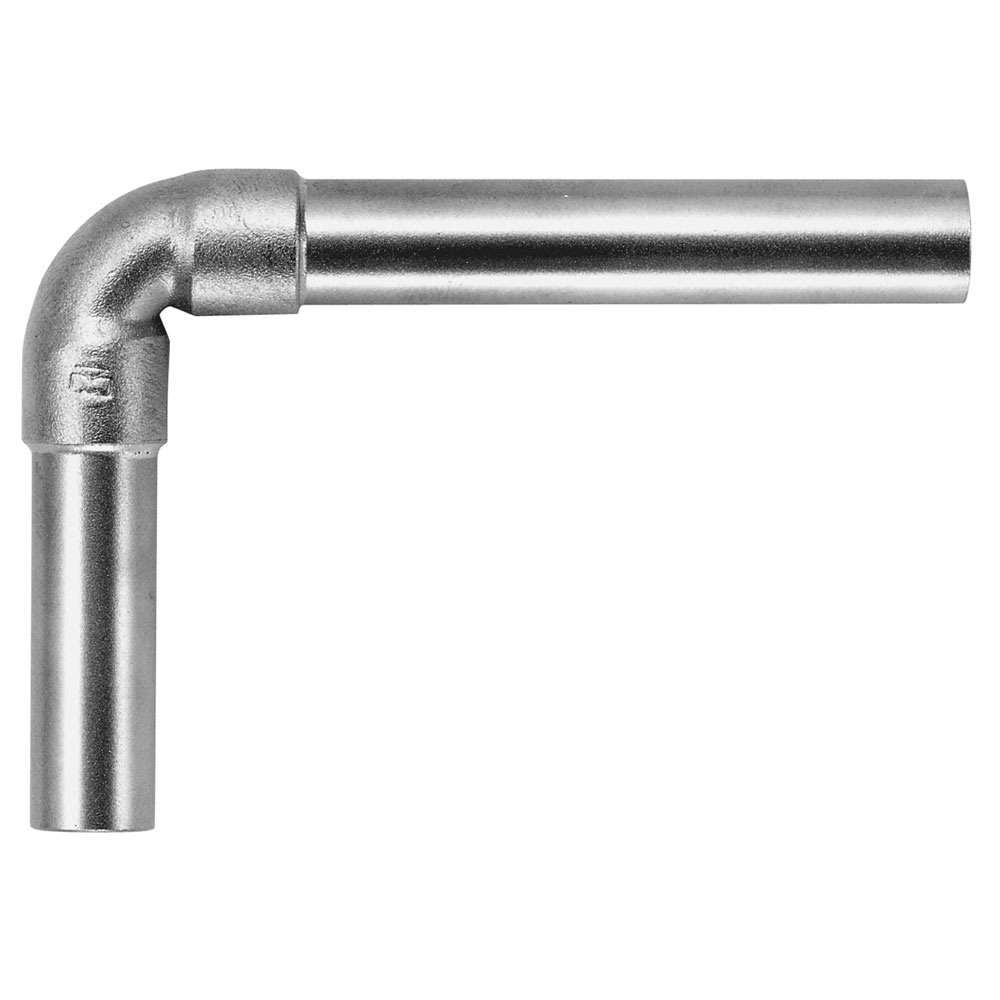

Type RA: 90° Copper Elbow

90° copper elbow is brazed to the Cast-In Heater cooling tube extension with additional tube extension for connecting cooling lines with compression and/or flared fittings.
Available for 3/8" and 1/2" diameter tubing. If required, specify.

/Tempco/Data-Assets/03-Cast-In-Images/WebA027.jpg

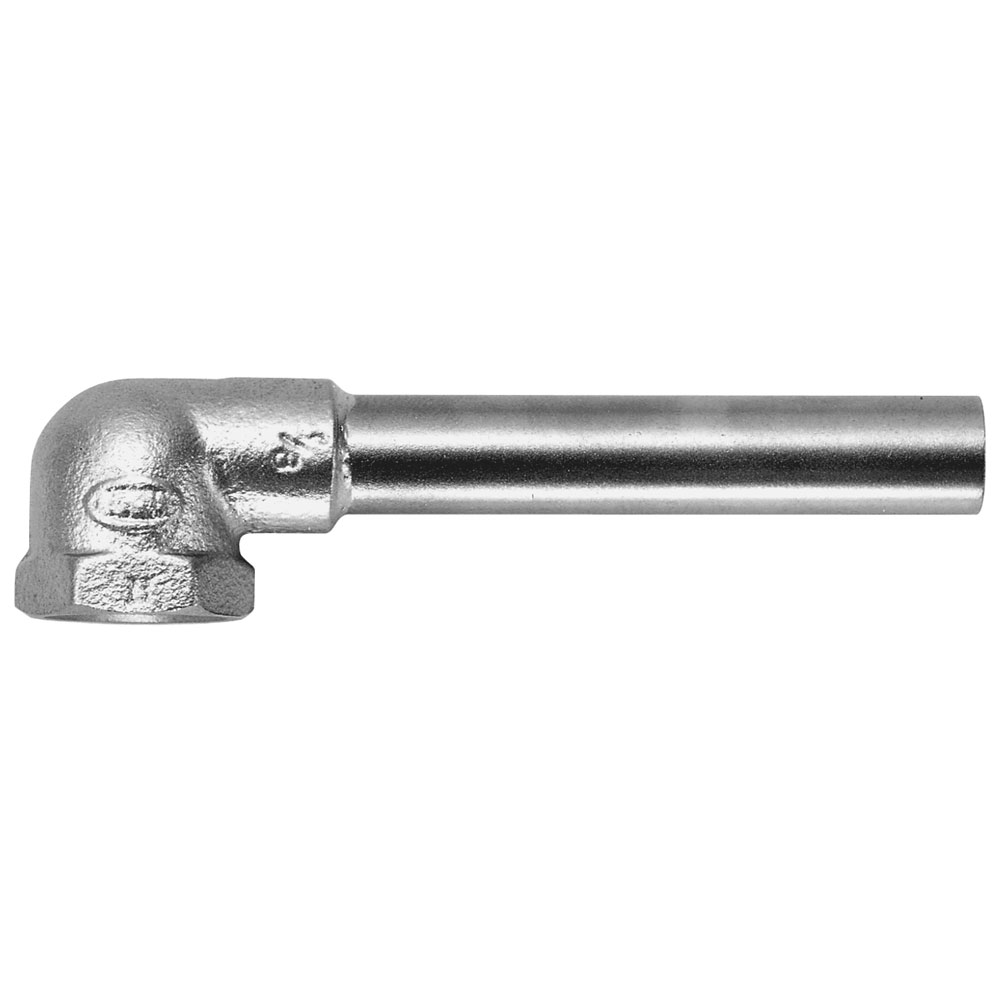

Type RT: Cast Brass 90° Threaded Elbow

90° threaded elbow is brazed to the cooling tube extension,
providing an easy and quick method for connecting cooling lines. Recommended to be factory installed to assure good braze seals.
Available for 3/8" and 1/2" NPT internal threads. If required, specify.

/Tempco/Data-Assets/03-Cast-In-Images/WebA025.jpg

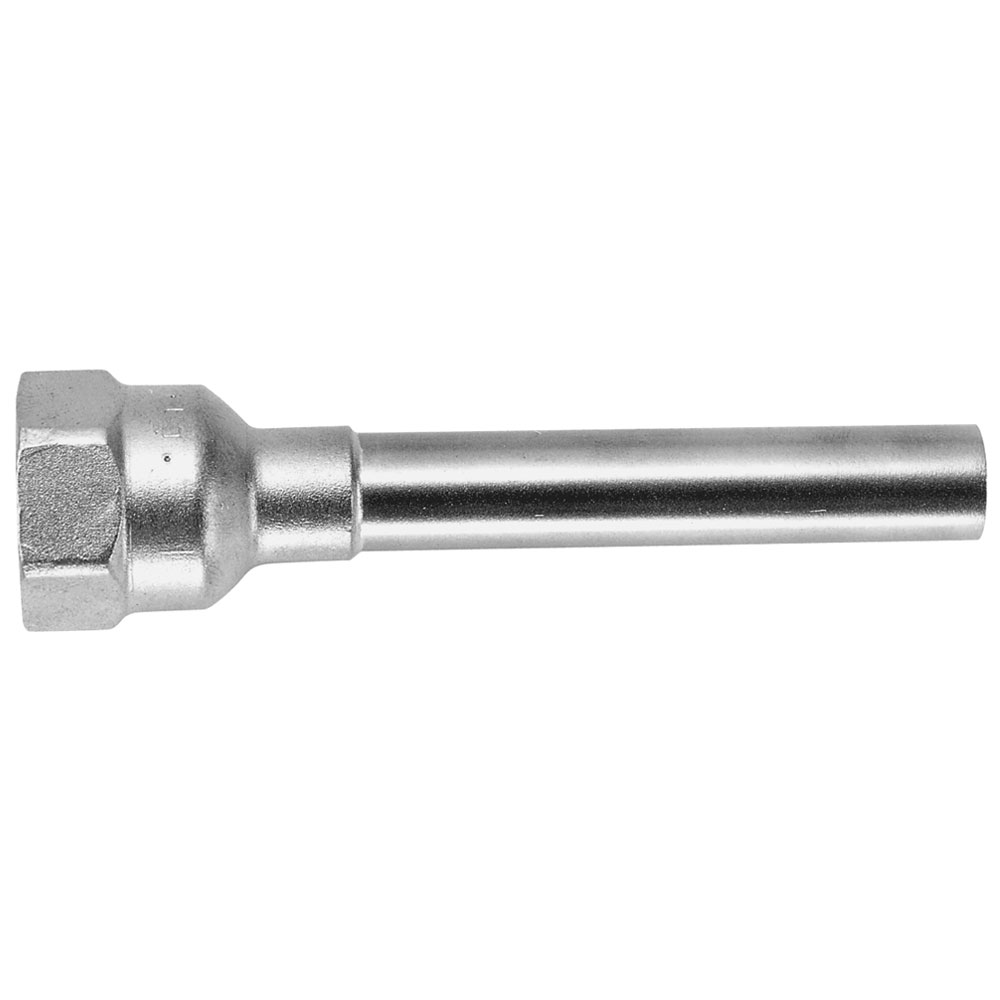

Type R3: Straight Threaded Copper Fitting

Straight threaded fitting is brazed to the cooling tube extensions, providing an easy and quick method for connecting cooling lines. Recommended to be factory installed to assure good braze seals.
Available for 3/8" and 1/2" diameter tubing with internal threads. If required, specify.

Installation Accessories

/Tempco/Data-Assets/03-Cast-In-Images/WebA030.jpg

Tubing for Cooling Lines

Products Temporarily Unavailable for Individual Purchase

Cooling Line Tubing can be used to connect the Tempco Cast-In heat/cool bands to the plumbing system of your extruder. Tubing is available in 6'8" lengths for U.P.S. shipments and up to 20' lengths for truck shipments. Barlow’s formula below was used to calculate Working Pressure in the table.

/Tempco/Data-Assets/03-Cast-In-Images/WebA111.jpg

Wire Braided Hose

Flexible Teflon® Wire Braided Hose provides an excellent means of connecting Cast-In Heaters to the extruder plumbing system. This style of hose meets the demands of medium to tight bending radius requirements. The stainless steel braid protects the Teflon® hose from any harsh mechanical conditions that may be present.

/Tempco/Data-Assets/03-Cast-In-Images/Web1005-92.jpg

Adaptor Fittings

Rigid brass adapter fittings are used to mate the base hose assembly to your existing installation.

Additional Options

125 RMS Standard

RMS Surface Finish as defined in ASME B46.1 — RMS is the root mean square of the profile height deviations from the mean line, recorded within the evaluation length. The standard surface finish for the machined surface of Tempco cast-in heaters is 125 RMS. Consult Tempco if a different surface finish is required.

Special Features

Electroless Nickel-Plated — A plating technique (without using an electric current) used to deposit a coating of nickel on a substrate to prevent corrosion, wear and also as a protective coating.

Teflon Coating — Teflon is non-reactive so it is often used in containers and pipework for reactive and corrosive chemicals.

Hard coat anodizing — Anodizing increases resistance to corrosion and wear.

Magnaplate — Strong wear and corrosion resistance non-stick coating that withstands high temperatures.

Customer Specified Finish

Please specify a finish.

L-Shaped Cast-In Heaters

L-Shaped Cast-In Heaters

Resources

In-Stock Parts

Explore L-Shaped Cast-In Heaters Specifications

Refine Results

Cast Materials

Cooling Methods

Clamping Options

Electrical Terminations

Termination Protection

Cooling Tube Fittings

Installation Accessories

Additional Options

Cast Materials

Aluminum

Bronze

Brass

Clamping Options

45° Flange Mount

Bolt to Barrel

Electrical Terminations

Type S: Heavy Duty Ceramic Insulators (Standard)

Type T: Mica Insulator

Type T7: Ceramic Insulator

Type C4: Heavy Duty Ceramic Insulator with Terminal Cover

Type P: Plain Pin

Type R: Mica Washers

Type R2: Mica Washers with Lead Wire Connection

Type E: Right-Angle Lug

Type L and L9: Terminal Lug and Pin

Type SF and SF9: Quick Disconnect Spade Tabs

Type F: Flexible Lead

Type R1: Flexible Armor Cable

Type R1A: Stainless Steel Wire Overbraid

Type MR: Strain Relief and Lead Wire - Moisture Resistant

Type TS: Teflon® Sleeving over Lead Wire

Type P1: Quick Disconnect Plug

Termination Protection

Type C2: Standard Terminal Box (on flat pad)

Type EP: Explosion & Moisture Resistant Box

Type MPR: Moisture Resistant Box

Type MR1: Moisture Resistant Box with Shield

Type CB: Cast Aluminum Box

None

Cooling/Flow Tube Fittings

Type RA: 90° Copper Elbow

Type RT: Cast Brass 90° Threaded Elbow

Type R3: Straight Threaded Copper Fitting

Installation Accessories

Tubing for Cooling Lines

Products Temporarily Unavailable for Individual Purchase

Wire Braided Hose

Adaptor Fittings

Additional Options

125 RMS Standard

Special Features

Customer Specified Finish
