Click image to enlarge

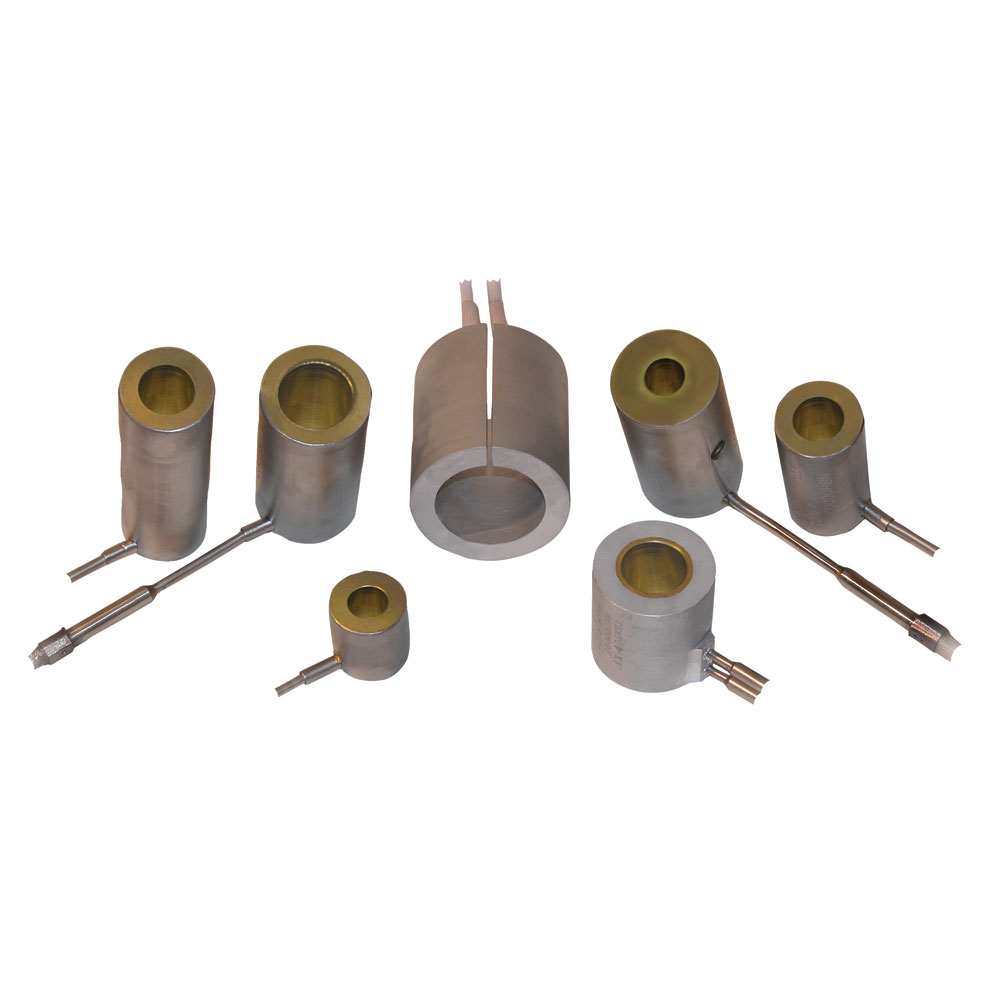

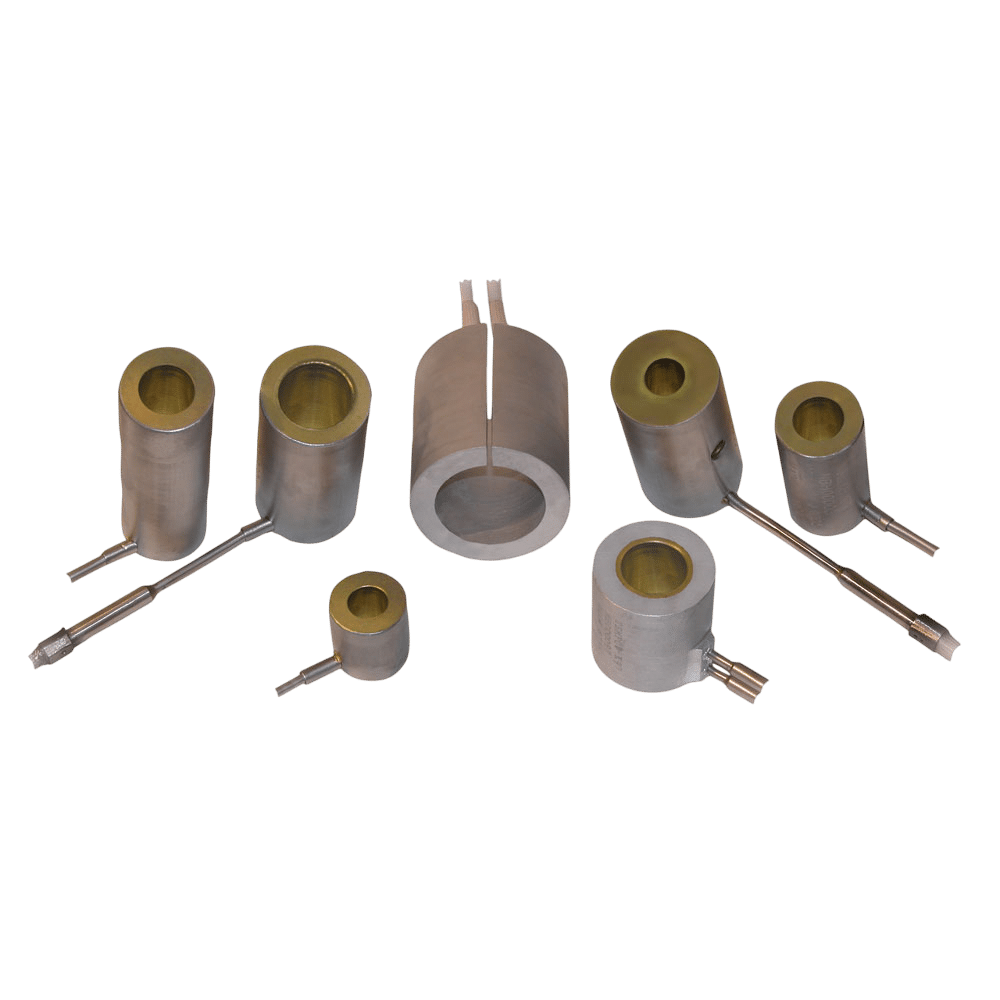

The bronze casting is protected by a stainless steel tube. The maximum operating temperature for the bronze casting is 1200°F (650°C); the optional aluminum casting has a maximum operating temperature of 600°F (315°C).
The heater and thermocouple have a standard termination of 36” inch fiberglass leads with a stainless steel overbraid. Options include Teflon® insulated leads and armor cable. All terminations are available with the optional 2-inch-long extended strain relief
Inside Diameter -- Select --A = 0.375"B = 0.500"C = .0563"D = 0.625"E = 0.750"F = 0.875"G = Other (Specify)
"G" Inside Diameter - Other
Nominal Outside Diameter -- Select --A = 1"B = 1-1/8"C = 1-1/4"D = 1-3/8"E = Other (Specify)
"E" Nominal Outside Diamter - Other
Width (Length) -- Select --A = 1"B = 2"C = 3"D = 4"X = Other (Specify)
"X" Width (Length) - Other
Volts -- Select --A = 240 StandardB = 120 Optional
Wattage - use 4 digits
Lead Length – Whole Inches 001 to 999 For Standard Length of 36" enter [ 036 ]
Lead Construction -- Select --A = Fiberglass, Heater and T/C with SS overbraid – StandardB = Fiberglass, Heater and T/CC = Teflon® Insulated, Heater and T/CD = Teflon® Insulated with SS overbraid (no T/C)E = Fiberglass Insulated with SS armor cable (no T/C)F = Teflon® Insulated with SS armor cable (no T/C) NOTE: For A, D, E and F the cable or braid length will be 2" shorter than the lead wire length unless otherwise specified in Special Requirements.
Extended Strain Relief (2" long) -- Select --1 = Yes2 = No
Thermocouple Type -- Select --J = Type J Iron/ConstantanK = Type K Chromel/Alumel0 = None Required
Thermocouple Junction Location -- Select --A = Ungrounded (Standard)B = Grounded (Optional)0 = None Required
Casting Construction -- Select --B = Bronze (Standard) 1200°F (650°C)A = Aluminum (Optional) 600°F (315°C)
Cold Length - Whole Inches 01 to 99
Special Requirements -- Select --X = Specify0 = None
"X" Special Requirements - Specify
Quantity
Questions or Comments
