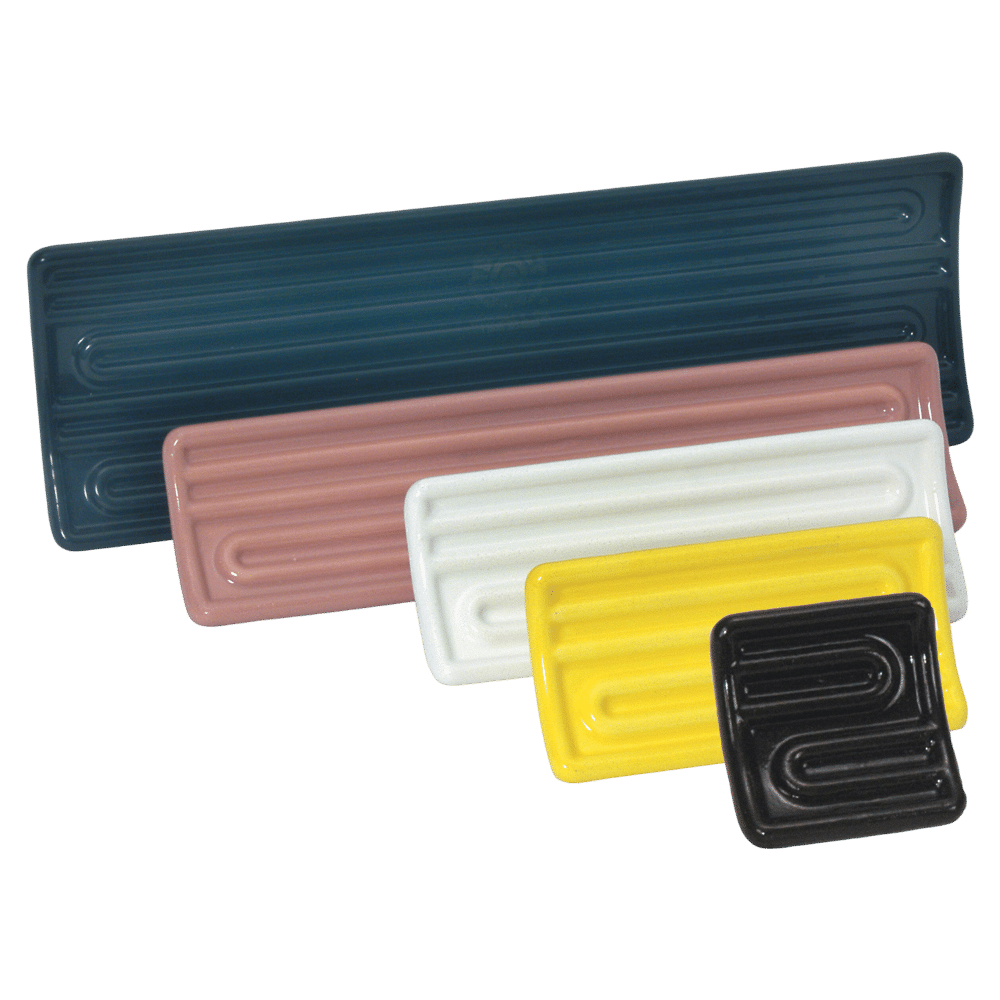

Ceramic-E-Mitters

Construction Styles

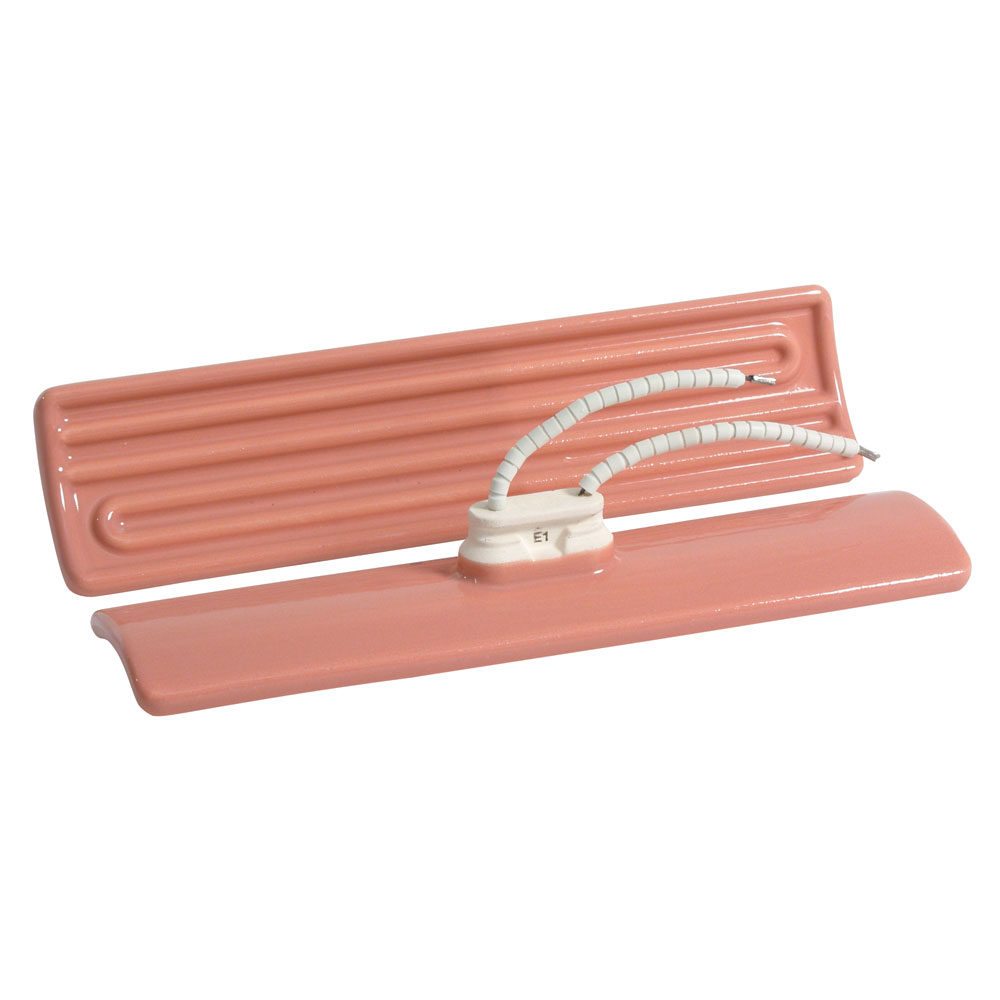

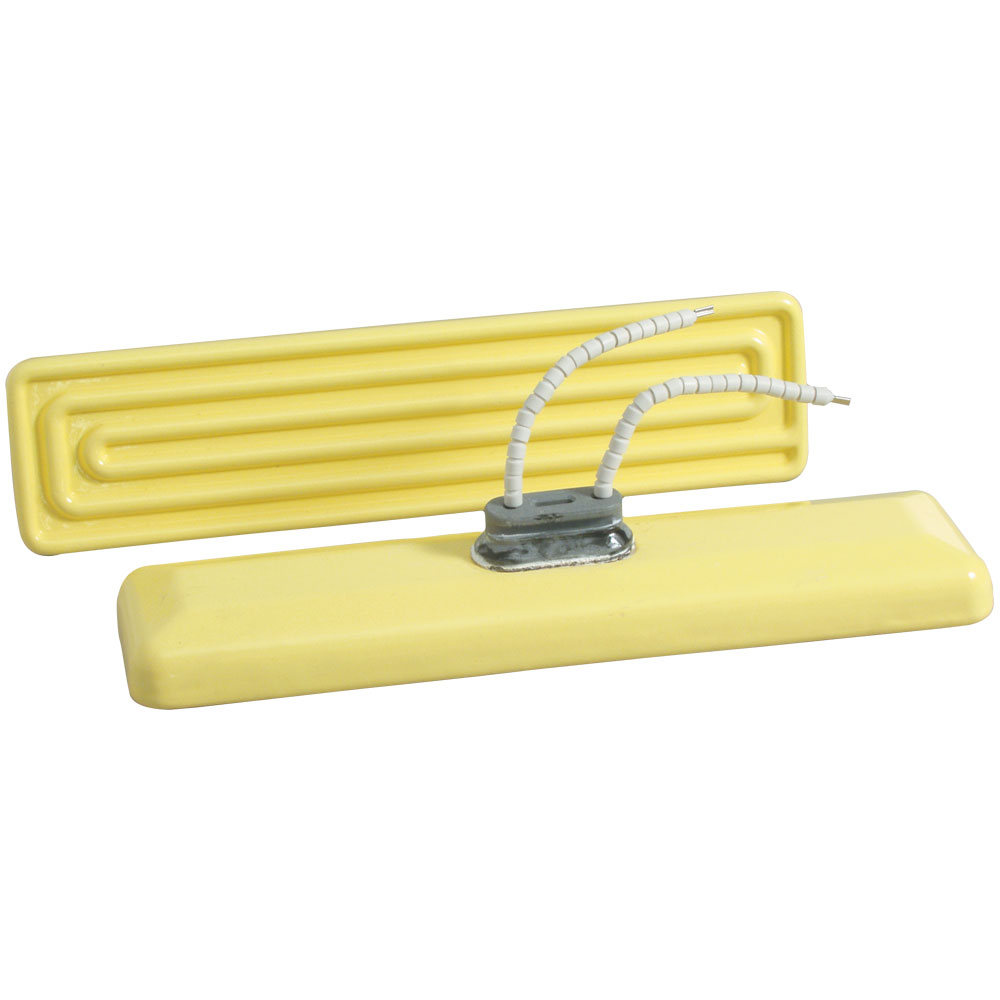

Solid Curved Face

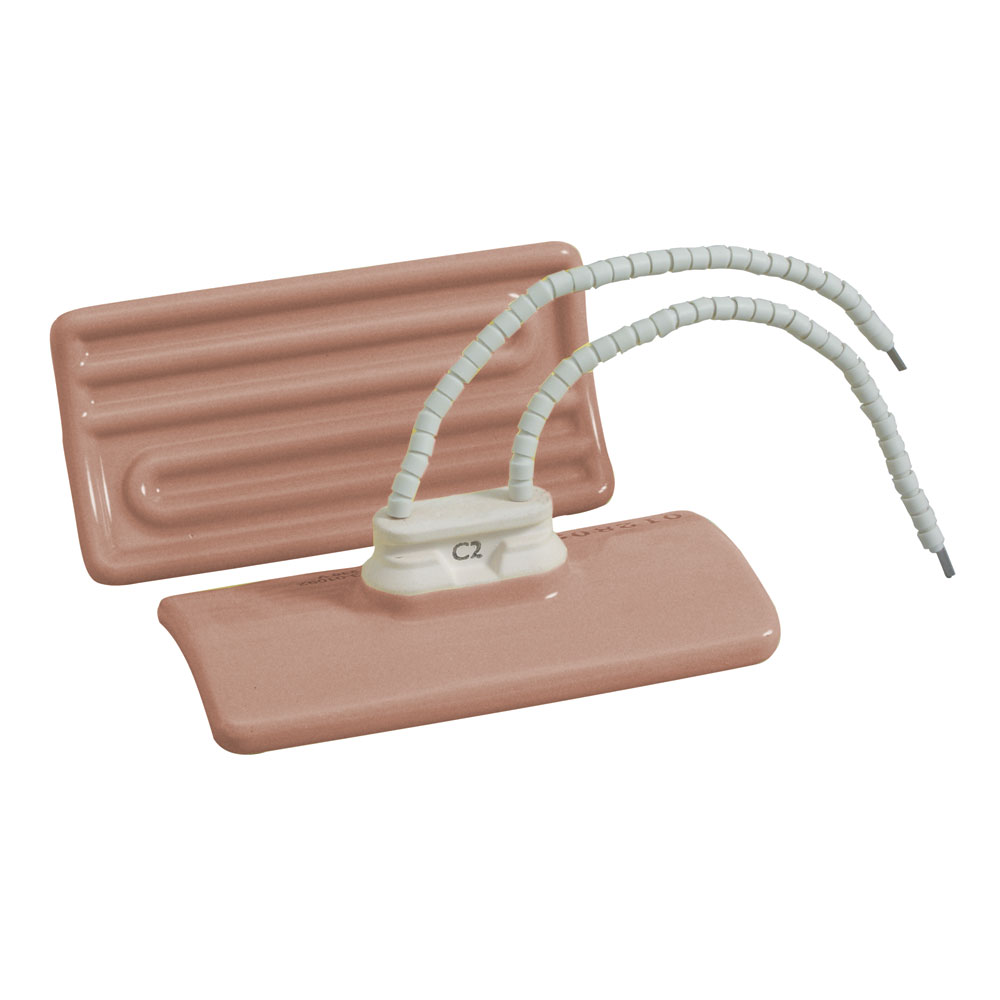

These ceramic e-mitters come in 5 sizes. They utilize a metal reflector to direct the heat to the application.

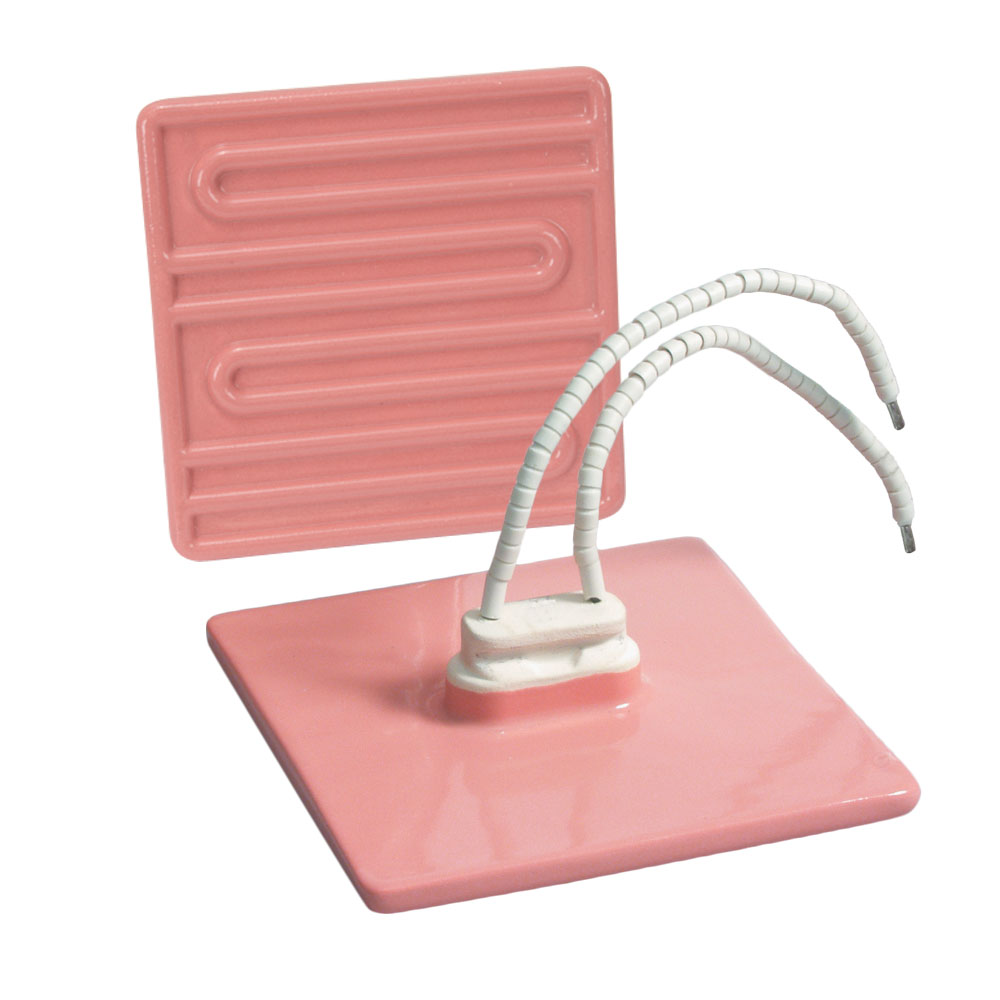

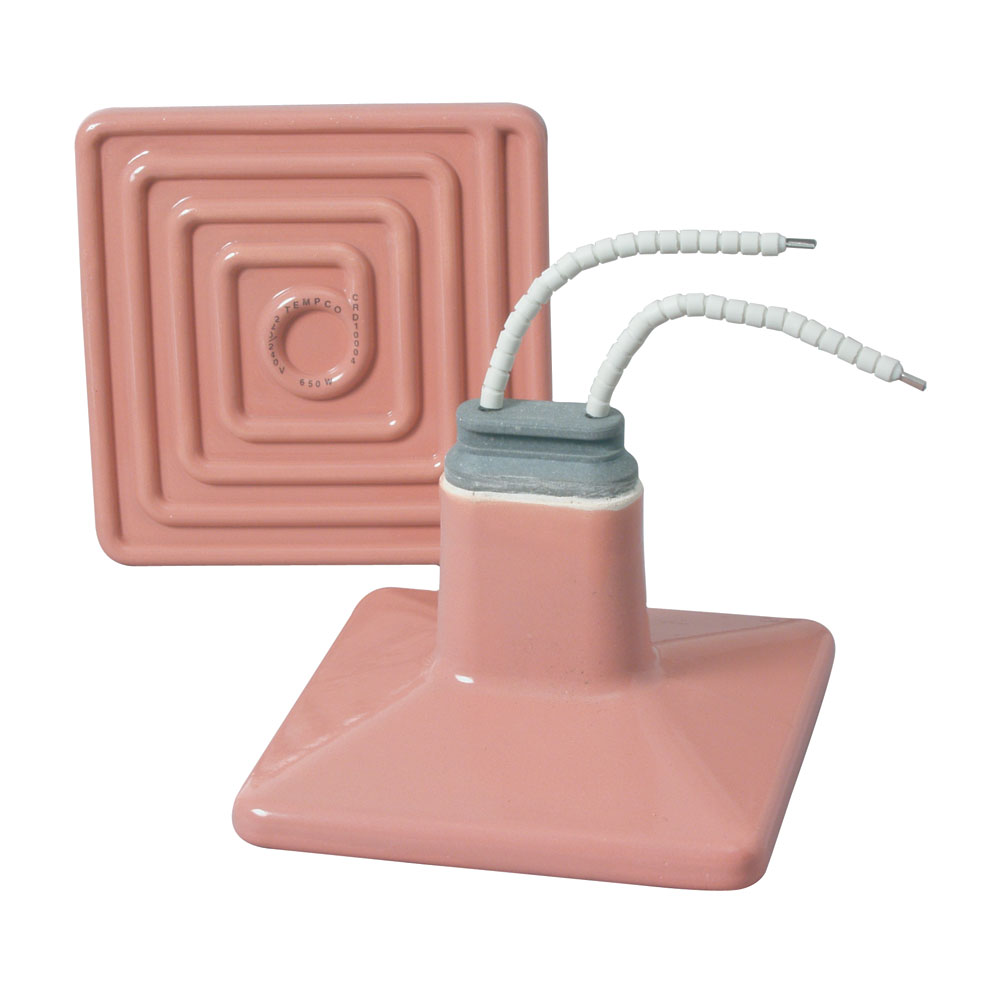

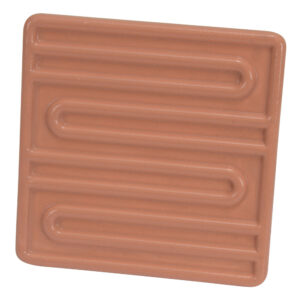

Solid Flat Face

These ceramic e-mitters come in one size, 120 mm x 120 mm.

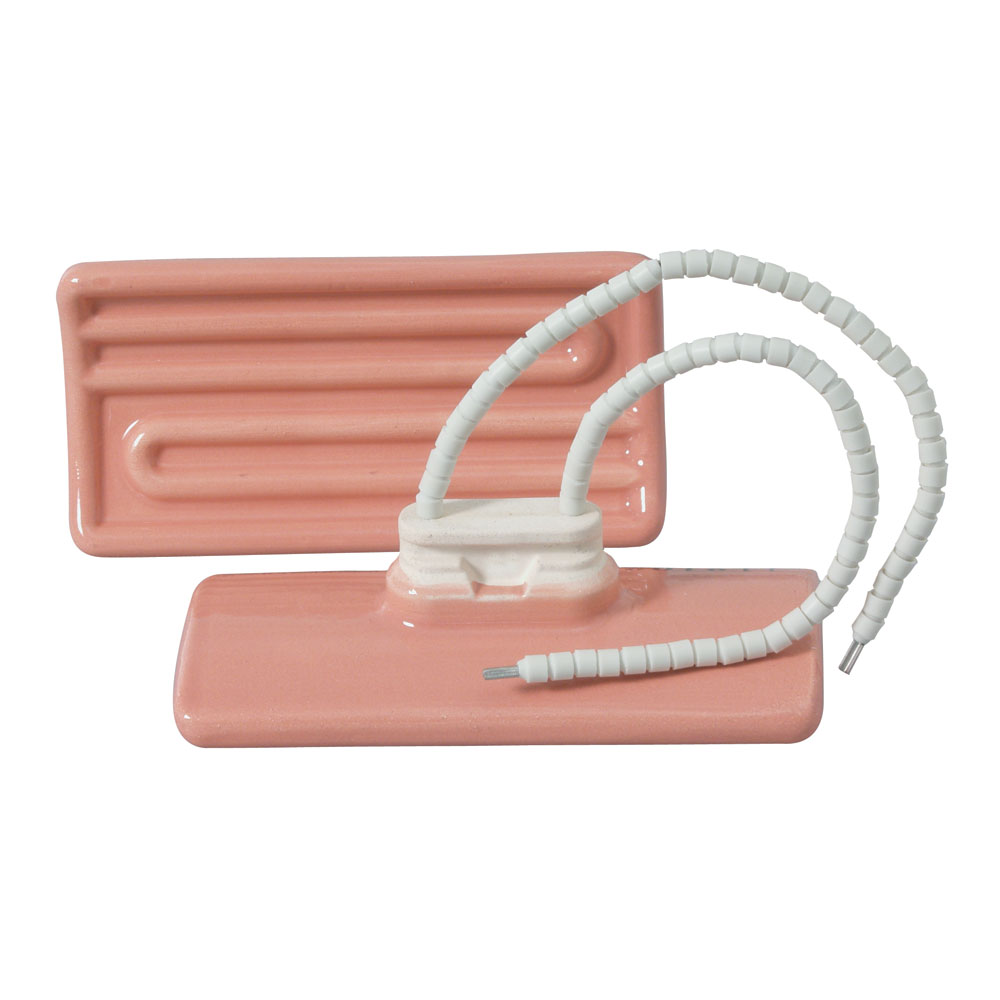

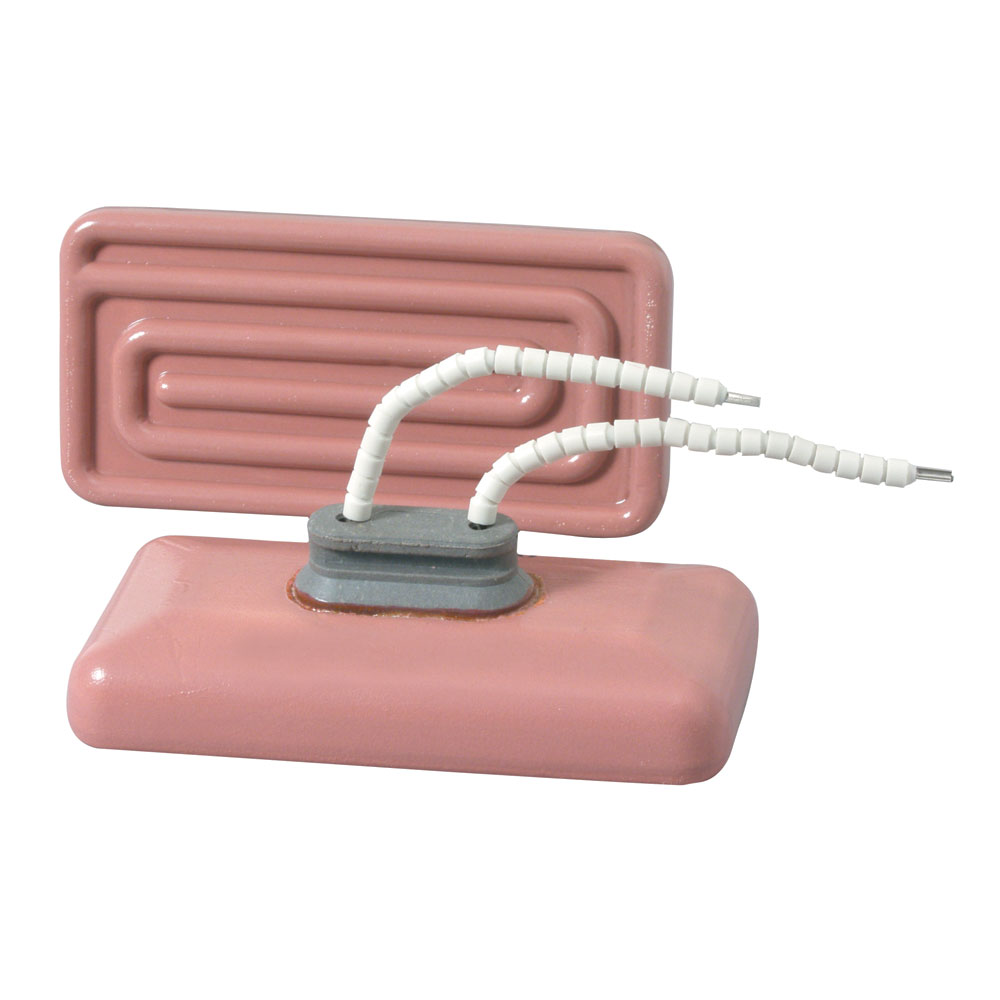

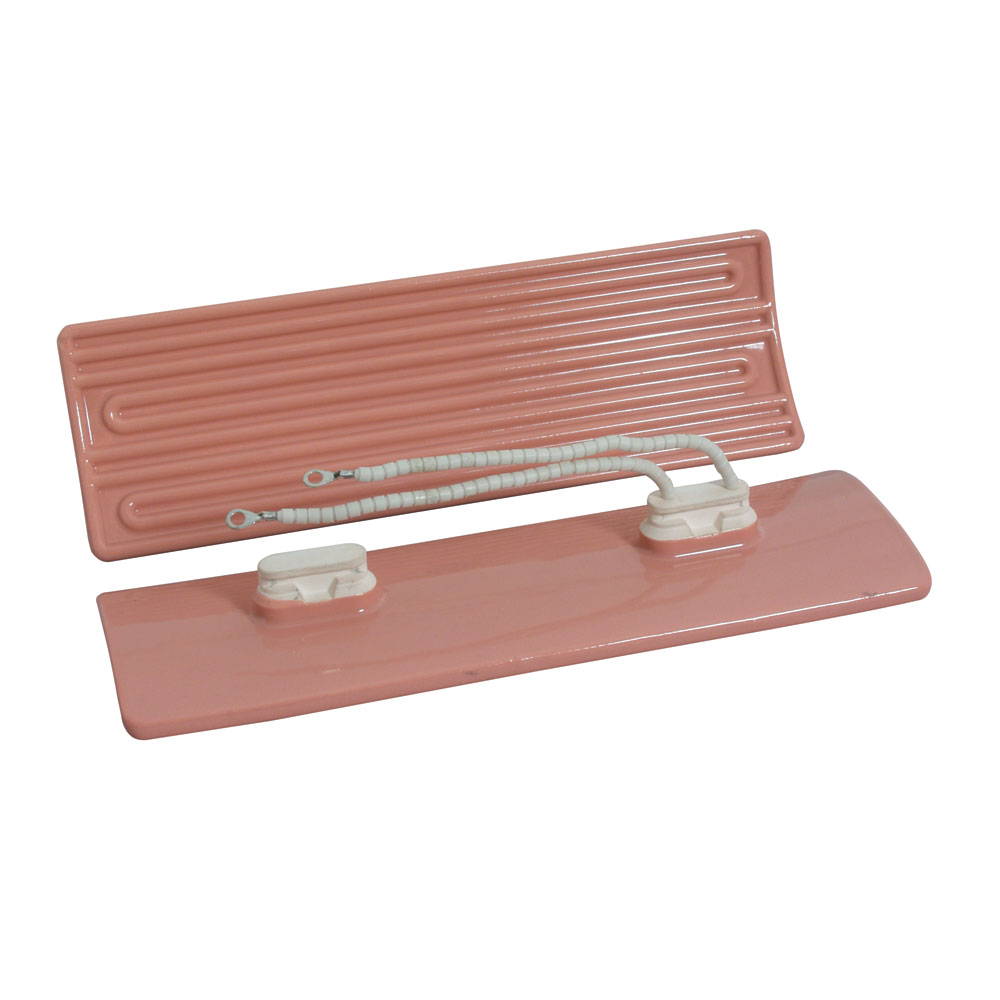

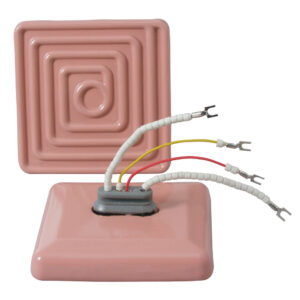

Insulated Flat Face

These ceramic e-mitters come in 4 sizes. They contain insulation that keeps the heat generated towards the application and reduces reliance on reflectors in the installation.

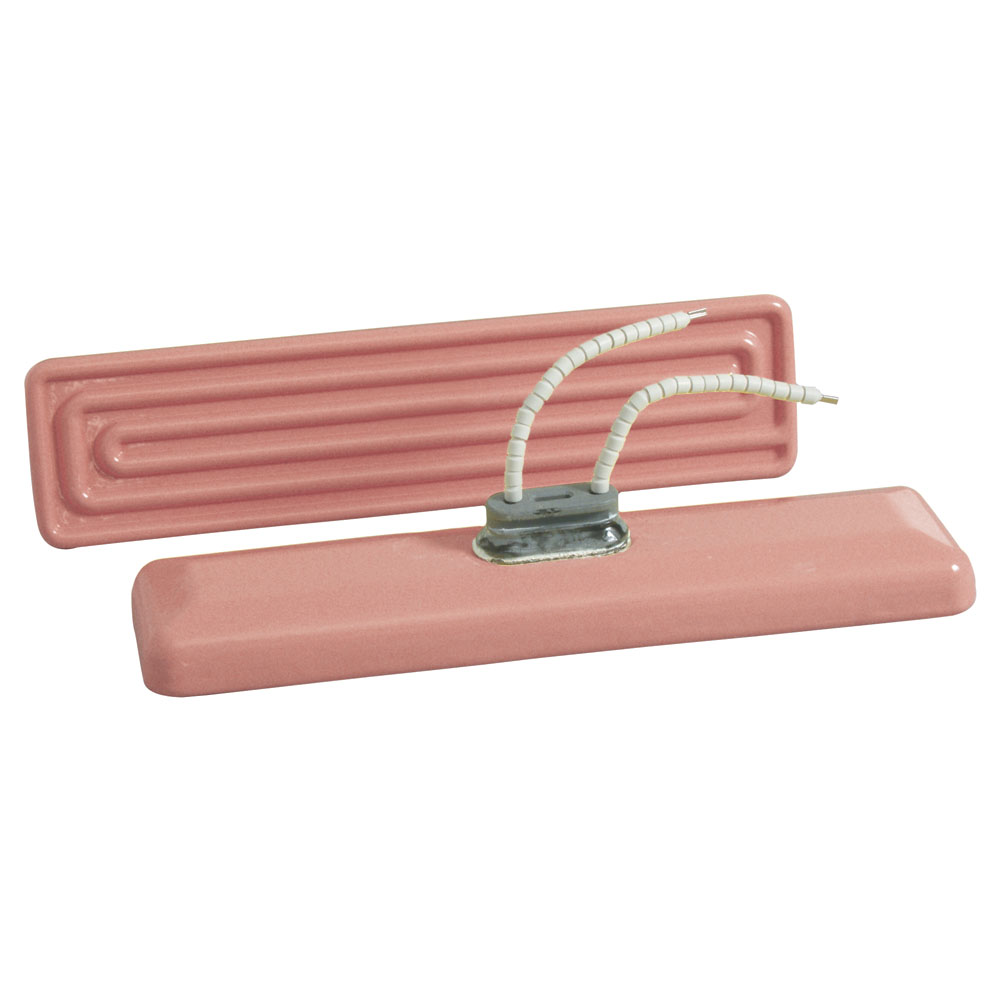

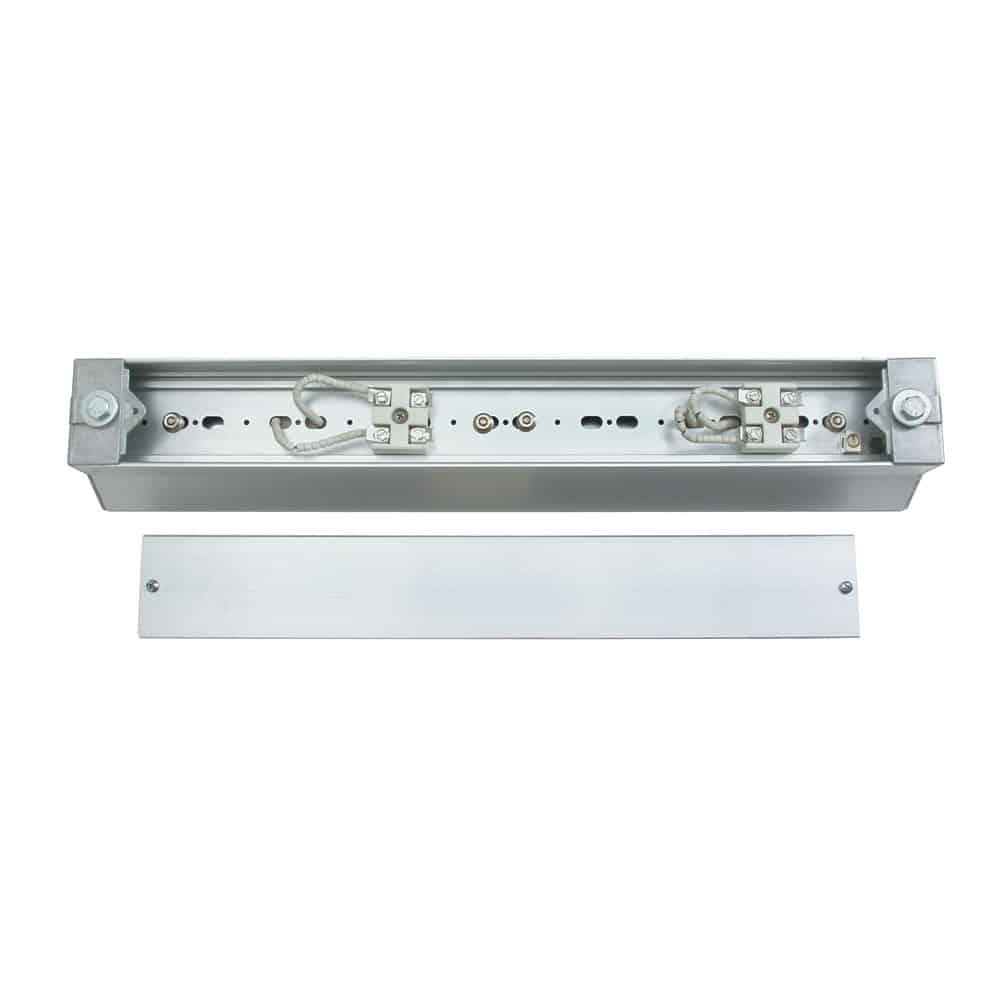

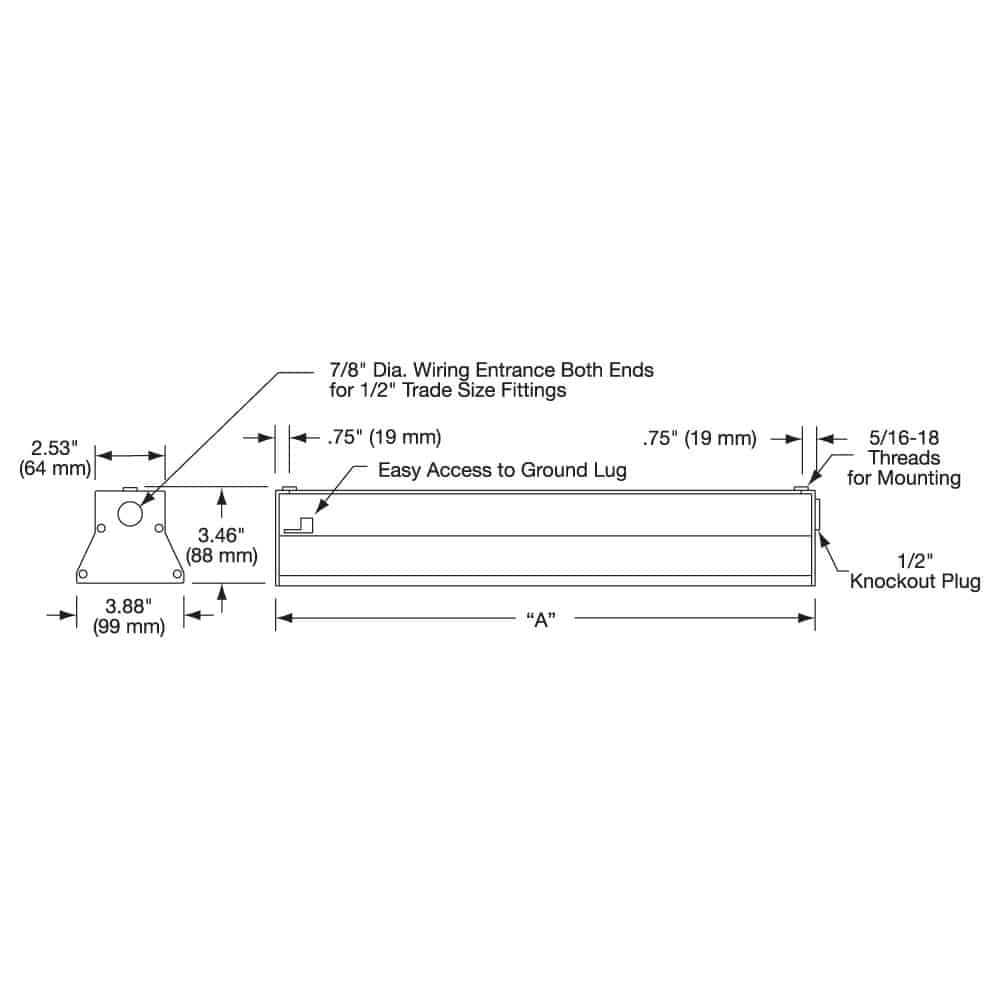

Linear Housings

Linear Housings can be designed with custom configuations using any combination of Ceramic E-mitter Series necessary. They are available in preconfigured sizes or Tempco can design a custom heater to suit your application.

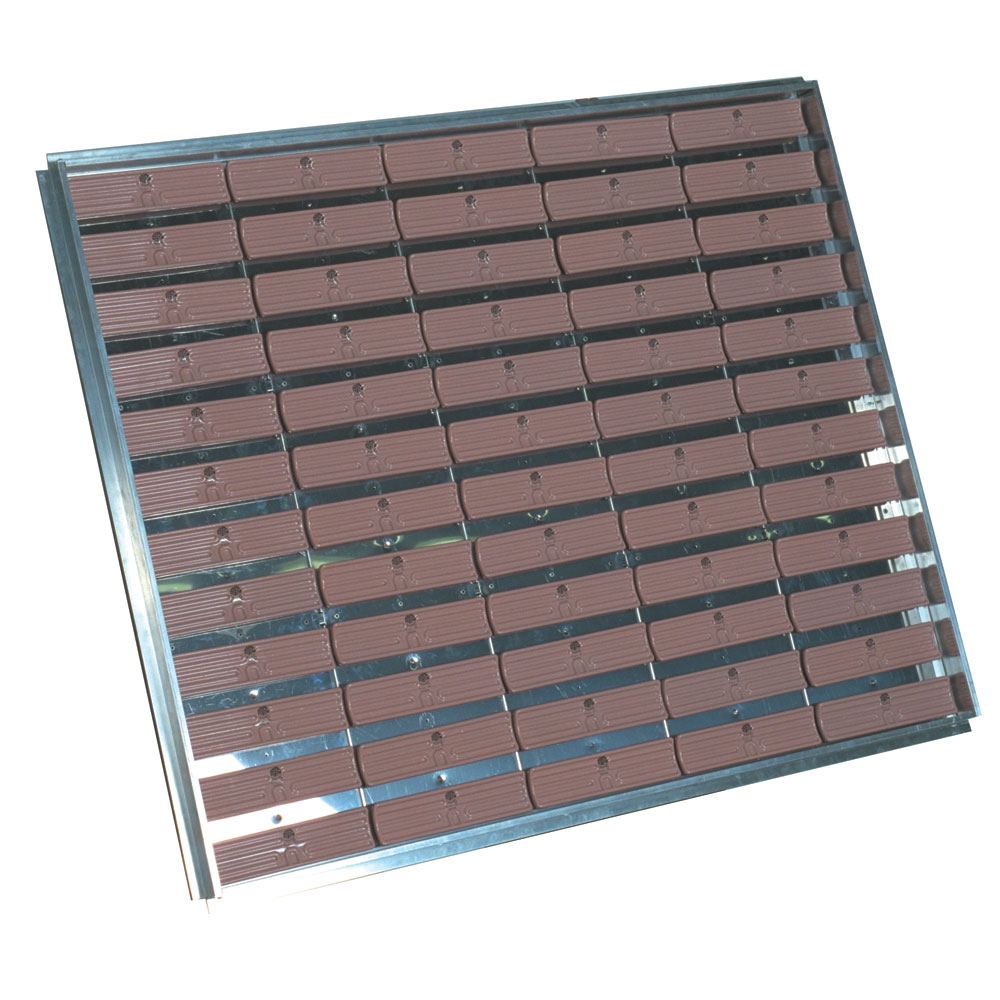

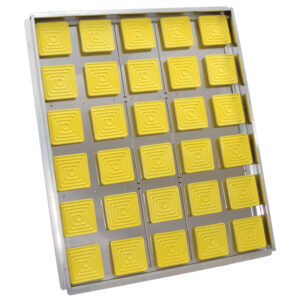

Arrays/Panels

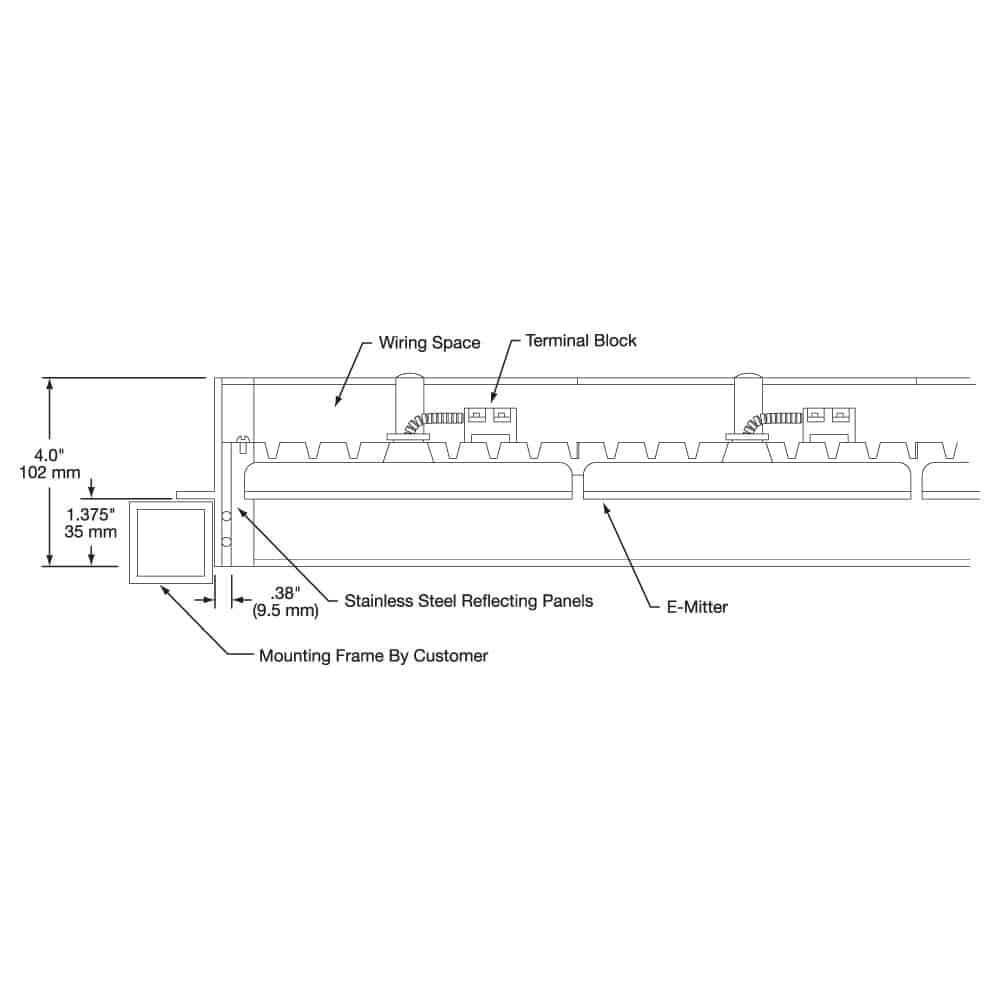

Array Housing Assemblies can be designed with custom configuations using any combination of Ceramic E-mitter Series necessary. They are available in preconfigured sizes or Tempco can design a custom heater to suit your application.

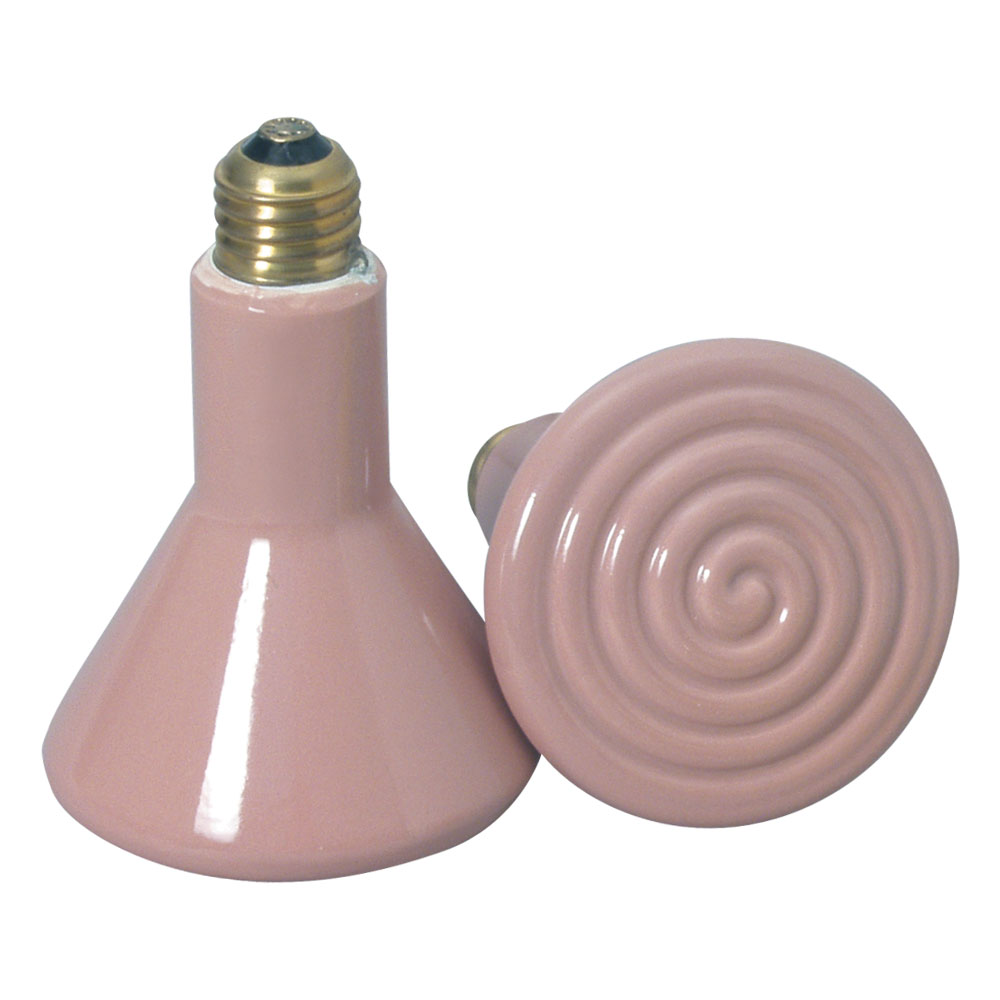

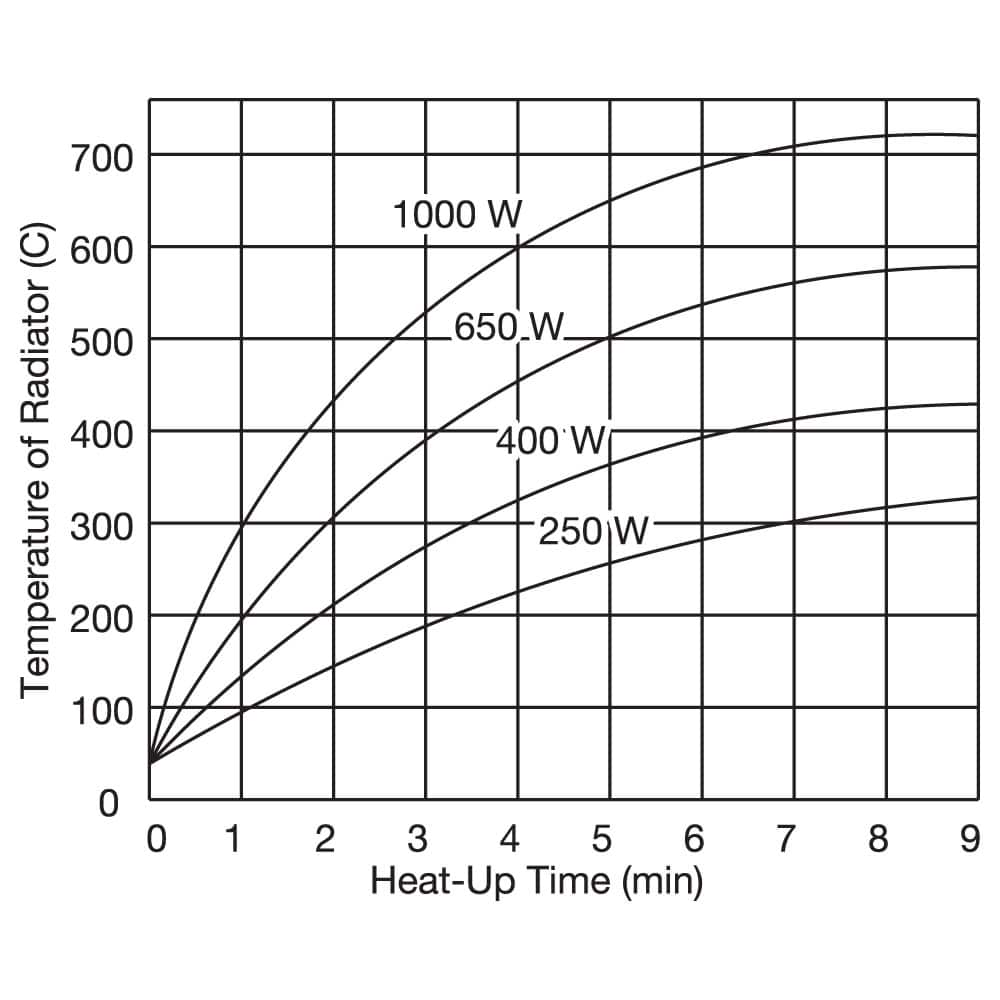

Edison Style Bulb

These hollow ceramic heaters have a unique thin wall construction and geometrical shape to facilitate fast heating and cooling rates.
The resistance coil is embedded into the specially designed circular ceramic E-mitter surface, providing extremely uniform heat transmission with low element surface temperatures.
Because of the convenient Edison Screw-In style termination, CRE & CRR E-Mitters are recognized as a tremendously versatile source for localized spot heating. They can be used virtually anywhere quickly and easily by simply installing the CRE E-Mitter into common porcelain/ceramic insulated bulb sockets—like any ordinary light bulb.

Series Size

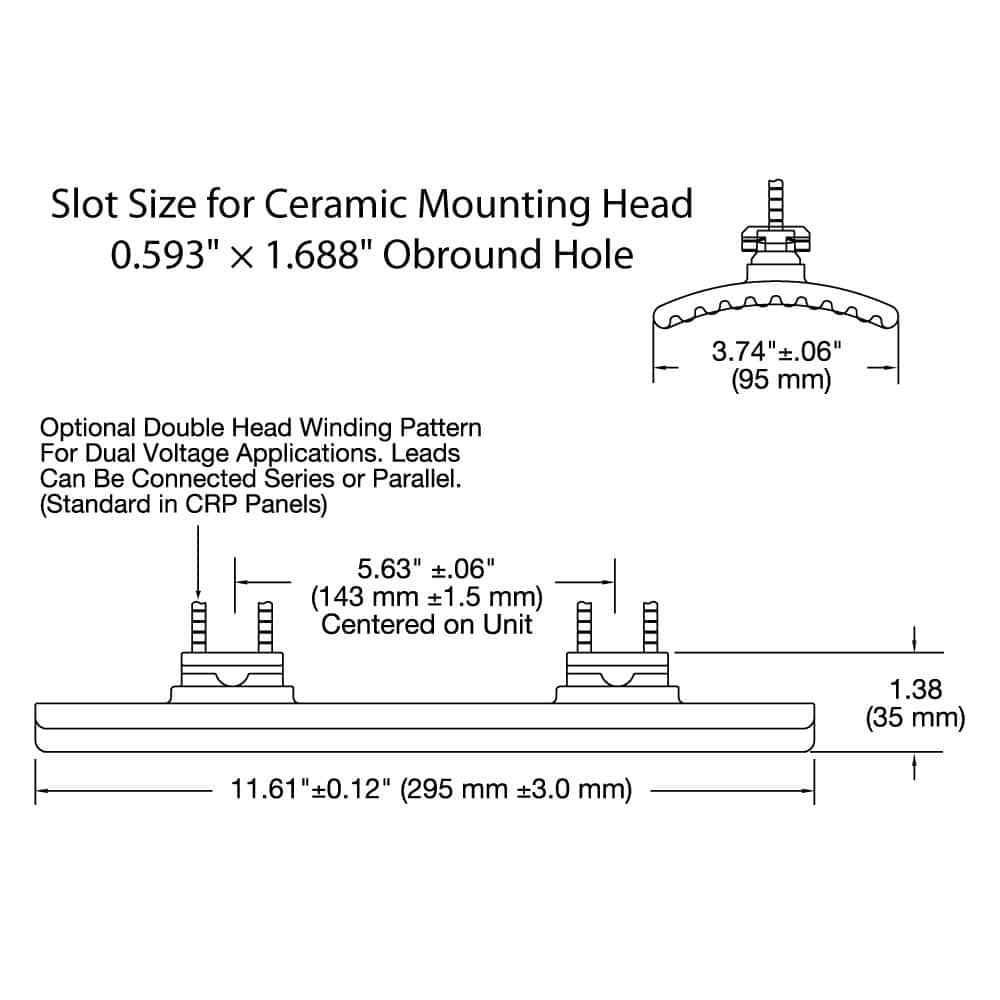

Series CRL

Design Features

Size: 95 mm x 295 mm (3.72" x 11.61")
Universal mount designed to be dropped into existing systems regardless of manufacturer.
Optional color changing material to indicate if E-mitter is on or off.
Standard stocked voltage: 120 or 220/240V as noted; other voltages are available.
Long operating life—over 10,000-plus hours of continuous operation under normal conditions
Performance is unaffected by vibration or adverse atmospheric conditions.
2.5 to 6µm infrared radiation wavelength

Series CRB

Design Features

Size:60 mm x 245 mm (2.36" x 9.65")
Universal mount designed to be dropped into existing systems regardless of manufacturer.
Optional color changing material to indicate if E-mitter is on or off.
Standard stocked voltage: 120 or 220/240V as noted; other voltages are available.
Long operating life—over 10,000-plus hours of continuous operation under normal conditions
Performance is unaffected by vibration or adverse atmospheric conditions.
2.5 to 6µm infrared radiation wavelength

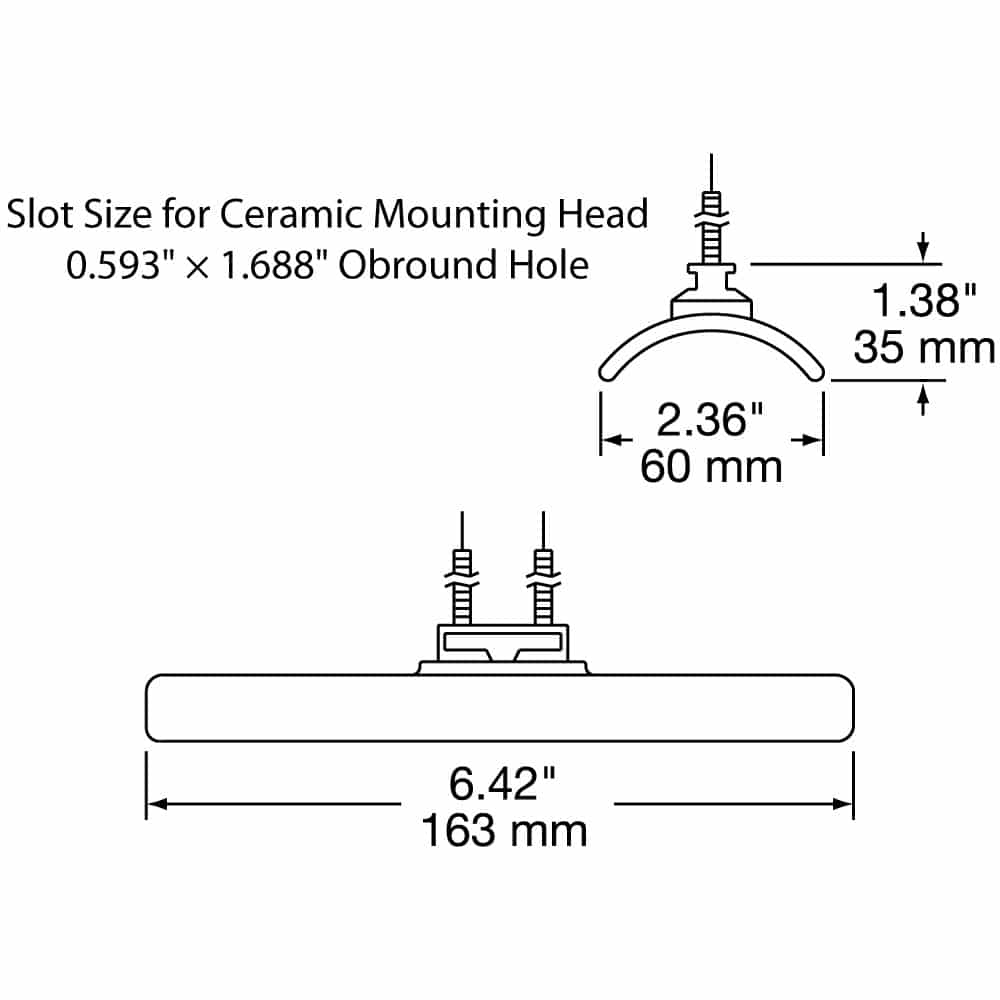

Series CRM

Design Features

Size: 60 mm x 163 mm (2.36" x 6.42")
Universal mount designed to be dropped into existing systems regardless of manufacturer.
Optional color changing material to indicate if E-mitter is on or off.
Standard stocked voltage: 120 or 220/240V as noted; other voltages are available.
Long operating life—over 10,000-plus hours of continuous operation under normal conditions
Performance is unaffected by vibration or adverse atmospheric conditions.
2.5 to 6µm infrared radiation wavelength

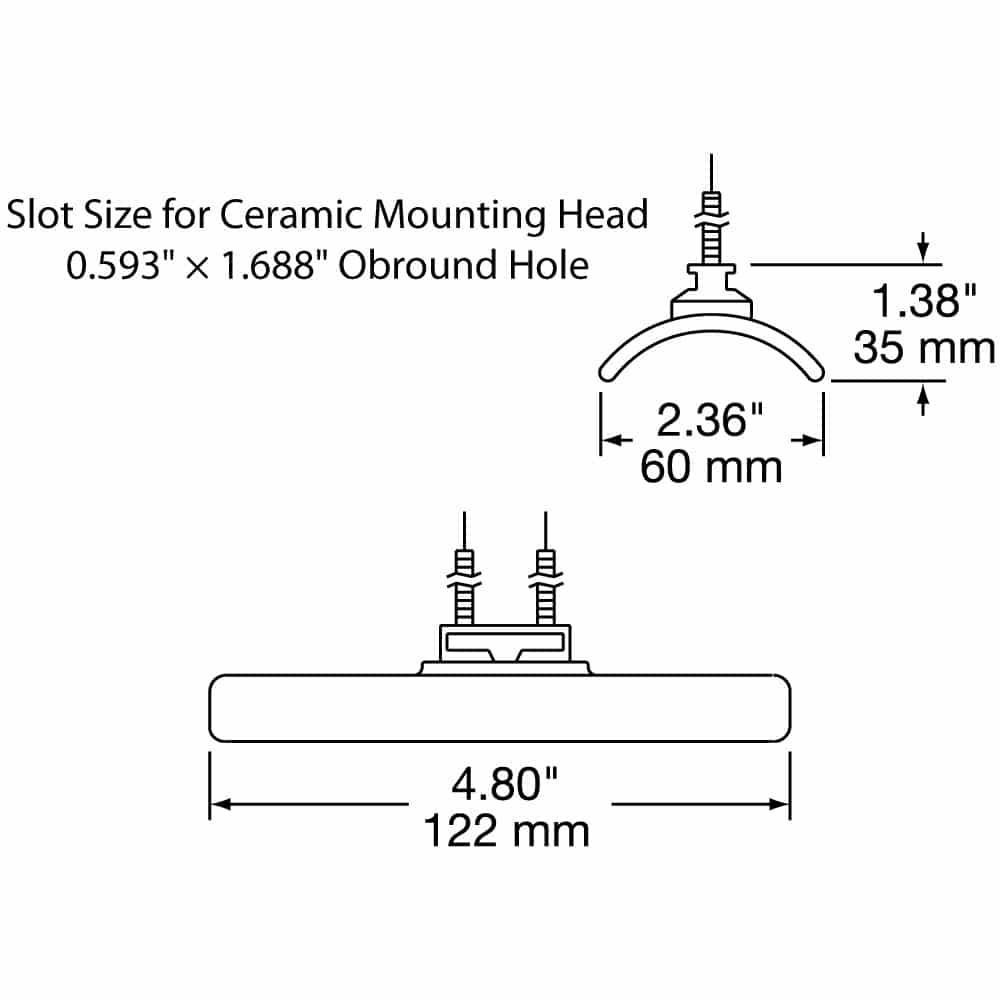

Series CRC

Design Features

Size: 60 mm x 122 mm (2.36" x 4.80")
Universal mount designed to be dropped into existing systems regardless of manufacturer.
Optional color changing material to indicate if E-mitter is on or off.
Standard stocked voltage: 120 or 220/240V as noted; other voltages are available.
Long operating life—over 10,000-plus hours of continuous operation under normal conditions
Performance is unaffected by vibration or adverse atmospheric conditions.
2.5 to 6µm infrared radiation wavelength

Series CRS

Design Features

Size: 60 mm x 60 mm (2.36" x 2.36")
Universal mount designed to be dropped into existing systems regardless of manufacturer.
Optional color changing material to indicate if E-mitter is on or off.
Standard stocked voltage: 120 or 220/240V as noted; other voltages are available.
Long operating life—over 10,000-plus hours of continuous operation under normal conditions
Performance is unaffected by vibration or adverse atmospheric conditions.
2.5 to 6µm infrared radiation wavelength

Series CRG

Design Features

Size: 122 mm (4.80") square
Universal mount designed to be dropped into existing systems regardless of manufacturer.
Optional color changing material to indicate if E-mitter is on or off.
Standard stocked voltage: 120 or 220/240V as noted; other voltages are available.
Long operating life—over 10,000-plus hours of continuous operation under normal conditions
Performance is unaffected by vibration or adverse atmospheric conditions.
2.5 to 6µm infrared radiation wavelength

Series CRH

Design Features

Size: 122 mm (4.80") Square
Universal mount designed to be dropped into existing systems regardless of manufacturer
Optional color changing material to indicate if E-mitter is on or off.
Standard stocked voltage: 120 or 220/240V as noted; other voltages are available
Long operating life – over 10,000-plus hours of continuous operation under normal conditions
Performance is unaffected by vibration or adverse atmospheric conditions 2.5 to 6µm infrared radiation wavelength

Series CRD

Design Features

Size: 122 mm (4.80") Square
Long neck series allows wiring to be better insulated from the heat of the face of the E-mitter.
Universal mount designed to be dropped into existing systems regardless of manufacturer
Optional color changing material to indicate if E-mitter is on or off.
Standard stocked voltage: 120 or 220/240V as noted; other voltages are available
Long operating life – over 10,000-plus hours of continuous operation under normal conditions
Performance is unaffected by vibration or adverse atmospheric conditions 2.5 to 6µm infrared radiation wavelength

Series CRN

Design Features

Size: 60 mm x 245 mm (2.36" x 9.65")
Universal mount designed to be dropped into existing systems regardless of manufacturer
Optional color changing material to indicate if E-mitter is on or off.
Standard stocked voltage: 120 or 220/240V as noted; other voltages are available
Long operating life – over 10,000-plus hours of continuous operation under normal conditions
Performance is unaffected by vibration or adverse atmospheric conditions 2.5 to 6µm infrared radiation wavelength

Series CRZ

Design Features

Size: 60 mm x 122 mm (2.36" x 4.80")
Universal mount designed to be dropped into existing systems regardless of manufacturer
Optional color changing material to indicate if E-mitter is on or off.
Standard stocked voltage: 120 or 220/240V as noted; other voltages are available
Long operating life – over 10,000-plus hours of continuous operation under normal conditions
Performance is unaffected by vibration or adverse atmospheric conditions 2.5 to 6µm infrared radiation wavelength

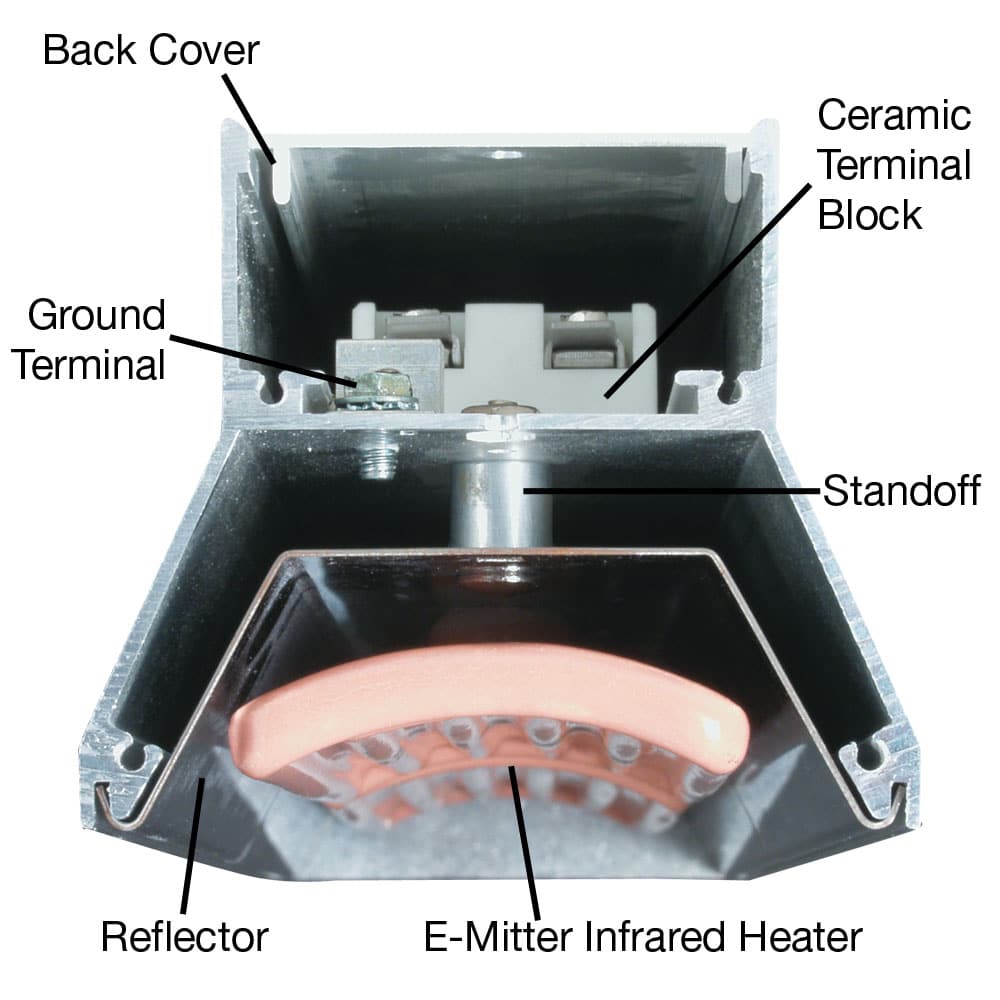

Series CRA

Design Features

Designed for use with CRB, CRC, CRN or CRZ E-Mitters
Lightweight extruded aluminum housing with 5/16-18 mounting bolts for use up to 250°C (482°F) extrusion temperature
E-Mitters are easily replaced by removing the top cover
Internal mounting hole pattern simplifies mixing and matching E-mitter sizes and ratings
Space between reflector and housing can be used with any manufactruer's standard 60 x 245 mm or 60 x 122 mm heaters
Wiring entrance 7.8" diameter at both ends, for 1/2" trade size electrical fittings

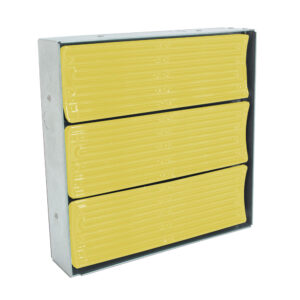

Series CRP

Design Features

Standard colors are metamorphing yellow (cold) to orange (hot), and traditional white. Optional colors are metamorphing rose (cold) to grey (hot) and black.
Dark red face glass is standard. Glass provides for ease of cleaning.
Low profile 20 ga. aluminized steel or stainless steel housing.
Standard stocked voltage: 120, 220-240V or 480V as noted; other voltages are available.
Low noise type K thermocouple mounted internally in center heater. Optional type J thermocouple is also available.
Watt density range: from 11w/in2 to 35w/in2
Standard operating temp range: 750°F to 1300°F
Best when used at radiation distances of 4-10" from application.
Performance is unaffected by vibration or adverse atmospheric conditions.
3 to 6µm infrared radiation wavelength.
Made to order.

Series ARA

Design Features

Custom Engineered/Manufactured
Lightweight extruded aluminum outer housing
Each heater's power leads are connected to an individual ceramic terminal block
NCC or Nickel wire with heat resistant insulation is used for wiring between terminal blocks
Zones with different radiant heat levels can be achieved by using different wattage heaters (each zone would have a heater with built-in thermocouple for temperature control)
Shipped fully assembled
Optional factory wiring and power control panels
Optional ceramic fiber insulation in wiring space
Optional entrances in rear cover or sides to customer specs

Series CRE

Design Features

Bulb Shape construction
Provides safe, clean, radiant heat anywhere
Easy installation
Not affected by vibration— high mechanical strength
Good resistance to atmospheric contamination
Does not generate visible light – produces only heat
Reversible color change feature
3.5 to 7µm infrared radiation peak wavelength

Series CRR

Design Features

Flat Face construction
Provides safe, clean, radiant heat anywhere
Easy installation
Not affected by vibration— high mechanical strength
Good resistance to atmospheric contamination
Does not generate visible light – produces only heat
Reversible color change feature
3.5 to 7µm infrared radiation peak wavelength

Series CRT

Design Features

Tube Shape Construction
Provides safe, clean, radiant heat anywhere
Easy installation
Not affected by vibration— high mechanical strength
Good resistance to atmospheric contamination
Does not generate visible light – produces only heat
Reversible color change feature
3.5 to 7µm infrared radiation peak wavelength

Request Other Series

If your filter selections do not return your desired results from our standard configurations, please continue to select your Specifications.

When you are finished, save your selections in the Wish List (using the button at the right of this page) and follow the steps to submit them to Tempco.

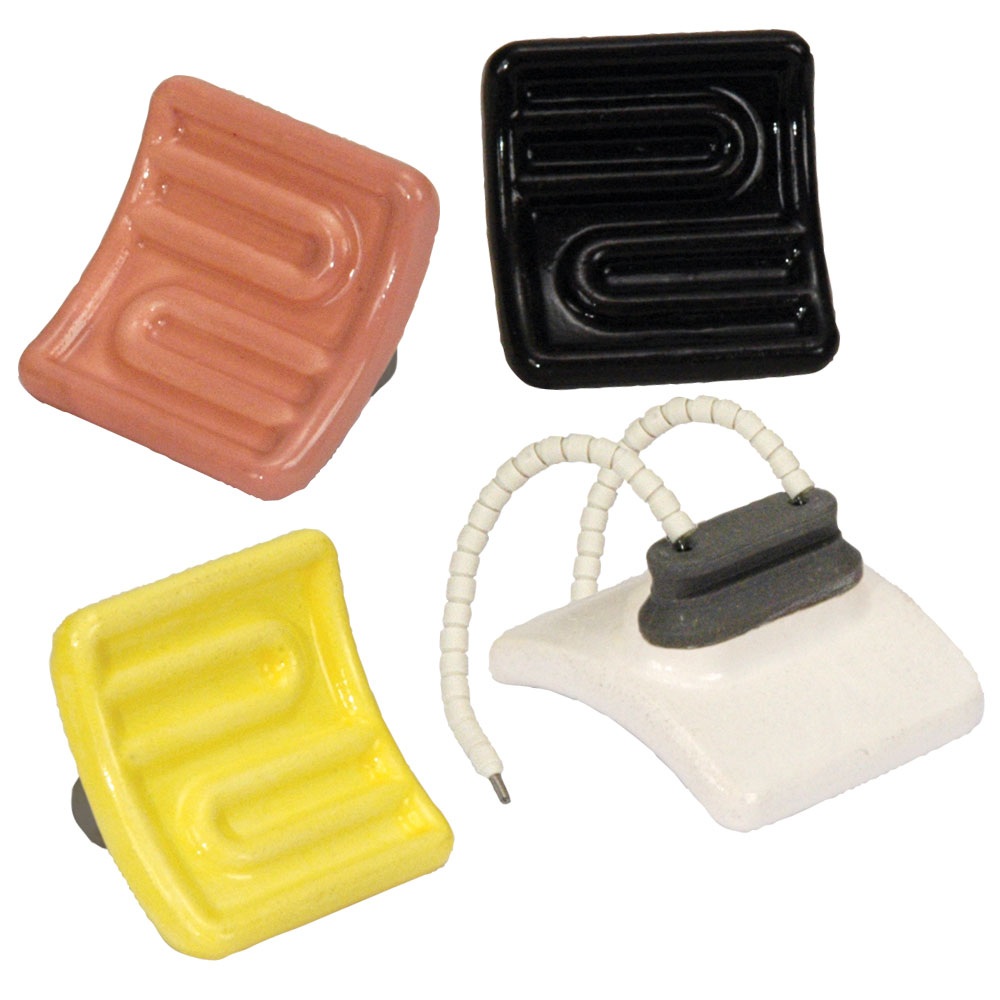

Heater Colors

Rose

Standard metamorphing color change from Rose (cold) to Grey (hot)

White

Standard color, no color change

Yellow

Optional metamorphing color change from Yellow (cold) to Orange (hot)

Black

Optional color, no color change

No Color Preference

E-mitter color is not important to the application

Electrical Terminations

Hi-Temp Ring Terminal

Nickel Plated Steel Uninsulated Terminals

Hi-Temp Spade Terminal

Nickel Plated Steel Uninsulated Terminals

Hi-Temp Straight Terminal

Nickel Plated Steel Uninsulated Terminals

Stainless Steel Armor Cable

18" armor cable over 24" leads ; if longer cable is required, specify when ordering.

Galvanzied Armor Cable

18" armor cable over 24" leads; if longer cable is required, specify when ordering.

Stainless Steel Wire Braid

18" wire braid over 24" leads; if longer cable is required, specify when ordering.

Fiberglass Leads

450°C rating — 12" long plain leads; if longer cable is required, specify when ordering.

SJO Cable

Includes ground wire
16 ga. cable (Up to 15 Amps)
14 ga. cable (Up to 22 Amps Max.)
12 ga. cable (Up to 28 Amps Max.)
Max. terminal box temperature 194°F (90°C)
If longer cable is required, specify when ordering.

Factory prewired internal terminal box connections

Internal connections made between heaters in the factory. Customer supplied power is connected to a single terminal block.

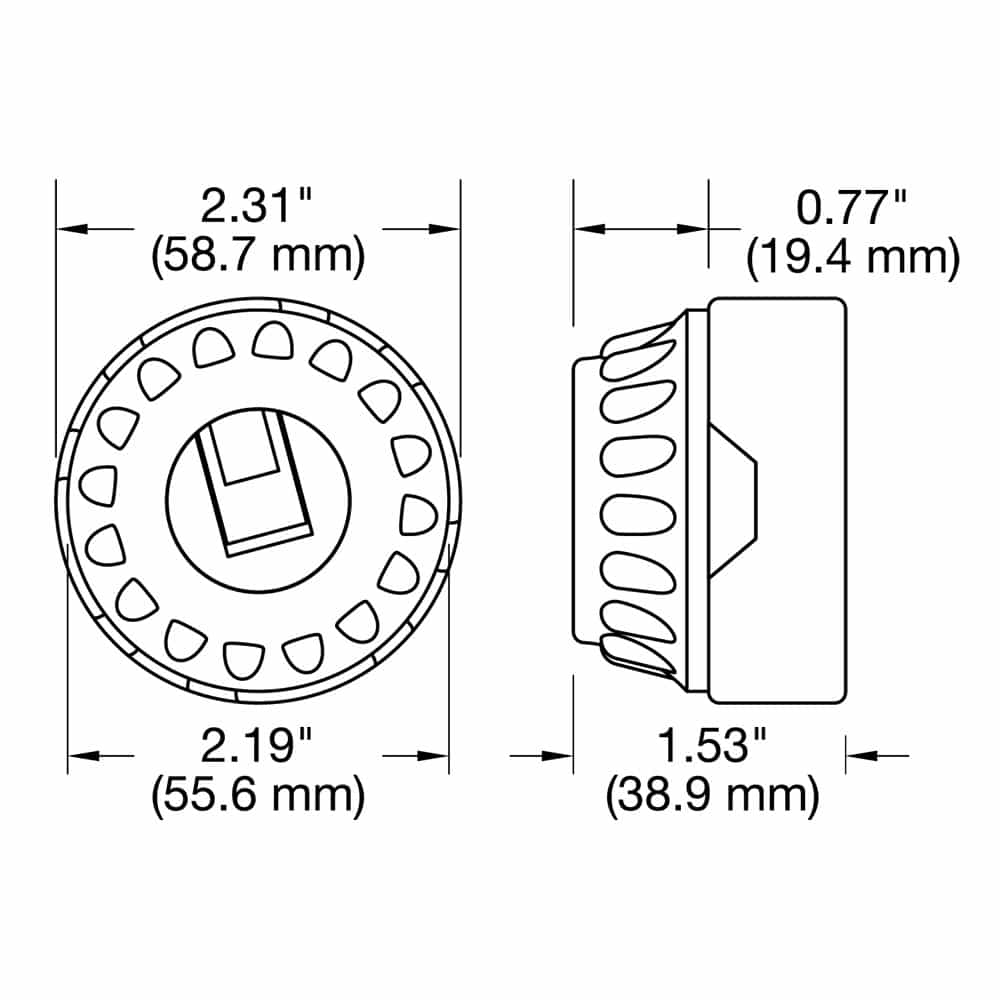

Edison Screw-In Socket

Heater is terminated with E26 Standard Base that fits standard screw-in base

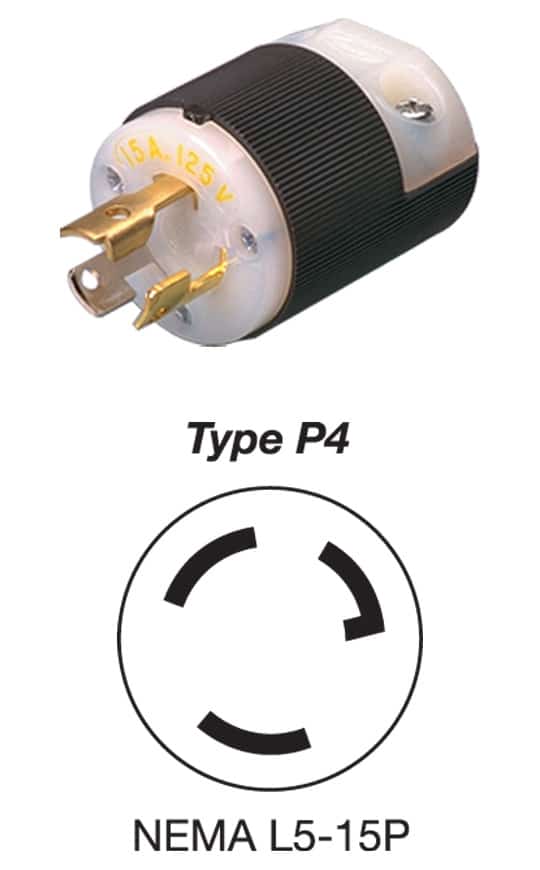

Part Number: CRK00016

Request Other Electrical Termination

If your filter selections do not return your desired results from our standard configurations, please continue to Refine Results for your specifications.

When you are finished, save your selections with the Save Results for Quote button (at the right of this page) and choose Request for Quote for further assistance.

Ceramic Terminal Blocks

Standard 2-Pole Ceramic Terminal Block for Internal Wiring

Maximum Voltage: 600 VAC, Maximum Current: 20 Amp
Maximum Temperature: 450°C/842°F
Wire Gauge: 20 to 12 ga.
Hardware: Stainless Steel
Terminals: #8 Screw
Body Material: Steatite
Part Number: EHD-108-101

Standard 3-Pole Ceramic Terminal Block for Internal Wiring

Maximum Voltage: 600 VAC, Maximum Current: 20 Amp
Maximum Temperature: 450°C/842°F
Wire Gauge: 20 to 12 ga.
Hardware: Stainless Steel
Terminals: #8 Screw
Body Material: Steatite
Part Number: EHD-108-121

1-Pole Ceramic Terminal Block (Enclosed Terminals)

Maximum Voltage: 380 VAC, Maximum Current: 30 Amp
Maximum Temperature: 240°C/464°F
Wire Gauge: 26 to 12 ga. stranded, 26-14 solid
Screw: M3, zinc plated steel
Terminal Body: Nickel plated brass
Body Material: Porcelain
Agency Approvals: CE & VDE
Part Number: EHD-108-116

2-Pole Ceramic Terminal Block (Enclosed Terminals)

Maximum Voltage: 380 VAC, Maximum Current: 30 Amp
Maximum Temperature: 240°C/464°F
Wire Gauge: 26 to 12 ga. stranded, 26-14 solid
Screw: M3, zinc plated steel
Terminal Body: Nickel plated brass
Body Material: Porcelain
Agency Approvals: CE & VDE
Part Number: EHD-108-117

3-Pole Ceramic Terminal Block (Enclosed Terminals)

Maximum Voltage: 380 VAC, Maximum Current: 30 Amp
Maximum Temperature: 240°C/464°F
Wire Gauge: 26 to 12 ga. stranded, 26-14 solid
Screw: M3, zinc plated steel
Terminal Body: Nickel plated brass
Body Material: Porcelain
Agency Approvals: CE & VDE
Part Number: EHD-108-118

Heavy Duty 2-Pole Ceramic Terminal Block (Enclosed Terminals)

Maximum Voltage: 600 VAC, Maximum Current: 50 Amp
Maximum Temperature: 200°C/392°F
Wire Gauge: 14 to 8 ga.
Screw: M4, zinc plated steel
Terminal Body: Nickel plated brass
Body Material: Porcelain
Agency Approval: UL (File # E69841)
Stock Number: EHD-108-114
MFR Part Number: 4010-B

Heavy Duty 3-Pole Ceramic Terminal Block (Enclosed Terminals)

Maximum Voltage: 600 VAC, Maximum Current: 50 Amp
Maximum Temperature: 200°C/392°F
Wire Gauge: 14 to 8 ga.
Screw: M4, zinc plated steel
Terminal Body: Nickel plated brass
Body Material: Porcelain
Agency Approval: UL (File # E69841)
Stock Number: EHD-108-115
MFR Part Number: 4011-B

Heavy Duty 1-Pole Ceramic Line Wiring Block (Exposed Terminals)

Maximum Voltage: 500 VAC, Maximum Current: 44 Amp @ 104°F ambient
Maximum Temperature: 240°C/464°F
Wire Gauge: 18 to 8 ga.
Terminal Screw: M4, zinc-plated steel
Body Material: Steatite
Agency Approvals: None
Part Number: EHD-108-106

Heavy Duty 2-Pole Ceramic Line Wiring Block (Exposed Terminals)

Maximum Voltage: 500 VAC, Maximum Current: 44 Amp @ 104°F ambient
Maximum Temperature: 240°C/464°F
Wire Gauge: 18 to 8 ga.
Terminal Screw: M4, zinc-plated steel
Body Material: Steatite
Agency Approvals: None
Part Number: EHD-108-107

Heavy Duty 3-Pole Ceramic Line Wiring Block (Exposed Terminals)

Maximum Voltage: 500 VAC, Maximum Current: 44 Amp @ 104°F ambient
Maximum Temperature: 240°C/464°F
Wire Gauge: 18 to 8 ga.
Terminal Screw: M4, zinc-plated steel
Body Material: Steatite
Agency Approvals: None
Part Number: EHD-108-108

Heavy Duty 4-Pole Ceramic Line Wiring Block (Exposed Terminals)

Maximum Voltage: 500 VAC, Maximum Current: 44 Amp @ 104°F ambient
Maximum Temperature: 240°C/464°F
Wire Gauge: 18 to 8 ga.
Terminal Screw: M4, zinc-plated steel
Body Material: Steatite
Agency Approvals: None
Part Number: EHD-108-109

Heavy Duty 6-Pole Ceramic Line Wiring Block (Exposed Terminals)

Maximum Voltage: 500 VAC, Maximum Current: 44 Amp @ 104°F ambient
Maximum Temperature: 240°C/464°F
Wire Gauge: 18 to 8 ga.
Terminal Screw: M4, zinc-plated steel
Body Material: Steatite
Agency Approvals: None
Part Number: EHD-108-105

Request Other Ceramic Terminal Blocks

If your filter selections do not return your desired results from our standard configurations, please continue to select your Specifications.

When you are finished, save your selections in the Wish List (using the button at the right of this page) and follow the steps to submit them to Tempco.

Wire Nut Connectors

Ceramic Wire Nut Connectors

Material: Porcelain
Maximum Temperature Rating: 1200°F (645°C)
Maximum Voltage: 300V
Agency Approvals: UL (UL File # E9809) & CSA for

EHD-114-102
EHD-114-103
EHD-114-104

For Stock Numbers see Learn More.

Termination Accessories

Ceramic Beads

Products Temporarily Unavailable for Individual Purchase

Used to insulate bare lead wire at extremely high temperatures.

Plug Types

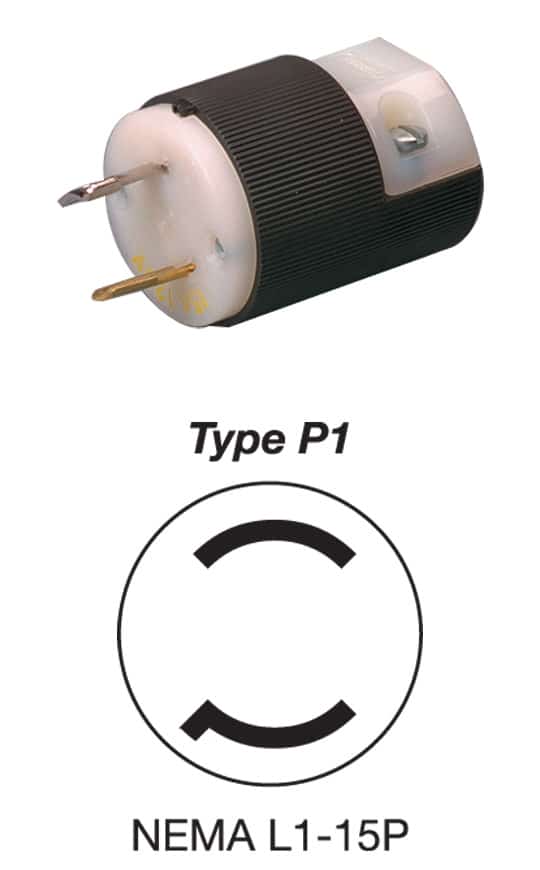

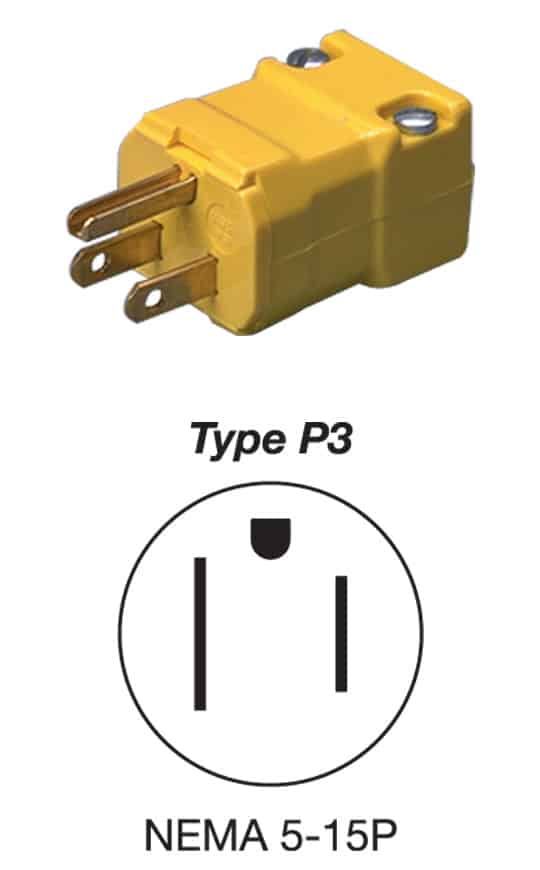

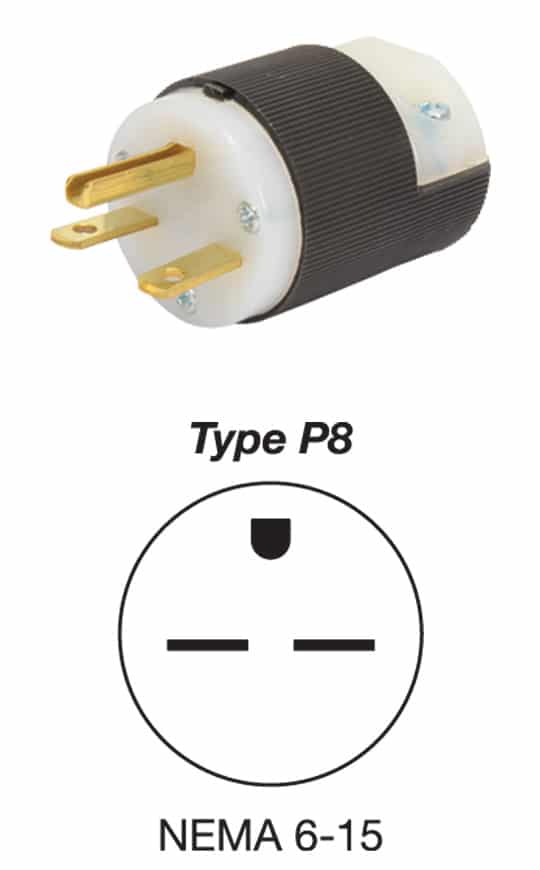

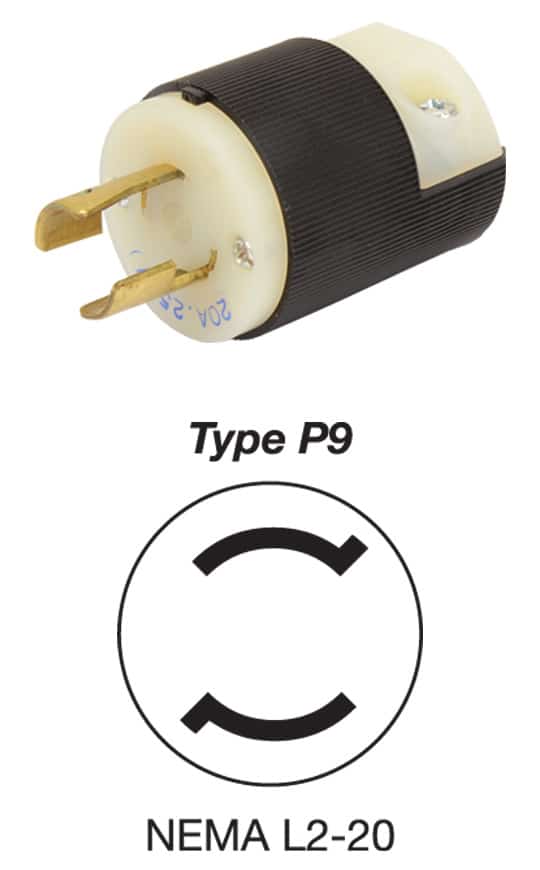

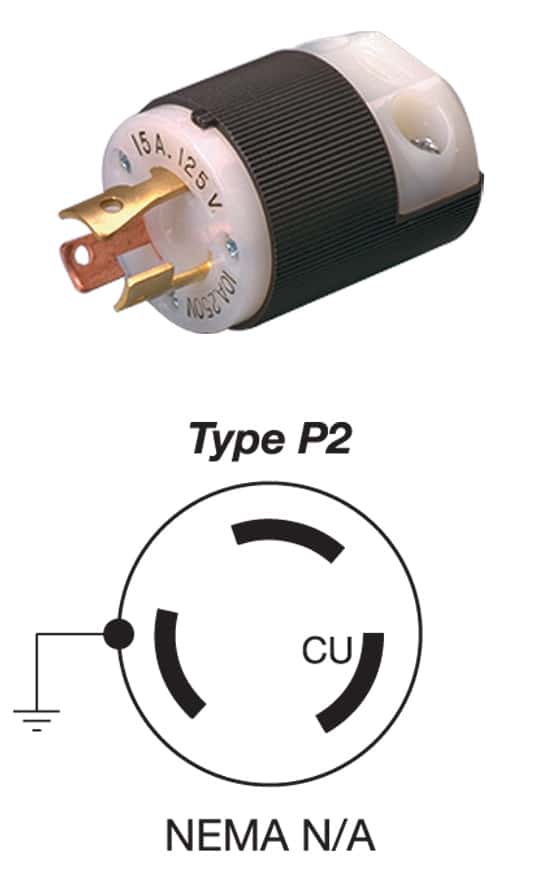

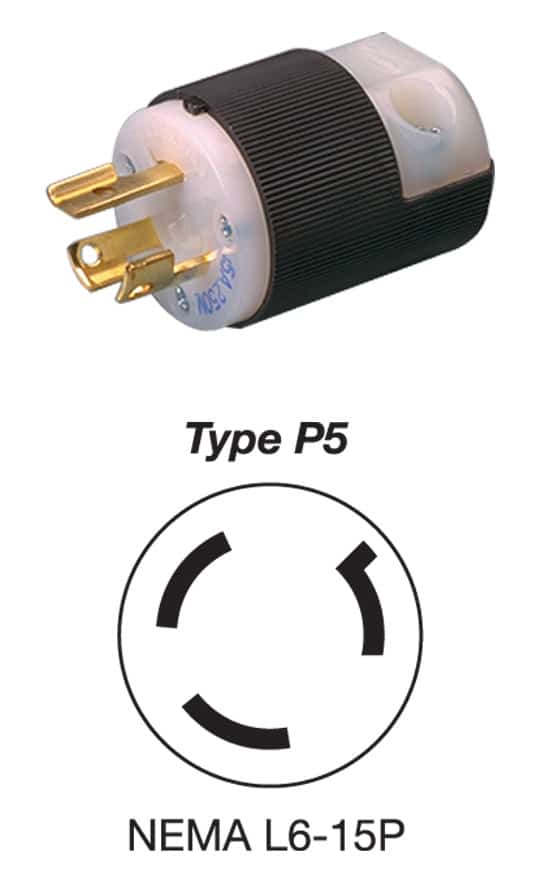

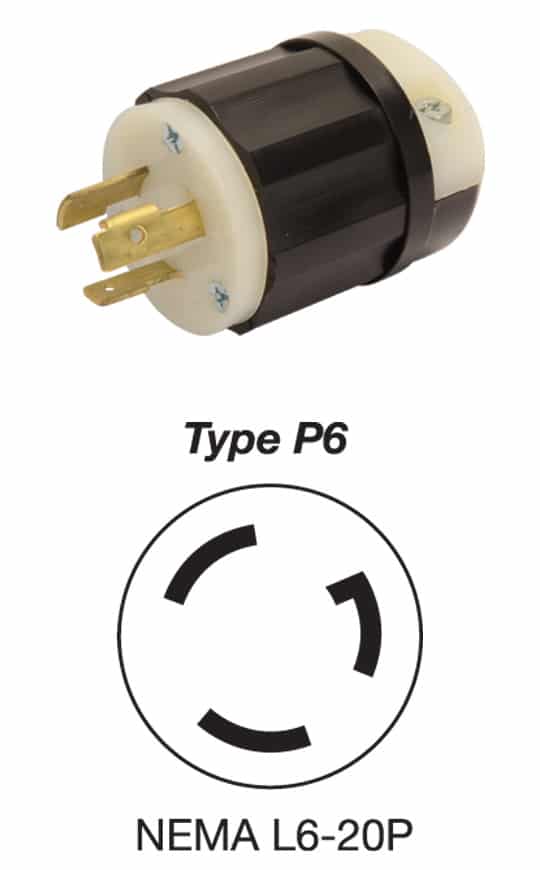

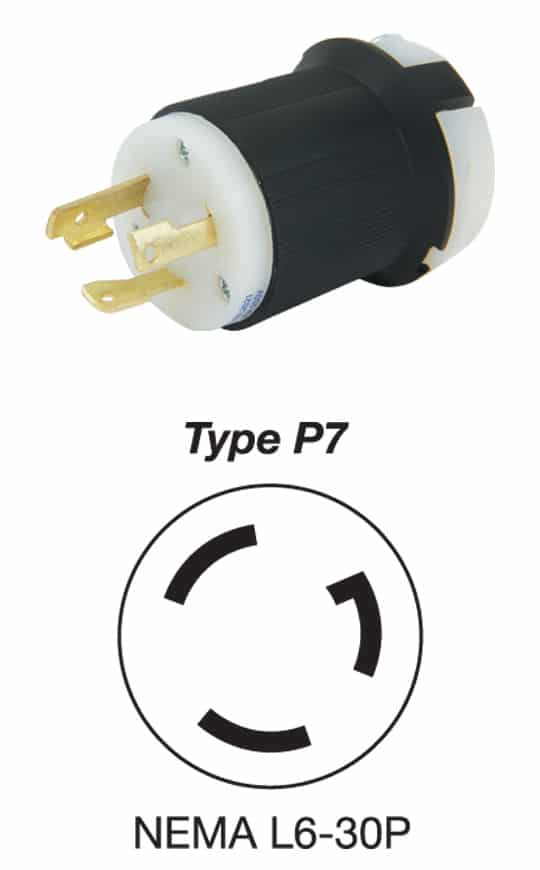

Heavy Duty Quick Disconnect Plugs

Tempco offers 9 Heavy Duty Quick Disconnect Plugs and Matching Connecters. (Connectors are cable mount only.)

Additional Options

CRK Housings

Standard CRK Linear Housings CRK housings include the following components: housing body, end plates, 5/16-18 mounting bolts, cover and ground lug.

Built-In Type K Thermocouple Standard

Specify Type K thermocouple as needed.

Built-In Type J Thermocouple Optional

Specify Type J thermocouple as needed.

Low Noise Thermocouple Optional

For those applications where emf generated noise is a problem for the instrument, Tempco offers a low noise thermocouple solution. The low noise thermocouple option is designed to minimize the induced AC noise by using stainless steel overbraid on the high temperature fiberglass color- coded 24 GA solid leads as a ground shield and a ceramic insulator at the thermocouple junction.

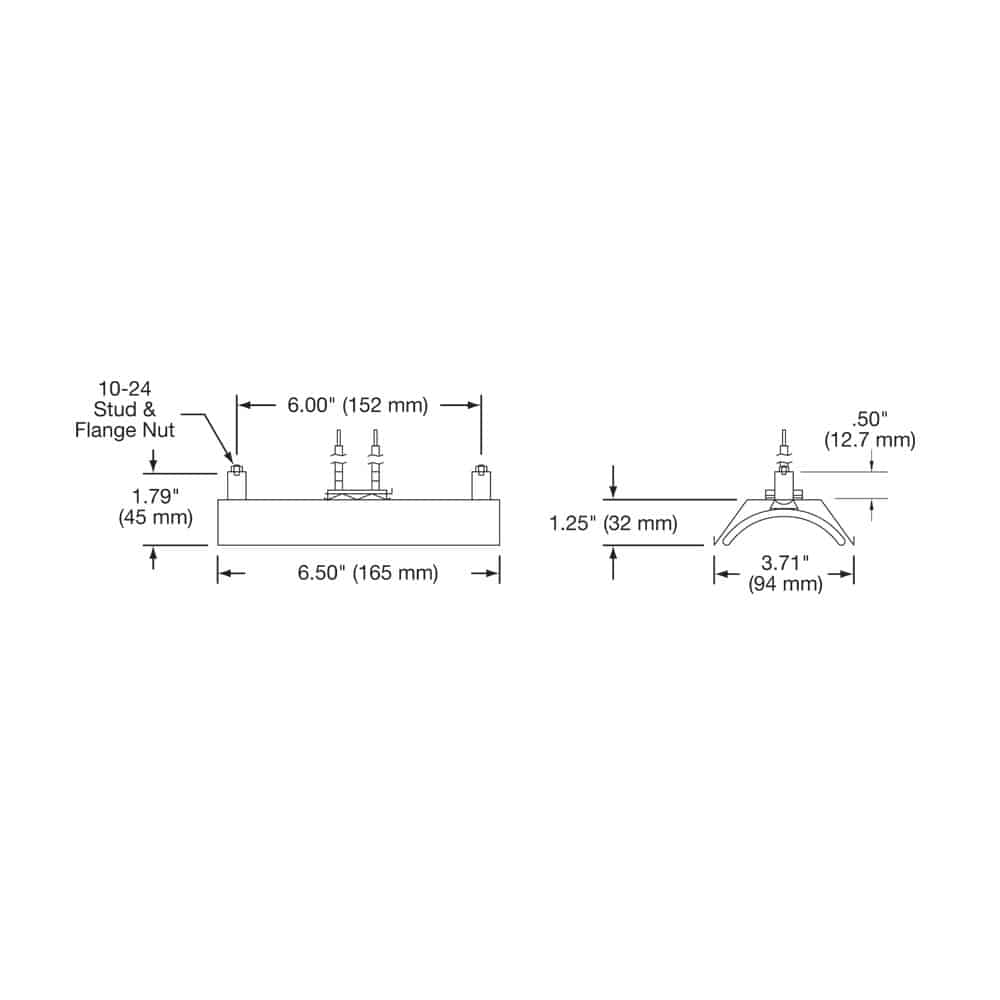

Reflectors for Ceramic E-Mitters

Designed to withstand bending and heat distortion.
Made from highly polished chrome steel or optional aluminized steel for extreme temperatures and harsh environments.
Will withstand high operating temperatures.
Available in three standard sizes; includes standoffs and hardware.
Easy installation into CRA linear structural housing assemblies (except CRK00032).

Stranded Lead Wire

Stock High Temperature Stranded Lead Wire The following insulated lead wires are available for internal bussing and the line input wiring of CRA Linear Housing Assemblies and AR_ Radiant Panels.

Thermocouple Wire

The following insulated thermocouple wires are available for internal bussing and wiring of CRA Linear Housing Assemblies and AR_ Radiant Panels to external control systems. These duplex thermocouple wires have color coded fiberglass insulation over each lead within an overall fiberglass insulation jacket.

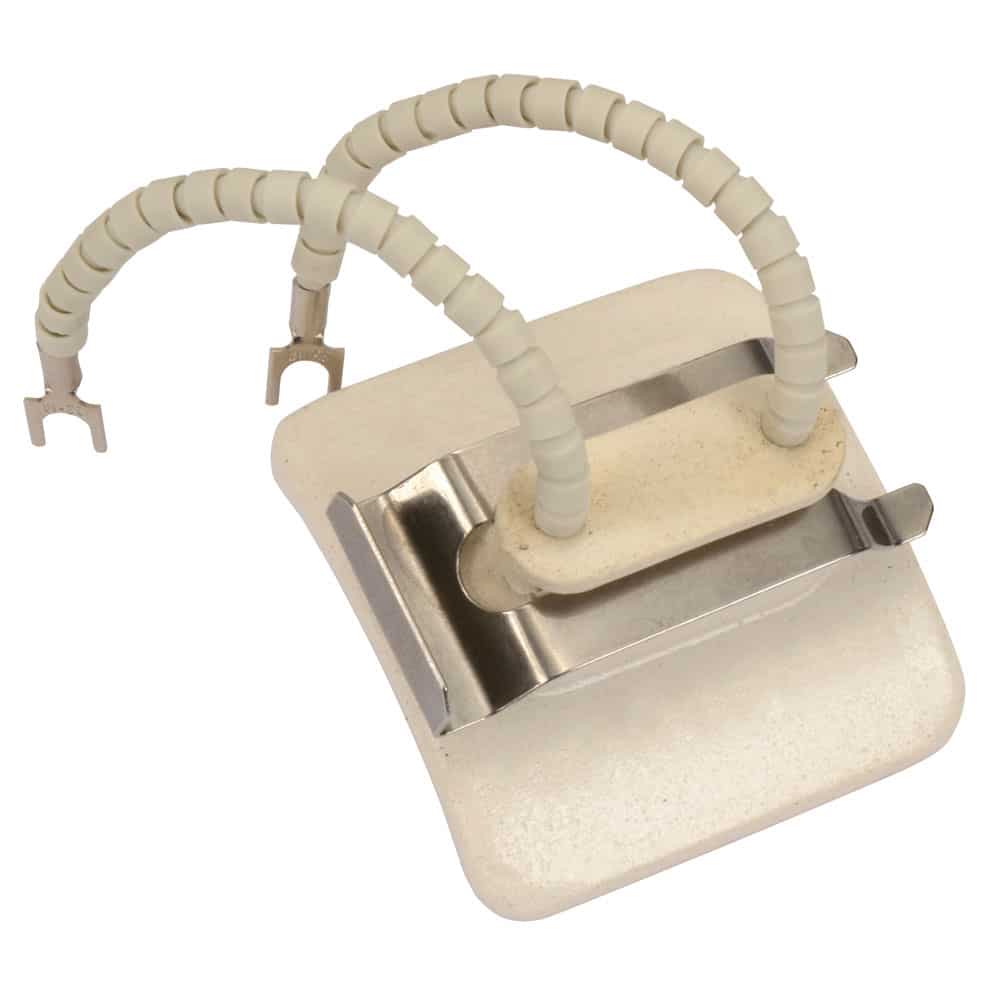

One-Piece Mounting Clip

Part Number: SPR-103-102

Designed for heater mounting with 22 ga (.028") to 20 ga (.037") sheet metal.
Thinner or thicker materials require the Two-Piece Mounting Clip.

Two-Piece Mounting Clip

Part Number: CRK00008

The two-piece wave spring clip and holding clip assembly is used for mounting heaters in materials thicker than 20 ga (.037") or thinner than 22 ga (.028")

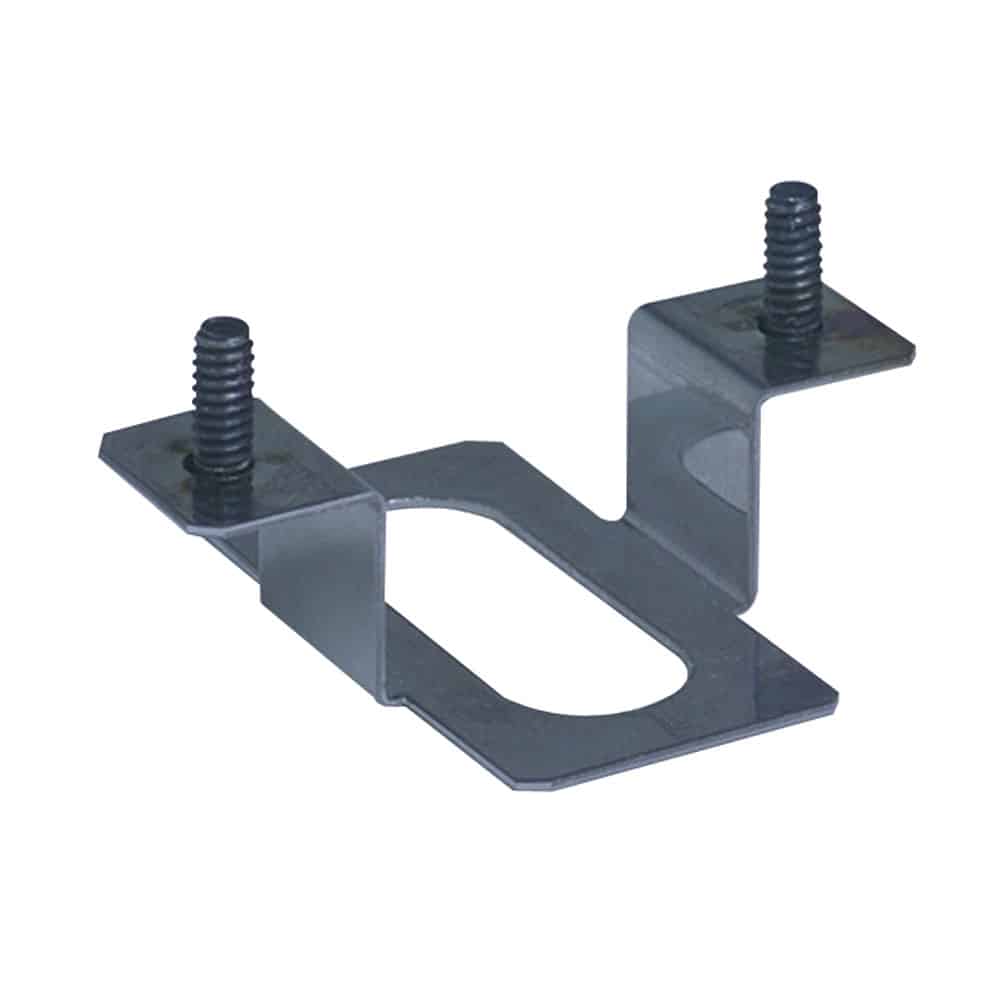

Single Element Mounting Bracket

Part Number: CRK00018

A convenient method for mounting individual E-Mitters to a flat surface or panel for spot heating applications

Screw-In Base

Part Number: CRK00016

Ceramic receptacle for use with screw-in bulb E-Mitters

Request Other Additional Options

If your filter selections do not return your desired results from our standard configurations, please continue to select your Specifications.

When you are finished, save your selections in the Wish List (using the button at the right of this page) and follow the steps to submit them to Tempco.

Ceramic E-Mitters®

Ceramic E-Mitters®

Resources

In-Stock Parts

Explore Ceramic E-Mitters Specifications

Refine Results

Construction Styles

Series Size

Heater Colors

Electrical Terminations

Ceramic Terminal Blocks

Wire Nut Connectors

Termination Accessories

Plug Types

Additional Options

Construction Styles

Solid Curved Face

Solid Flat Face

Insulated Flat Face

Linear Housings

Arrays/Panels

Edison Style Bulb

Series Size

Series CRL

Series CRB

Series CRM

Series CRC

Series CRS

Series CRG

Series CRH

Series CRD

Series CRN

Series CRZ

Series CRA

Series CRP

Series ARA

Series CRE

Series CRR

Series CRT

Request Other Series

Heater Colors

Rose

White

Yellow

Black

No Color Preference

Electrical Terminations

Hi-Temp Ring Terminal

Hi-Temp Spade Terminal

Hi-Temp Straight Terminal

Stainless Steel Armor Cable

Galvanzied Armor Cable

Stainless Steel Wire Braid

Fiberglass Leads

SJO Cable

Factory prewired internal terminal box connections

Edison Screw-In Socket

Request Other Electrical Termination

Ceramic Terminal Blocks

Standard 2-Pole Ceramic Terminal Block for Internal Wiring

Standard 3-Pole Ceramic Terminal Block for Internal Wiring

1-Pole Ceramic Terminal Block (Enclosed Terminals)

2-Pole Ceramic Terminal Block (Enclosed Terminals)

3-Pole Ceramic Terminal Block (Enclosed Terminals)

Heavy Duty 2-Pole Ceramic Terminal Block (Enclosed Terminals)

Heavy Duty 3-Pole Ceramic Terminal Block (Enclosed Terminals)

Heavy Duty 1-Pole Ceramic Line Wiring Block (Exposed Terminals)

Heavy Duty 2-Pole Ceramic Line Wiring Block (Exposed Terminals)

Heavy Duty 3-Pole Ceramic Line Wiring Block (Exposed Terminals)

Heavy Duty 4-Pole Ceramic Line Wiring Block (Exposed Terminals)

Heavy Duty 6-Pole Ceramic Line Wiring Block (Exposed Terminals)

Request Other Ceramic Terminal Blocks

Wire Nut Connectors

Ceramic Wire Nut Connectors

Termination Accessories

Ceramic Beads

Products Temporarily Unavailable for Individual Purchase

Plug Types

Heavy Duty Quick Disconnect Plugs

Additional Options

CORPORATE HEADQUARTERS
Tempco Electric Heater Corporation
