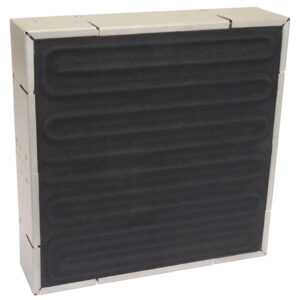

Style RPB

Maximum Size: See Preconfigured Part Number pages for Standard Sizes; Custom sizes up to 30"W × 84"L can be manufactured.
Maximum Watt Density: 25 Watts/in2
Maximum Voltage: Voltage can be single, dual or 3-phase up to 600 VAC (depending on heater size and wattage)
Maximum Face Temperature: 900°C (1652°F)
Wavelength Range: Between 2.5 and 6.0 microns (µm)
Distributed Wattage & Zoning: Yes, dependent on size

Style RPG

Maximum Size: See Preconfigured Part Number pages for Standard Sizes; Custom sizes up to 34"W × 36"L can be manufactured.
Maximum Watt Density:20 Watts/in2
Maximum Voltage: Voltage can be single, dual or 3-phase up to 600 VAC (depending on heater size and wattage)
Maximum Face Temperature: 750°C (1382°F)
Wavelength Range: Between 2.5 and 6.0 microns (µm)
Distributed Wattage & Zoning: Yes, dependent on size

Style RPW

Maximum Size: See Preconfigured Part Number pages for Standard Sizes; Custom sizes up to 24"W × 24"L can be manufactured.
Maximum Watt Density: 40 Watts/in2
Maximum Voltage: Voltage can be single, dual or 3-phase up to 600 VAC (depending on heater size and wattage)
Maximum Face Temperature: 800°C (1472°F)
Wavelength Range: Between 2.5 and 6.0 microns (µm)
Distributed Wattage & Zoning: Yes, dependent on size

Style RPM

Maximum Size: See Preconfigured Part Number pages for Standard Sizes; Custom sizes up to 24"W × 48"L can be manufactured.
Maximum Watt Density:15 Watts/in2
Maximum Voltage: Voltage can be single, dual or 3-phase up to 600 VAC (depending on heater size and wattage)
Maximum Face Temperature: 700°C (1292°F)
Wavelength Range: Between 3.0 and 6.0 microns (µm)
Distributed Wattage & Zoning: Yes, dependent on size

Standard thickness

Optional thickness

Mounting Screw Studs

Standard Housing Material

Optional Housing Material

Standard Termination

Standard Side Mount Thermowell With Clamp

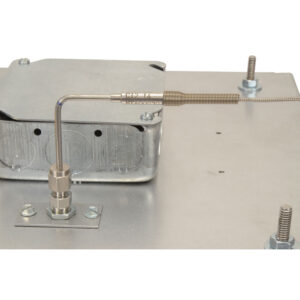

Back Mount Thermowell with Compression Fitting

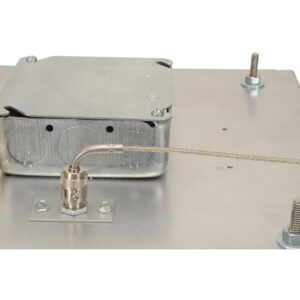

Back Mount Thermowell with Bayonet Fitting

Back Mount Thermowell - Parallel to Face
