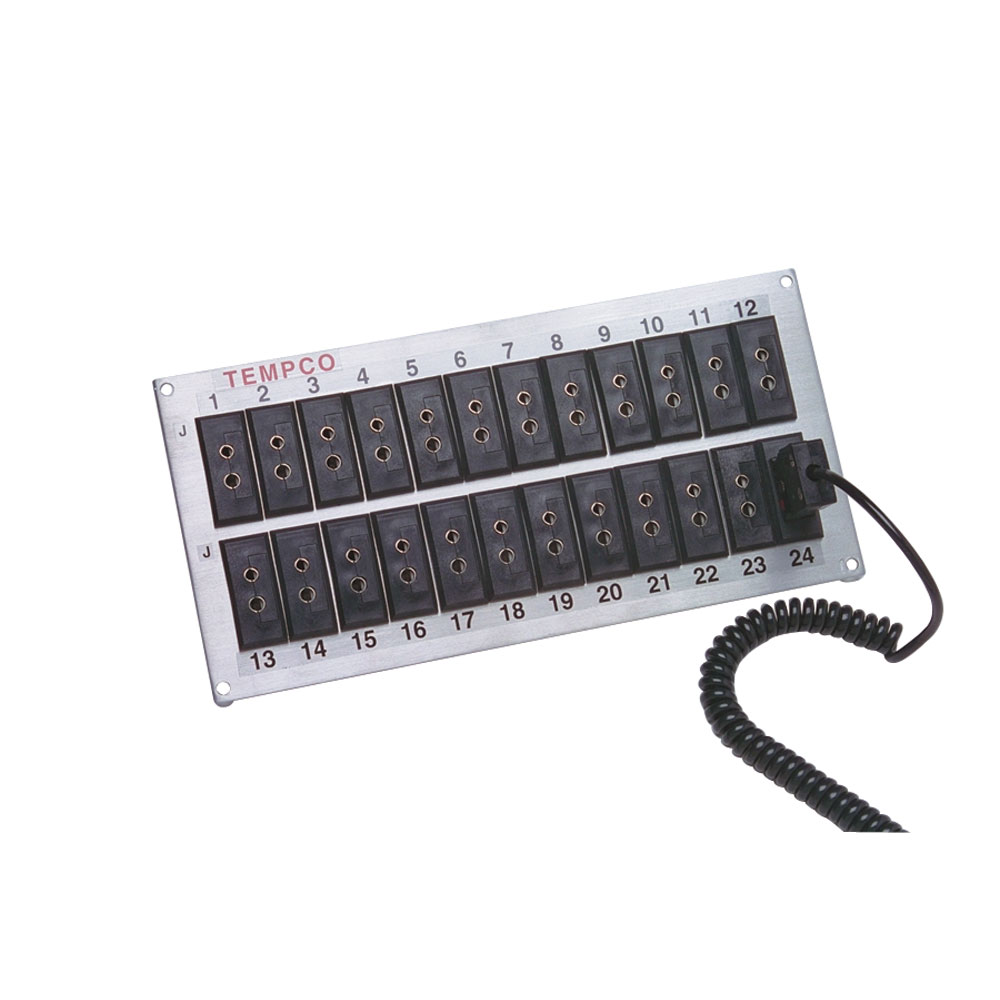

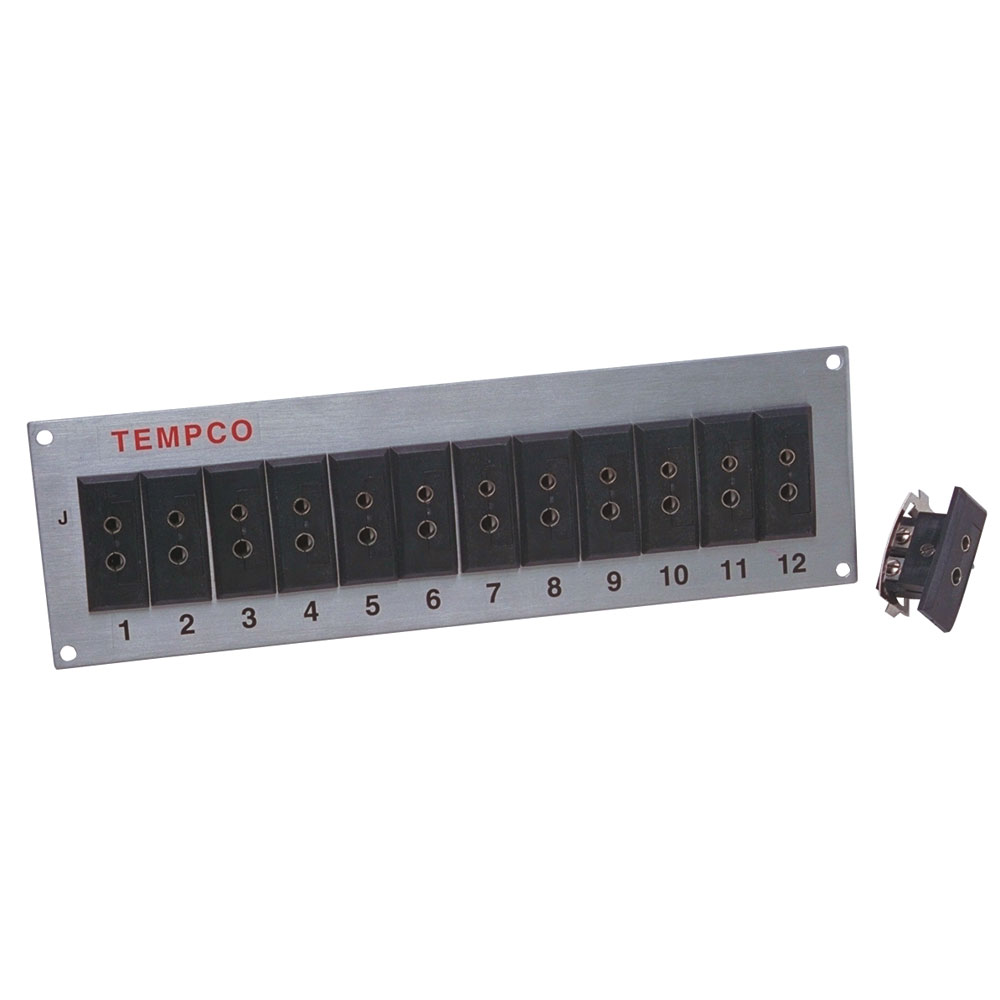

Jack Panel for Standard TC Connectors

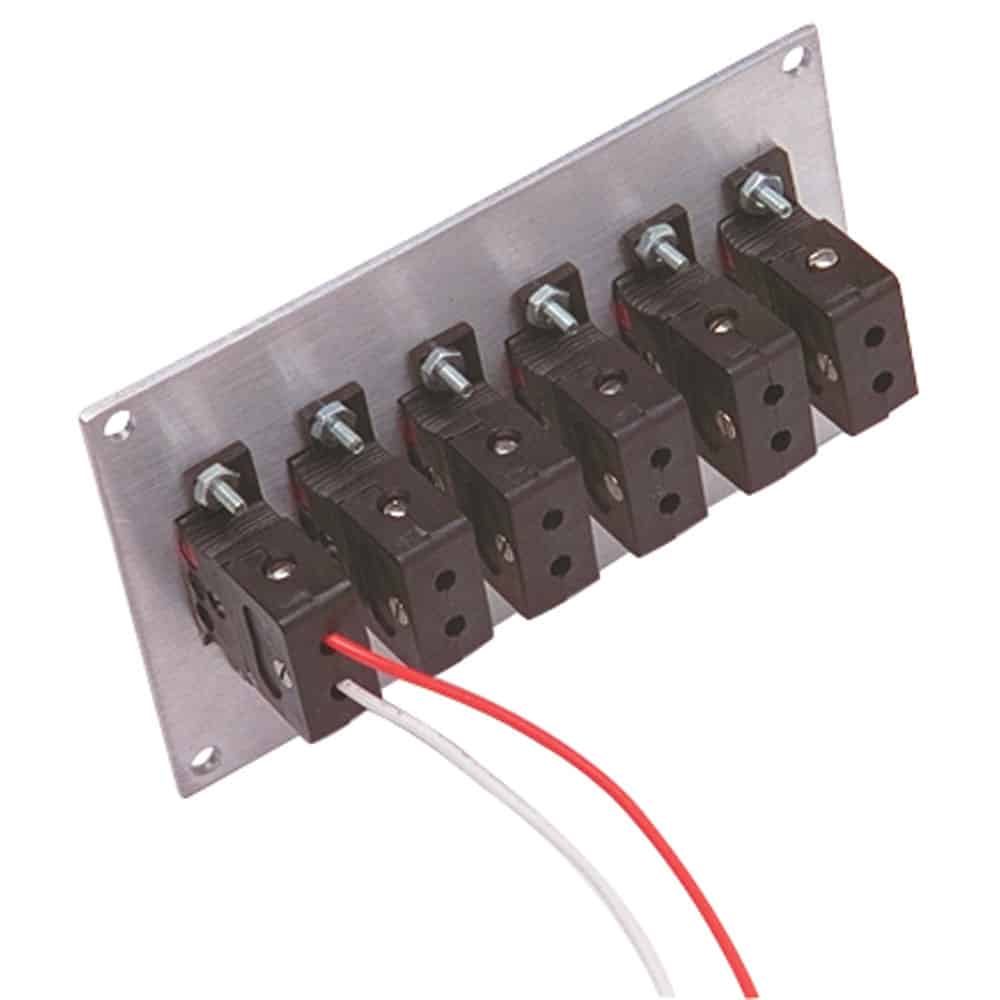

5-1/2" and 10" Long Bezel Jack Panel for Standard Thermocouple Connectors

• ✴ Accepts standard plugs.
• Jacks are ANSI color coded, glass-filled nylon with a temperature rating of 350°F (177°C) continuous and 400°F (204°C) intermittent.
• Panels are manufactured from rugged, .090" thick aluminum.
• Brushed and anodized finishes are available at an additional cost. Consult TEMPCO with your requirements.
• Panels are normally supplied unassembled with all necessary hardware to assemble and install included. Can be furnished assembled at an additional cost.

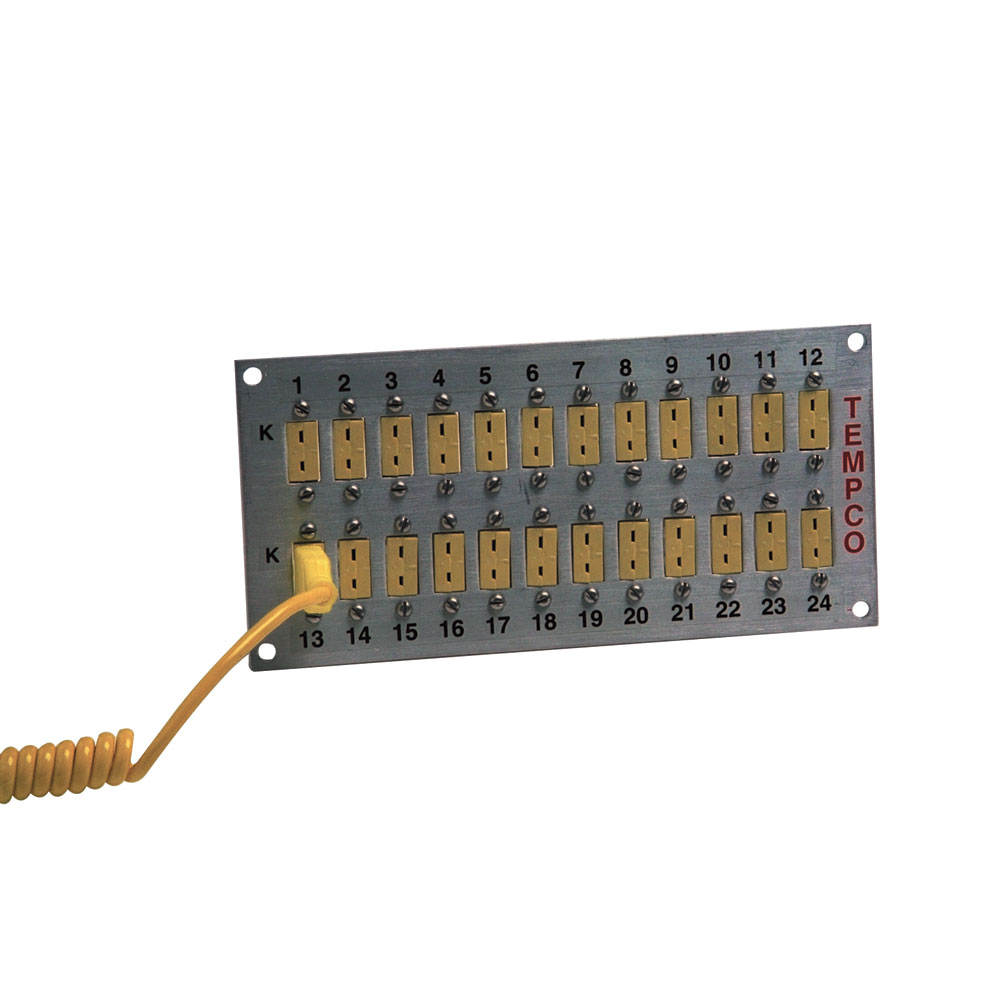

Jack Panel for Miniature TC Connectors

• Designed to be space saving.
• Complements modern miniature instrumentation.
• Jack bodies are ANSI color coded, glass-filled nylon with a temperature rating of 350°F (177°C) continuous and 400°F (204°C) intermittent.
• Panels are manufactured of rugged .090" thick aluminum.
• Brushed and anodized finishes are available at an additional cost. Consult TEMPCO with your requirements.
• Panels are supplied unassembled for ease of wiring—all hardware necessary to assemble is included.

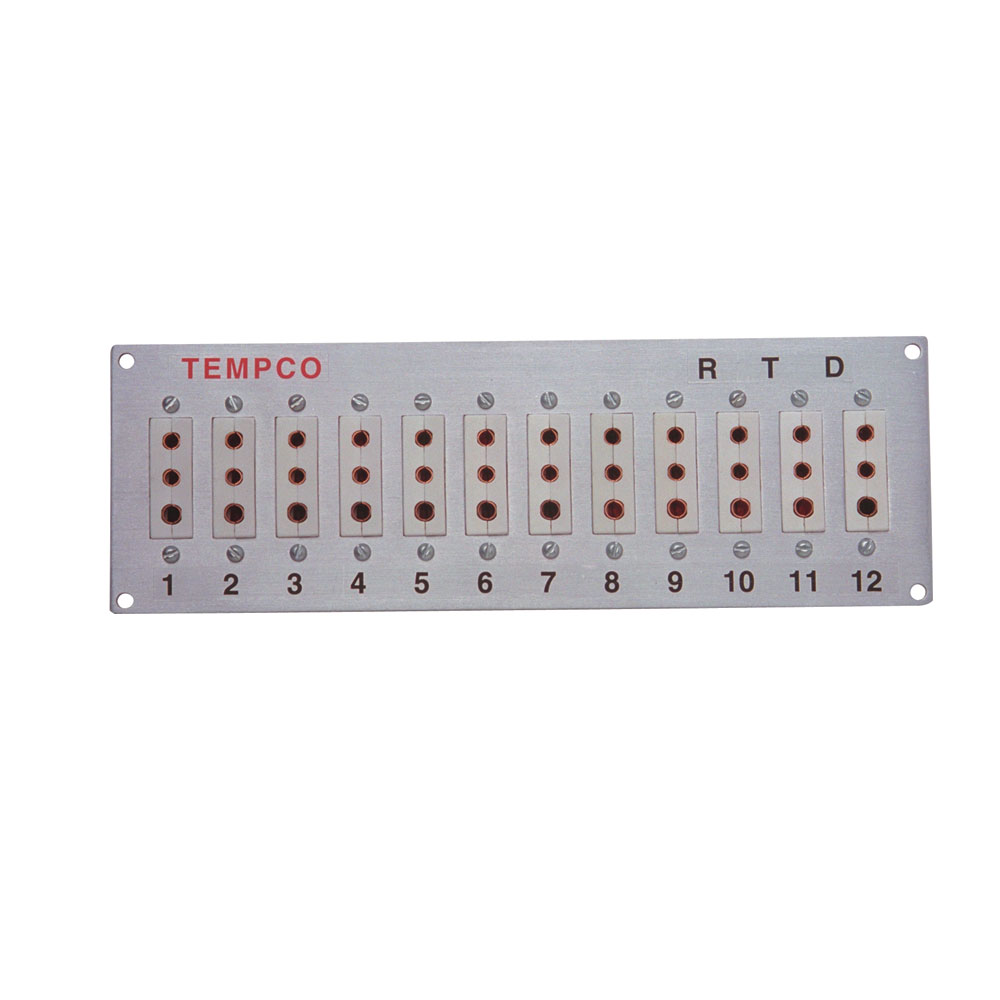

Jack Panel for 3-Pin Connectors

• For use with RTDs and shielded thermocouples requiring 3 wires.
• Will accept standard 3-Pin connectors.
• Jack bodies are ANSI color coded, glass-filled nylon with a temperature rating of 350°F (177°C) continuous and 400°F (204°C) intermittent.
• Panels are manufactured of rugged .090" thick aluminum.
• Brushed and anodized finishes are available at an additional cost. Consult TEMPCO with your requirements.
• Panels are supplied unassembled for ease of wiring — all hardware necessary to assemble is included.

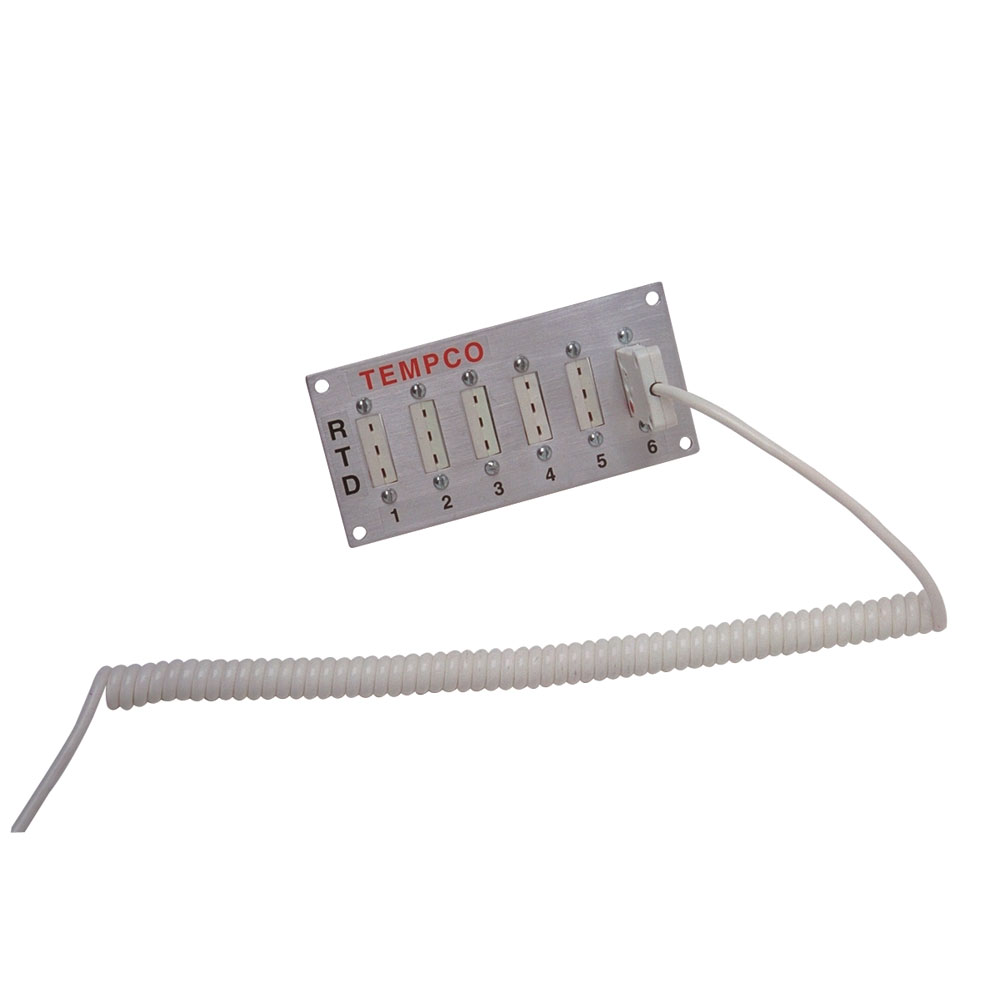

Jack Panel for Miniature 3-Pin Connectors

• For use with RTDs and shielded thermocouples requiring 3 wires.
• Complements modern miniature instrumentation.
• Jack bodies are ANSI color coded, glass-filled nylon with a temperature rating of 350°F (177°C) continuous and 400°F (204°C) intermittent.
• Panels are manufactured of rugged .090" thick aluminum.
• Brushed and anodized finishes are available at an additional cost. Consult TEMPCO with your requirements.
• Panels are supplied unassembled for ease of wiring—all hardware necessary to assemble is included.

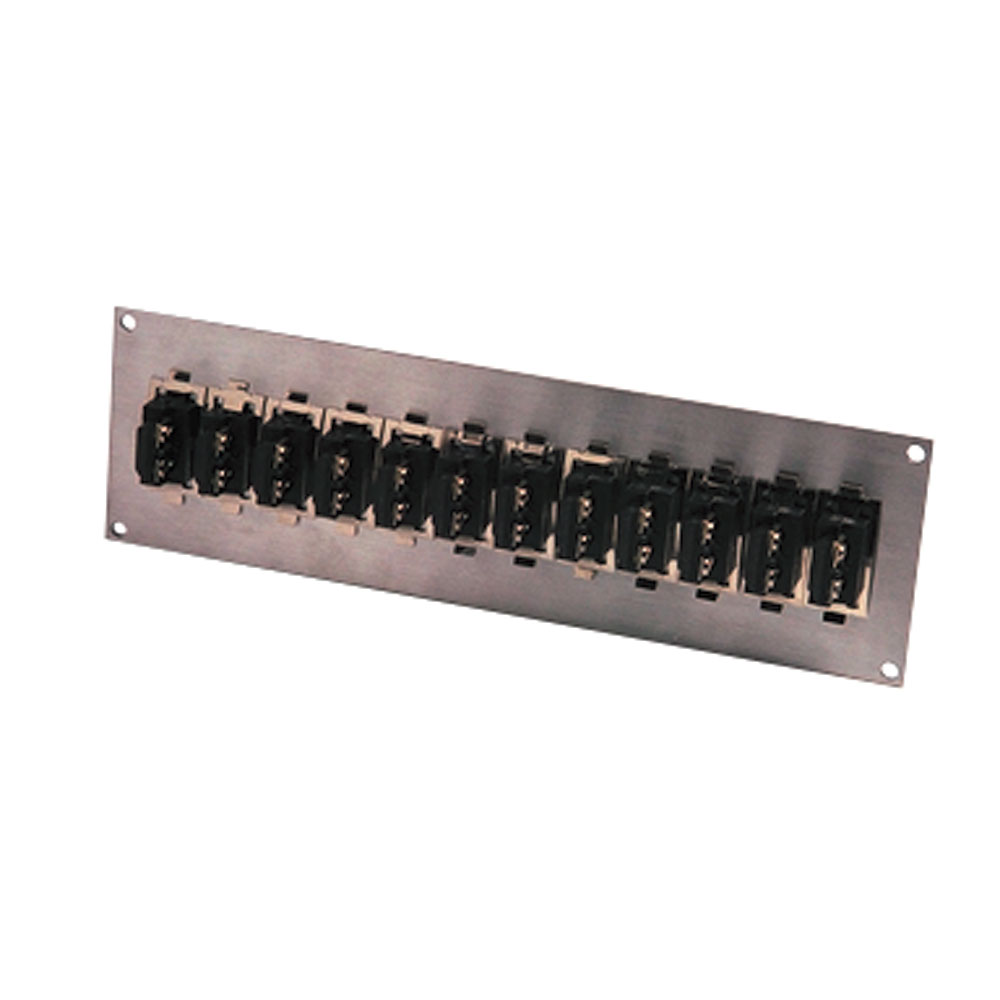

Jack Panel with Jab-in Style Termination

• Accepts Standard Plugs.
• Jacks will accept up to 14-gauge wire.
• Jack bodies are ANSI color coded, glass-filled nylon with a temperature rating of 350°F (177°C) continuous and 400°F (204°C) intermittent.
• Panels are manufactured of rugged .090" thick aluminum.
• Brushed and anodized finishes are available at an additional cost. Consult TEMPCO with your requirements.
• Jack rows are placed further apart than standard Jack Panels for ease of termination.
• Panels are supplied unassembled for ease of wiring — all hardware necessary to assemble is included.

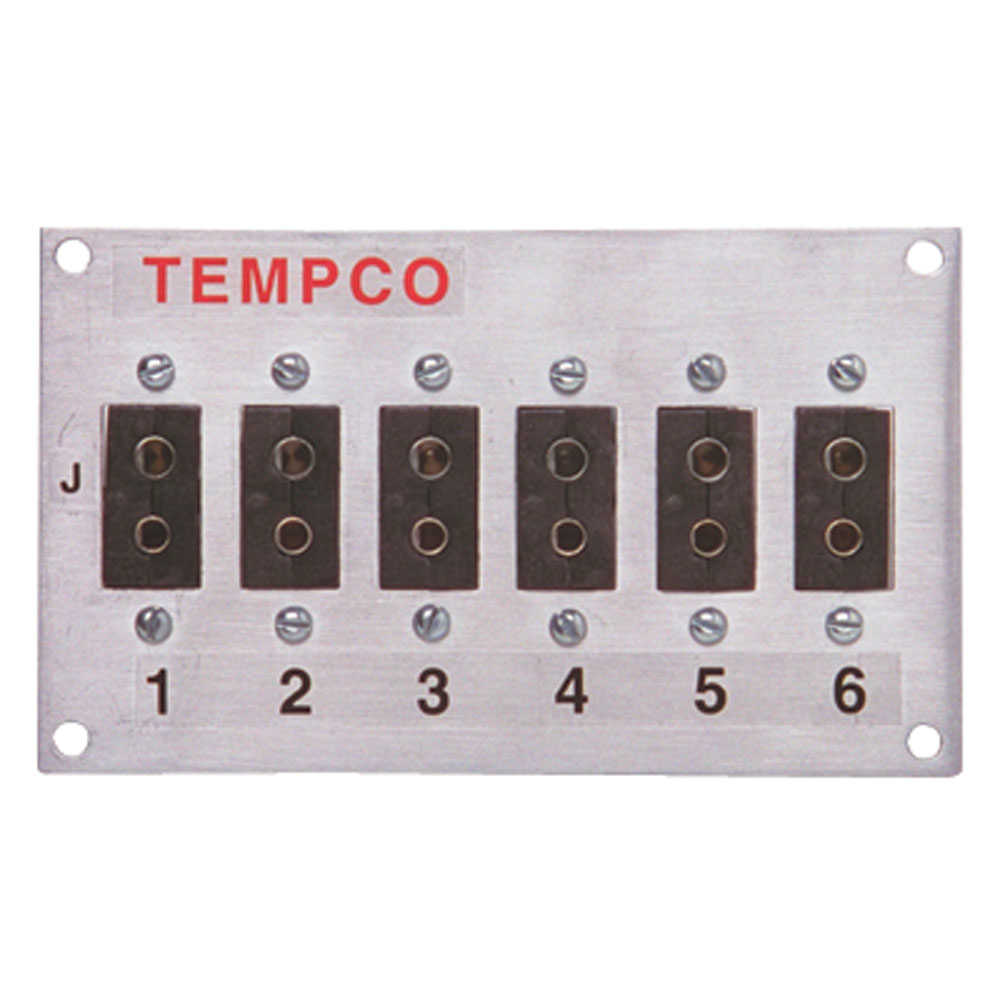

Request Custom Jack Panel

• Jack Panels are designed to be used with standard FS Style boxes.
• Panels are manufactured of rugged .090" thick aluminum.
• Panels are designed to accept the safest maximum number of Jacks.
• Available for Standard and Miniature Jacks, 2-pin or 3-pin.
• Rated for 350°F (177°C) continuous and 400°F (204°C) intermittent.
• Panels measure 2-13/16" high × 4-1/2" long.

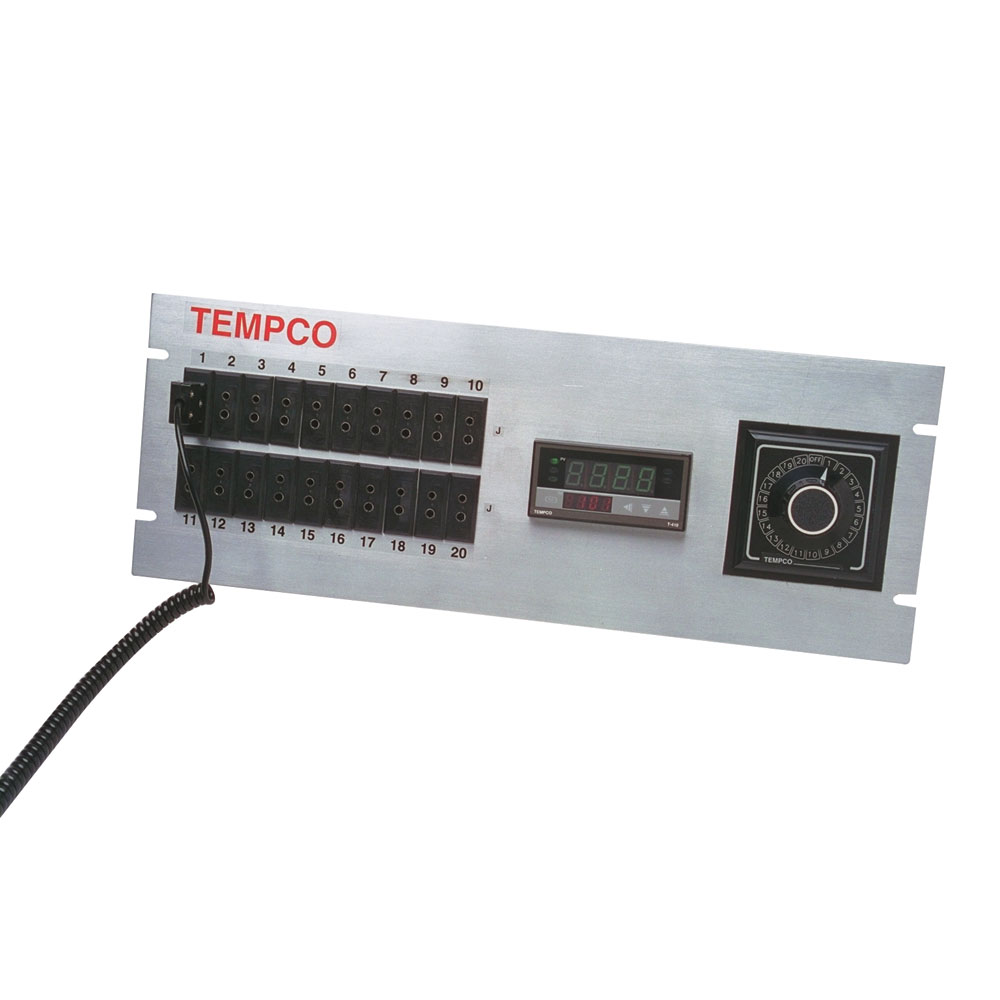

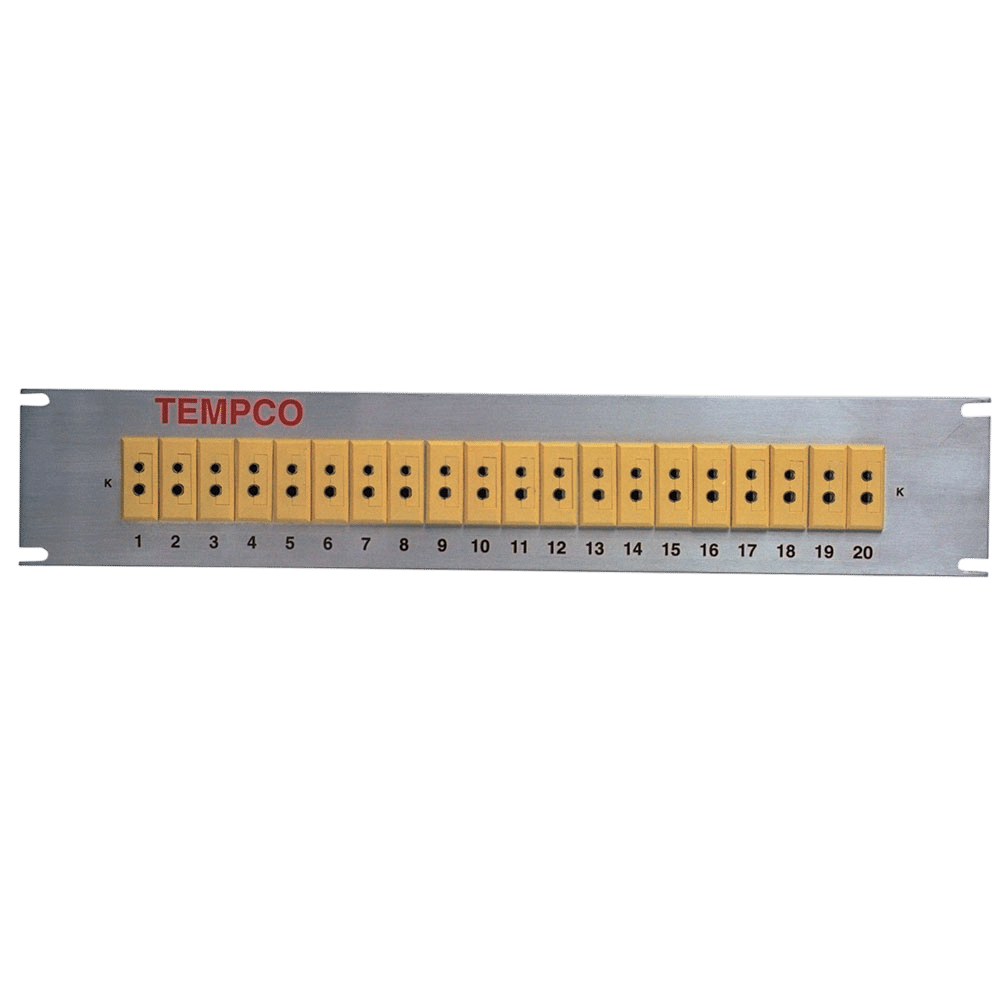

Request Custom Rack Panel

• Panels are made of .090" thick aluminum with a smooth mill finish.
• All panels have slotted holes positioned at E.I.A. standard spacing.
• Panels are available with any of the standard or miniature Panel Jacks shown in this section.
• Rack Panels come in standard heights of 3-1/2", 5-1/4", 7", and 8-1/4".
• Panels are supplied unassembled for ease of wiring—all hardware to assemble is included.
