Alumina (99% Min. Purity) Protection Tubes

Ceramic Protection Tubes are used in applications where contamination from hostile environments or the cutting action of concentrated and direct flame impingement are factors. Such conditions usually require a noble metal thermocouple such as platinum and platinum alloys.

• Sags at 2900°F (1593°C)
• Prevents dry hydrogen penetration

Porcelain Protection Tubes

Ceramic Protection Tubes are used in applications where contamination from hostile environments or the cutting action of concentrated and direct flame impingement are factors. Such conditions usually require a noble metal thermocouple such as platinum and platinum alloys.

• Sags at 2550°F (1400°C)
• Prone to attack by halogen gases
• Some penetration of dryhydrogen
• Contains silica.

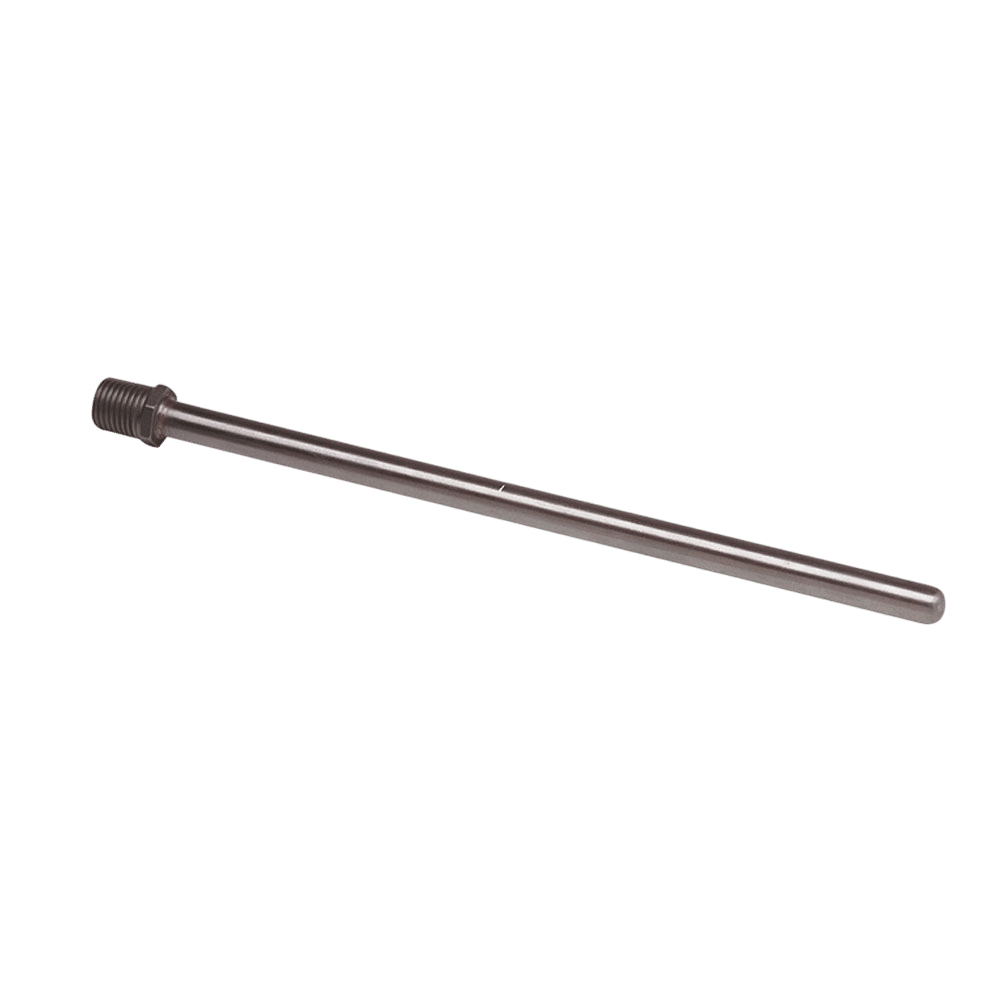

304 Stainless Steel Protection Tubes

For longer life and continued accuracy, most thermocouples in industrial applications should be protected from physical damage, corrosion, and contamination by some type of protecting tube or well. Metal tubes selected to suit the temperature, pressure and atmosphere are generally used with base metal thermocouples.

• Embrittles in 800°F (427°C) to 1400°F (760°C) range.

316 Stainless Steel Protection Tubes

For longer life and continued accuracy, most thermocouples in industrial applications should be protected from physical damage, corrosion, and contamination by some type of protecting tube or well. Metal tubes selected to suit the temperature, pressure and atmosphere are generally used with base metal thermocouples.

• Greater corrosion resistance than 304 Stainless.

446 Stainless Steel Protection Tubes

For longer life and continued accuracy, most thermocouples in industrial applications should be protected from physical damage, corrosion, and contamination by some type of protecting tube or well. Metal tubes selected to suit the temperature, pressure and atmosphere are generally used with base metal thermocouples.

• Excellent resistance to corrosion and oxidation at hightemperatures.
• Do not use in carburizing atmospheres.

Black Steel Pipe per ASTM A120 Protection Tubes

For longer life and continued accuracy, most thermocouples in industrial applications should be protected from physical damage, corrosion, and contamination by some type of protecting tube or well. Metal tubes selected to suit the temperature, pressure and atmosphere are generally used with base metal thermocouples.

• Low Cost

Cast Iron Protection Tubes

For longer life and continued accuracy, most thermocouples in industrial applications should be protected from physical damage, corrosion, and contamination by some type of protecting tube or well. Metal tubes selected to suit the temperature, pressure and atmosphere are generally used with base metal thermocouples.

• Withstands sulphur and caustic solutions.

Inconel 601® Protection Tubes

For longer life and continued accuracy, most thermocouples in industrial applications should be protected from physical damage, corrosion, and contamination by some type of protecting tube or well. Metal tubes selected to suit the temperature, pressure and atmosphere are generally used with base metal thermocouples.

• Good resistance to corrosion at high temperatures
• Excellent resistance to oxidation at high temperatures.
• Do not use in carburizing atmospheres above 1000°F (538°C).
