Element Wavelengths

Near Infrared (NIR)

Filament Response: 1 second
Filament Temperature: 2900K/4800°F
Approximate Peak Wavelength: 1.0µm
Maximum watts/inch per Filament: 200
Average Lifetime (Hours): 2000

Short Wave (SW)

Filament Response: 1 second
Filament Temperature: 2500K/4000°F
Approximate Peak Wavelength: 1.2µm
Maximum watts/inch per Filament: 200
Average Lifetime (Hours): 5000

Fast Response Medium Wave (FRMW), High Temp.

Filament Response: 1-2 seconds
Filament Temperature: 1900K/2900°F
Approximate Peak Wavelength: 1.6µm
Maximum watts/inch per Filament: 100
Average Lifetime (Hours): 5000

Fast Response Medium Wave (FRMW), Low Temp.

Filament Response: 1-2 seconds
Filament Temperature: 1500K/2200°F
Approximate Peak Wavelength: 2.0µm
Maximum watts/inch per Filament: 100
Average Lifetime (Hours): 5000

/Tempco/Data-Assets/07-Infrared-Images/WebR808.jpg

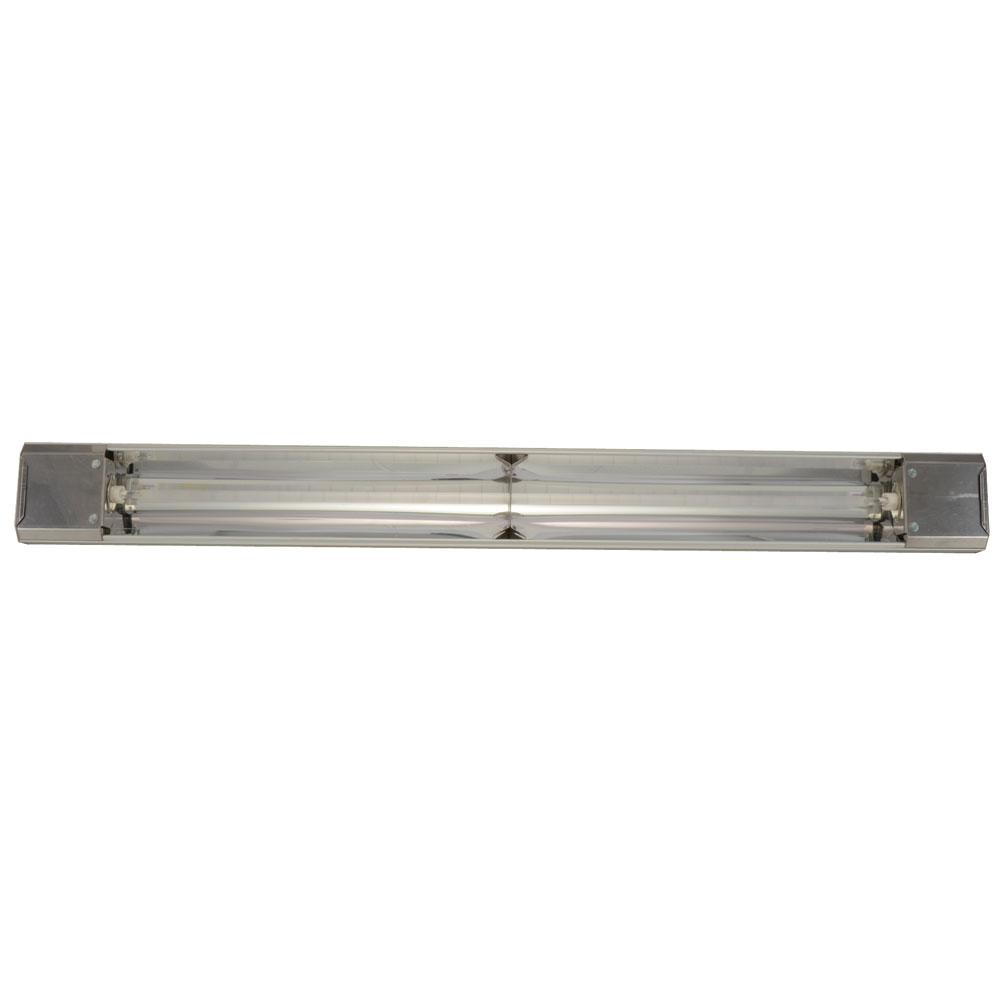

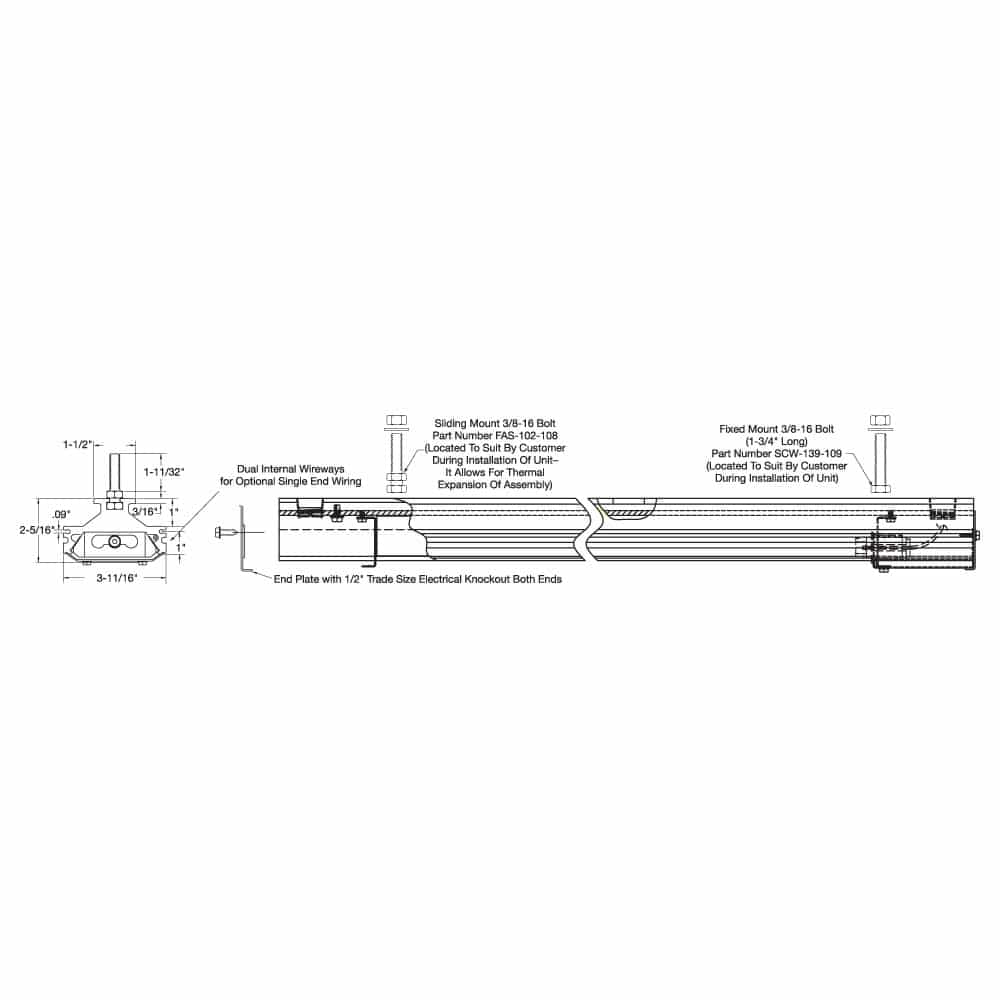

Type QRH Heater Assemblies

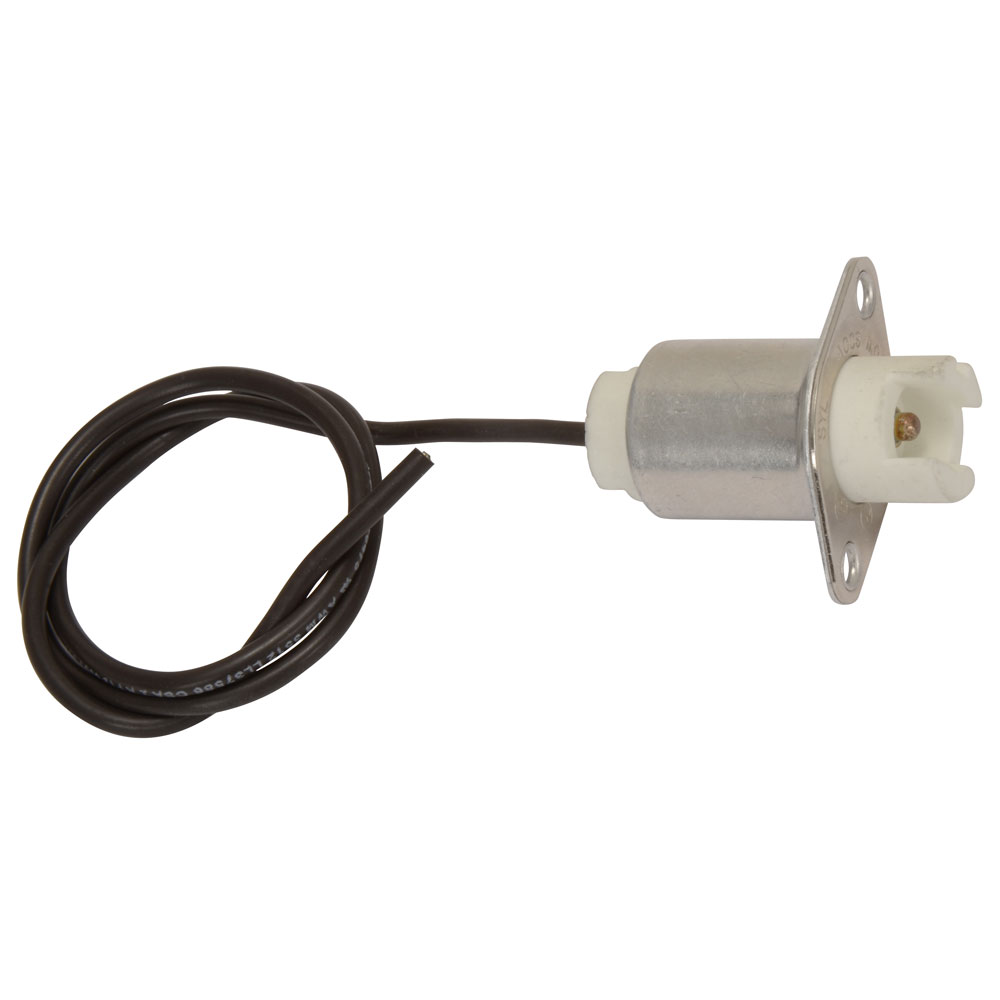

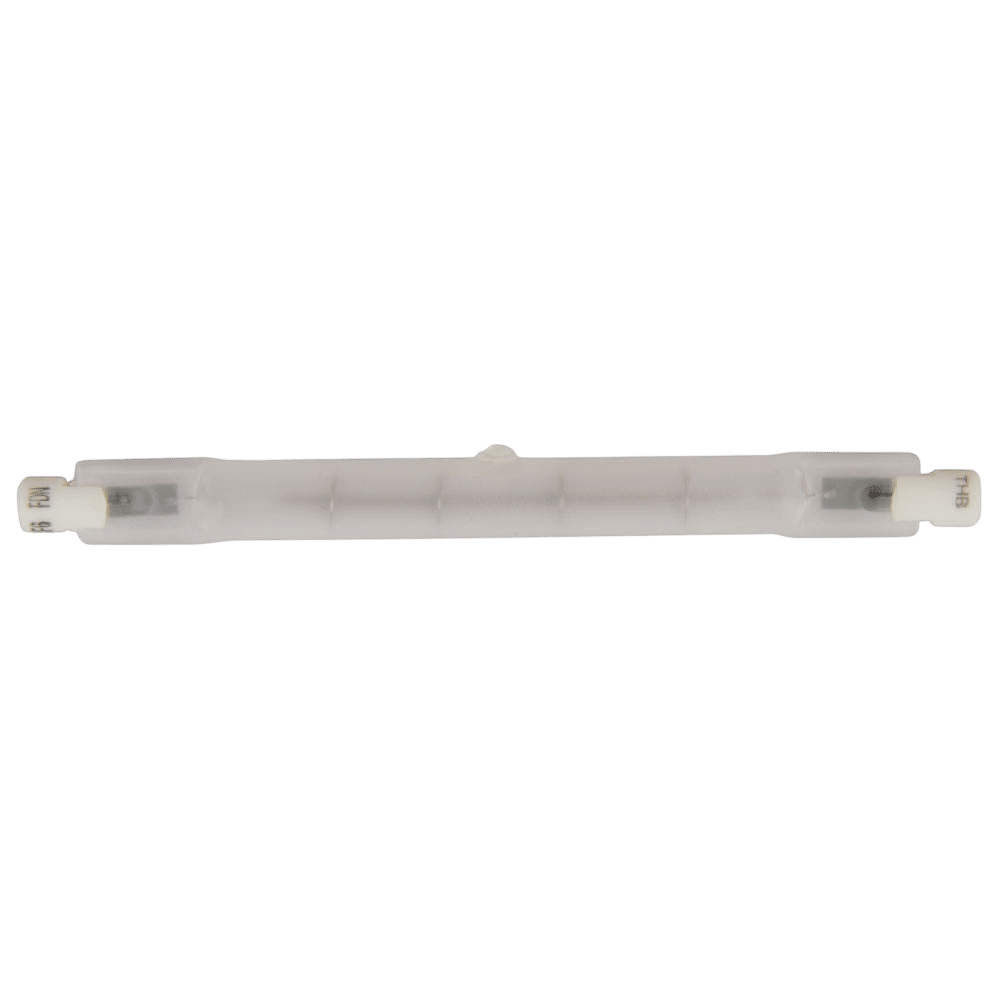

Designed for use in applications that require instant on/off response with rapid heat-up and cooldown rates. These heater assemblies are designed to operate in the short wavelength range of 2.5-1.2 microns (1600 to 4000°F peak emitter temperatures). These Universal 2000 Modular Housing assemblies utilize T3 (10mm) LMP sealed lamps. These rugged short wavelength units contain double ended lamps having quick connect RSC/R7s bases for easy lamp access without disassembly of housing or removing heater from installation. The Quartz IR heat lamps are mounted at the focal point of a polished aluminum reflector within the housing. These units are available in a variety of sizes and power combinations.
