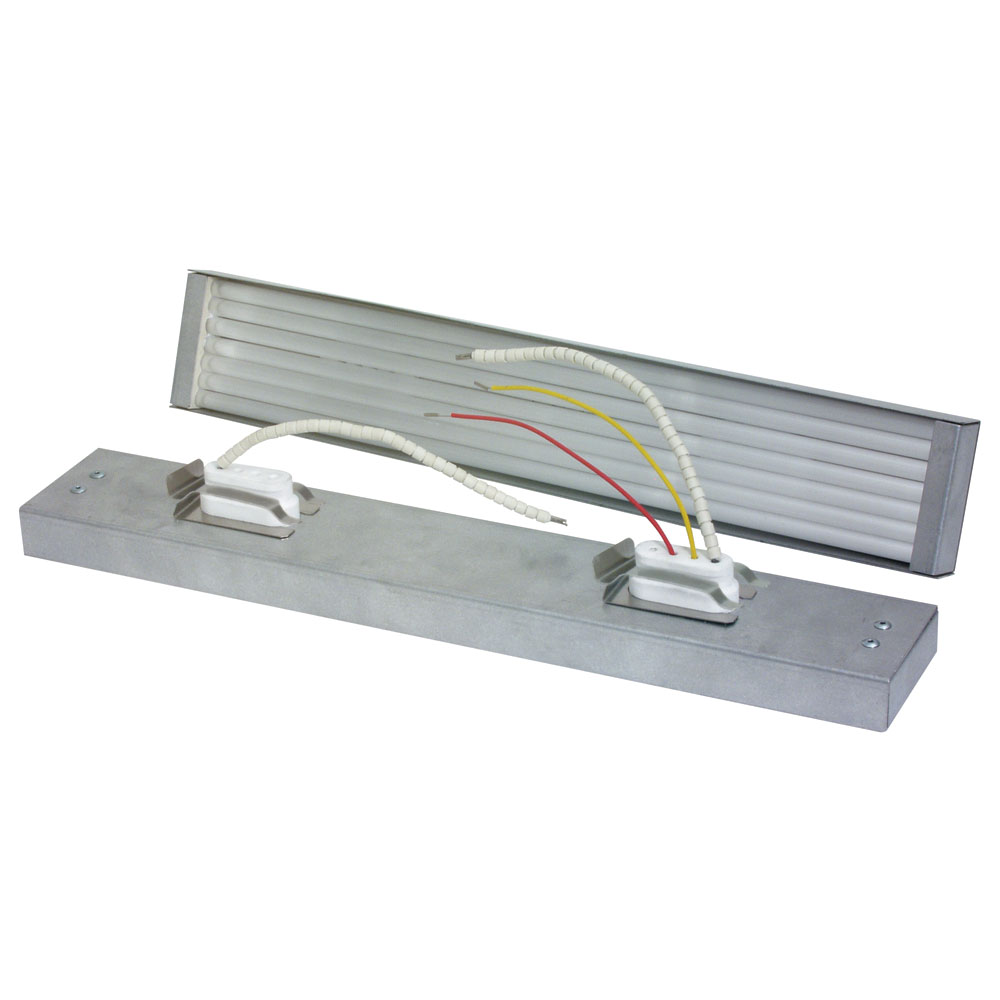

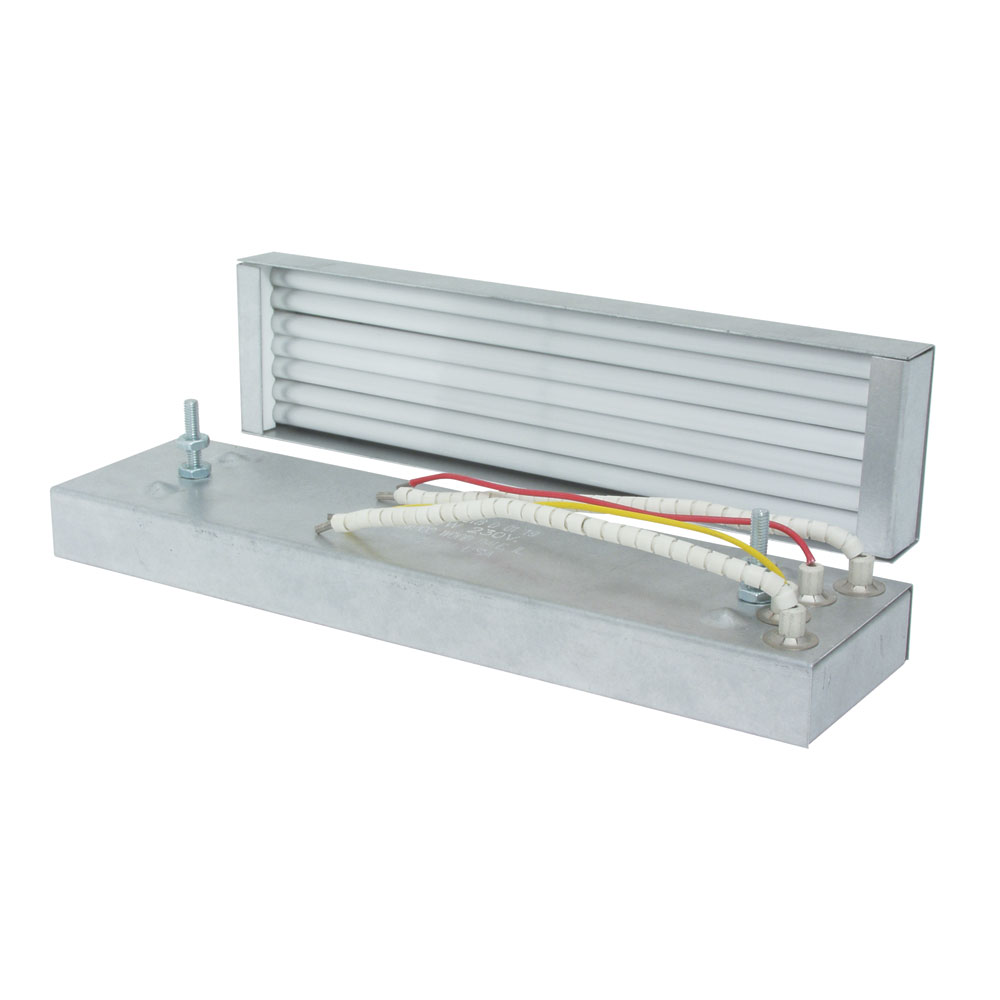

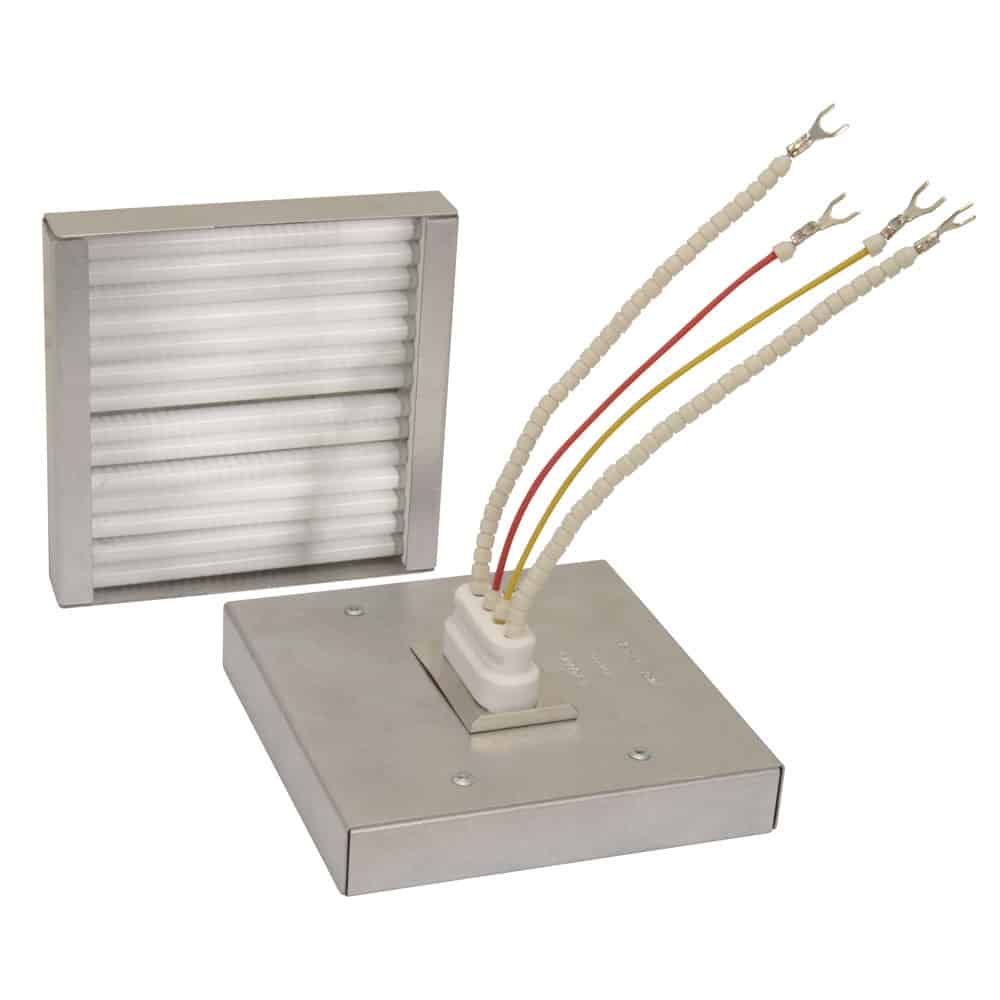

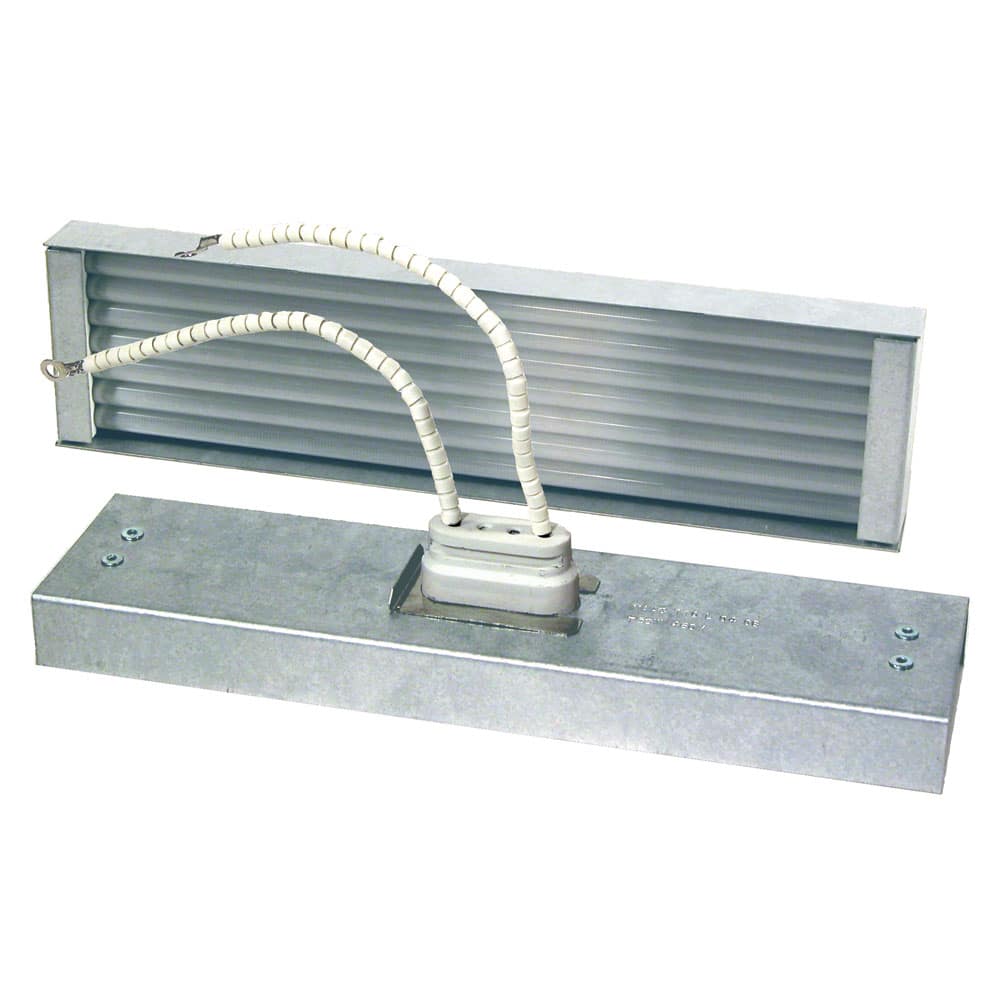

Type KTE Elements

Design Features

• Translucent Tubes
• Standard industry sizes and ratings up to 60 w/in2 (interchangeable with CRC, CRB, CRN and CRZ ceramic heaters).
• Highly reflective rugged aluminized steel housing construction.
• Rapid response — 2.5 to 7.5 deg F / sec. heat-up / cool-down rates, depending on unit watt density.
• Medium wavelength output (2.5 – 6 microns).
• Standard winding pattern gives uniform heating over entire face of heater. (Consult factory for custom or high intensity winding patterns and/or sizes.)
• Optional built-in type K or J T/C available in center of unit face.
• Ideal for systems requiring small area zoning and close control of process.
• Best when used at radiation distances of 4 – 10" from work.
• Suitable for horizontal or vertical operation with tubes in horizontal plane.
• Designed for use in CRA linear structural housings and ARV array assemblies
• 120, 208, 240, 277 or 480V design (consult factory for 575V units)

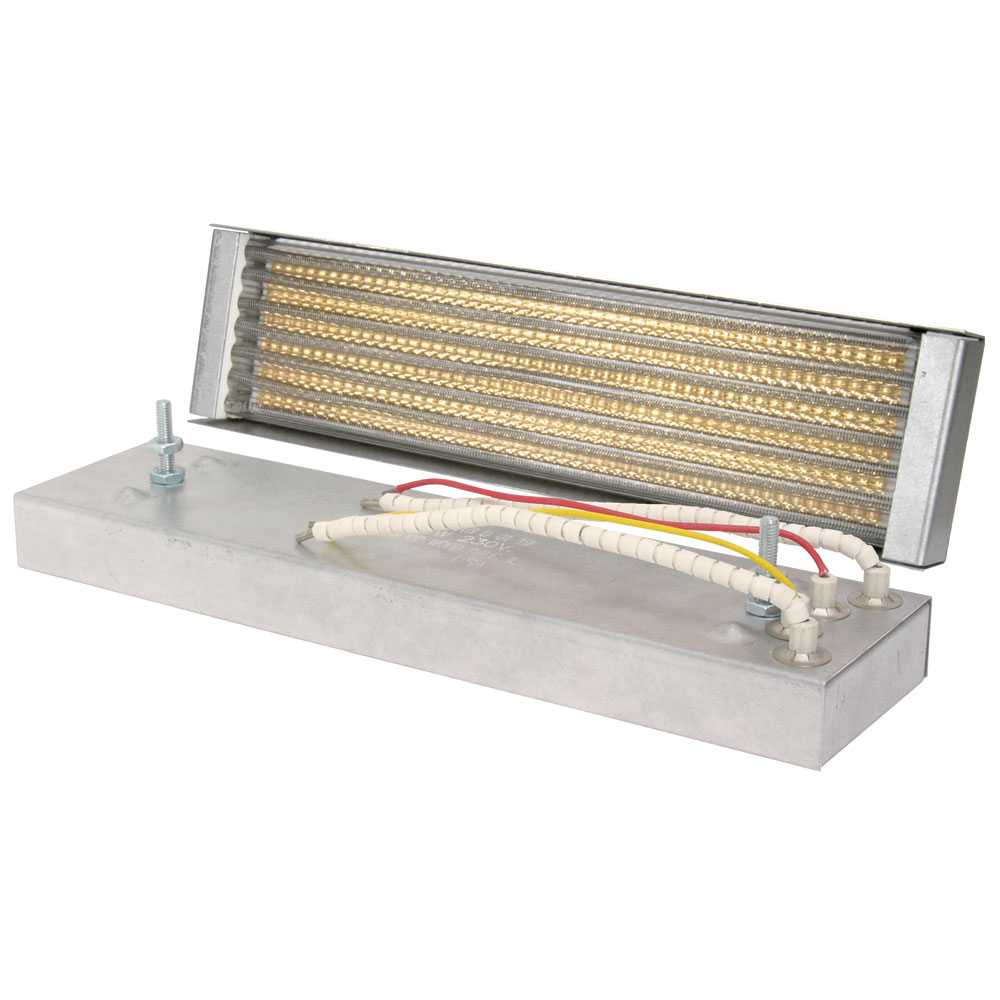

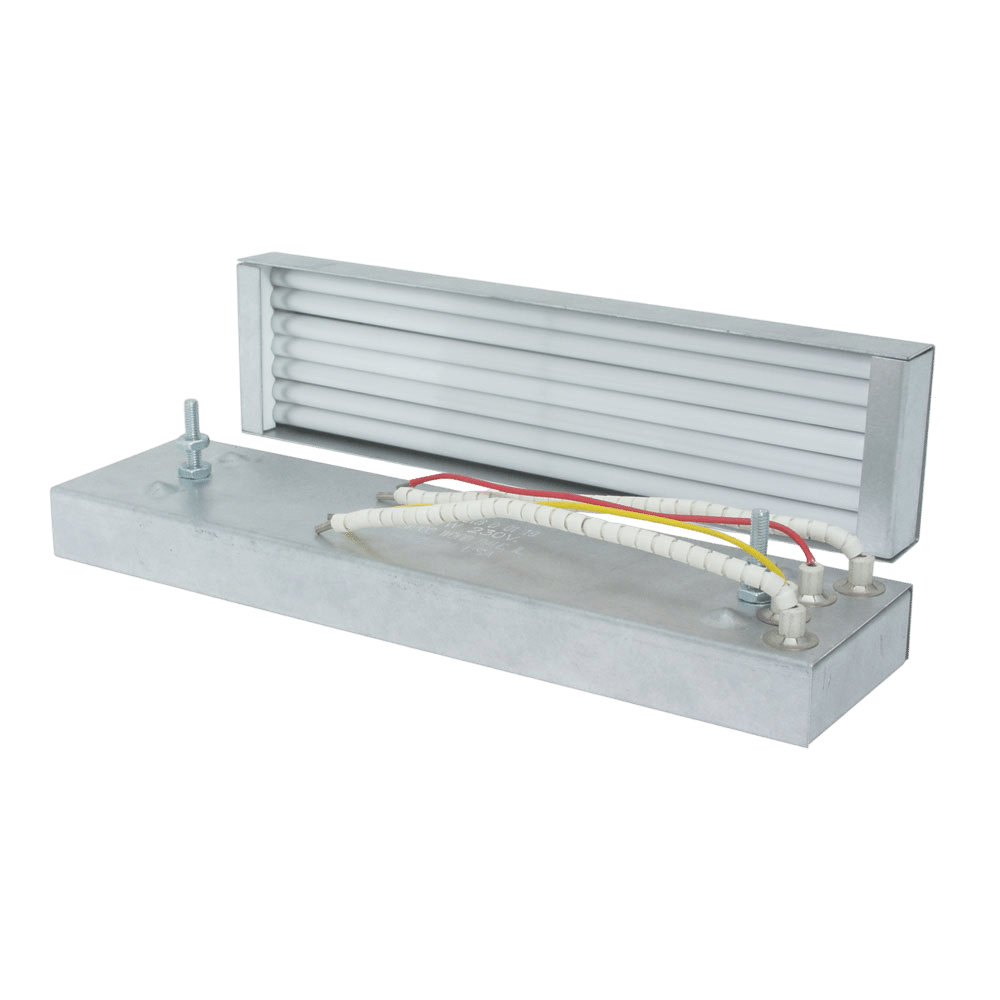

Type KTG Elements

Design Features

• Clear Tubes with Gold Coated Ceramic Backing: up to 95% reflective efficiency
• Standard industry sizes and ratings up to 60 w/in2 (interchangeable with CRC, CRB, CRN and CRZ ceramic heaters).
• Highly reflective rugged aluminized steel housing construction.
• Rapid response — 2.5 to 7.5 deg F / sec. heat-up / cool-down rates, depending on unit watt density.
• Medium wavelength output (2.5 – 6 microns).
• Standard winding pattern gives uniform heating over entire face of heater. (Consult factory for custom or high intensity winding patterns and/or sizes.)
• Optional built-in type K or J T/C available in center of unit face.
• Ideal for systems requiring small area zoning and close control of process.
• Best when used at radiation distances of 4 – 10" from work.
• Suitable for horizontal or vertical operation with tubes in horizontal plane.
• Designed for use in CRA linear structural housings and ARV array assemblies
• 120, 208, 240, 277 or 480V design (consult factory for 575V units)

None

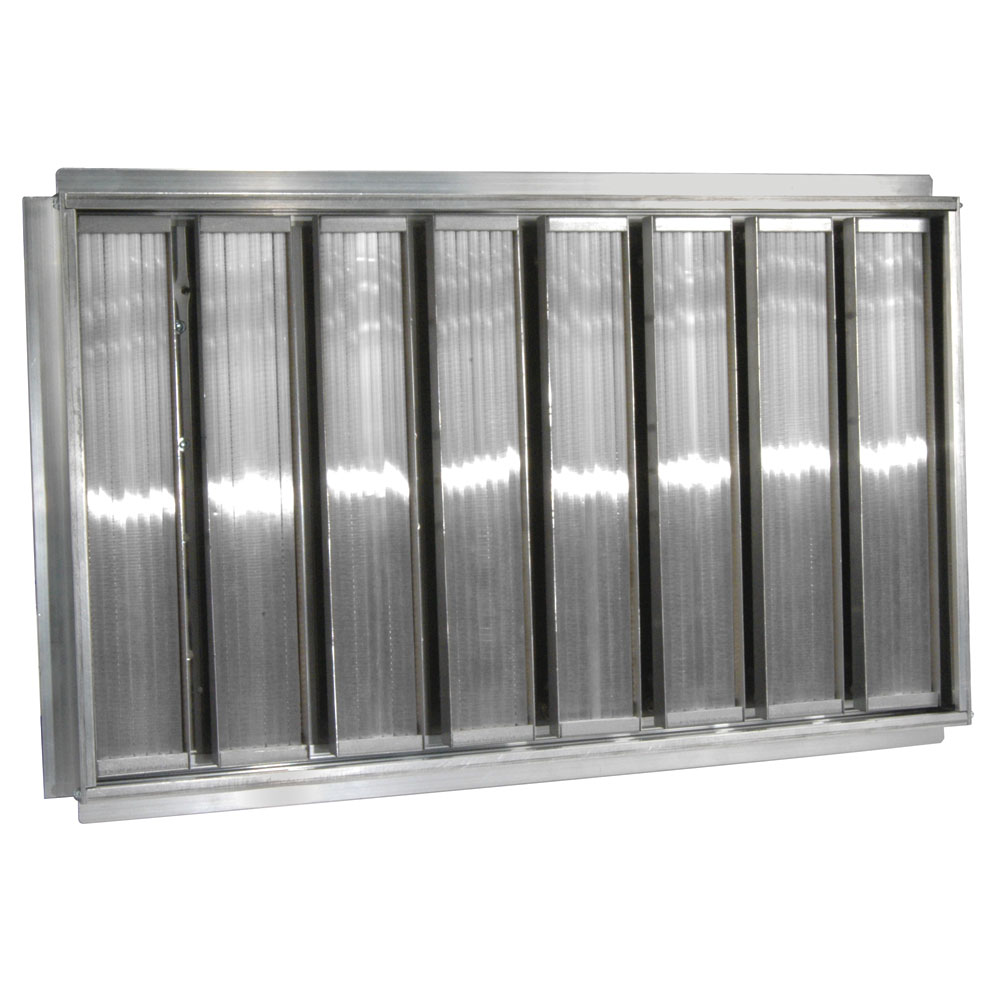

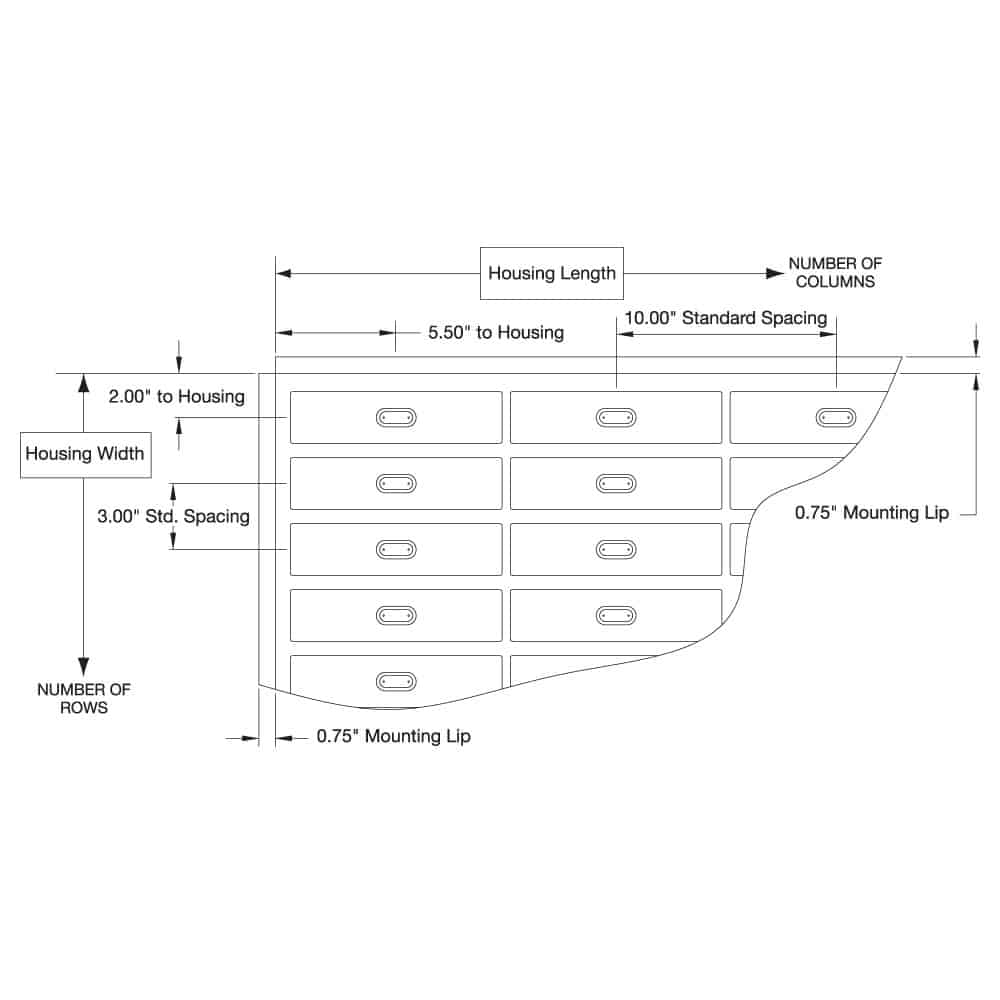

Type ARV, Series KTE1 Panel Arrays

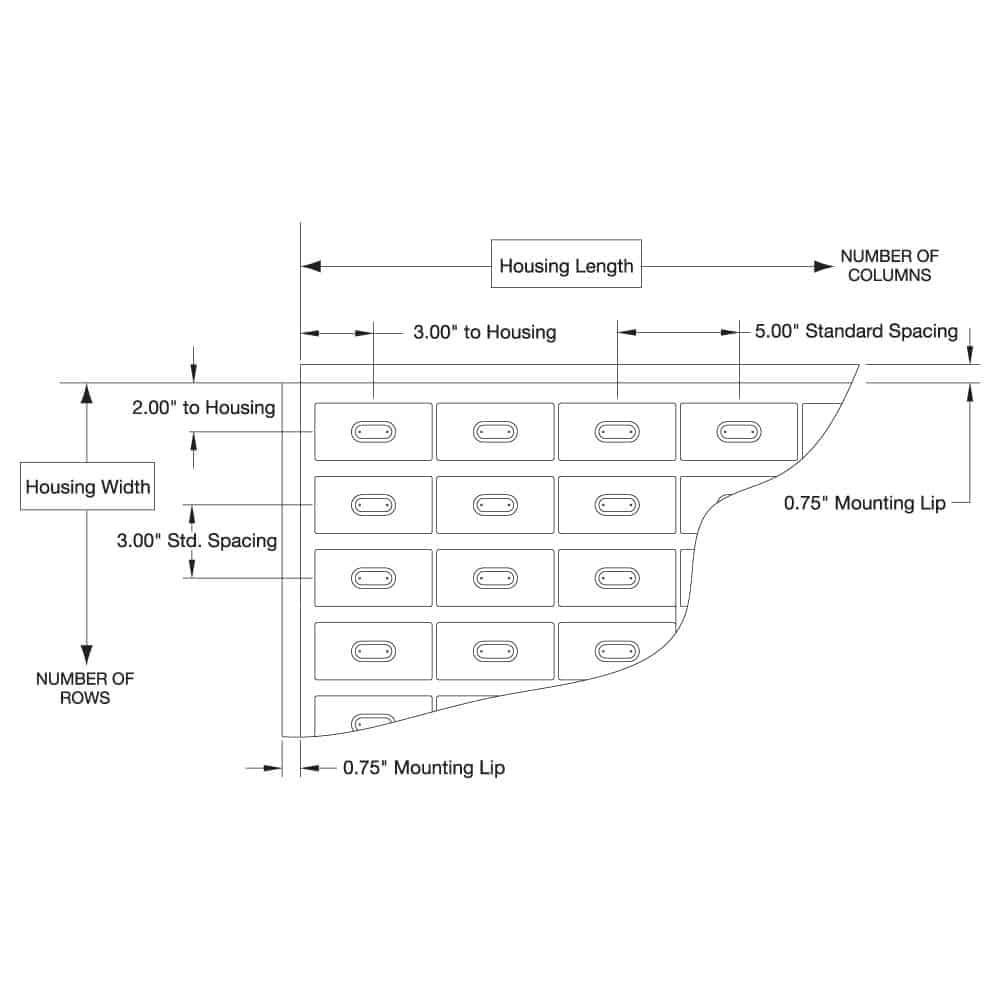

Type ARV, Series KTE2 Panel Arrays

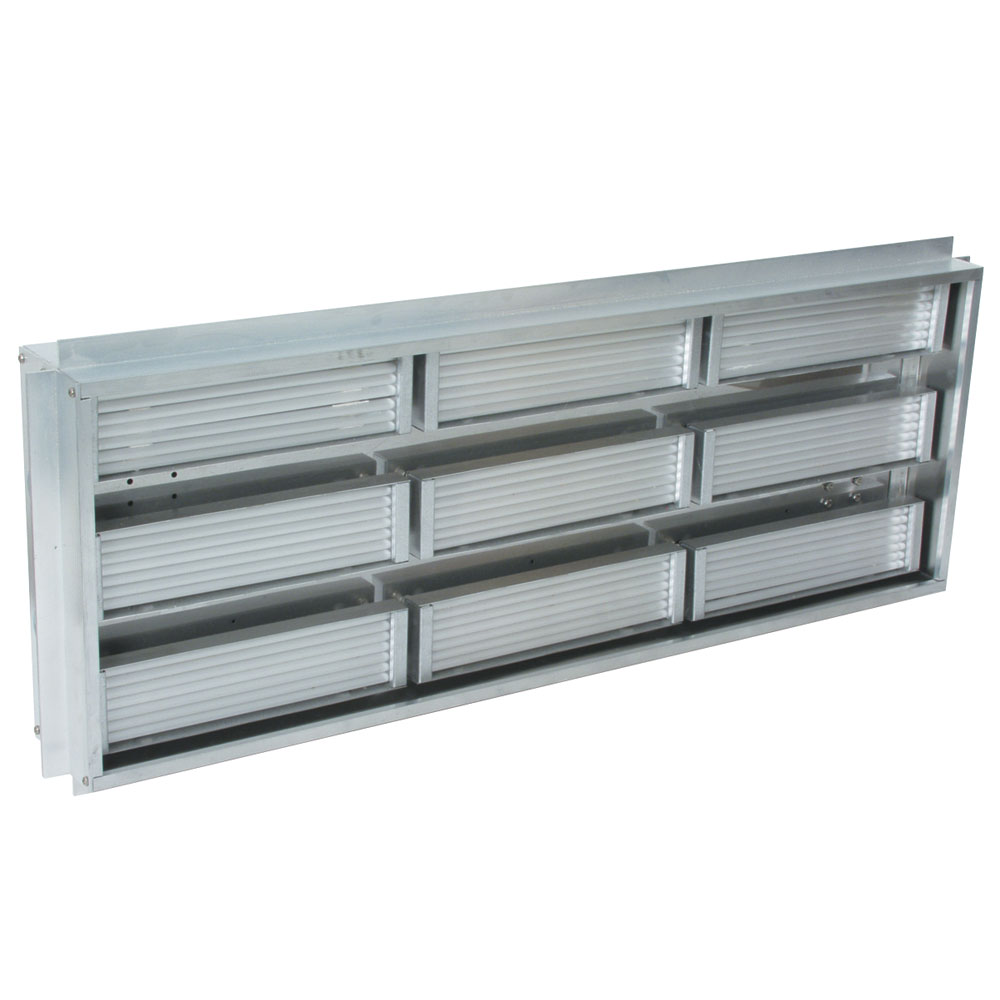

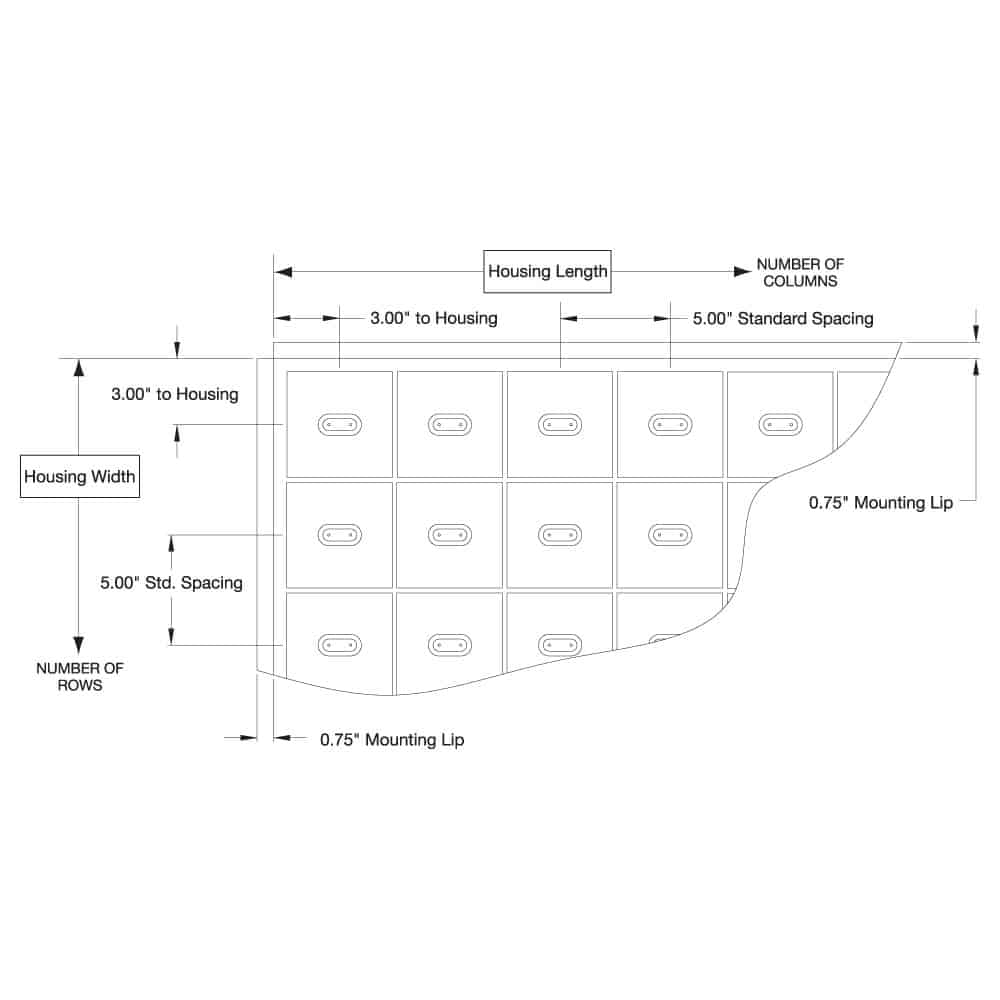

Type ARV, Series KTE6 & KTG6 Panel Arrays

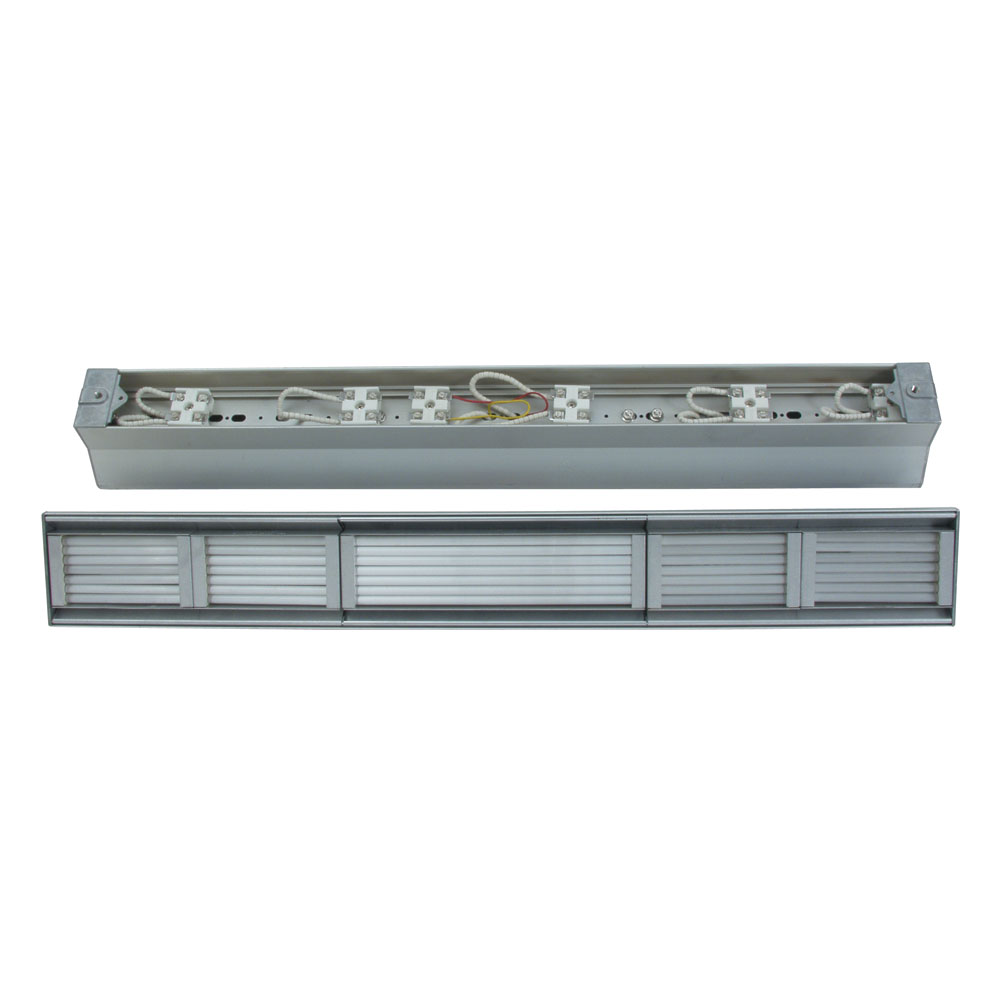

Type CRA Linear Housing

Design Features

• Type KTE or KTG E-Mitters
• Extruded aluminum housing
• Series Elements pre-wired to terminal blocks
• Reflectors
• Fully assembled, ready to install, with mounting hardware
• 1/2" trade size wiring entrance at both ends
• 40" 1000 Watt CRA10025 shown above

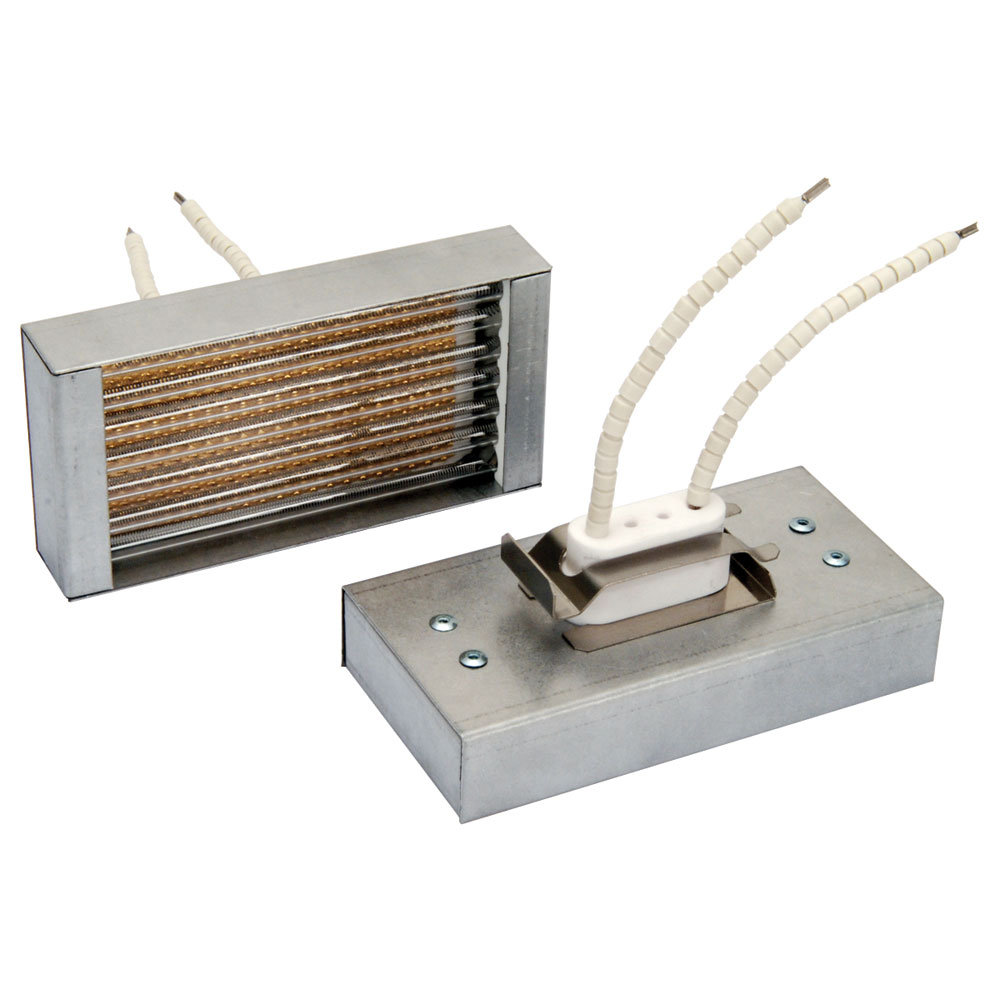

Series KTE1 & KTG1

Series KTE2 & KTG2

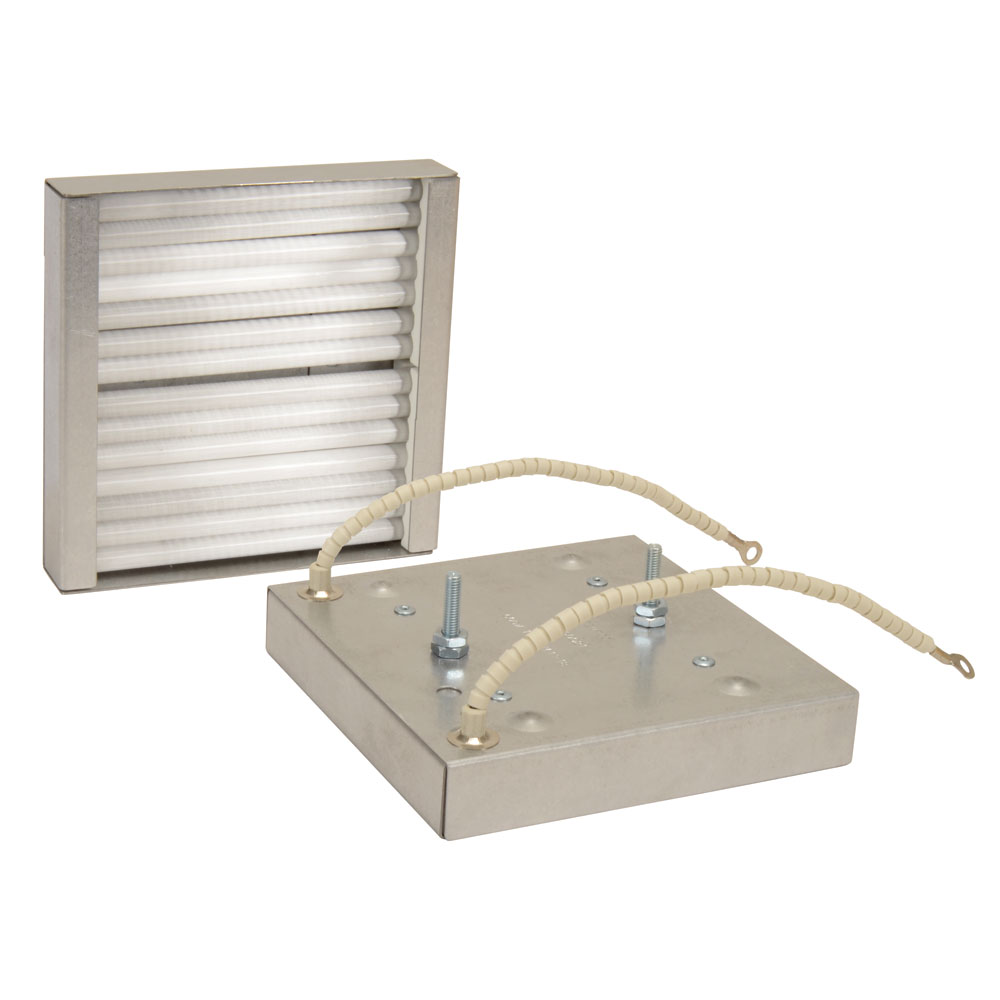

Series KTE3 & KTG3

Series KTE4 & KTG4

Series KTE5

Series KTE6 & KTG6

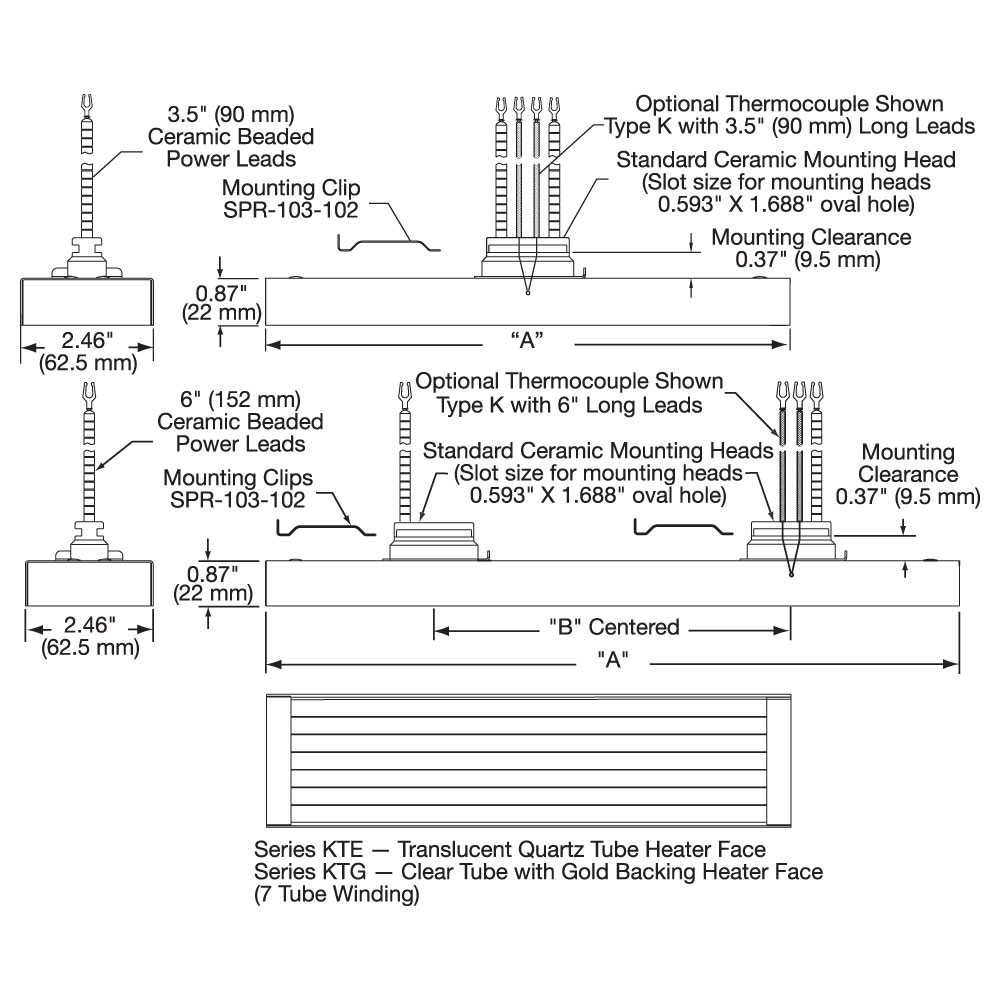

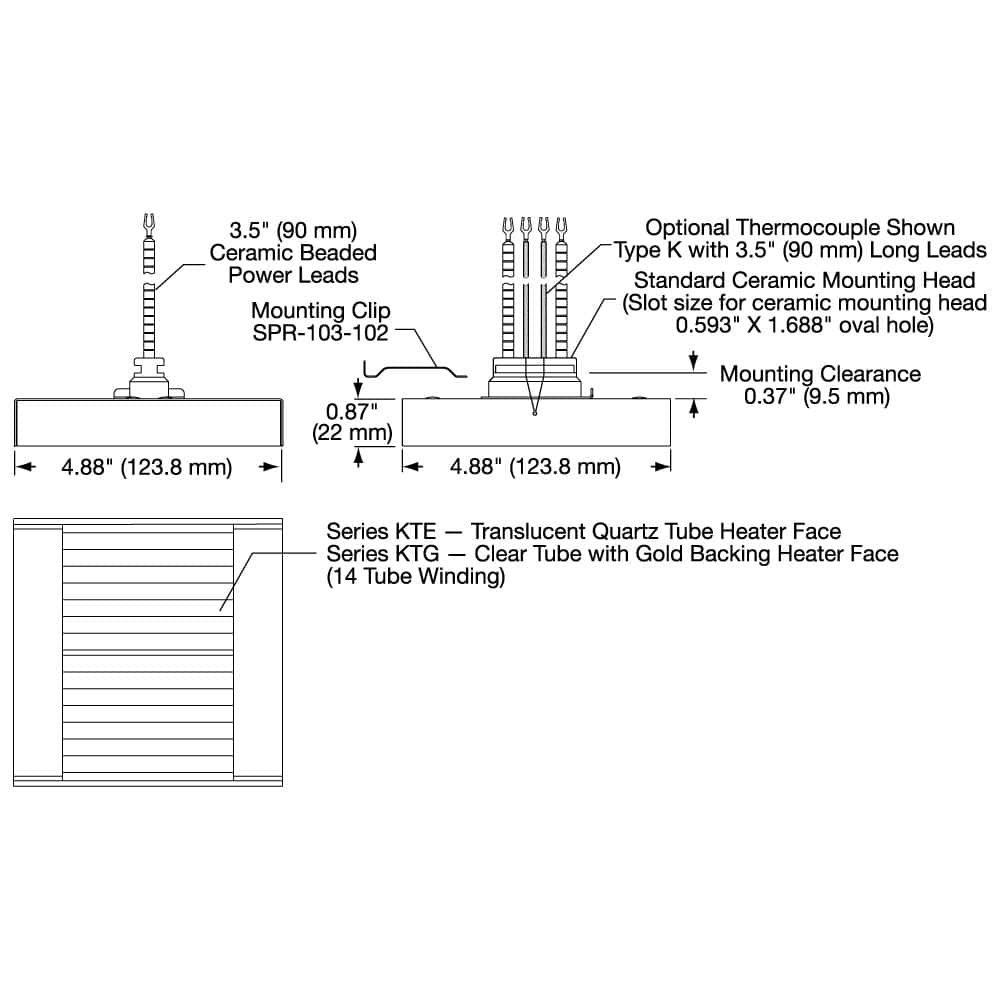

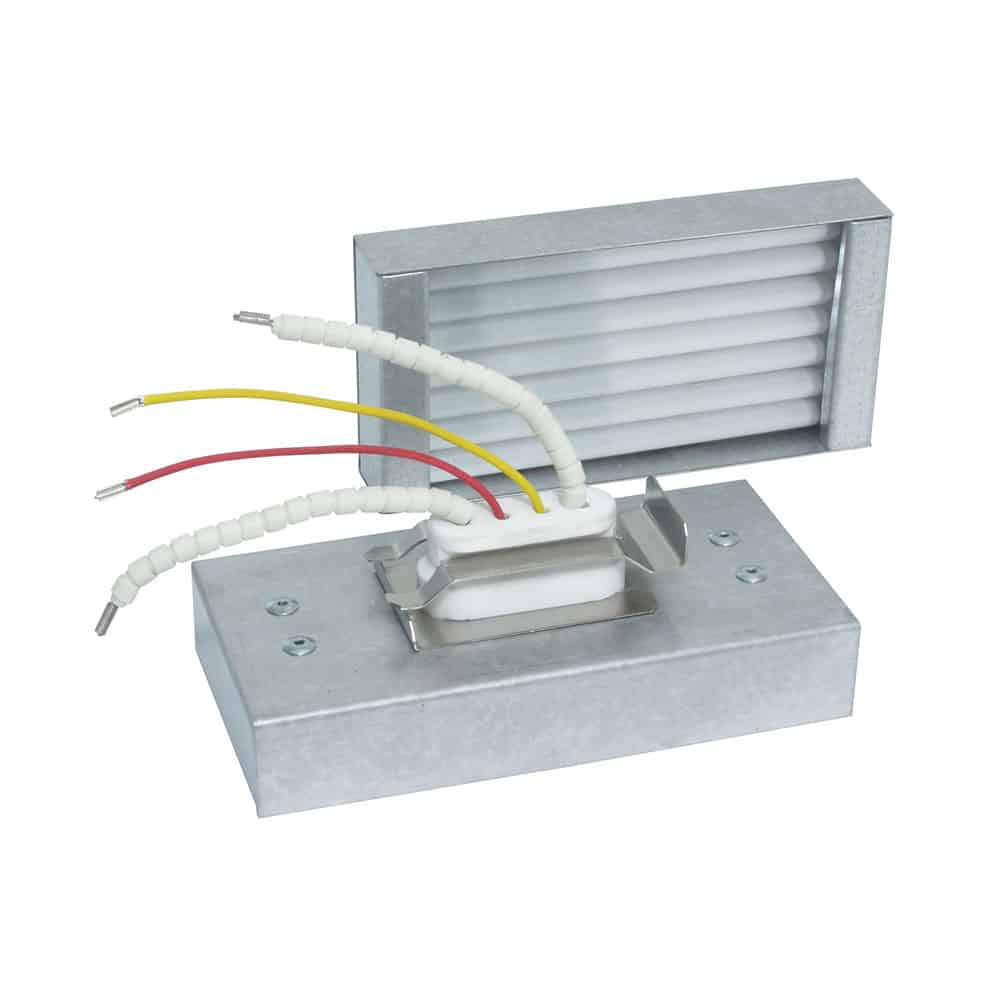

Style C - Double Cearmic Mount

Style C - Single Ceramic Mount

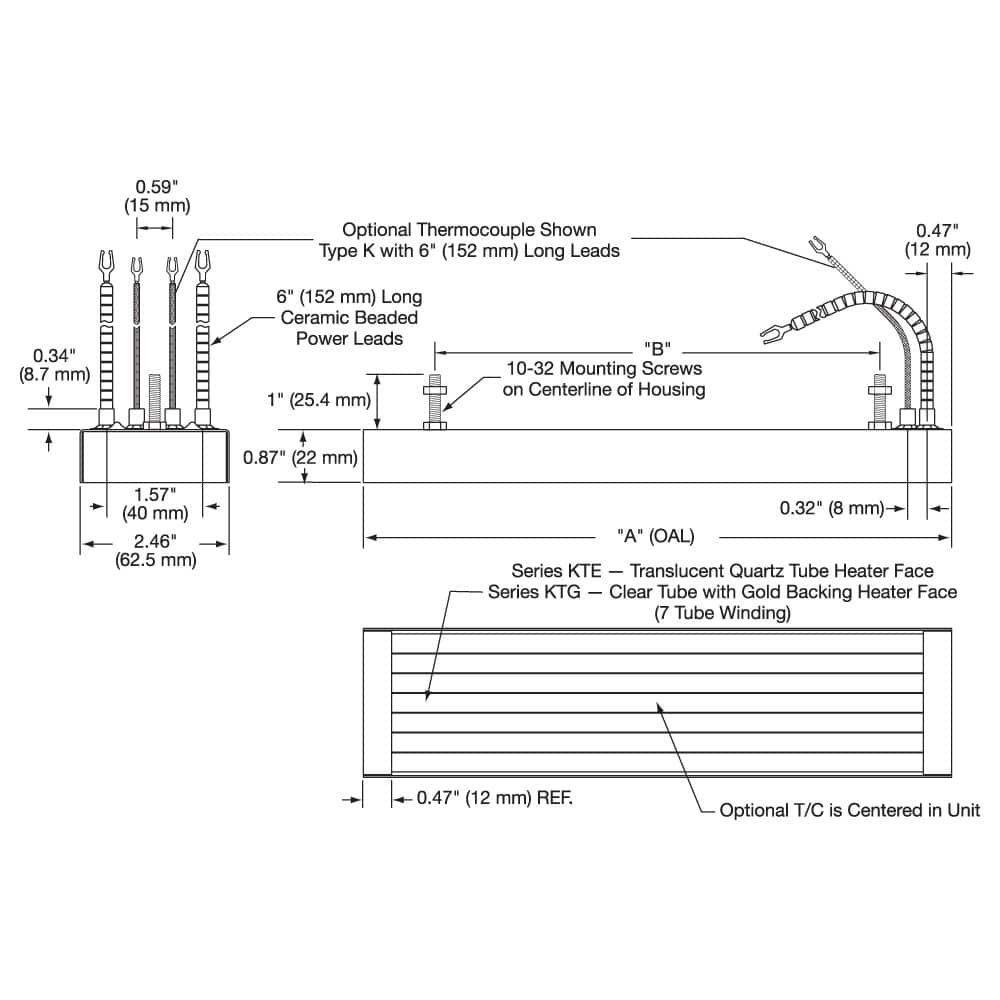

Style S - Studs

Lead Wire with Ceramic Beads
