Coil heater for 3D Printer



August 20, 2019

Coil Heater for 3D Printer

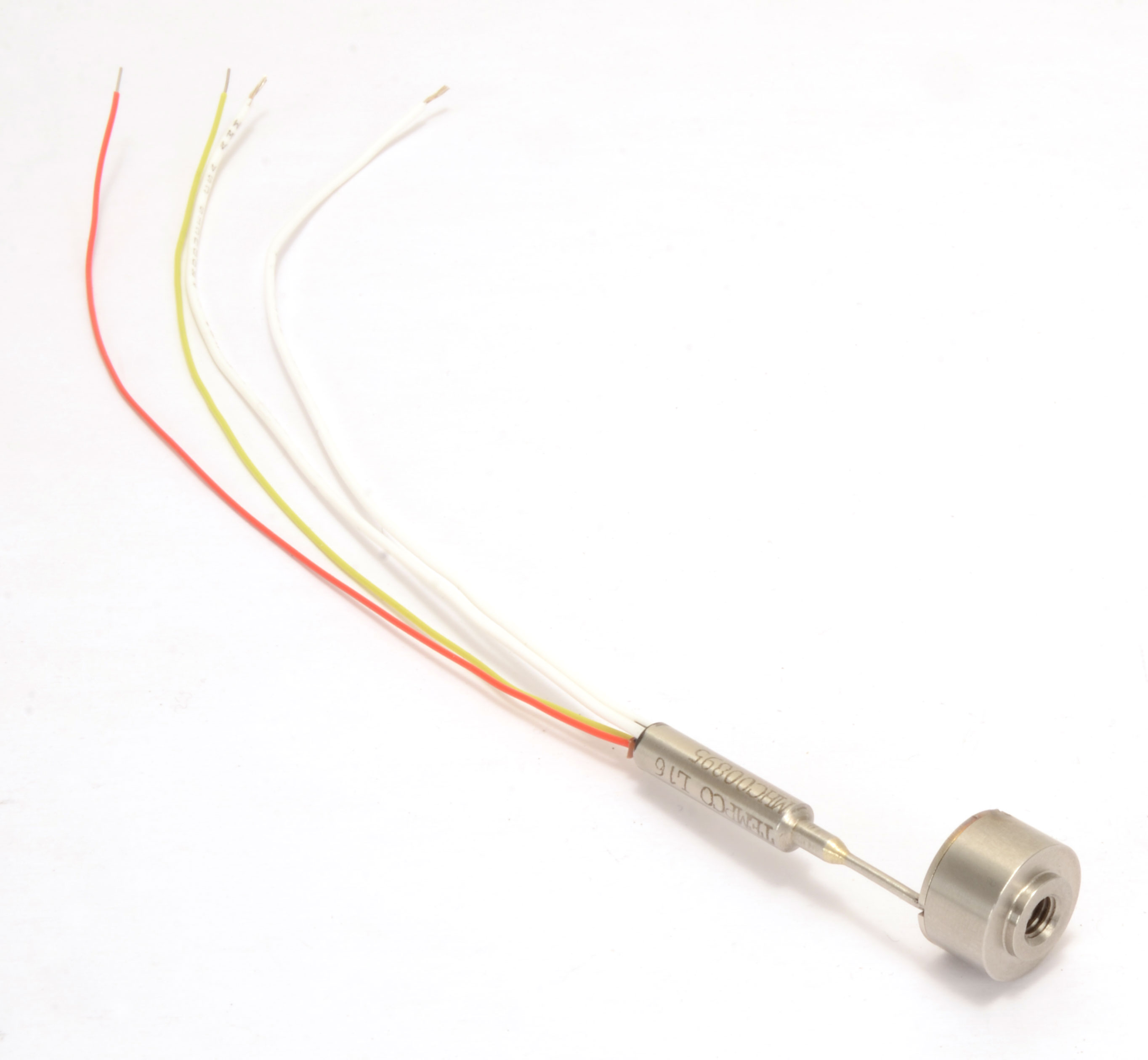

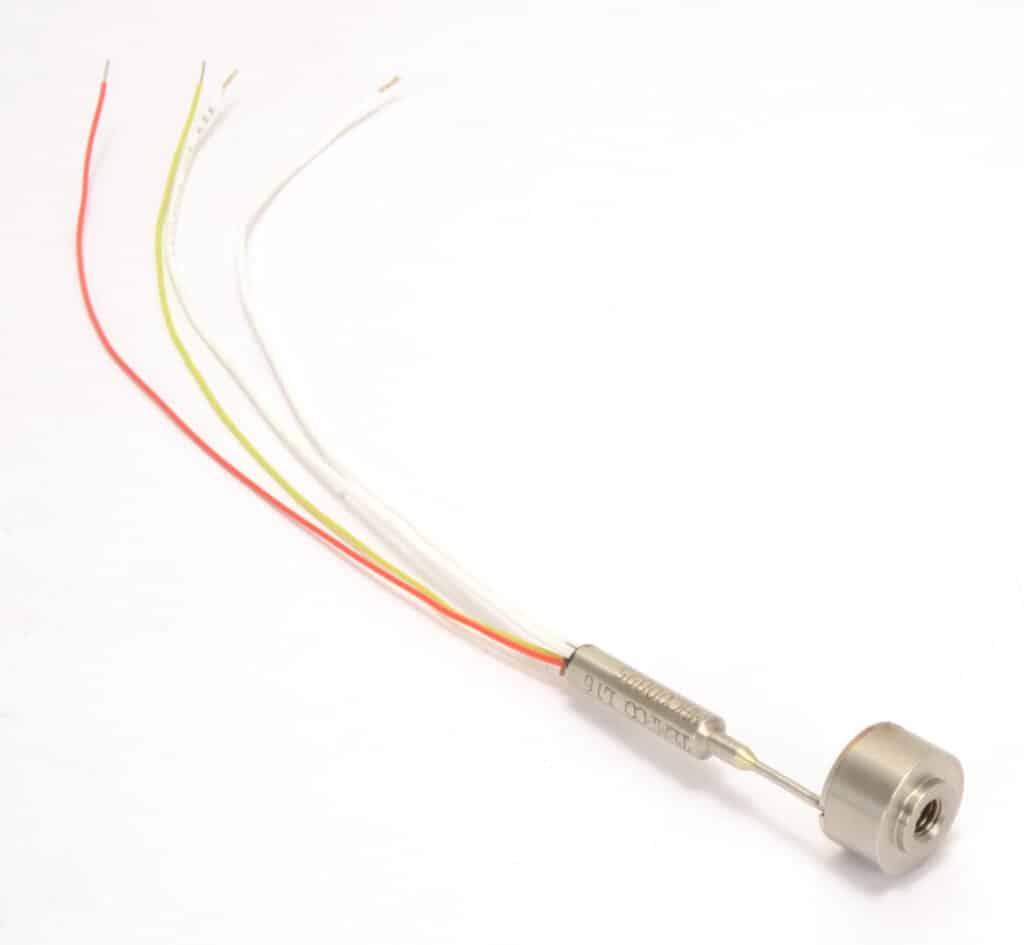

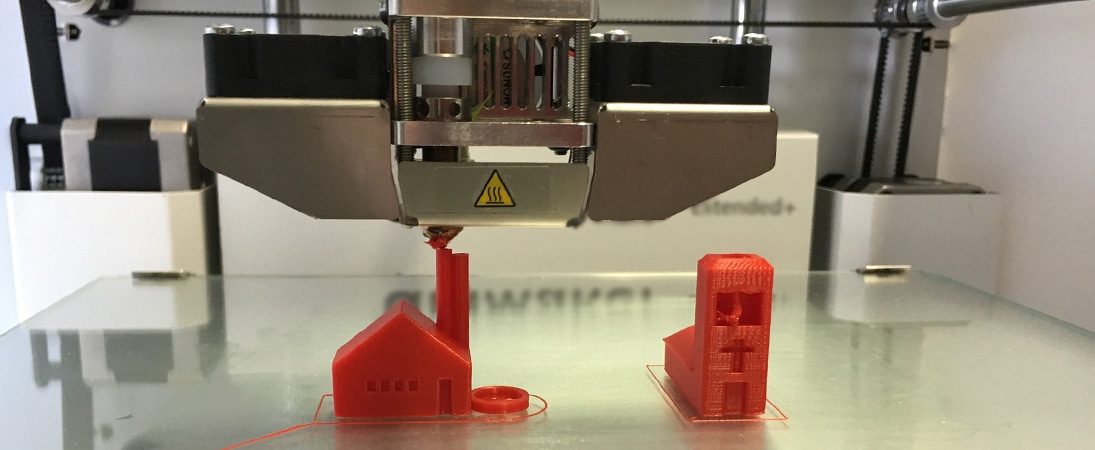

Tempco’s cable heaters and coil heaters are used in various industries and in diverse applications. A coil heater was designed and manufactured for a 3D printer manufacturer. The heater is installed to heat the extruder of the printer to melt plastic. The heater consists of a small coil heater with the following specifications:

  • Inconel 600 sheath
  • internal type “K” thermocouple
  • assembled in a stainless steel cylindrical housing with a 6MM threaded insert
  • housing diameter: 0.69"
  • housing width: 0.45"

The most significant and unique features of this high-performance heater are:

  • its small size
  • its high temperature capability
  • the integration of a temperature sensor within the heater that eliminates the need for an external sensor to reduce cost.
Ron V.

Product Engineering Manager
